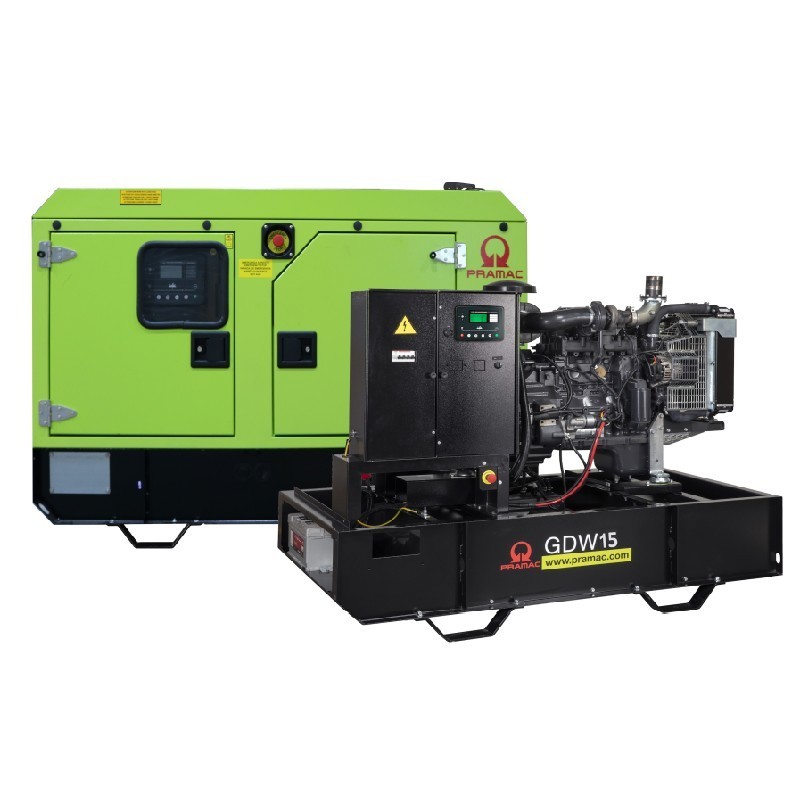

With a power rating of 12.9 kVA / 10.3 kW and an emergency power of 14.3 kVA / 11.4 kVA, the Pramac GDW15P Generator Set offers a reliable solution for industrial or commercial applications. It operates at 1500RPM and 50 Hz, ensuring stability and continuous performance under demanding conditions.
Thanks to its Perkins 403D-15G engine and an adjusted consumption of 2.73 L/h, it provides up to 24.91 hours of autonomy at 75% load. Its 68 L tank and liquid cooling ensure long, uninterrupted operation.
Includes Mecc Alte alternator, IP23 protection, and an 80 Ah battery for efficient starting. Its compact and rugged design makes it ideal for installations where space and reliability are key.
MODEL | GDW15P/FS3A |
Frequency | 50 Hz |
Rotational Speed | 1500RPM |
Power Factor | 0.8 ϕ |
Rated Power (KVA/KW) | 12.9 kVA / 10.3 kW |
Emergency Power (KVA/KW) | 14.3 kVA / 11.4 kW |
Motor | |
Autonomy at 75% | 24.91 h (8PFT) |
Consumption at 75% load | 2.73 L/h |
Refrigerant capacity | 6 L |
Standard tank capacity | 68 L (8PFT) |
Engine model | 403D-15G |
Number of cylinders | 3 in line |
Intake | Natural |
Oil capacity | 6 L |
Displacement | 1496 cc |
Alternator Specifications | |
Alternator | Mecc Alte |
Model | ECP3-2L4C |
Connections | Star Series |
Frequency | 50 Hz |
Voltage | 400 V |
Phases | 3 |
Power factor | 0.8 ϕ |
Emergency power (27ºC) | 14.5 kVA |
Nominal power (40ºC) | 13.5 kVA |
Efficiency @ 100% | 86.1% |
Type | Brushless |
Poles | 4 |
Voltage tolerance | ±1% |
Class | H |
Protection | IP 23 |
Battery values | |
Battery voltage | 12 V |
Battery capacity | 80 Ah |
Voltage | 400/230 V |
Frequency | 50 Hz |
Phases | 3 |
Power factor | 0.8 ϕ |
Maximum current | 21 A |
Rated current | 19 A |
Thermomagnetic circuit breaker | 20 A |
Weight and Dimensions | |
Open weight | 544 Kg |
Weight Insulated | 655 Kg |
Open Dimensions (cm) | 157 x 90 x 108 |
Soundproof Dimensions (cm) | 181 x 93 x 129 |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement , unless an examination is pending. |
The batteries included in some machines are a free gift, so they are exempt from warranty. |
