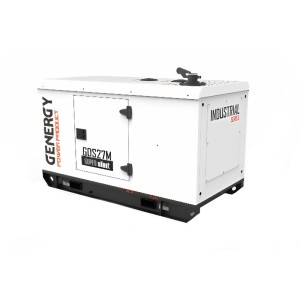

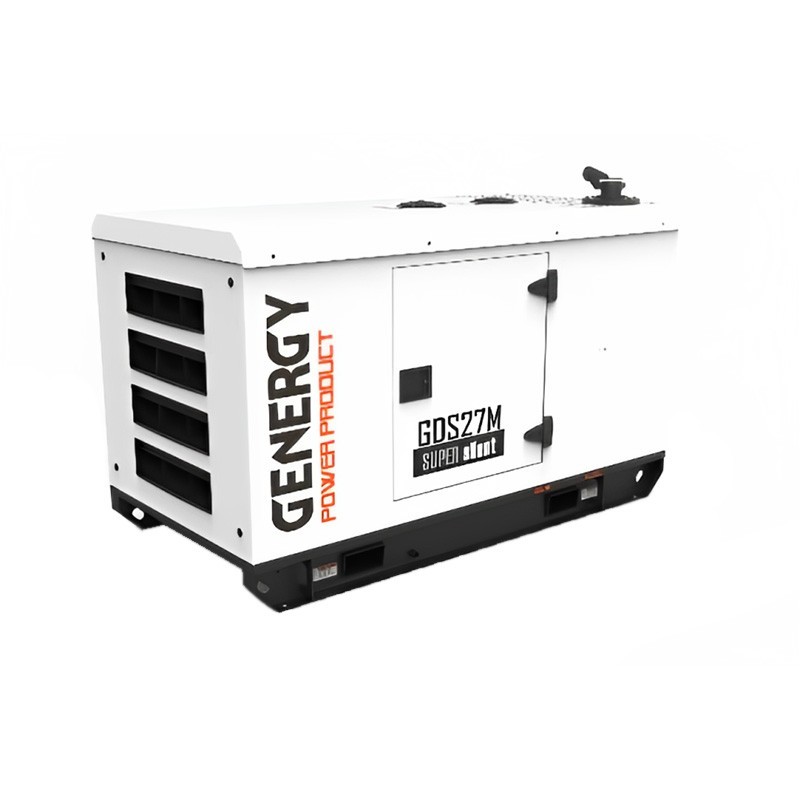

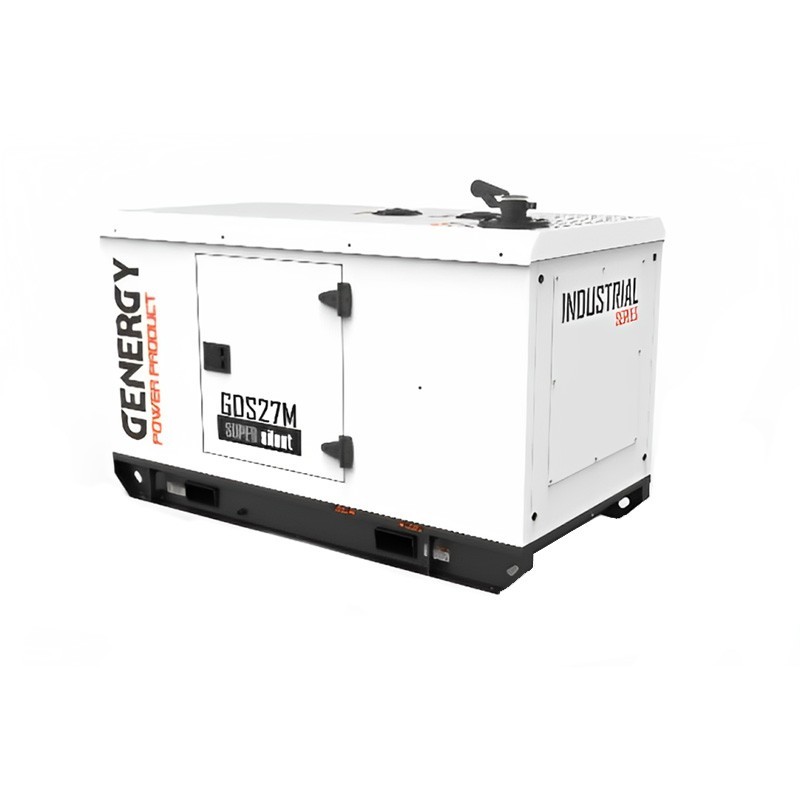

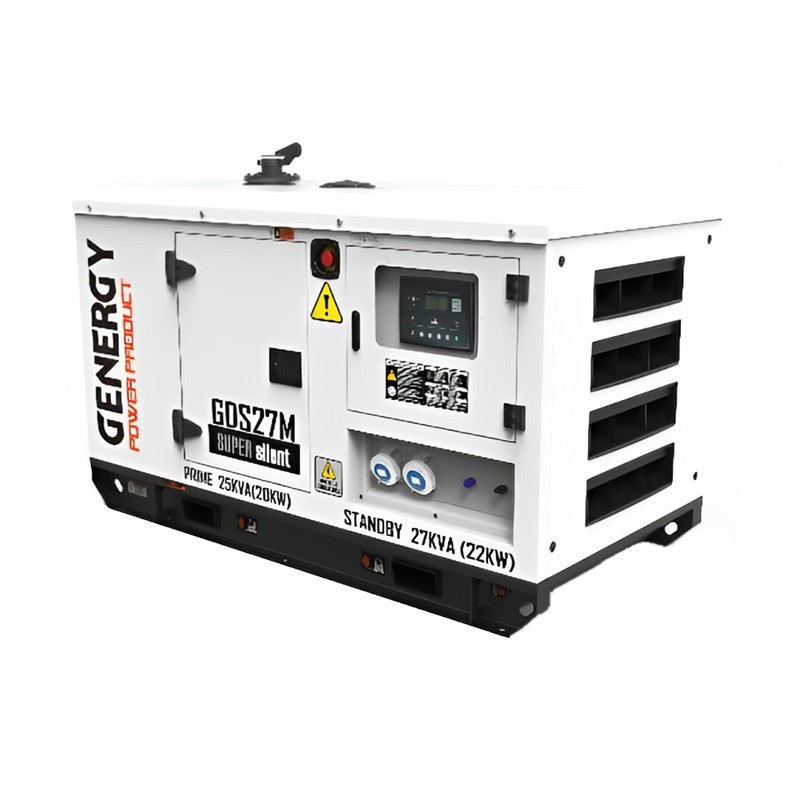

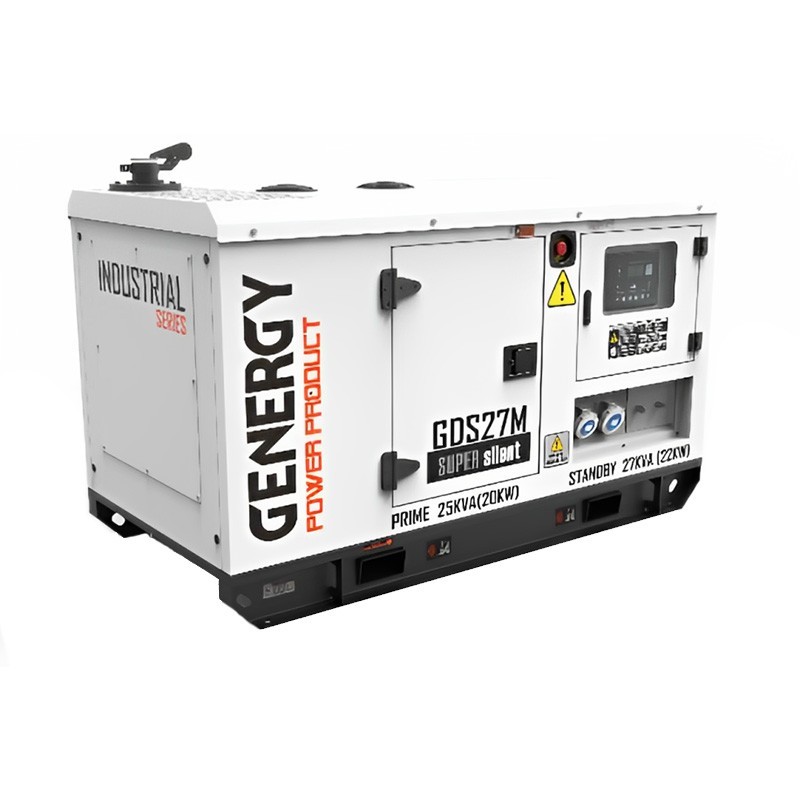

The Single Phase Genset Genergy GDS27M 27kVA is equipped with a copper coil and has a displacement of 3298 cc. Its fuel consumption is 1.73l/h - 3.45l/h - 5.18l/h - 6.9l/h at 25% 50% - 75% - 100% of its power respectively.
Its current type is single-phase, with dimensions of 2050x950x1100 mm, and has a voltage of 230V. With a frequency of 50 Hz and a fuel tank capacity of 80L, its average sound pressure is 70dB.
The Single Phase Genset Genergy GDS27M 27kVA has a nominal power of 25 kVA / 20 kW and a maximum power of 27 kVA / 22 kW, with an Electronic stabilization system "AVR", and its weight is 920 Kg.
| GENERATOR MODEL | GDS27M (REF 20025) |

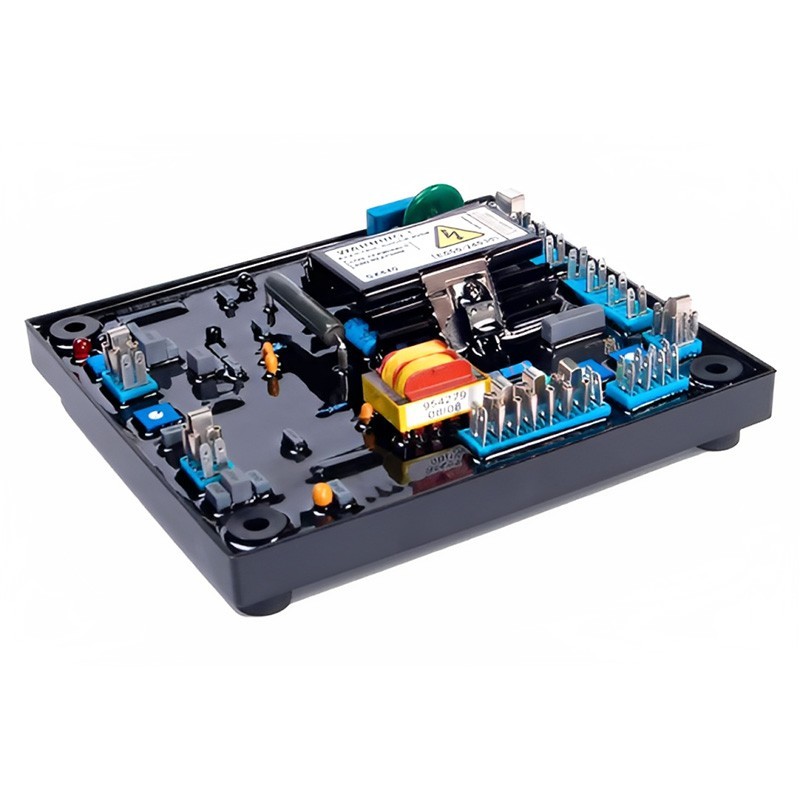

| Stabilization system | AVR" electronics |
| Voltage - Frequency | 230V - 50Hz |
| Maximum Power | 25 kVA (20kW) |
| Nominal Power | 27 kVA (22kW) |
| Power Factor | 0.8 |
| Nominal current | 109 A |
| Average sound pressure at 7Mts LpA | 72 dB |
| Guaranteed sound power level LwA 2000/14/EC Amendment 2005/88/EC | 97 dB |
| Start-up type | Electric |
| Fuel tank capacity | 80 L |
| Fuel consumption 25% 50% 75% 100% (L/H) | 1.73 - 3.45 - 5.18 - 6.9 |
| General protection degree | IP23 |
| Dimensions | 2050x950x1100mm |
| Weight | 920 Kg |
| ALTERNATOR | SINC184EFX |
| Nominal speed - Number of poles | 1500RPM - 4 |
| Excitation system | Self-excited |
| Phases | Single phase |
| Total harmonic distortion | No load |
| Telephone interference | >2% |
| Efficiency | 83.2% |
| Insulation grade | H |
| Degree of protection | IP23 |
| MOTOR | GENERGY-SDE4100DY |
| Displacement | 3298 cc |
| Speed control | Mechanics |
| Number of cylinders and arrangement | 4 in line |
| Injection system | Direct |
| Aspiration | Natural |
| Cooling system | Water |
| Diameter X Stroke | 100x105 mm |
| Motor drive power | 27 kW |
| Lubrication oil capacity | 10L (SAE10W40) |
| Coolant capacity | 12 L |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
