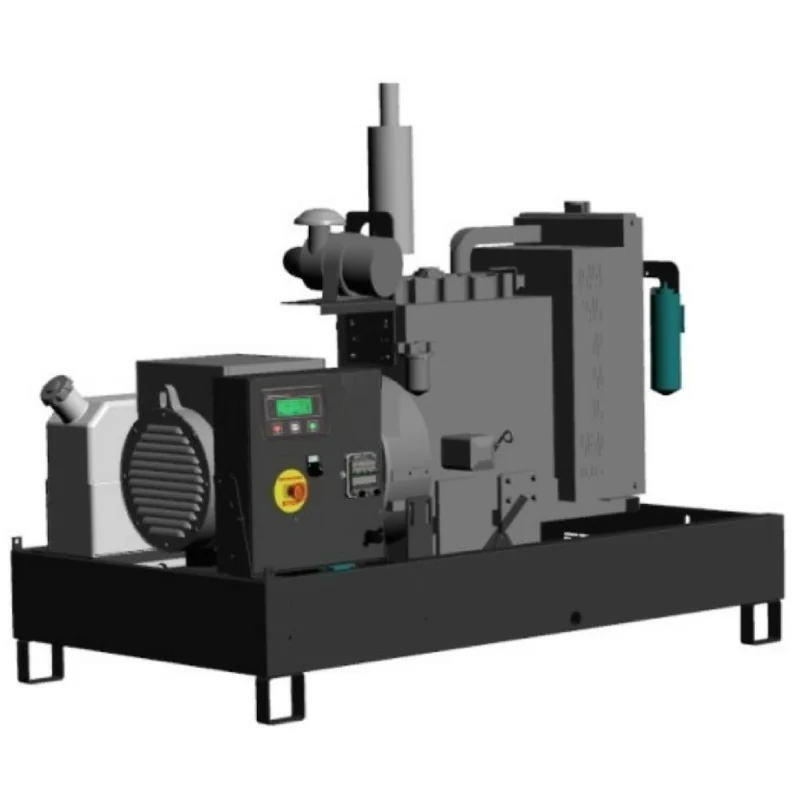

The GBW35Y generator set is designed to provide reliable power supply with a rated power of 35.48 kVA. Equipped with a 4-cylinder Yanmar 4TNV98-IGPGE engine and a water cooling system , it ensures efficient and stable performance under demanding conditions, while the mechanical speed governor optimizes its operation.
Thanks to its autonomy of up to 7.45 hours at 75% load and its low fuel consumption, it is an efficient choice for extended operations. In addition, the Mecc Alte alternator ensures high energy efficiency and constant performance.
With dimensions of 200 x 92 x 110 cm and a weight of 538 kg, the GBW35Y is perfect for small spaces. Its 51 L tank allows long hours of operation without refueling, making it a reliable solution for various applications.
| MODEL | GBW35Y |
| Frequency | 50 Hz |
| Voltage | 400 V |
| Power factor | 0.8 ϕ |
| Phases | 3 |
| Emergency Power (kVA/kW) | 37.34 kVA / 29.87 kW |
| Rated Power (kVA/kW) | 35.48 kVA / 28.38 kW |
| Motor | |
| Engine Make | Yanmar |
| Model | 4TNV98-IGPGE |
| Cooling System | Water |
| Number of cylinders | 4 in line |
| Displacement | 3319 cc |
| Intake | Natural |
| Speed regulator | Mechanical |
| Prime gross power | 32.9 kW |
| Maximum power | 34.6 kW |
| Oil capacity | 11.2 L |
| Coolant capacity | 8 L |
| Fuel | Diesel |
| Consumption at 75% load | 6.85 L/h |
| Consumption at 100% load | 9.20 L/h |
| Autonomy at 75% load | 7.45 h |
| Autonomy at 100% load | 5.54 h |
| Starting system | Electric |
| Starting capacity | 2.3 kW |
| System voltage | 12 V |
| Alternator Specifications | |
| Alternator | Mecc Alte |
| Model | ECP32 1S/4C |
| Voltage | 400 V |
| Frequency | 50 Hz |
| Power factor | 0.8 ϕ |
| Poles | 4 |
| Type | Brushless |
| Voltage tolerance | ±1% |
| Efficiency at 75% load | 88.7% |
| Class | H |
| Protection | IP 23 |
| Weight and Dimensions | |
| Dimensions (cm) | 200 x 92 x 110 |
| Dry weight | 538 Kg |
| Tank capacity | 51 L |
| Tank material | Plastic |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
