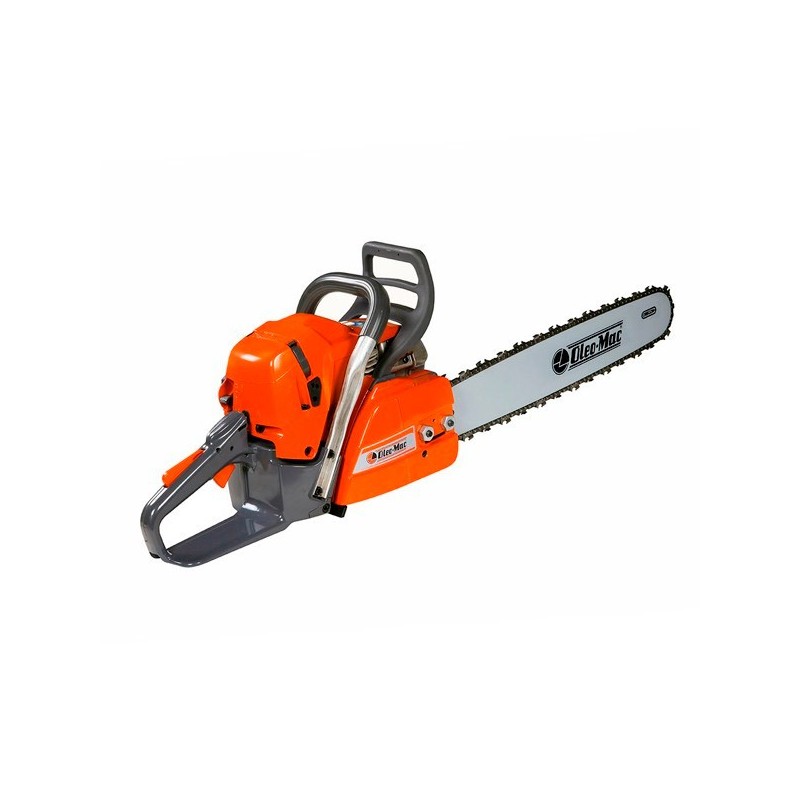

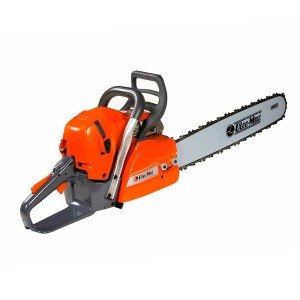

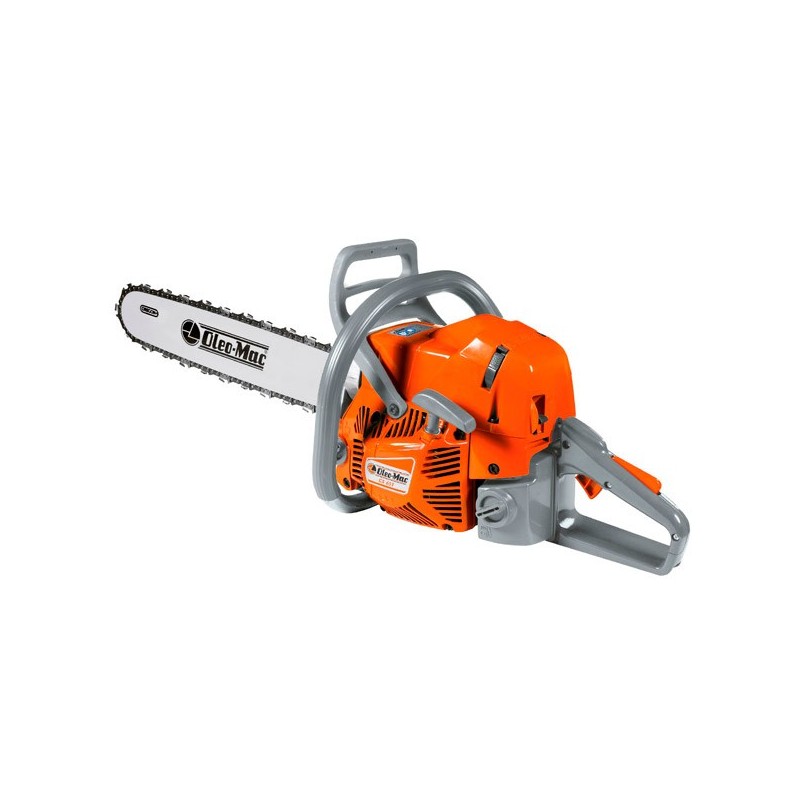

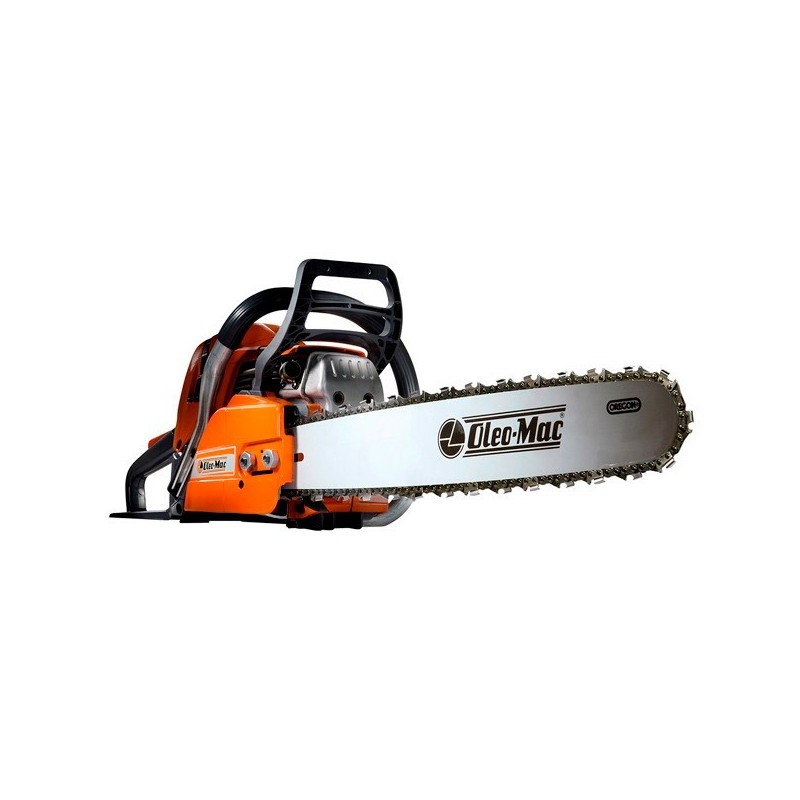

The chainsaw Oleo Mac GS 651 It features a 2-stroke Emak engine (EURO 5). This provides us with a power of 4.7HP / 3.5kW (9,000rpm) and a displacement of 63.4 cc. It also has a maximum fuel consumption of 1850 g/h (9,000rpm).
This model of chainsaw Oleo Mac It features a capacitive electronic ignition system. This includes a Champion spark plug RCJ-4. The GS 651 model It features a digital electronic coil. It weighs only 2.7 kg.
The chainsaw offers a system of power Supply and lubrication with Walbro HD 48A carburetor. It has a non-adjustable and automatic oil pump. It has a tank capacity of 0.8 L fuel.
The chainsaw GS 651 from Oleo Mac It features a chain bar cutting system. This system has a cutting bar length of 18”-20” (46-51 inches). It has a chain pitch of 3/8 x .058 inches.
| Displacement | 63.4cc |
| Power | 4.7HP |
| Sword length | 46cm - 18 inches |
| Chain pass | 3/8"x.058" |
| Oil tank capacity | 0.45L |
| Fuel tank capacity | 0.80L |
| Sound pressure | 103.3 dB |
| Power level | 112 dB(A) |
| Dry weight without bar and chain | 6.5kg |
 |
Crankshaft in 3 pieces of forged steel, machined and balanced. Diamond aluminum piston with two sealing rings, cast connecting rod, two roller cages. Nickel-coated cylinder. Metal engine block as a guarantee of high performance, strength, and durability. |
 |
Carburetor support with four anti-vibration mounts. This ensures stable carburetion in any working situation and longer carburetor life. Large nylon filter and air pre-filtering system with labyrinth. This is to protect the machine in very dusty environments. |
 |
Electronic coil, flywheel with a new fin profile, and a redesigned starter housing with wide intake slots. It offers smoother engine operation and better cooling of the thermal group at any speed, even in high ambient temperatures. |
 |

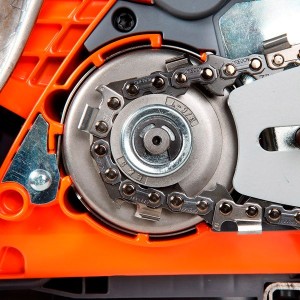

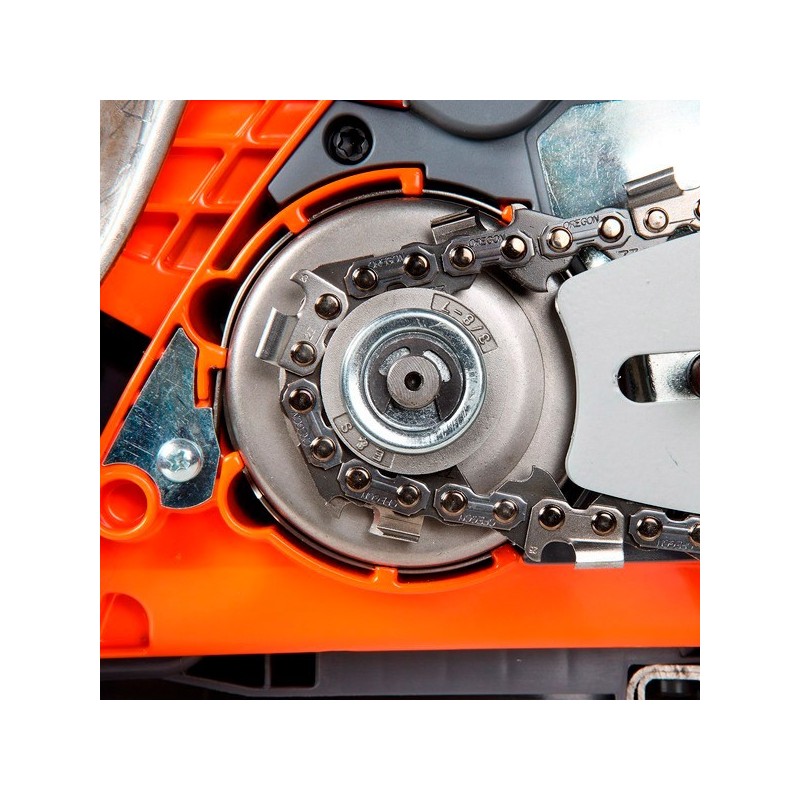

"INBOARD" clutch with bell and brake band integrated into the block. This prevents the introduction of foreign objects between the centrifugal masses to avoid damage and malfunctions, facilitates the removal of the chain housing, and simplifies cleaning and routine maintenance. |
 |
On/off switch, starter, and semi-throttle control integrated into a multifunction lever. Ensures more practical and straightforward use. |
 |
Decompression valve. This reduces the pressure in the combustion chamber to facilitate starting the engine when hot or cold. |
 |
Side position chain tensioner. This facilitates chain adjustment by avoiding direct contact with it. |
 |
Filter cover with two elastic side fastenings, removable without tools for easy inspection. |
 |
Anti-vibration system with six dampers, two spring and four rubber. These are located between the control handle and the engine block. It completely isolates the operator from vibrations, with a notable reduction in fatigue. |
 |
Ergonomic controls: all machine functions are easily controlled with the right hand, without removing the hand from the grip. |
 |
Flywheel with a new profile of the fins and a redesigned starter casing with wide intake slots. It features smoother engine operation and better cooling of the thermal group at any speed, even in high ambient temperatures. |
 |
Reinforced silencer designed to reduce sound emission even at maximum speed. |
 |
"INBOARD" clutch with bell and brake band integrated into the block. This prevents the introduction of foreign objects between the centrifugal masses to avoid damage and malfunctions, facilitates the removal of the chain housing, and simplifies cleaning and routine maintenance. |
 |
Filter cover with two lateral elastic fastenings, removable without tools for easy inspection. Large nylon filter and air pre-filtering system with labyrinth to protect the machine in very dusty environments. |
 |
Automatic chain lubrication pump. When the engine is idling, it does not supply oil in order to reduce clogs with sawdust and, consequently, the time spent on cleaning and maintenance. |
 |
Chain housing with a wide discharge section: facilitates the expulsion of sawdust and reduces its accumulation, decreasing the time and frequency of cleaning and maintenance. Two protections, rubber on the chain housing and plastic on the tank, increase resistance in case of chain drop. |
| IMPORTANT NOTICE |
| Mandatory on the part of the client, review oil levels and lubrication before startup. If the goods cannot be checked at the time of receipt, it should be noted on the carrier's sheet that the customer is in agreement. except for pending exam. |
Data sheet
Specific References
Sword and chain not included
Sword and chain not included
