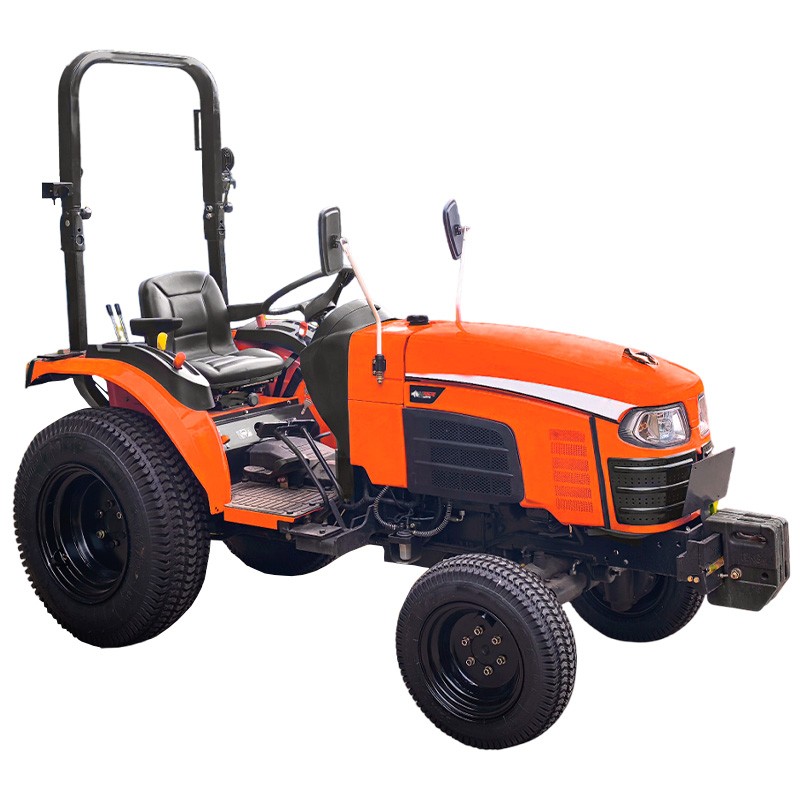

The Rhinoceros 454 Hydro tractor stands out for its hydraulic and hydrostatic approach, a very interesting feature for those looking for a smoother, more precise and comfortable driving in maintenance work, light agriculture or maneuvering in confined spaces. It incorporates a 3-stage hydrostatic transmission and hydrostatic power steering, a combination that greatly improves the control of the tractor in changes of pace, turns and continuous movements.
Added to this is a super-reduced turning radius of only 2.1 m, a very important point in farms, landscaped areas and jobs where maneuverability makes the difference.
On the hydraulic side, the Rhinoceros 454 Hydro is equipped with a double pump and a hydraulic control system with a mix of position valve and draft lift, a configuration designed to offer more precision and better response when working with implements.
Pump capacity is 19.7 plus 14.8 L for hydraulic steering, and achieves a maximum lifting force of 970 kg at the lifting points and 760 kg at 60 cm behind the three-point linkage. This hydraulic base makes the 454 Hydro a very complete tractor within its size, with a particularly practical performance for tasks where smooth operation and lifting capacity are valued.

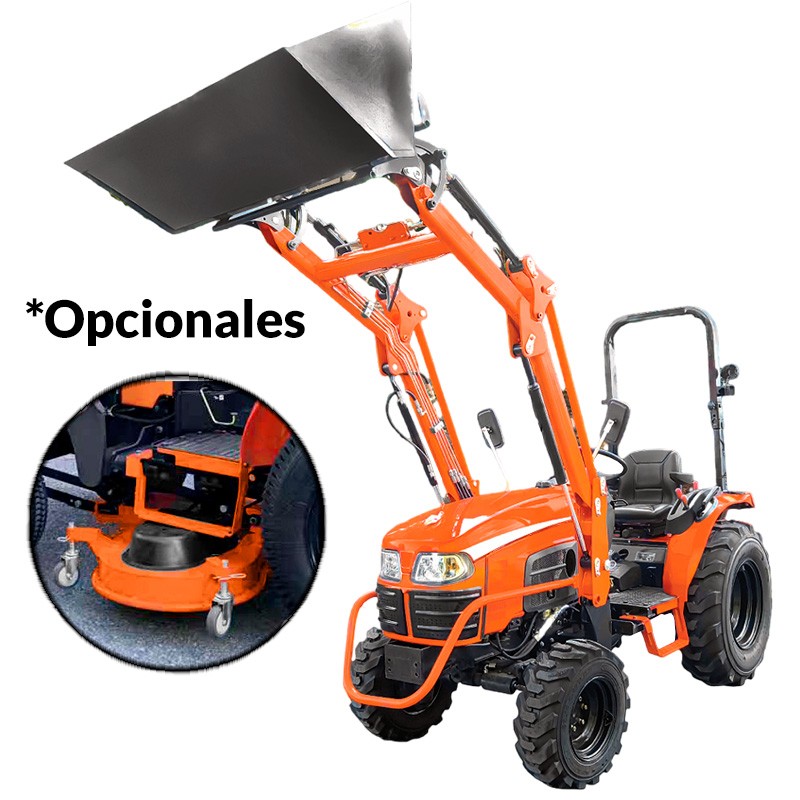

It has a 4-cylinder, water-cooled, 4-cylinder, vertical 4-stroke diesel engine with 1498 cc, 29.5 kW power and 31 L fuel tank. It is also equipped with oil-immersed disc brakes, SAE I 3/8 6-spline rear PTO, 29.5 kW PTO power and 26.5 km/h top speed. At 2640 mm long, 1365 mm wide and weighing 1030 kg, the Rhinoceros 454 Hydro maintains a compact and highly maneuverable format, and can also be fitted with front shovel or center mower as optional attachments to further expand its versatility.
| Engine | ||
| Model | RHINOCEROS 454 HYDRO | |
| Series | 40 HP | |
| Type | Vertical, water-cooled, diesel 4T | |
| Cylinders | 4 | |
| Bore x stroke | 78 x 78.4 mm | |
| Displacement | 1498 cm³ | |
| Power | 29.5 kW / 40 hp | |
| Rated speed | 3500 rpm | |
| Maximum torque | 98.7 Nm | |
| Fuel tank | 31 L | |
| Battery | 12 V / 430 A | |
| Engine crankcase with filter | 4,1 L | |
| Engine coolant | 5,2 L | |
| Transmission case | 15 L | |
| Dimensions and weight | ||
| Overall length without 3P | 2640 mm | |
| Width | 1365 mm | |
| Height | 2150 mm with arch | |
| Wheelbase | 1666 mm | |
| Minimum ground clearance | 370 mm | |
| Front belt | 935 mm | |
| Rear band | 1050 mm | |
| Weight | 1030 kg | |
| Turning radius | 2,1 m | |
| Transmission | ||
| Clutch | N/A | |
| Steering | Hydrostatic power assisted | |
| Transmission | Hydrostatic 3-stage | |
| Brakes | Oil bathed discs | |
| Front tire | 23x8.5-12 | |
| Rear tire | 12.5/80-18 | |
| Minimum turning radius with brake | 2,1 m | |
| Rear PTO | SAE I-3/8, 6 splines | |
| PTO motor speed | 540/2592-2500/2600 rpm | |
| PTO power | 29.5 kW / 40 hp | |
| Maximum speed | 26,5 km/h | |
| Hydraulic system | ||
| Hydraulic control system | Mixed position valve and draft elevator | |
| Pump type | Double | |
| Pump capacity | 3P 19.7 5.2 + 14.8 L for hydraulic steering | |
| Lifting force at points | 970 kg | |
| Lifting force at 60 cm behind the three-point linkage | 760 kg | |
| Optional attachments | ||
| Front shovel | Optional | |
| Central mower | Optional | |
| Optional Tires | ||
| Front agricultural | 5.000-12 | |
| Rear agricultural | 13.6-16 | |
| Front turf | 31x9.5-16 | |
| Rear turf | 5-12 | |
| Front industrial | 23x8.5-12 | |
| Industrial rear | 33x15.5-16.5 | |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels prior to start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| Depending on the carrier, this product may require means of unloading for delivery. If you do not have one, the carrier can take care of it at an additional cost. Please contact us before placing the order to evaluate your case. |
