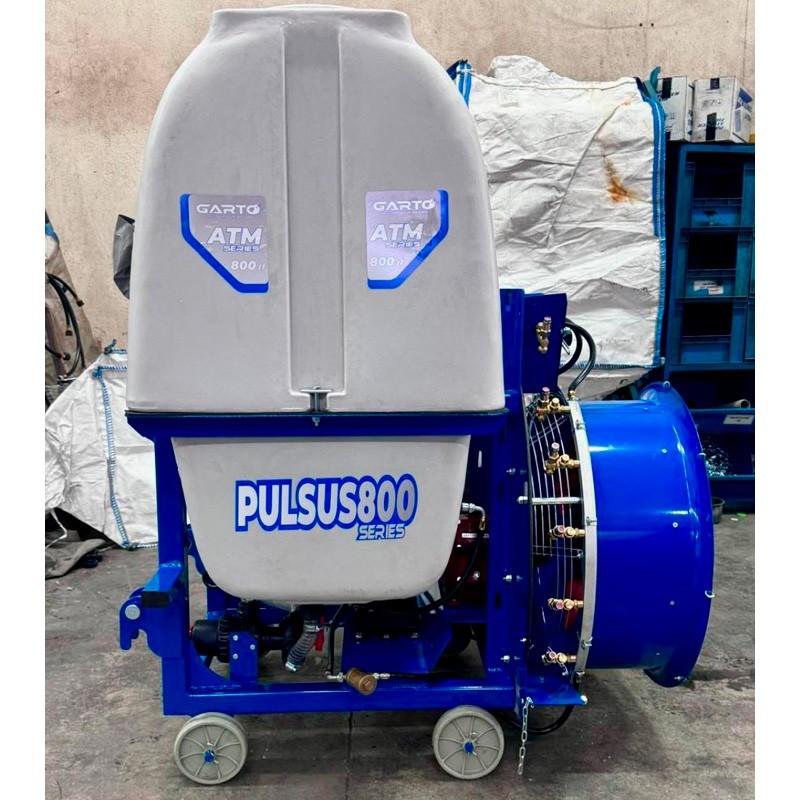

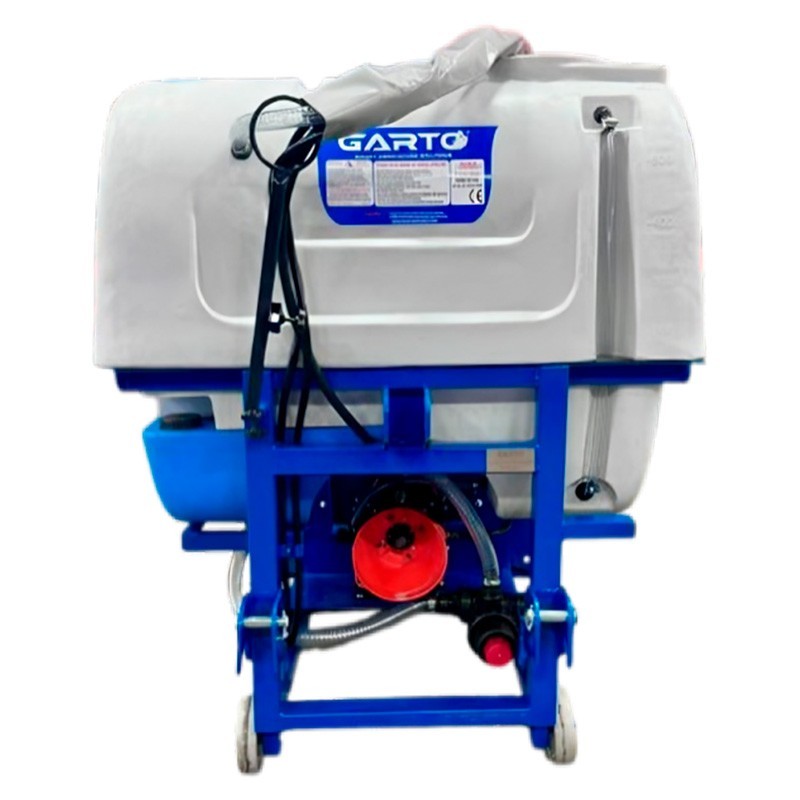

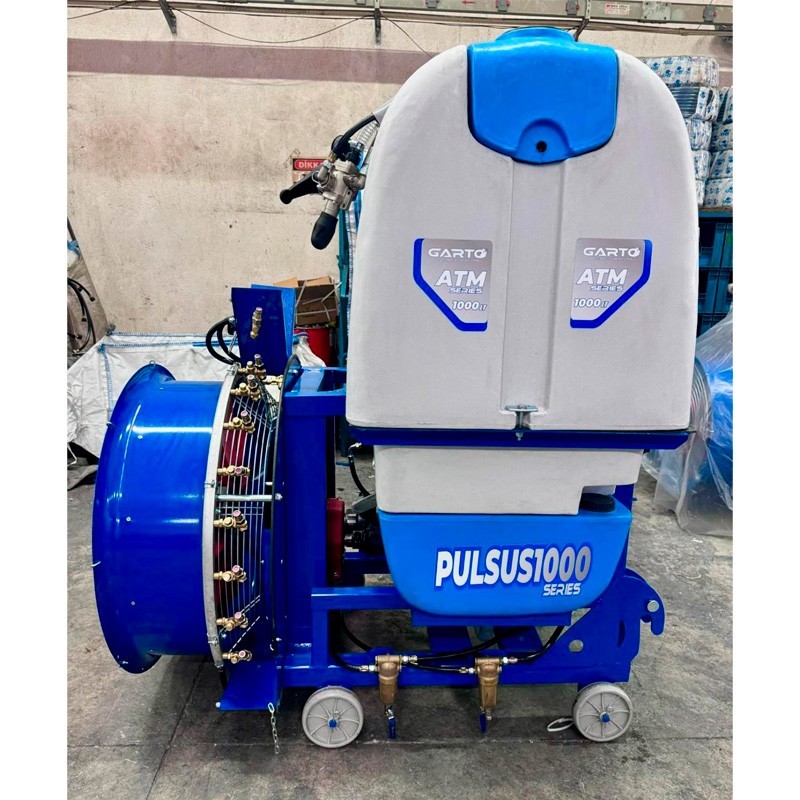

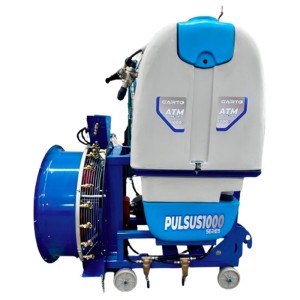

The Garto ATM 50 bar boom sprayer is an efficient solution for agricultural spraying, designed to provide uniform and accurate coverage on crops of varying sizes. Available in capacities from 200 L to 1000 L, its rugged polyethylene tank ensures durability and easy maintenance.

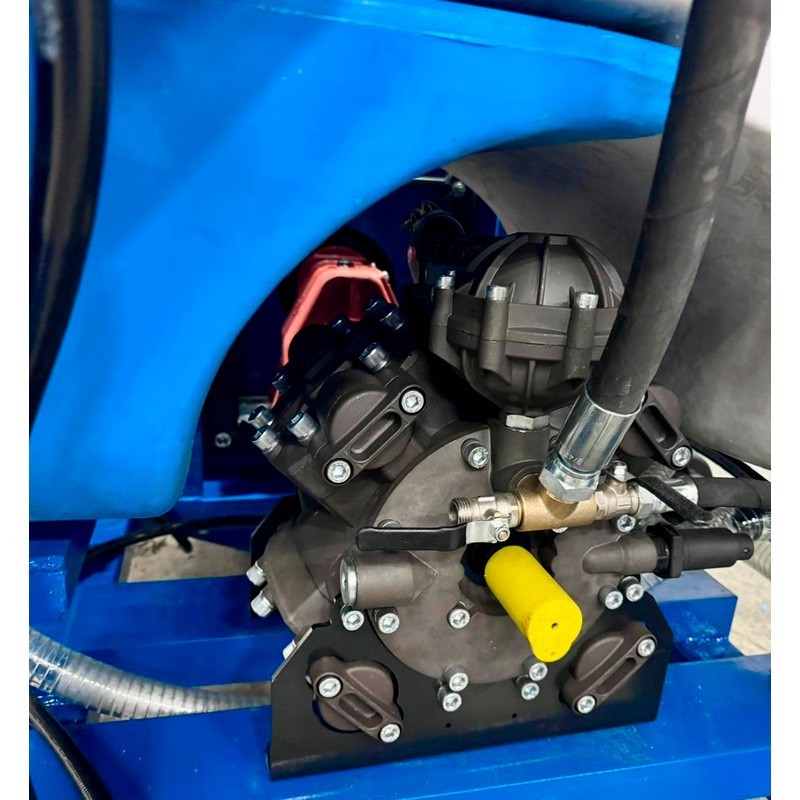

Equipped with high-performance diaphragm piston pumps, it offers a flow rate of up to 145 l/min and a constant pressure of 50 bar, ensuring powerful and homogeneous spraying.
Its stainless steel turbine and high quality brass nozzles allow an optimal distribution of the liquid, with an adjustable working width between 12 and 16 m.
With an air flow of 54,000 m³/h and a working speed of 540 RPM, this atomizer guarantees efficiency in the field. Depending on the model, it incorporates belt or gearbox transmission, and requires a minimum power of 50 hp for proper operation.
MODEL | ATM 200 | ATM 400 | ATM 600 | ATM 800 | ATM 1000 |
Tank material | Polyethylene | Polyethylene | Polyethylene | Polyethylene | Polyethylene |
Tank capacity | 200 L | 400 L | 600 L | 800 L | 1000 L |
Pump model | Piston with diaphragm EMS-71 | Piston with diaphragm EMS-71 | Piston with diaphragm EMS-108 | Piston with diaphragm EMS-108 | Piston with diaphragm EMS-145 |
Pump flow rate | 71 l/min | 71 l/min | 108 l/min | 108 l/min | 145 l/min |
Pump pressure | 50 bar | 50 bar | 50 bar | 50 bar | 50 bar |
Control unit | EMS-42005 | EMS-42005 | EMS-42005 | EMS-42005 | EMS-42005 |
Nozzle type | brass valve | brass valve | brass valve | brass valve | brass valve |
Number of nozzles | 10 | 10 | 12 | 12 | 18 |
Turbine diameter INOX | 600 mm | 600 mm | 750 mm | 750 mm | 750 mm |
Working width | 12, 16 m | 12, 16 m | 12, 16 m | 12, 16 m | 12, 16 m |
Power required | 50 hp | 50 hp | 50 hp | 50 hp | 50 hp |
Working speed | 540 RPM / 1-0 | 540 RPM / 1-0-2 | 540 RPM / 1-0-2 | 540 RPM / 1-0-2 | 540 RPM / 1-0-2 |
Air flow rate | 54.000 m3/h | 54.000 m3/h | 54.000 m3/h | 54.000 m3/h | 54.000 m3/h |
Weight | - | 225 kg | 255 kg | 270 kg | 400 kg |
Transmission type | Belt | Gearbox | Gearbox | Gearbox | Gearbox |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
