Narrow suspended sprayer VG Agro M23
Narrow suspended sprayer VG Agro M23
Narrow suspended sprayer VG Agro M23

Narrow suspended sprayer VG Agro M23 75cm

Rating:
(0)
  • Total width: 75 cm
  • For tractors from 14 to 50 HP
  • Reinforced structure
  • 2-way control with pressure gauge and regulator

Cardan shaft included

En stock
Extras
Precio total de la opción:
icon Flow rate
Flow rate
55 l/min
icon Tank capacity
Tank capacity
120 - 300 L
icon Pressure
Pressure
40 Bar
icon Cardan shaft
Cardan shaft
Included
icon Weight
Weight
90 - 140 Kg
€3,100.82 excl. VAT
- 4%
€2,976.79 excl. VAT
€3,601.91 VAT incl.
Free shipping for Spain (Peninsula)
Select
Qty

Request a quote
close

Request a quote


Narrow suspended sprayer VG Agro M23 75cm
€3,601.91
Extras
Precio total de la opción:
Select
Qty

Narrow suspended sprayer VG Agro M23 75cm

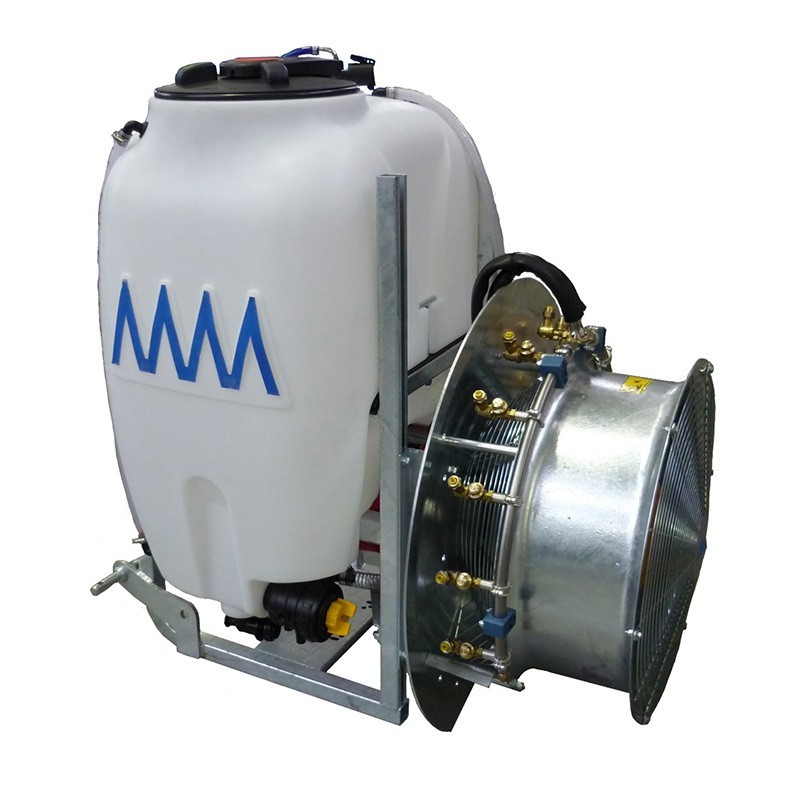

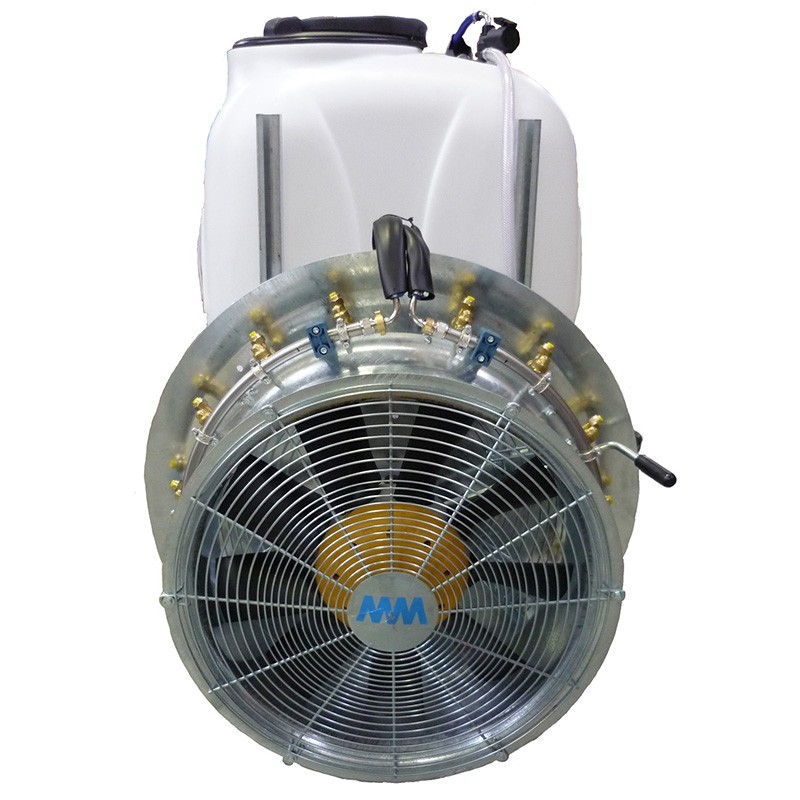

The VG Agro M23 mounted sprayer is ideal for spraying narrow streets thanks to its total width of only 75 centimeters. It is specially designed to work with tractors from 14 to 50 horsepower.

The sprayer VG Agro M23 has a more reinforced structure and is much lighter than its competitors. In addition, it has a galvanized turbine with an oil-coated gearbox, making it much more durable.

Tank capacity varies depending on the model, ranging from 120 liters to 300 liters. The M23 is equipped with an AR-503 pump that exerts a pressure of 40 bar, thus achieving a flow rate of 55 liters per minute.

As for the equipment included with the machine we can say that it comes with 10 nozzle holders with anti-drop and a 1mm disc. Of course, as usual with VG Agro, the atomizer VG Agro M23 comes with a cardan shaft.

We should also mention that there is the possibility of acquiring an electronic control with solenoid valves as an option with the purchase of this product.

Highlights of the Suspended Atomizer VG Agro M23

  • Reinforced and lighter chassis structure
  • 3rd point connector type "0" or smaller
  • Ideal for narrow alleys
  • Galvanized turbine
  • Oil bathed transmission case
  • 2-way control with pressure gauge and regulator included
  • Annovi Reverberi 500 pump
  • 10 nozzle holders with anti-drip and 1 mm disc included as standard
  • Cardan shaft included

Technical data sheet

MODEL M2301009 M2302009 M2303009
Tank 120 L 200 L 300 L
Pump AR-503 AR-503 AR-503
Turbine 500 500 500
Pressure 40 BAR 40 BAR 40 BAR
Flow rate 55 L/MIN 55 L/MIN 55 L/MIN
Weight 90 KG 120 KG 140 KG
IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending.
