Suspended sprayers without bars for Zeppelin tractor
- Tractor accessories
- Capacity: 200 / 1000 liters
- Pump capacity: 90-100 liters/min
CARDAN and BARRA NOT INCLUDED
€1,649.24 VAT incl.
DRIVESHAFT NOT INCLUDED
Assembly and set-up INCLUDED |

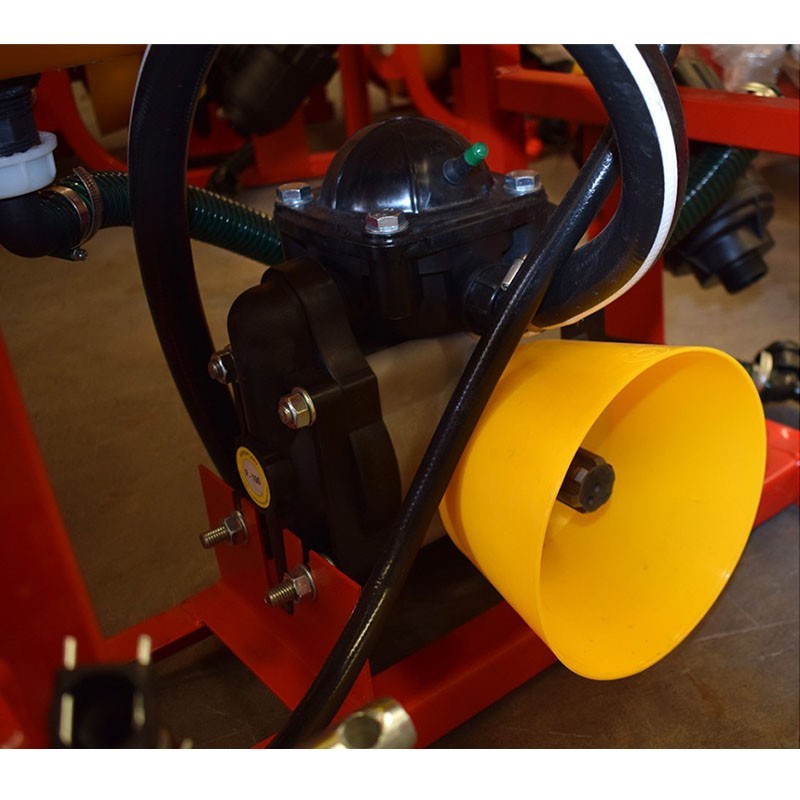

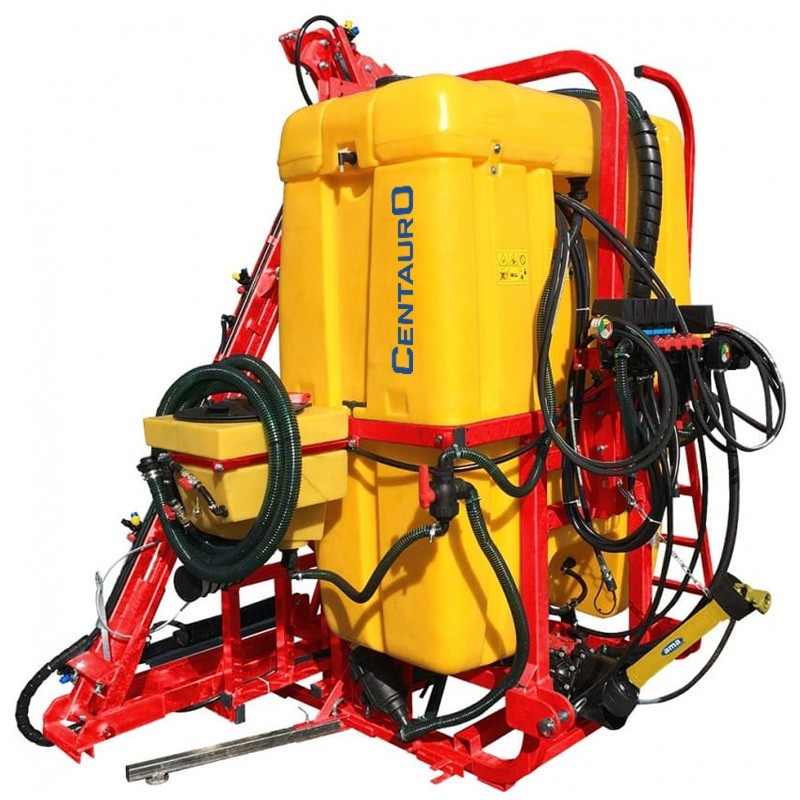

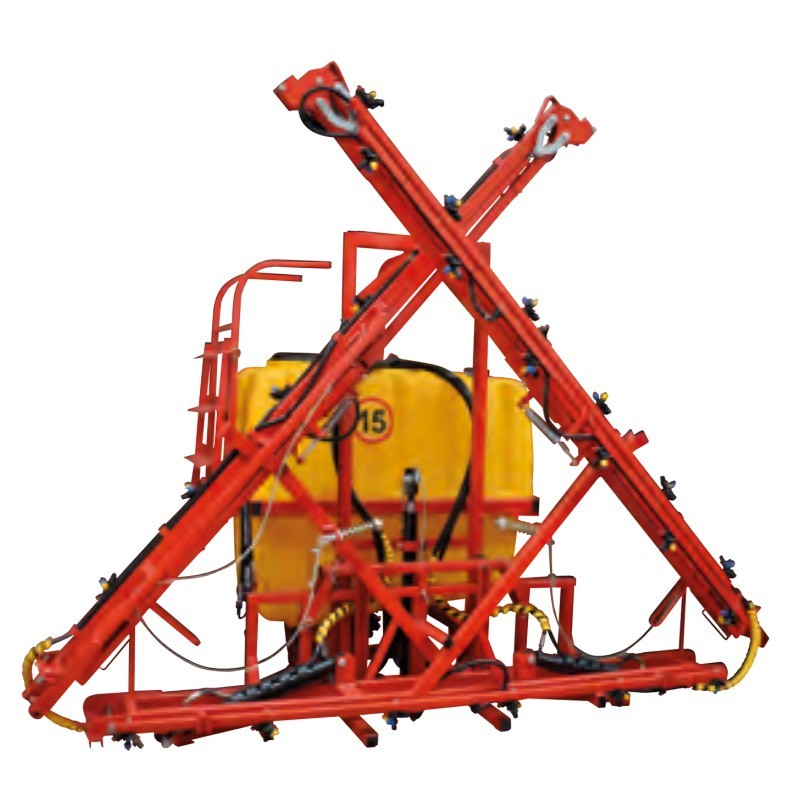

The Centauro Daimiel Tractor Sprayer is the perfect solution for the precise distribution of liquids over large agricultural areas. Equipped with a 100 liters per minute diaphragm pump, this sprayer ensures uniform application.
Designed in three versions, this sprayer adapts its tank capacity and bar reach to the user's needs: the Daimiel 800, 1000, and 1200 models offer tanks of 800, 1000, and 1200 liters, respectively, and a bar reach that varies between 12 and 15 meters, allowing for wide coverage in the field.

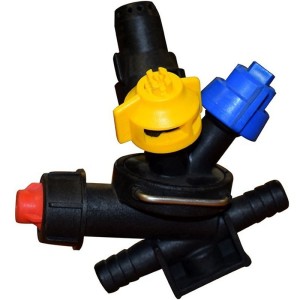

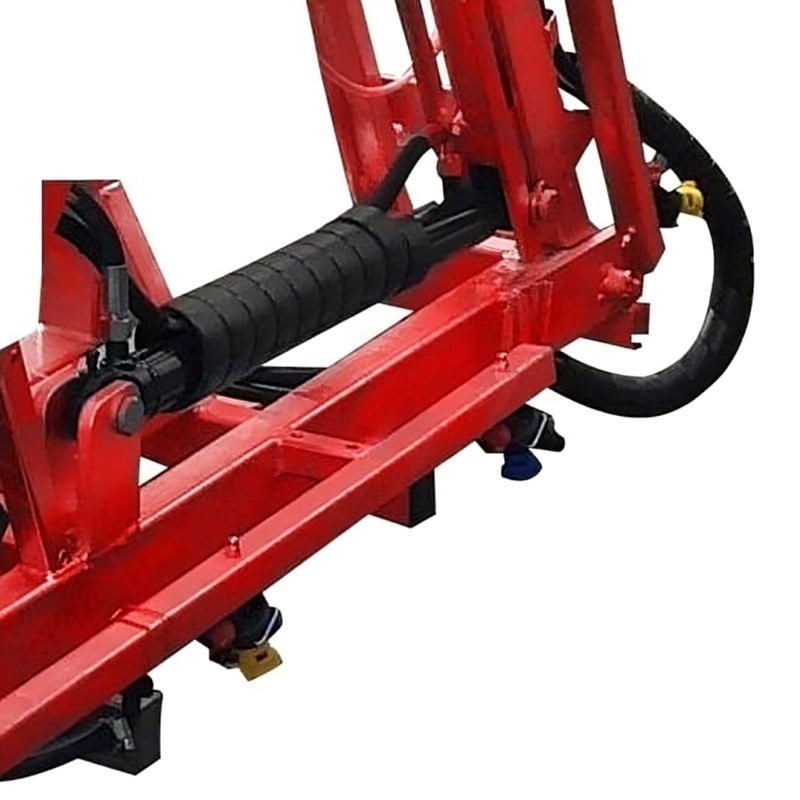

Each version features a stabilizer and hydraulic bar lift, while the Daimiel 1200 model also incorporates hydraulic bar opening, further facilitating control. Additionally, its powder-coated chassis, optional auxiliary tanks, and single or triple nozzles ensure optimal durability and versatility.
Models | Daimiel 800 | Daimiel 1000 | Daimiel 1200 |
Tank | 800 L | 1000 L | 1200 L |
Pump Capacity | 100 l/min | 100 l/min | 100 l/min |
Bar Reach | 12 m | 14/15 m | 15 m |
Nozzles | 25 | 28/30 | 28/30 |
IMPORTANT NOTICES |
It is mandatory for the customer to check oil levels and lubrication before starting. If the merchandise cannot be checked at the time of receipt, it must be indicated on the carrier's sheet that the customer agrees except for pending examination. |
Data sheet
Specific References
CARDAN and BARRA NOT INCLUDED
- PTO SHAFT INCLUDED
CARDAN SHAFT NOT INCLUDED
Cardan shaft included
