Double telescopic herbicide bar Centauro Bétera
- Working width: 105-140 mm
- Weight: 30 Kg
- Maximum extension from the axis 250 cm on each side
€724.64 VAT incl.
Cardan shaft included

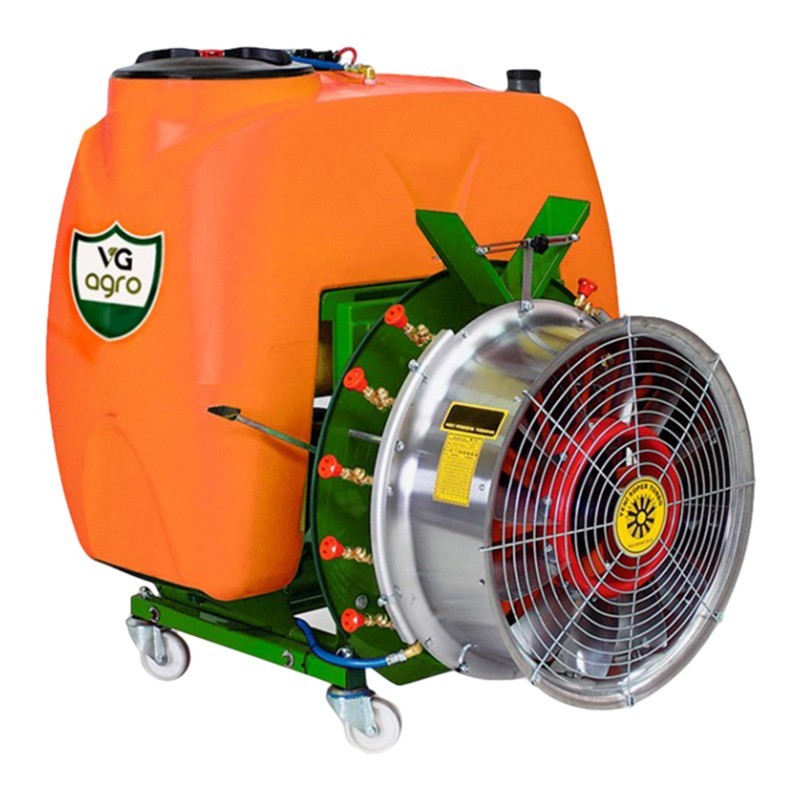

The suspended atomizer VG Agro AG has a more reinforced chassis as well as a lighter weight making it stand out from other competing models. It also has a folding step to facilitate access to the filling cap.
As for its technical data we can say that it has a tank that varies according to the model we select from 200 to 1200 liters. Continuing with the specifications, the machine has a turbine of 85 cm (92 in the case of the TP model) that delivers a flow of 54,000 cubic meters.
Finally, the sprayer VG Agro AG is equipped with a polyethylene hand wash tank and circuit washer and a 3-way volumetric control with built-in pressure gauge. We cannot forget that this machine comes with an ecological hydro charger as well as a cardan included as standard as we are used to with VG Agro.
MODEL | TANK | PRESSURE | FLOW FLOW | TURBINE | WEIGHT | DIMENSIONS |
AG-250-85-T | 200 | 40 | 85 | 700 | 120 | 115x95x110 |
AG-350-85-T | 300 | 40 | 85 | 700 | 150 | 145x95x110 |
AG-450-96-T | 400 | 50 | 96 | 700 | 255 | 125x130x120 |
AG-650-96-T | 600 | 50 | 96 | 800 | 265 | 165x155x165 |
AG-850-96-T | 800 | 50 | 96 | 800 | 285 | 172x150x157 |
AG-1050-96-T | 1000 | 50 | 96 | 800 | 320 | 198x150x157 |
AG-1050-96-TP | 1000 | 50 | 96 | 900 | 340 | 198x150x157 |
AG-1250-123-T | 1200 | 50 | 123 | 900 | 520 | 200x125x160 |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
Data sheet
Specific References
DRIVESHAFT NOT INCLUDED
Cardan shaft included
- PTO SHAFT INCLUDED
