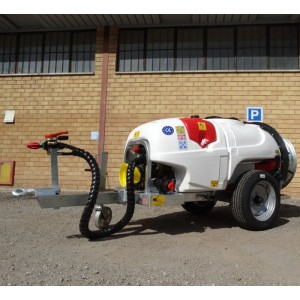

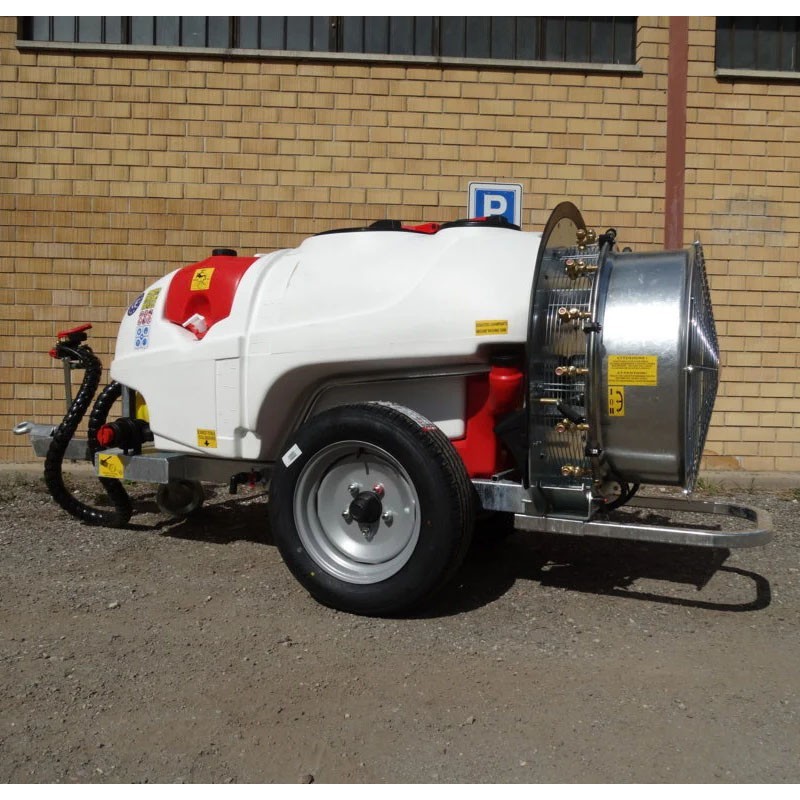

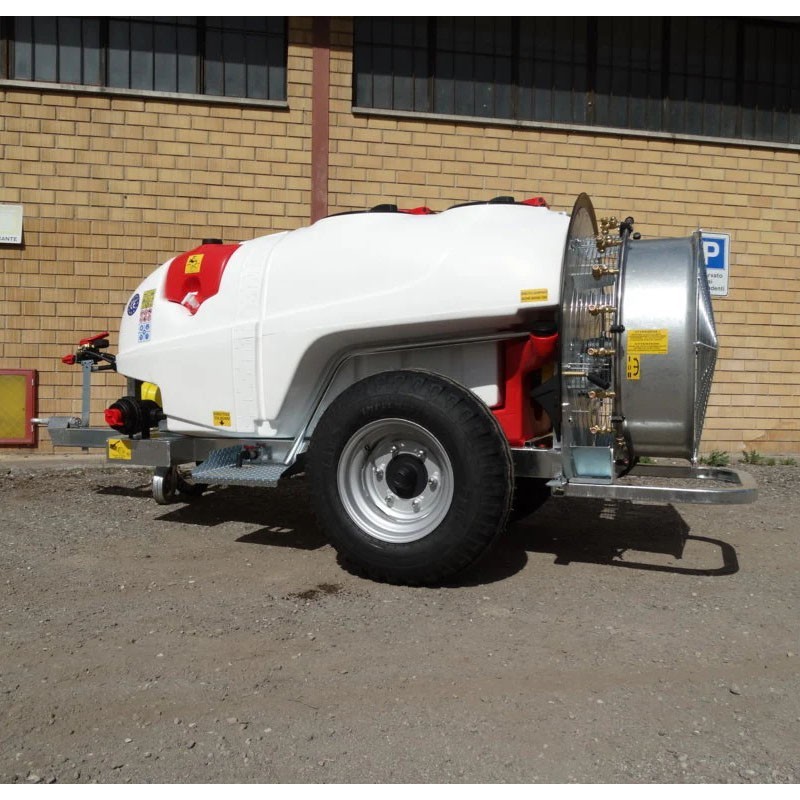

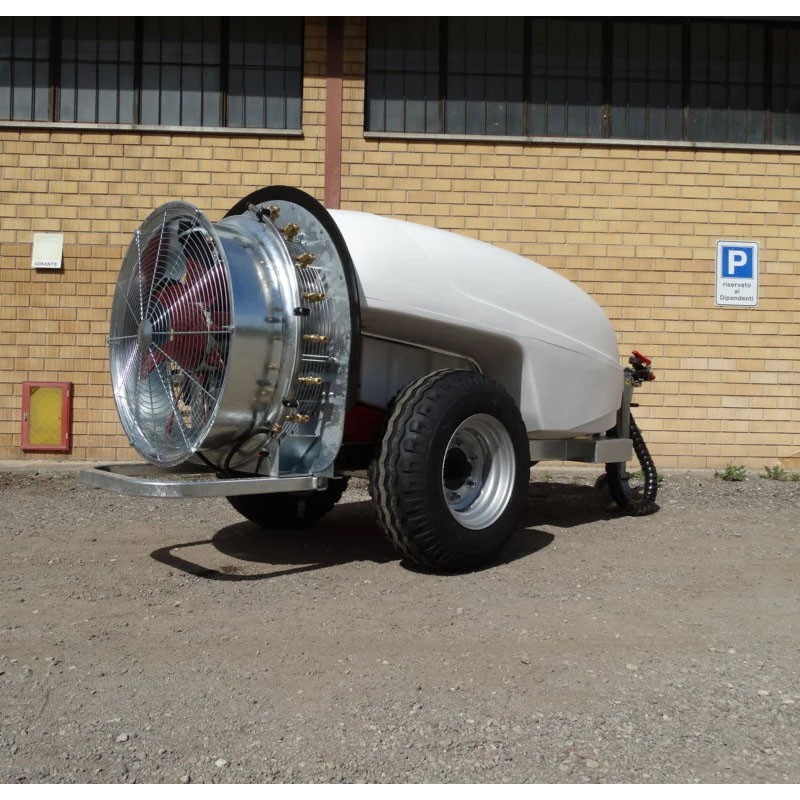

Giemme AM-LA trailed PTO sprayer
The Giemme AM-LA trailed atomizer is an essential tool for agricultural spraying, designed to be used with tractors. Available in three models with different capacities, this equipment adapts to various spraying needs, ensuring optimal and efficient performance in all types of crops.

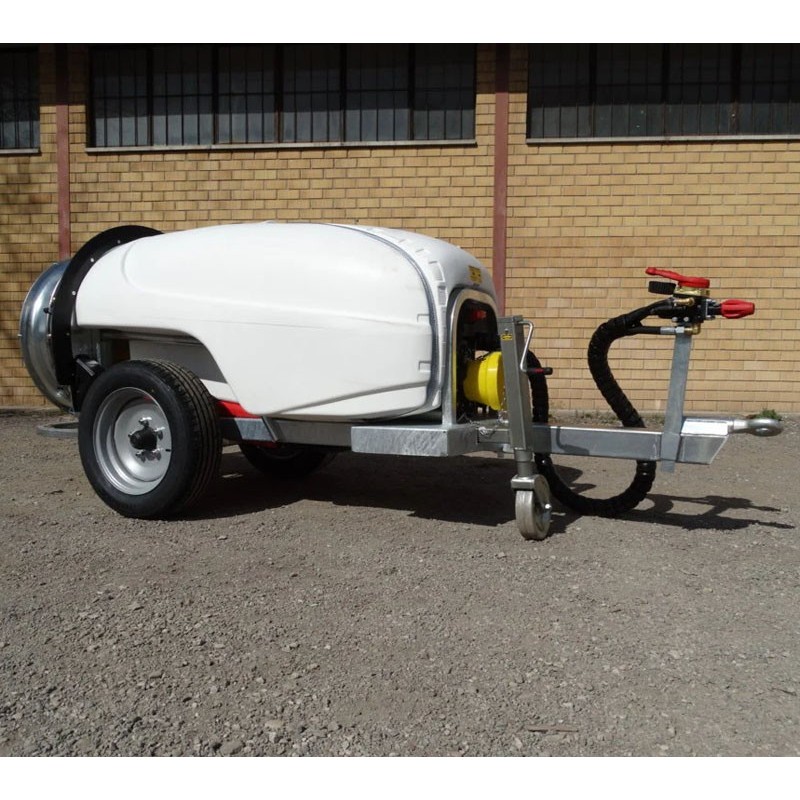

The 1000 LA model stands out for its robustness, with a reinforced hot-dip galvanized steel chassis and a platform for greater stability. It also has a rear bumper for additional protection.
The Comet pump, with two-way pressure gauge, allows for precise and controlled management of the spray flow. Each model is equipped with anti-drip double brass nozzles with quick release, high-pressure hoses and stainless steel and brass connections, ensuring durability and strength.
Stainless steel nozzle-holding rods and suction filter with check valve ensure a constant and unobstructed flow of the sprayed liquid.

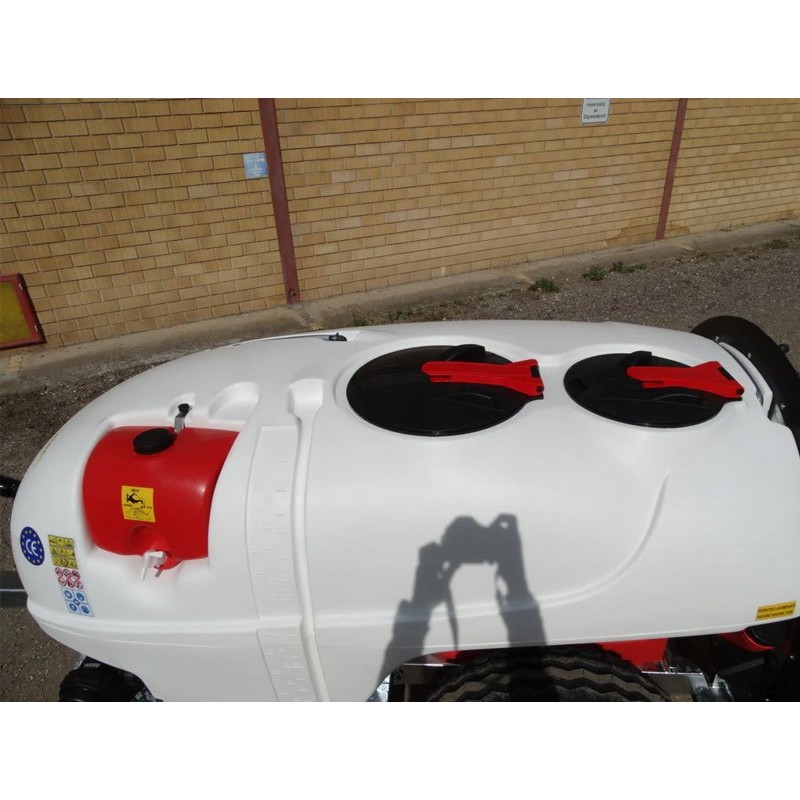

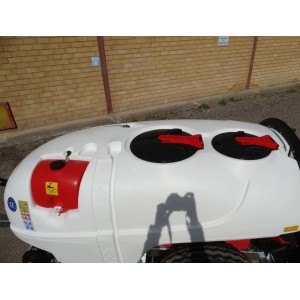

The total emptying polyethylene tanks, together with the circuit and hand washing tanks, facilitate the maintenance and cleaning of the equipment.
The Atomizer includes a 2-speed oil bath gearbox with disconnect, and hydraulic multivolume agitation for efficient mixing. Circuit flushing and hand washing tanks facilitate maintenance.

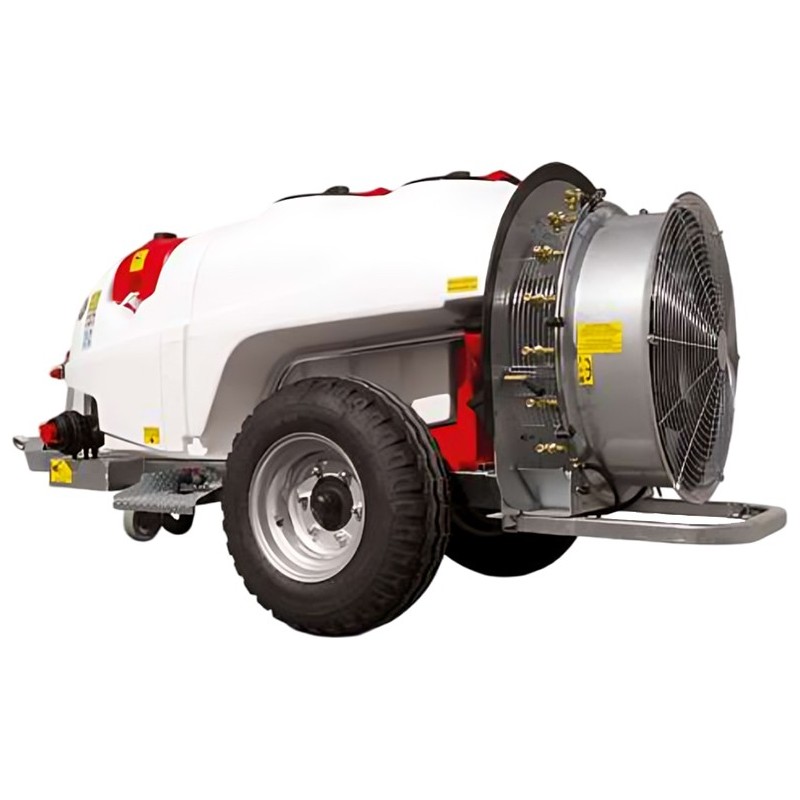

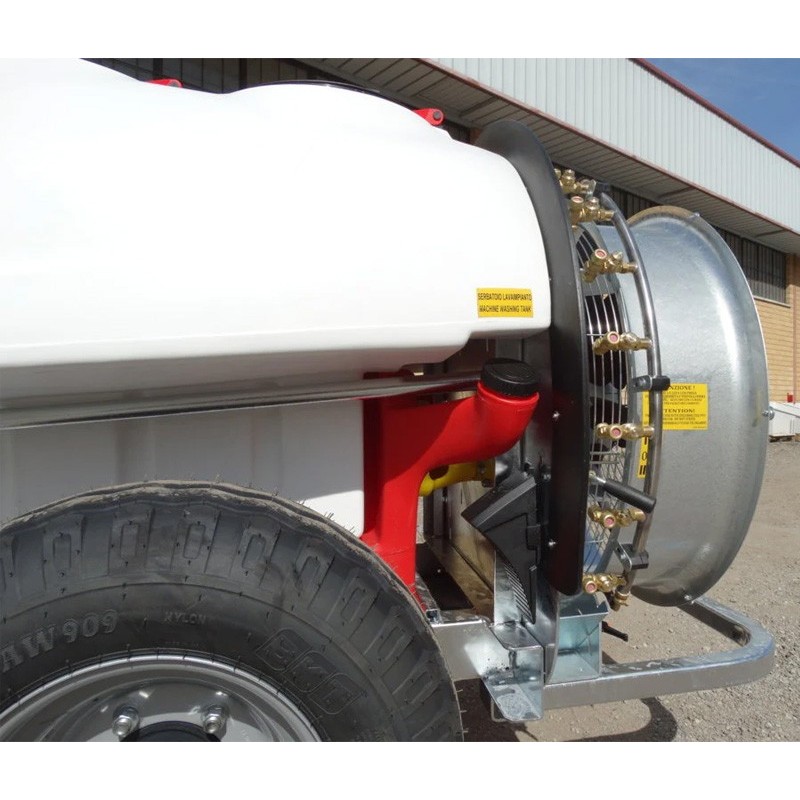

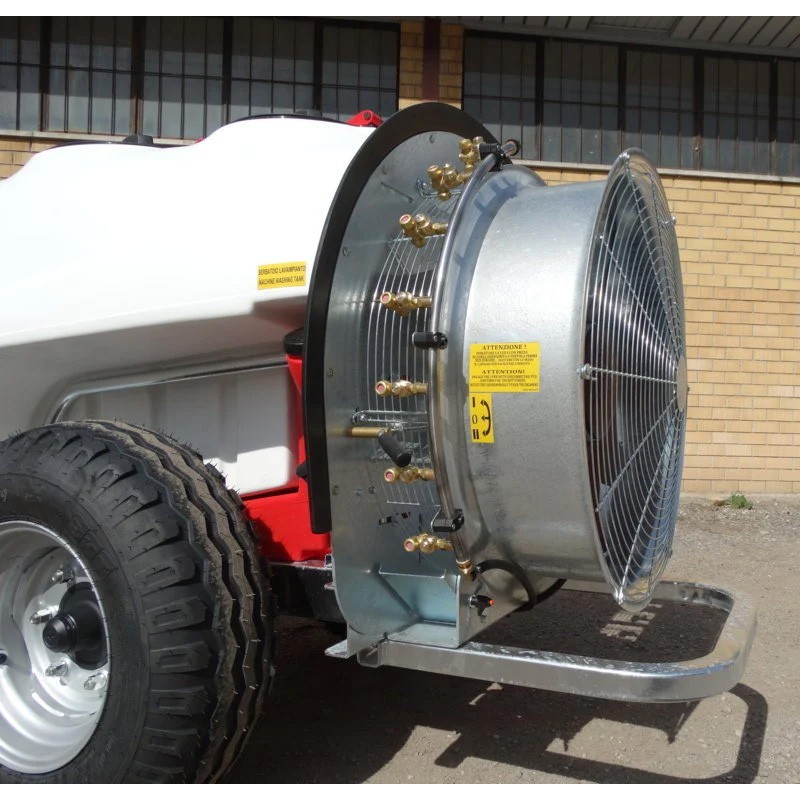

The 800 mm variable pitch fan, with 8 nylon blades and glass clutch liner on 800 and 1000 LA models, ensures uniform and efficient spraying.
Features
| Model |
AM 600 LA |
AM 800 LA |
AM 1000 LA |
| Capacity |
600 L |
800 L |
1.000 L |
| Number of jets |
7+7 |
7+7 |
7+7 |
| Pump model |
Comet APS 121 |
Comet APS 121 |
Comet APS 121 |
| Pressure |
50 bar |
50 bar |
50 bar |
| Tractor power |
70/100 HP |
70/100 HP |
70/100 HP |
| Wheels dimensions |
205/60 R15 |
205/60 R15 |
10.0/75 R15.3 |
| Weight |
400 kg |
450 kg |
500 kg |
| IMPORTANT NOTICE |
|
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
