Plow for tractor Garto AR 180º 95 kg
- Weight : 95 kg
- Chisel : Included
- Size : 8"
€1,012.32 VAT incl.
Deleks products take about 15 to 25 days. |

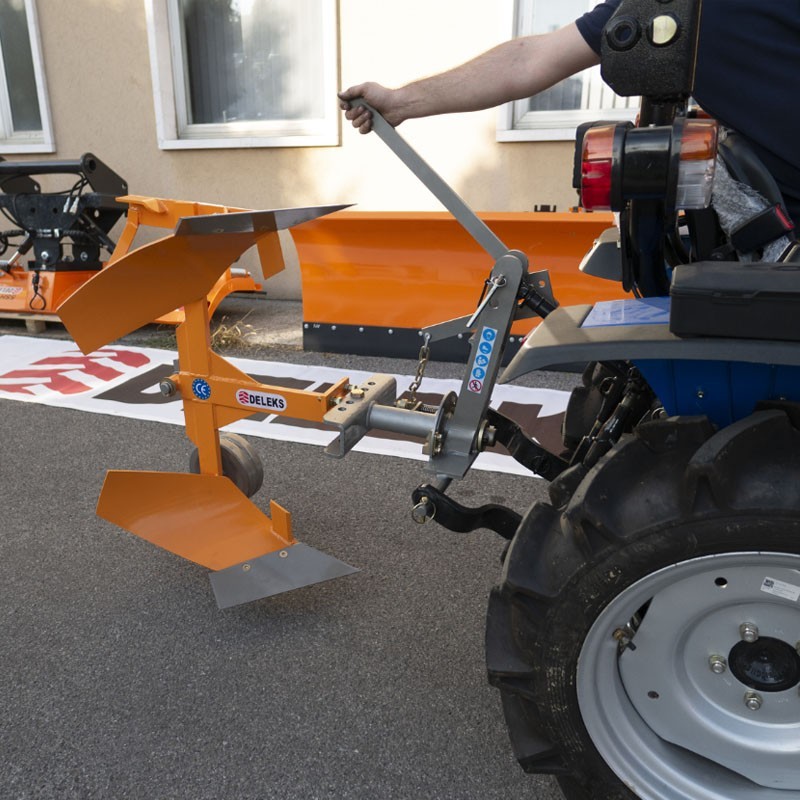

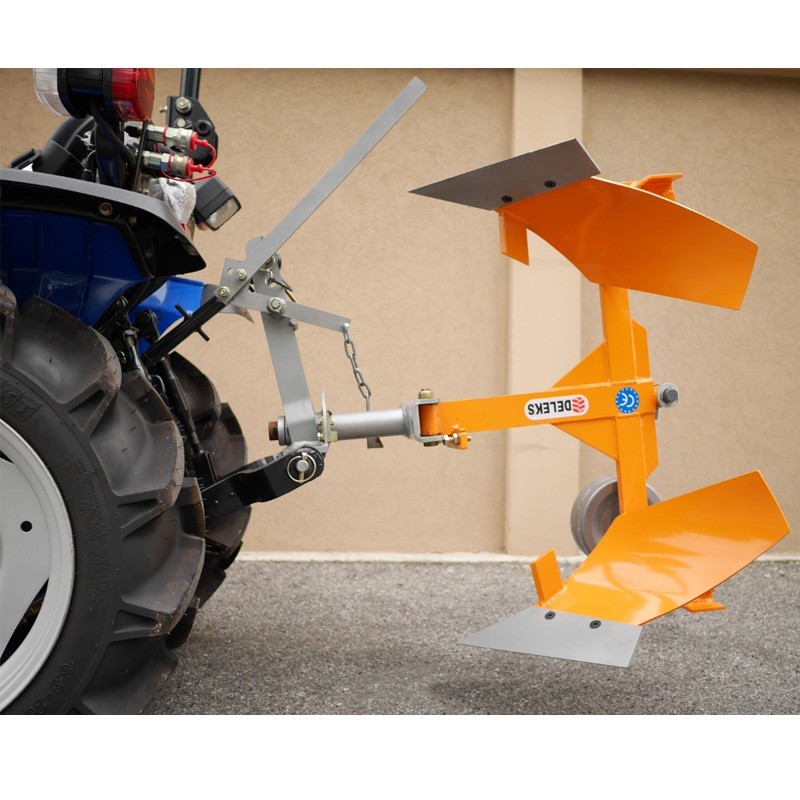

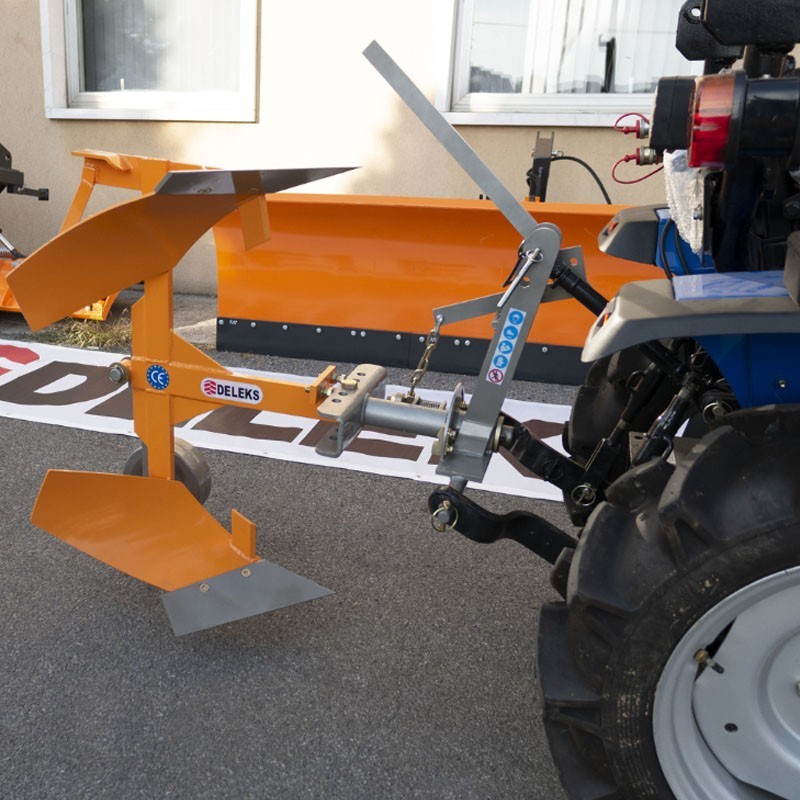

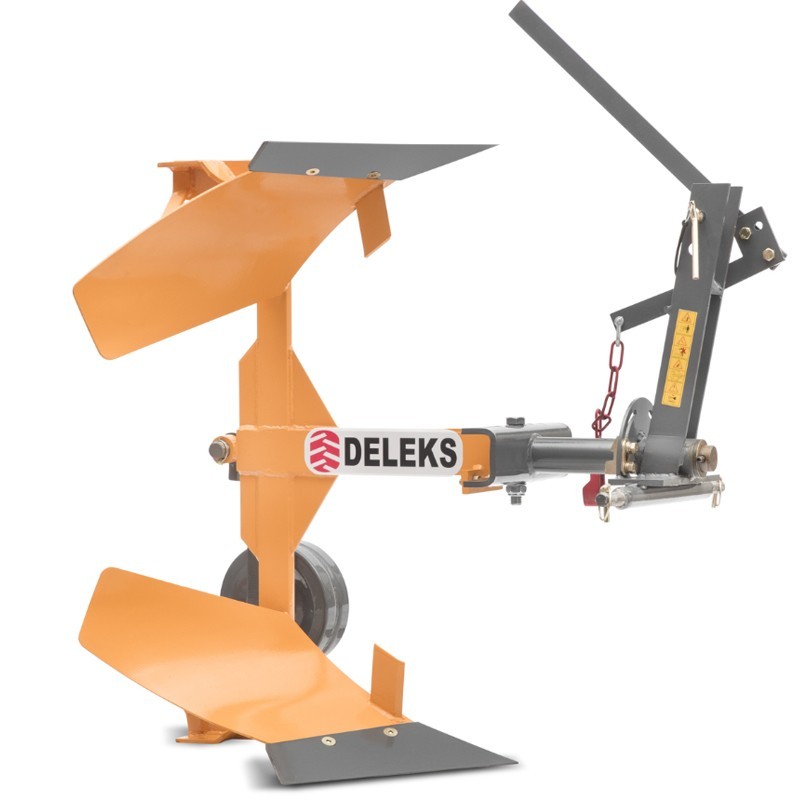

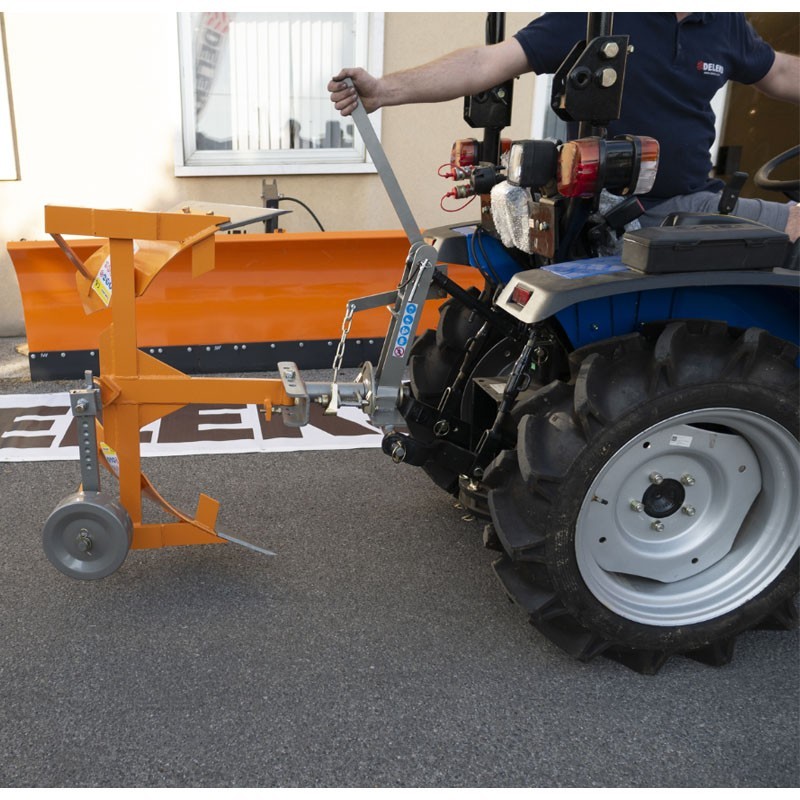

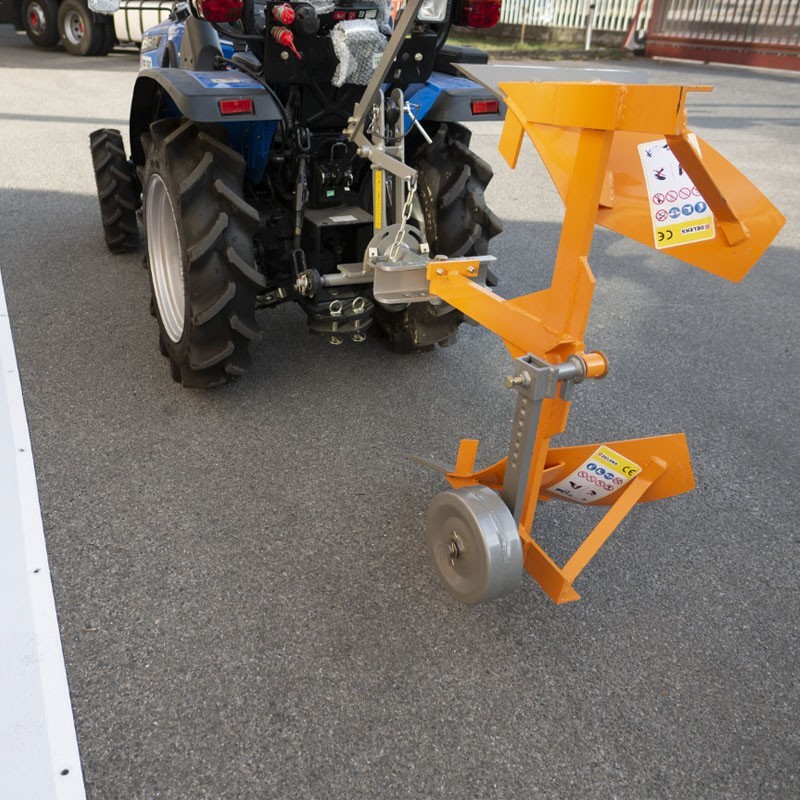

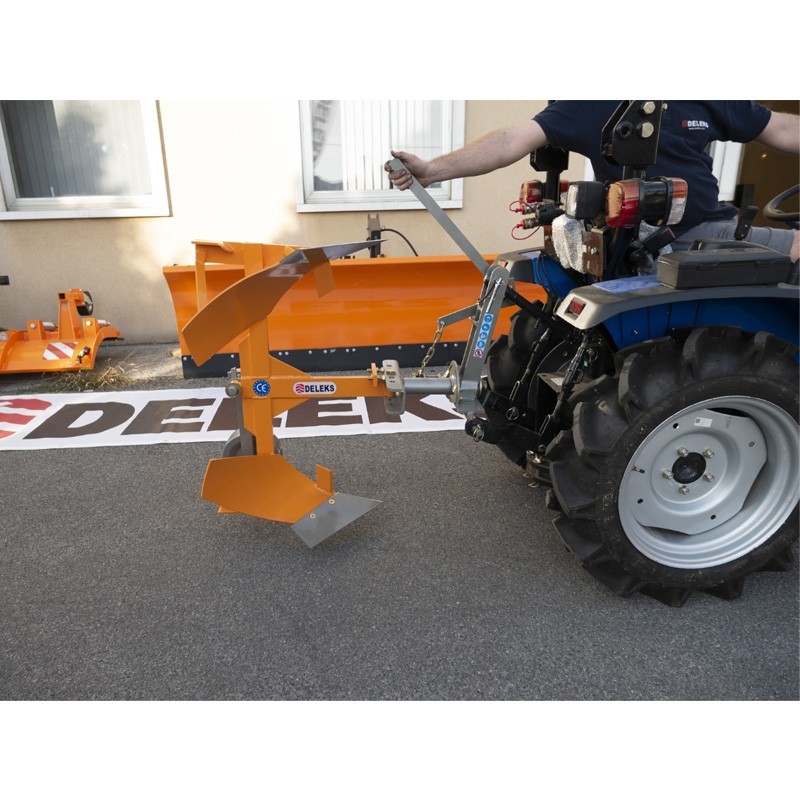

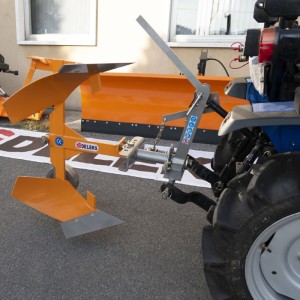

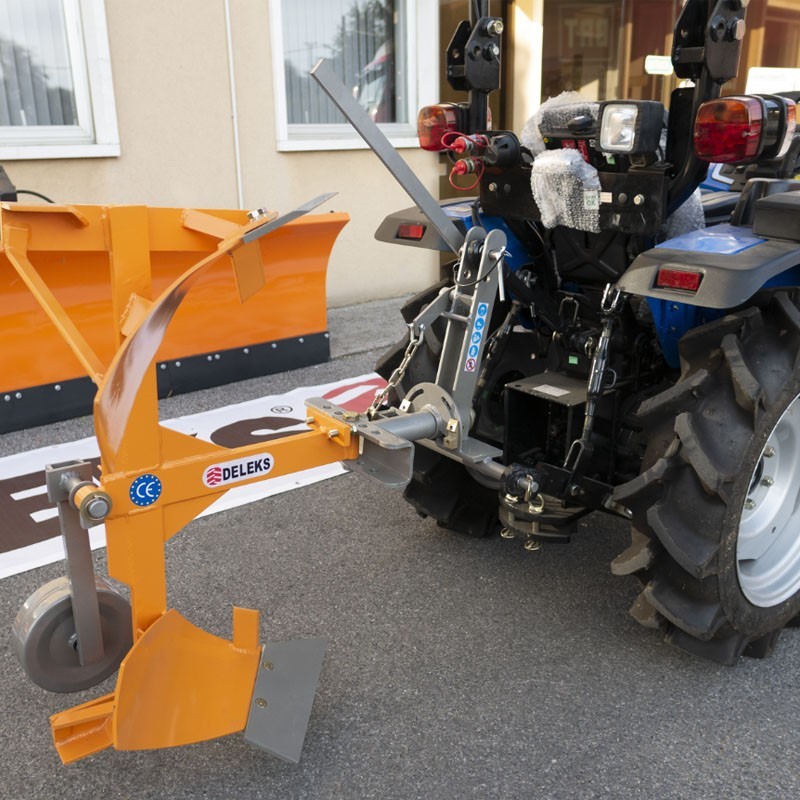

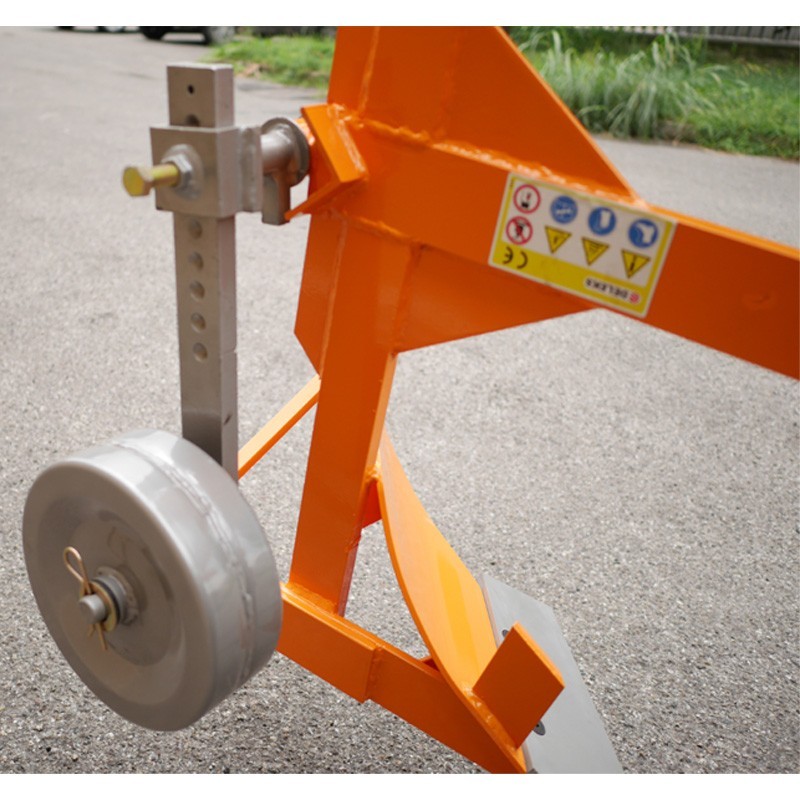

The DRP-25 reversible plow for small tractor saves time and is suitable for most makes of tractors (max. 1200 mm), it is designed to create furrows in the soil and to plough. The plow side change is done manually with a bar. Not suitable for tractors from tracked.
This plow doubles the working capacity (in time) and allows to save gasoline, it has parts subjected to efforts of treated steel, with a manual control of the working position by means of a bar with holes, the blade can be easily changed and the wheel allows to regulate the working depth.
Total width | 570.0 mm |
Weight | 80.0 kg |

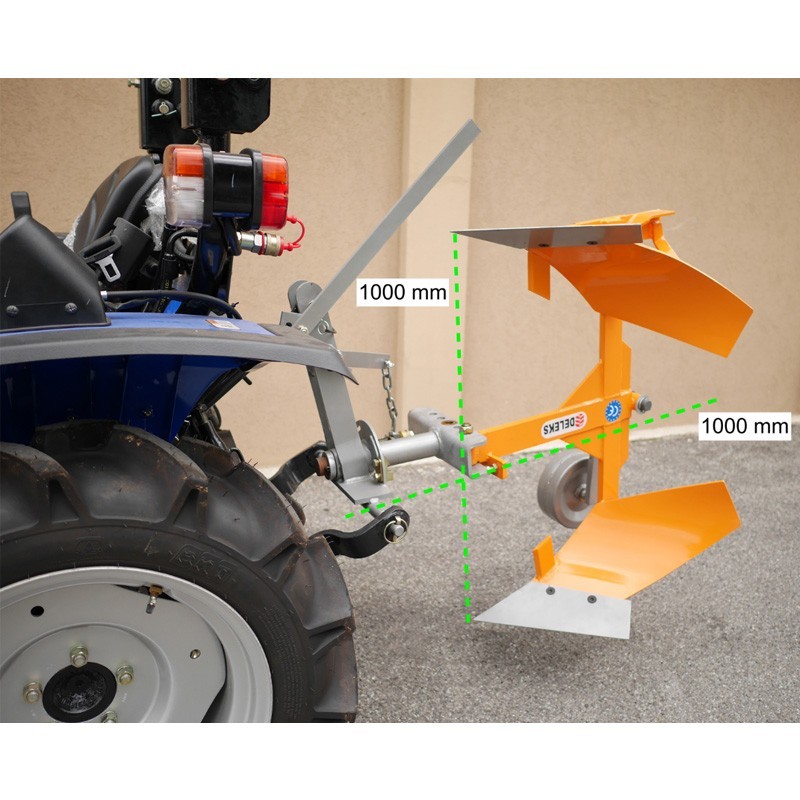

Total height | 1000.0 mm |
Tractor power | 14 - 35 hp |

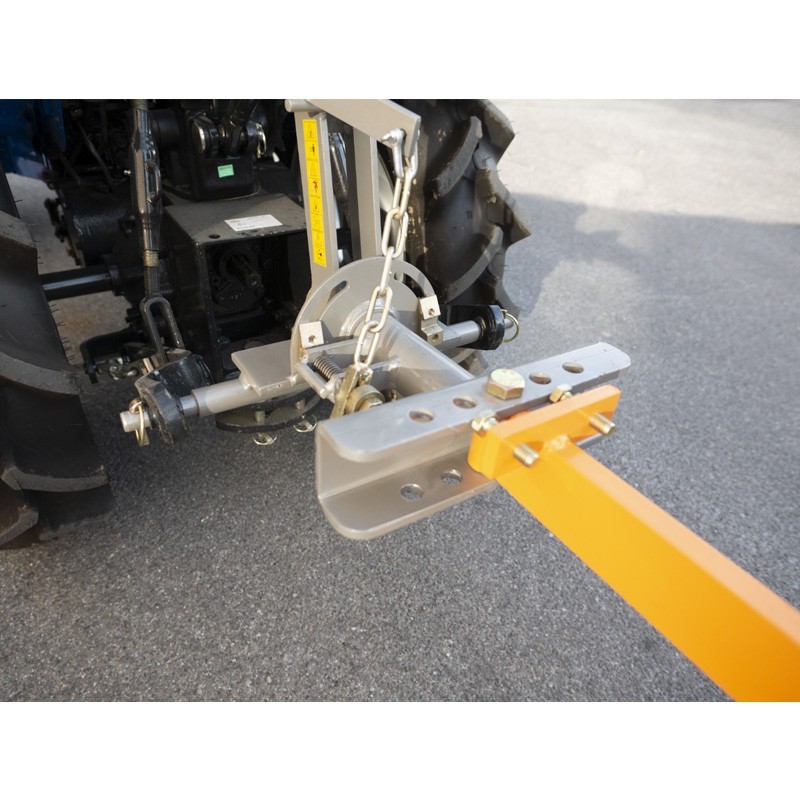

3-point hitch | Cat. 1 (ø 19.0-22.0mm) |

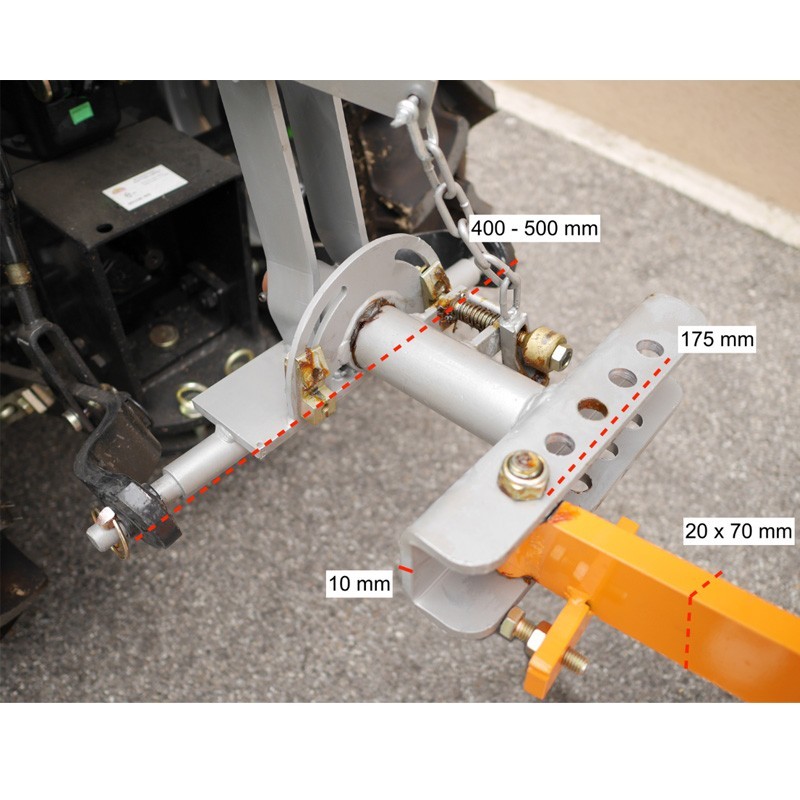

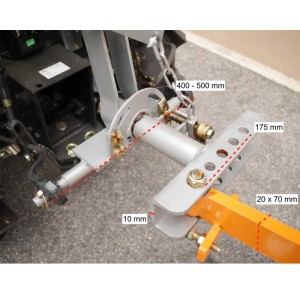

Distance between lower points | 400.0 - 500.0 mm |
Total length | 1000.0 mm |
Number of coulters | 1 |
Diagonal Soc | |
Grating diagonal | 750.0 mm |
Working width | 295.0 mm |
Other dimensions | See pictures |
Offset | 175.0 mm |
Arm thickness | 20.0*70.0 mm |

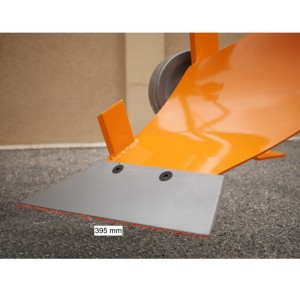

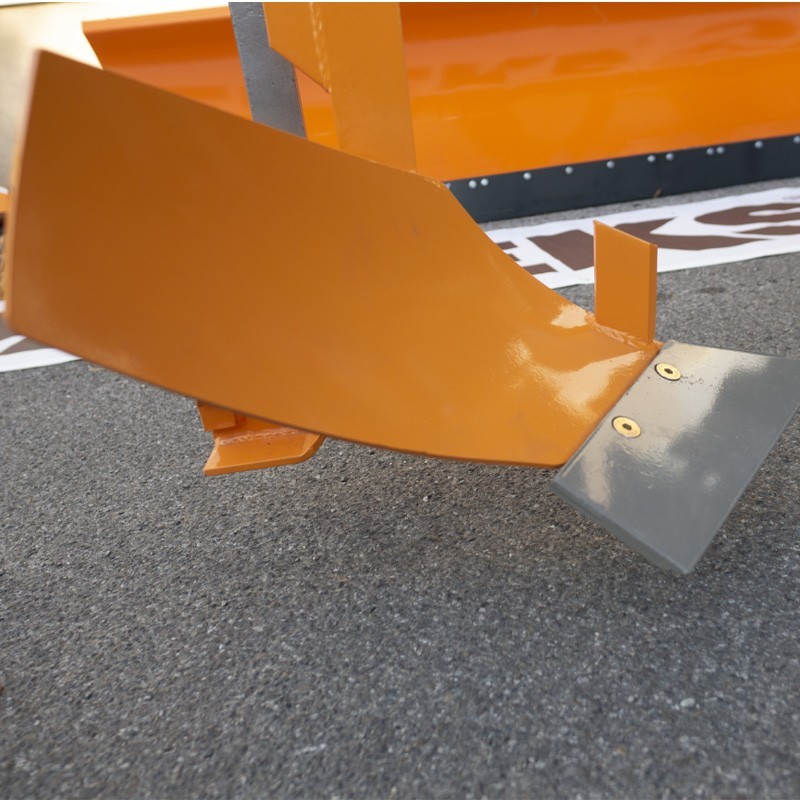

Blade length | 395.0 mm |
Blade thickness | |
Blade thickness | 12.0 mm |
Hitch tube dimension | 90.0*35.0 mm |
Wheel dimension | ø 25.0 * 10.0 mm |
Tilting system | Mechanical |
Working depth | 160.0 - 220.0 mm |
Packing dimension | 600.0*1020.0*500.0 mm |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
