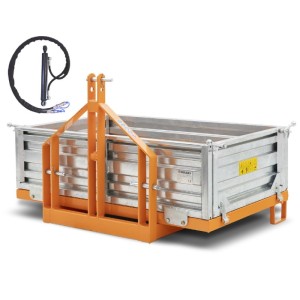

Tractor box Deleks T-1400 with tipping mechanism
- Blade width 132cm
- Shovel height 44cm
- Load capacity 500Kg
- Mechanical tilt
€1,004.19 VAT incl.
Deleks products take about 15 to 25 days. |

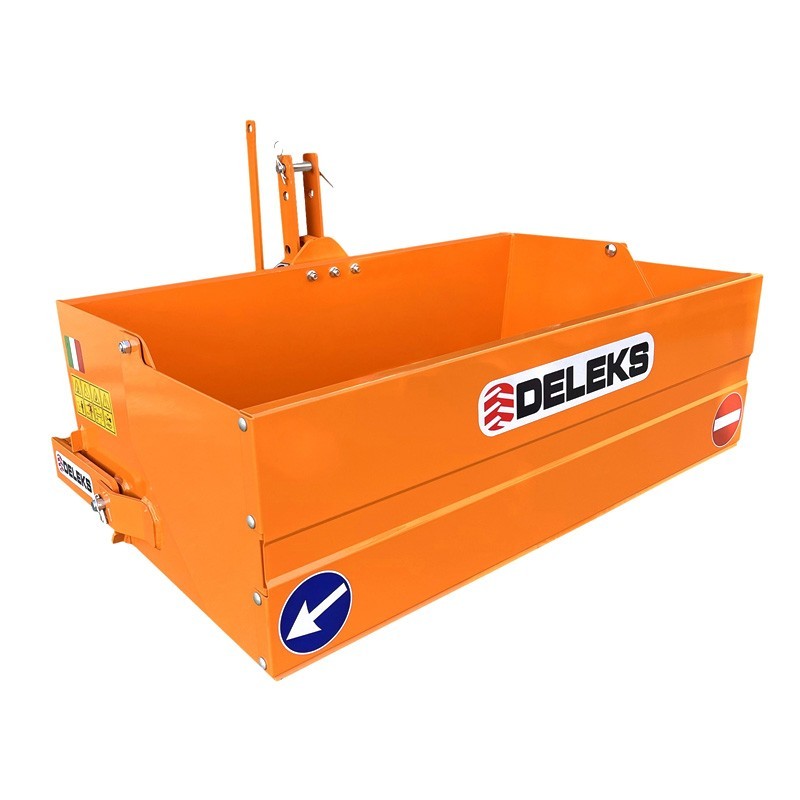

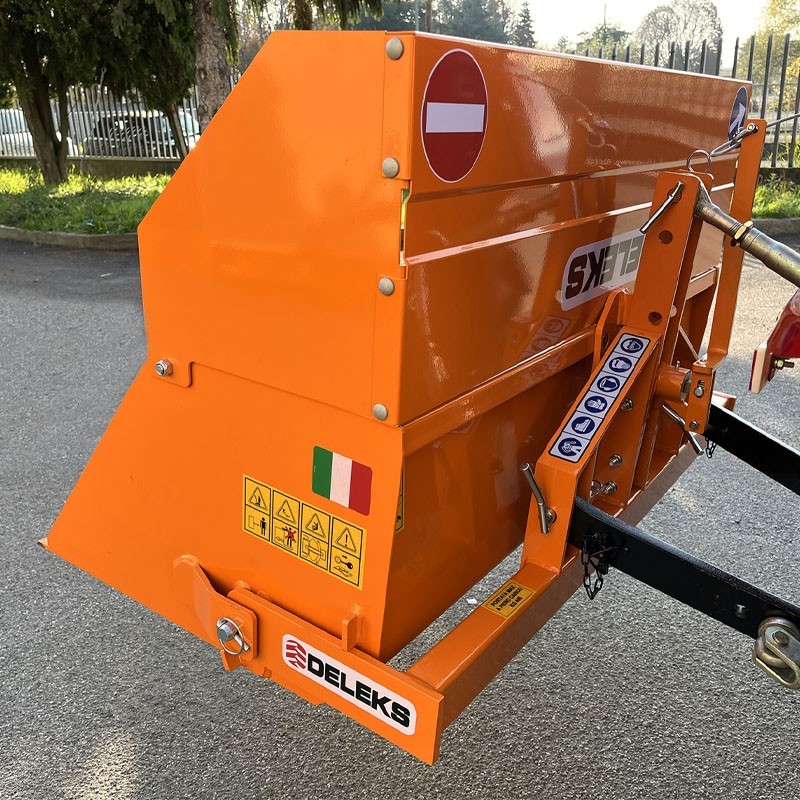

The rear shovel of Deleks BUCKET-120 is a complement for tractors with a power from 14 to 40HP. This shovel offers a width of 120cm with a height of 41,5cm, providing a volume of 0,32m³. Thanks to these characteristics we can load up to 400kg.

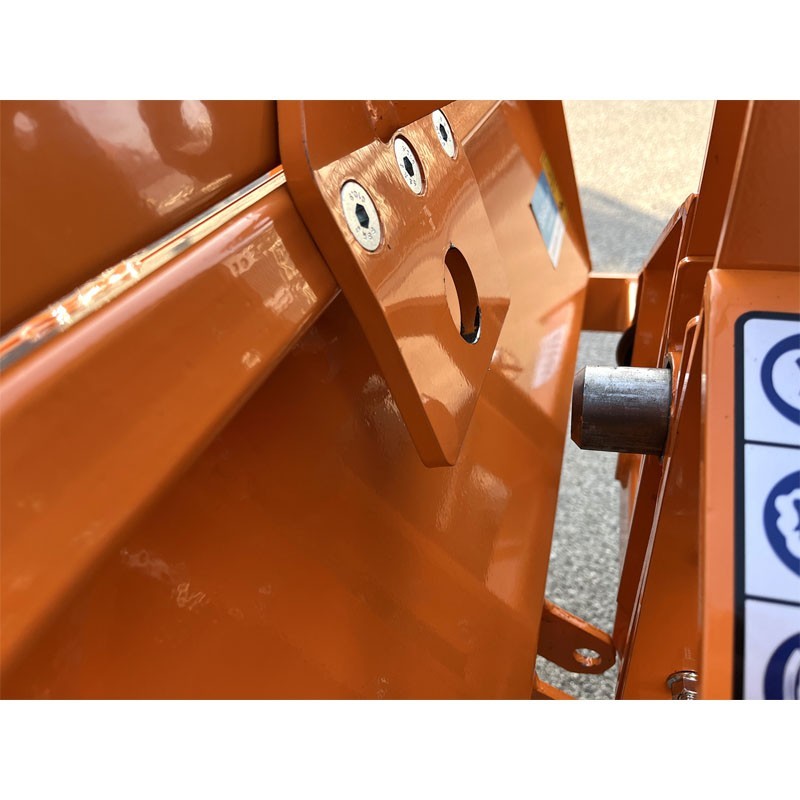

This bucket model from Deleks has a CAT 1 type 3-point clamping with a thickness of 8mm of Hardox. The Bucket-120 shovel provides an 80º inclination with mechanical movement.
Thanks to the 4mm thick SSAB bucket plate, ease of use for the operator is fully guaranteed. This model measures 128cm wide, 64cm high and 95cm long, with a weight of only 110kg.
Overall width | 1280 mm |
Weight | 110 kg |
Overall height | 640 mm |
Tractor power | 14 - 40 hp |
3-point hitch | Cat. 1 (ø 19.0-22.0mm) |
Shovel width | 1200 mm |
Load capacity | 400 kg |
Loading volume | 0.32 m3 |
Thickness of the end plate | 10 mm (SSAB) |
Shovel plate thickness | 4 mm (SSAB) |
Blade height | 415 mm |
Depth | 650 mm |
Total depth | 950 mm |
Sheet thickness. 3-point hitch | 8 mm (HARDOX) |
Distance between lower points | 470 - 580 mm |
Inclination | Mechanical |
Tilt angle | 80° |
Packing dimension | 1300*800*550 mm |
Data sheet
Specific References
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips.
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.
