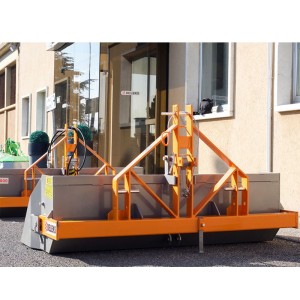

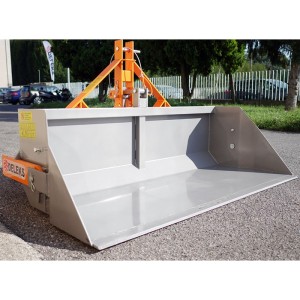

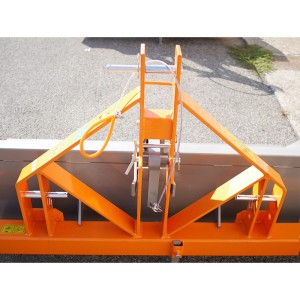

Reinforced rear blade for tractor DELEKS PRM-H
- Shovel width: 1600 - 2000 mm
- Tractor power: 50 - 90 HP
- Load capacity: 700 kg
- Weight: 191 - 250 kg
Deleks products take about 15 to 25 days. |

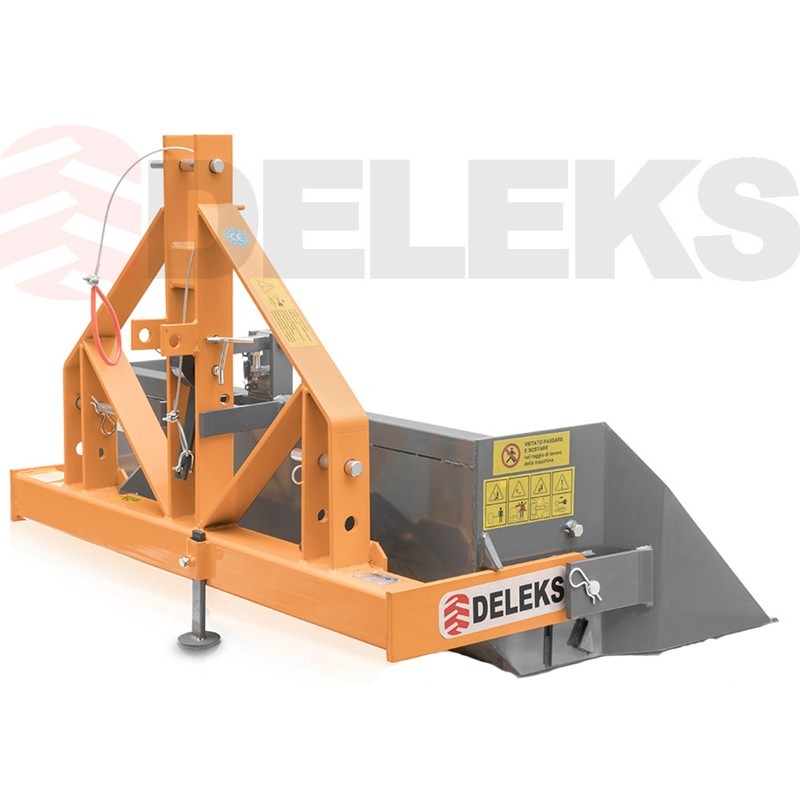

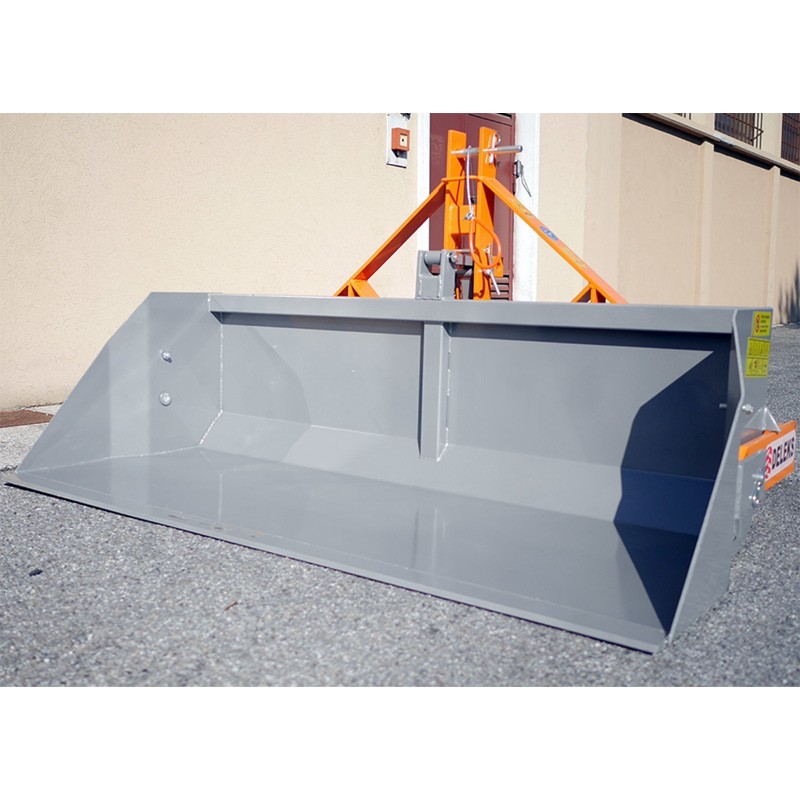

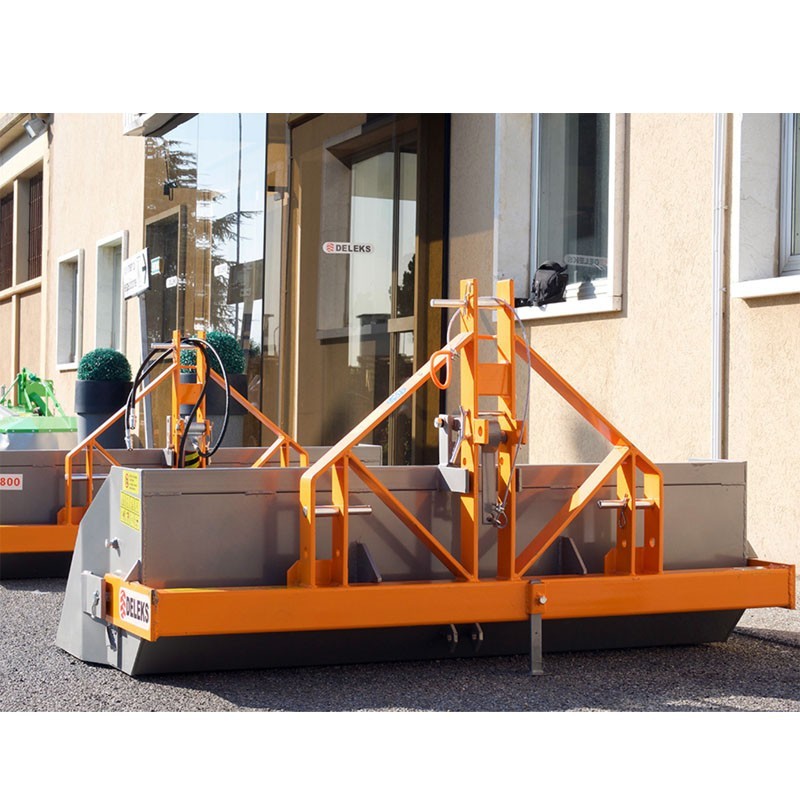

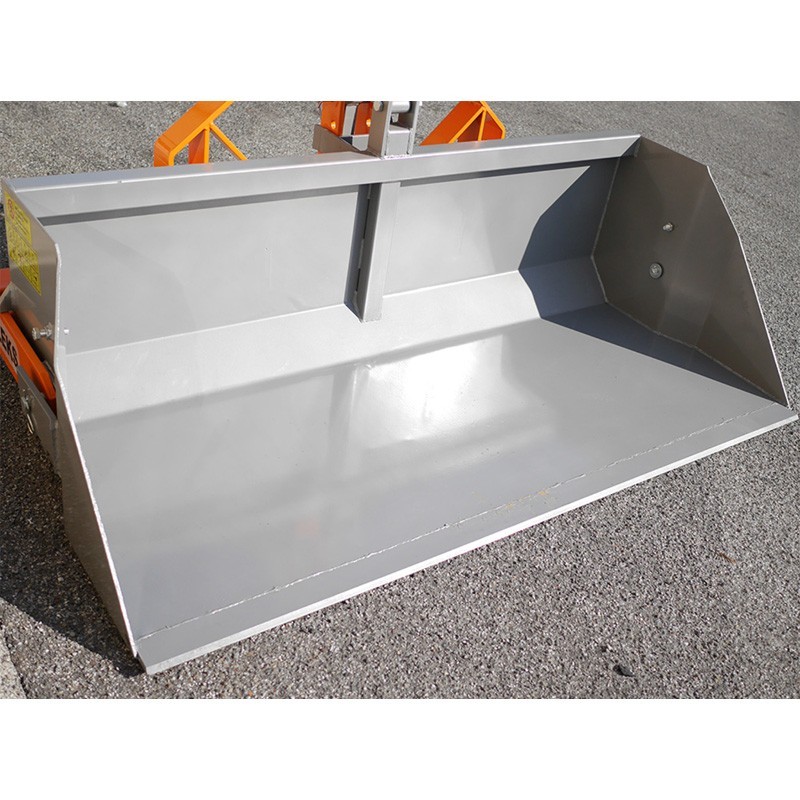

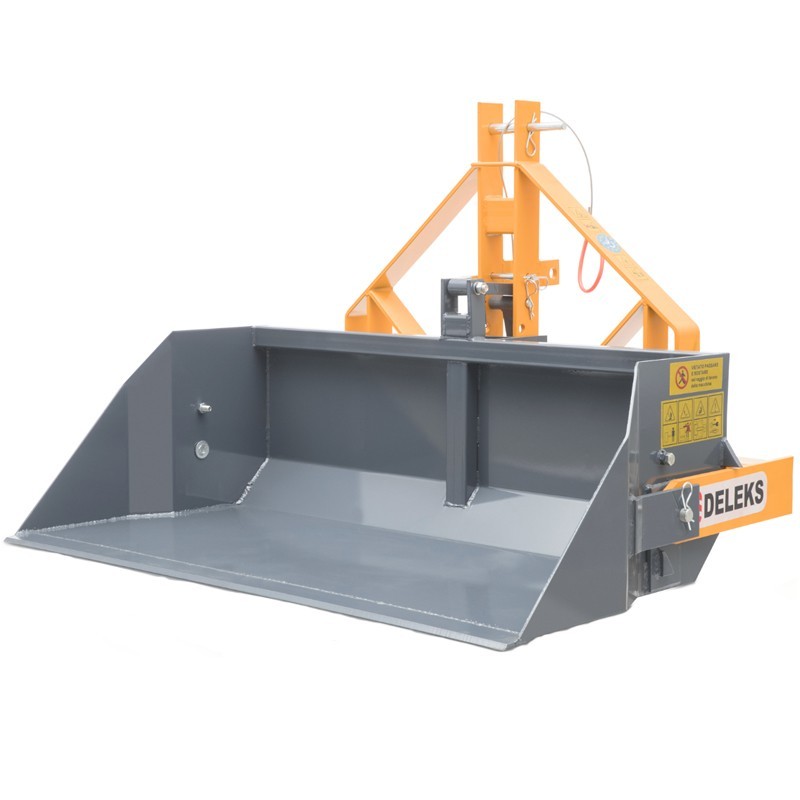

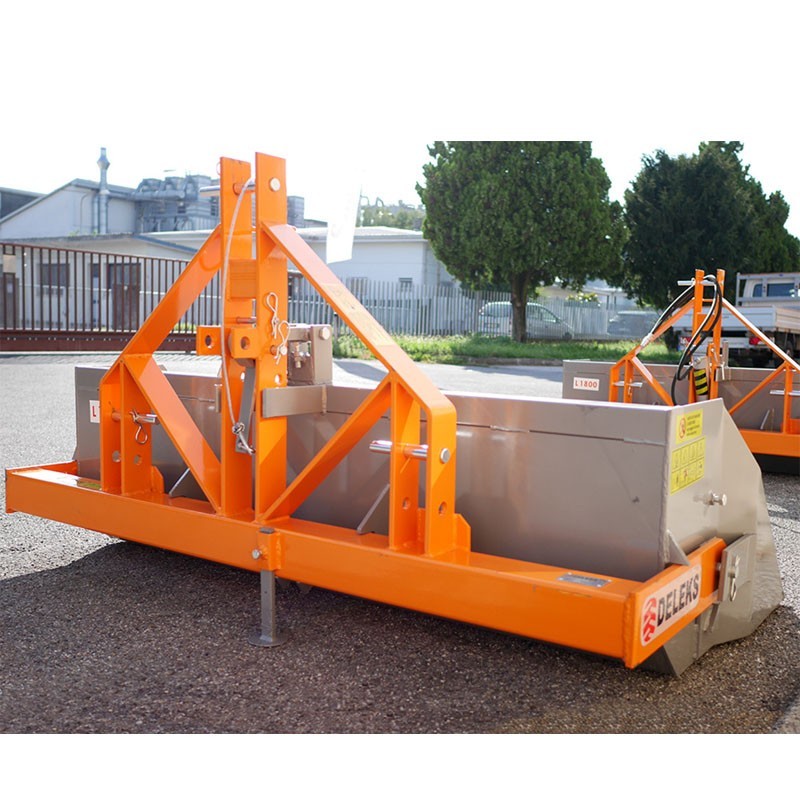

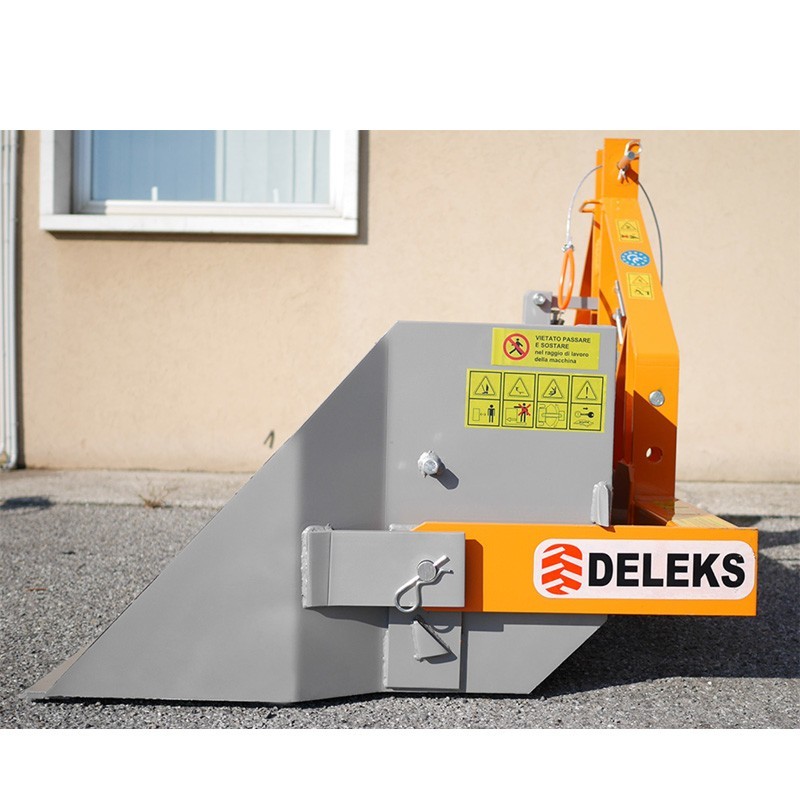

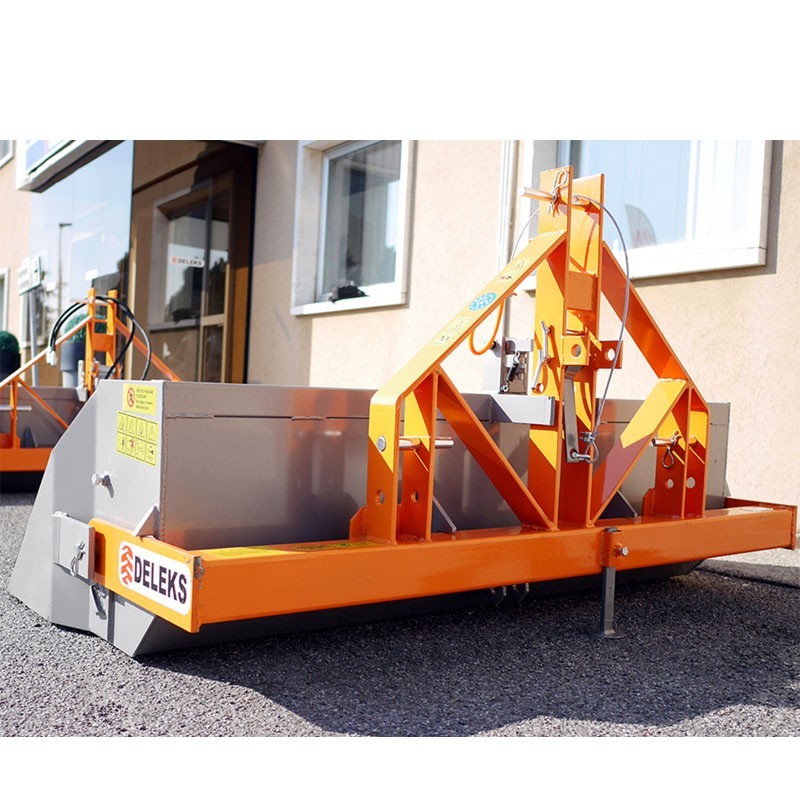

DELEKS PRM-H Reinforced Tractor Rear Loader PRM-H

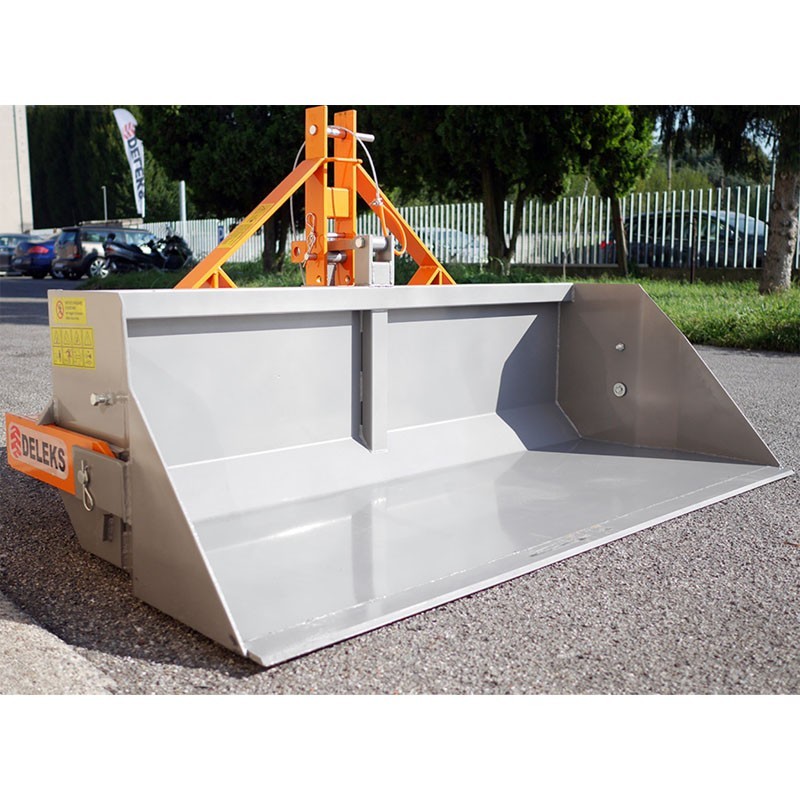

The DELEKS PRM-H reinforced tractor rear shovel is a steel shovel designed for loading and transporting all kinds of materials, such as soil, sand or even snow. It can also be used to dig and level the ground. It is equipped with a manual swing.
This tractor rear loader is suitable for tractors from 50 to 90 HP, its heavy loader has a load capacity of 700 kg, it has a simple and effective tipping mechanism of the loader, thus making it much easier and simpler to use at the time of work.

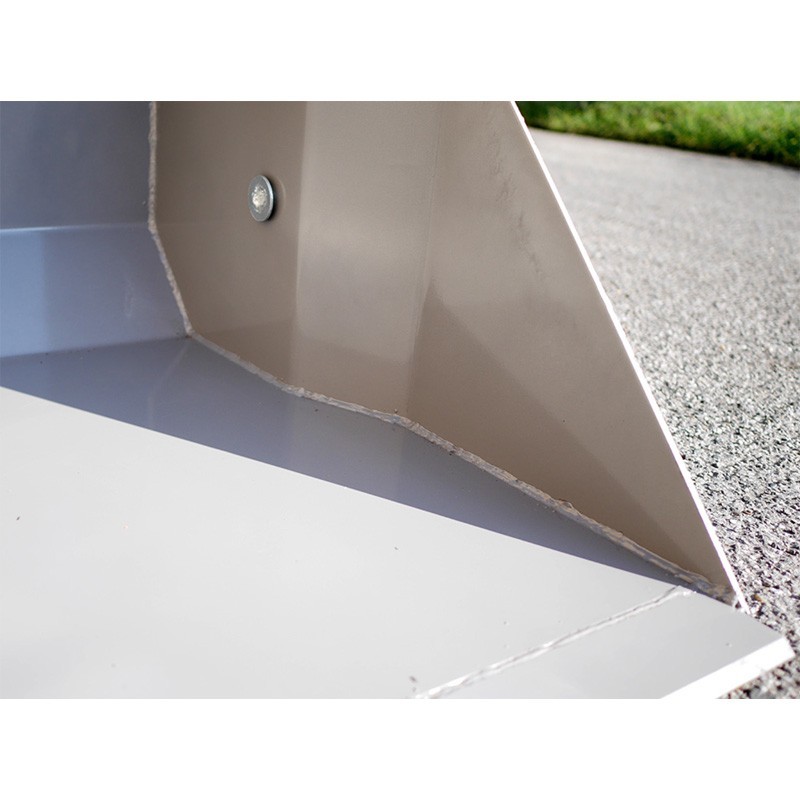

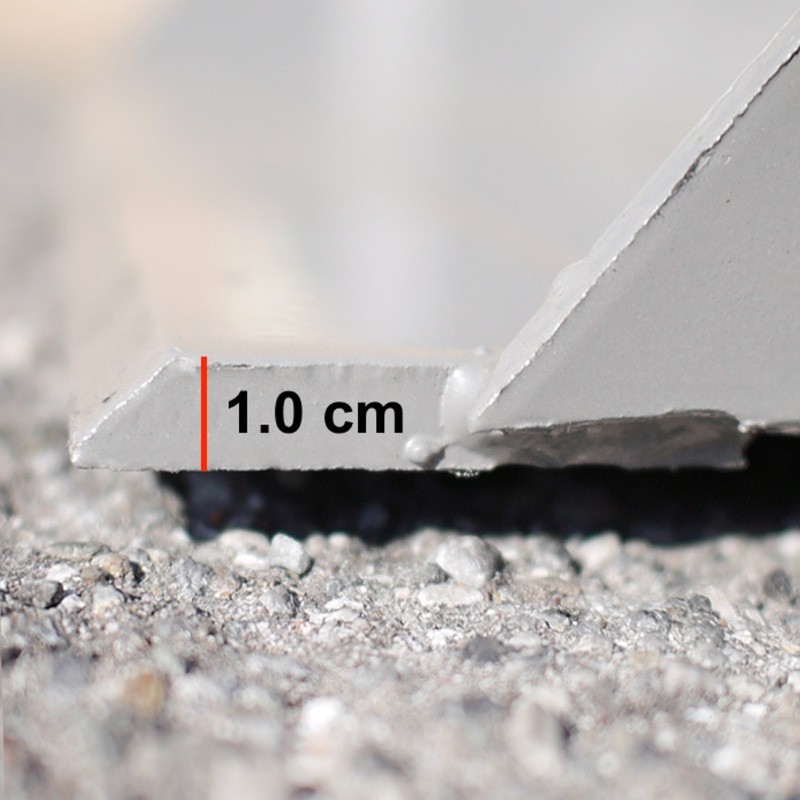

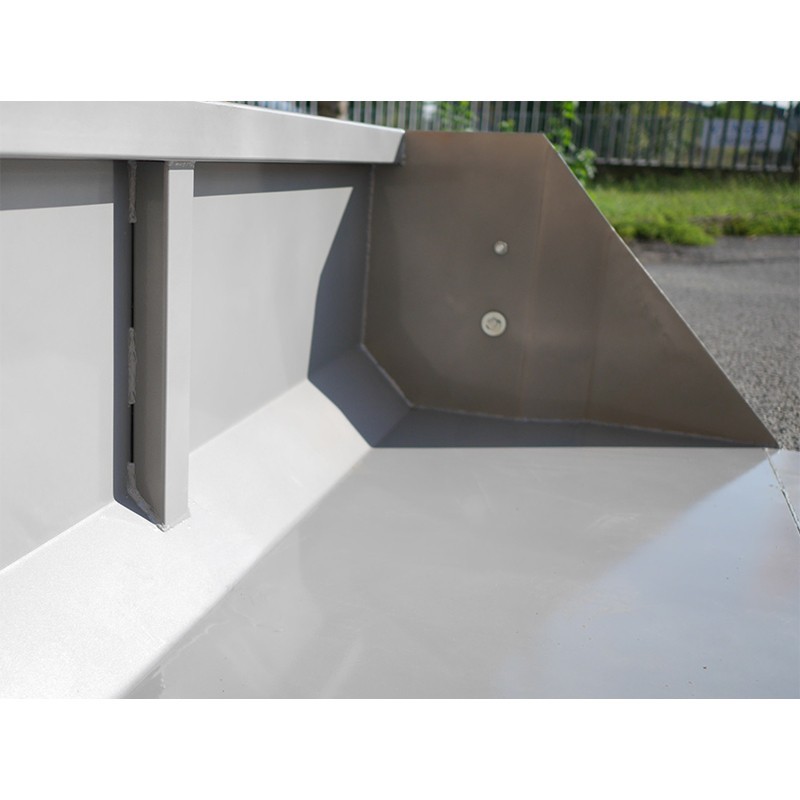

Its tipping allows unloading in a single movement, and after this the return to the initial position, ready for the next load, its 10 mm thick stainless steel loading blade with cutting edge, allows a good penetration and a long useful life.
The blade is lifted in the middle, instead of at the rear, which reduces the stress on the back of the blade and at the hitch level. In this way, there is no need for a high lift to allow materials to fall. This simplifies the work and increases the shovel's longevity.

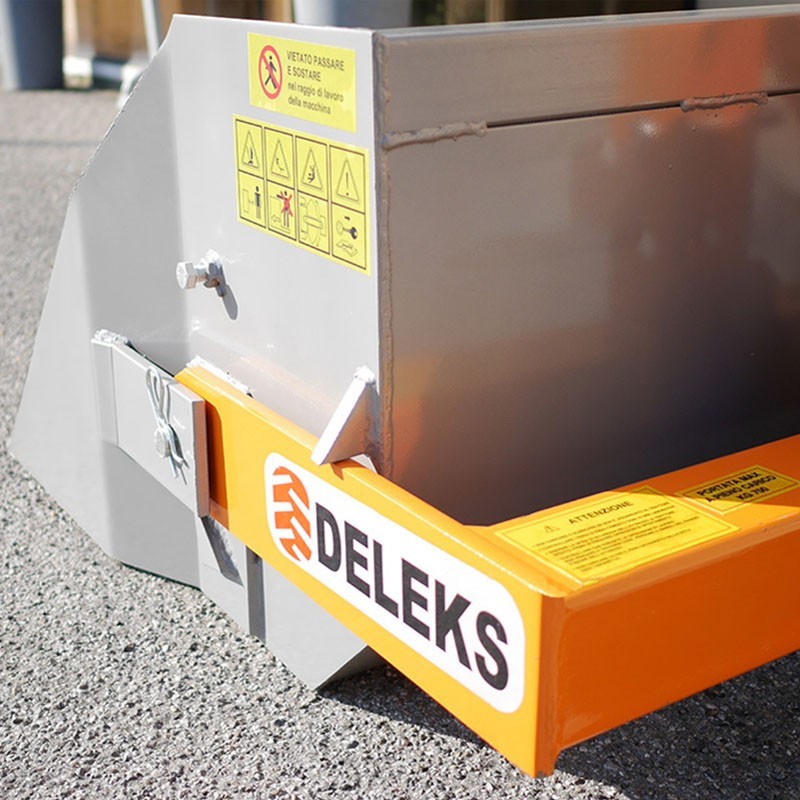

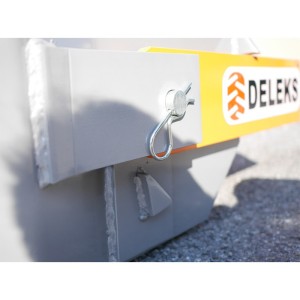

The arms do not exceed the width of the shovel, which allows for better productivity and avoids close proximity to possible obstacles. There is a safety hinge pin to prevent unintentional dropping of materials.

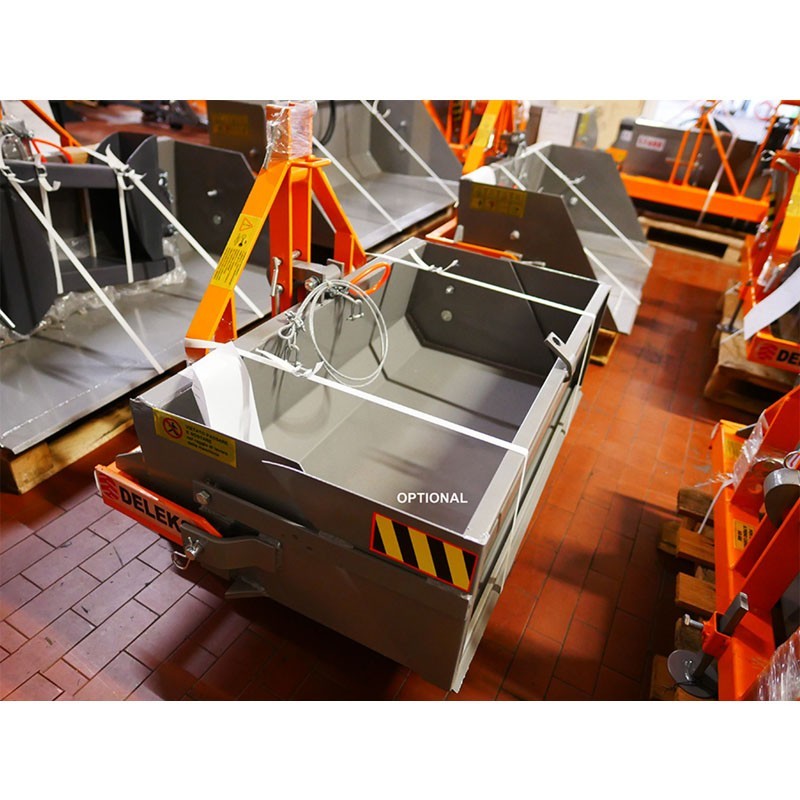

It is possible to increase the load volume of the shovel from 30 to 50% thanks to the rear door and the upper grid (optional purchase).
Characteristics
Model | PRM-160-H | PRM-200-H |
Total width | 1620.0 mm | 2020.0 mm |
Weight | 191.0 kg | 250.0 kg |
Total height | 935.0 mm | 935.0 mm |
Tractor power | 50 - 90 hp | 60 - 90 hp |

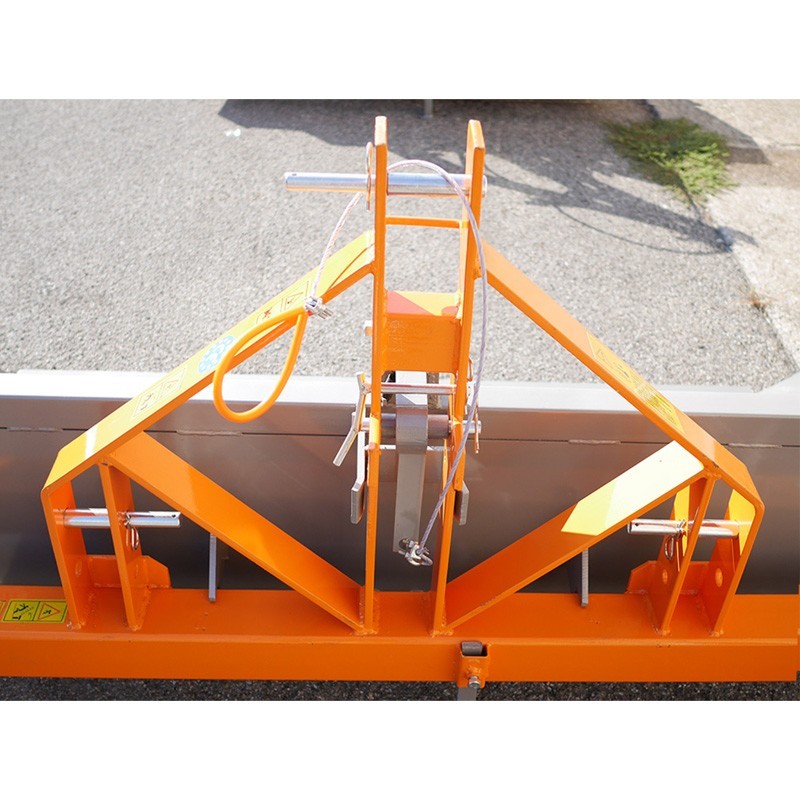

3-point hitch | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
Blade width | 1600.0 mm | 2000.0 mm |
Load capacity | 700.0 kg | |
Loading volume | 0,50 m3 | |
Thickness of the tip plate | 10.0 mm | |
Thickness of shovel plate | 6.0 mm | |
Blade height | 520.0 mm | |
Depth | 800.0 mm | |
Total depth | 1000.0 mm | |
Plate thickness. 3-point hitch | 13.0 mm | |
Distance between lower points | 660.0 - 935.0 mm | |
Inclination | Mechanical | |
Tilt angle | 90° | |
Packing dimensions | 163 x 110 x 107 cm | 203 x 110 x 107 cm |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
Data sheet
- Working width
- 1600 - 2000 mm
- Tractor power
- 50/60 - 90 HP
- Load capacity
- 700 - 799 Kg
- 3-point hitch for tractor
- Yes
- Country of manufacture
- Italy
- Weight
- 191 - 250 kg
Specific References
- ean13
- 8053470230424
- mpn
- PRM160H
Agricultural Machinery After-Sales Service
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Warranty and Factory Repair
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
Online Mechanics - Fast and Efficient
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips.
Workshop repair
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
☎️ Always by your side
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.
✔️ Advantages of buying in the Spanish territory
- National warranty: By purchasing from authorized distributors throughout Spain, you are assured of receiving a 100% Spanish warranty for your products.
- Local after-sales service: In case of any inconvenience or need for after-sales service, you will have a more efficient and accessible support when purchasing within Spain.
❌ Disadvantages of buying outside Spanish territory
- Complicated warranty management: Buying products outside Spain can make warranty management difficult, as there may be problems with the Spanish serial number or delays in the process.
- Limited after-sales service: The availability of after-sales service may be limited or less accessible when purchasing products abroad.
- Tax declaration: When purchasing products outside Spain, customers may be required to make an additional tax declaration, such as an intra-community purchase, which may involve additional tax formalities.
Review
5 other products
DELEKS PRI-H hydraulic rear blade for tractor
- Load capacity: 700 kg
- 2 hydraulic cylinders
- Tractor power: 40 - 90 HP
- Shovel width: 1400 - 2000 mm
€1,220.71 VAT incl.
Tractor box Deleks T-2000 with tipping mechanism
- Blade width 200cm
- Shovel height 46cm
- Load capacity 700Kg
- Mechanical tilt
€1,286.34 VAT incl.

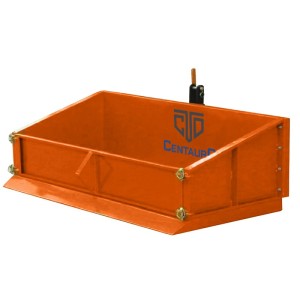

Reinforced transport box for EuroCentauro Benetússer tractor
