Heavy hydraulic grader for Zeppelin tractor 240 - 300 cm
- Working width: 2400-3000 mm
- Swing angle: 7º on each side
- Weight: 630-665 kg
€5,080.64 VAT incl.
Deleks products take about 15 to 25 days. |

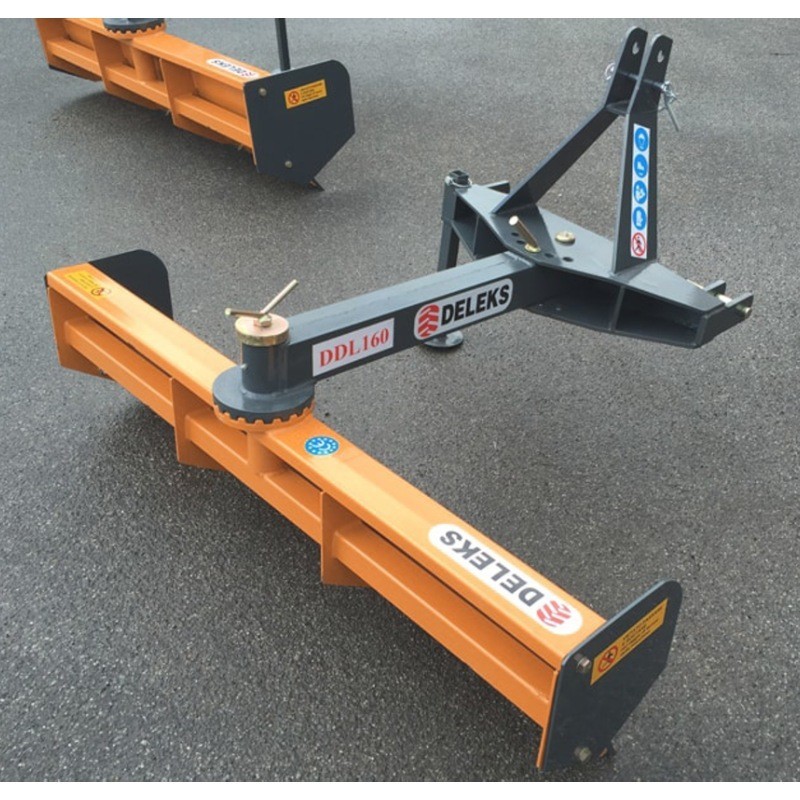

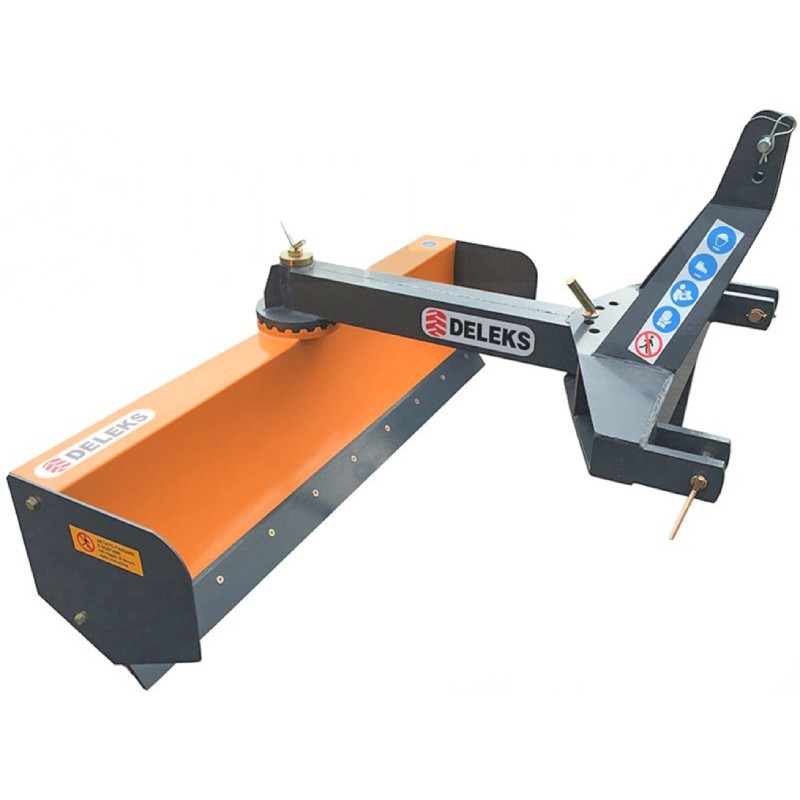

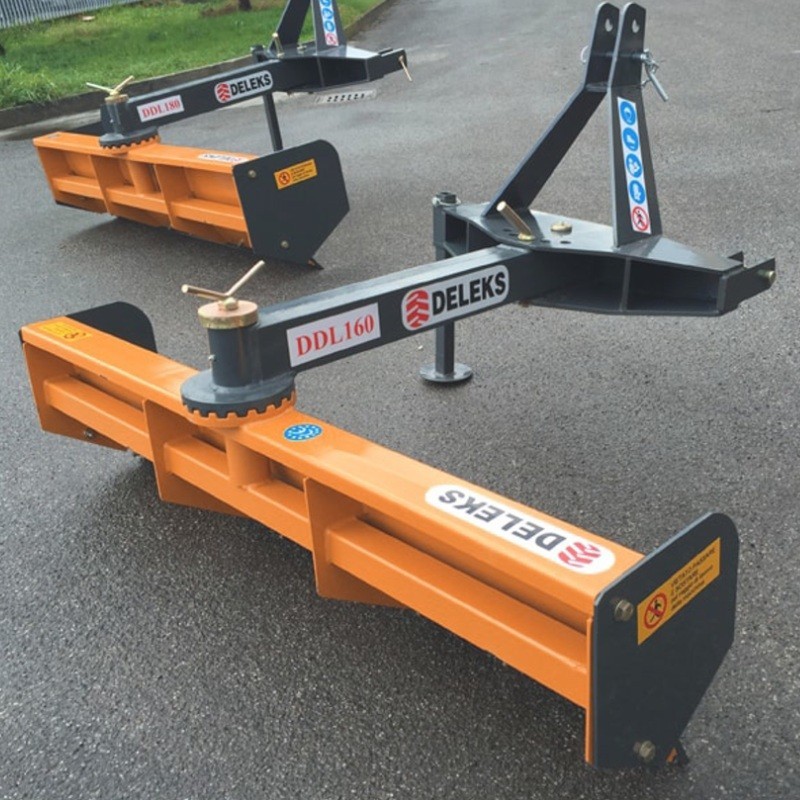

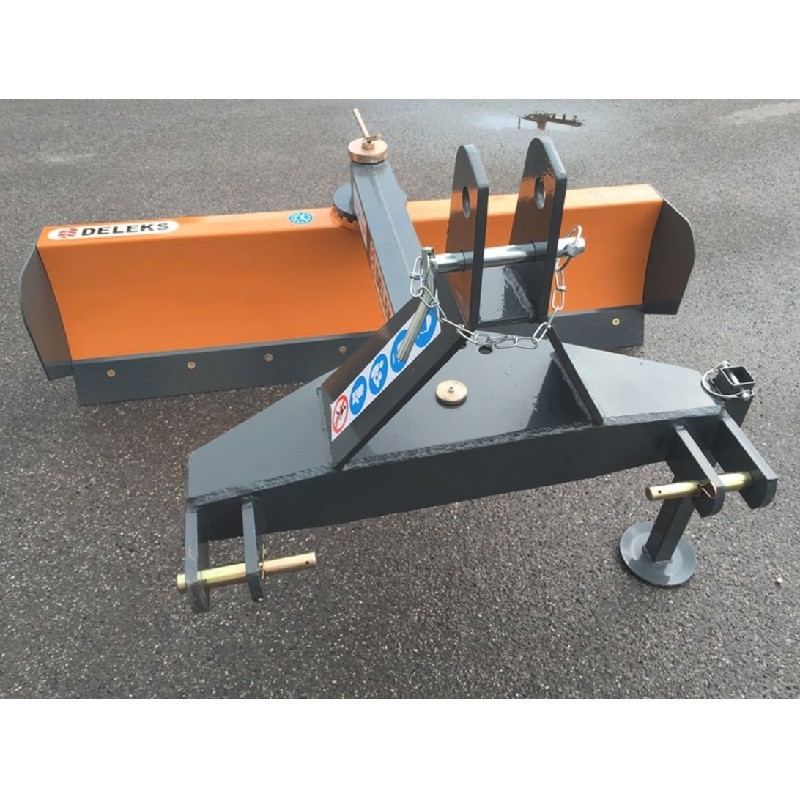

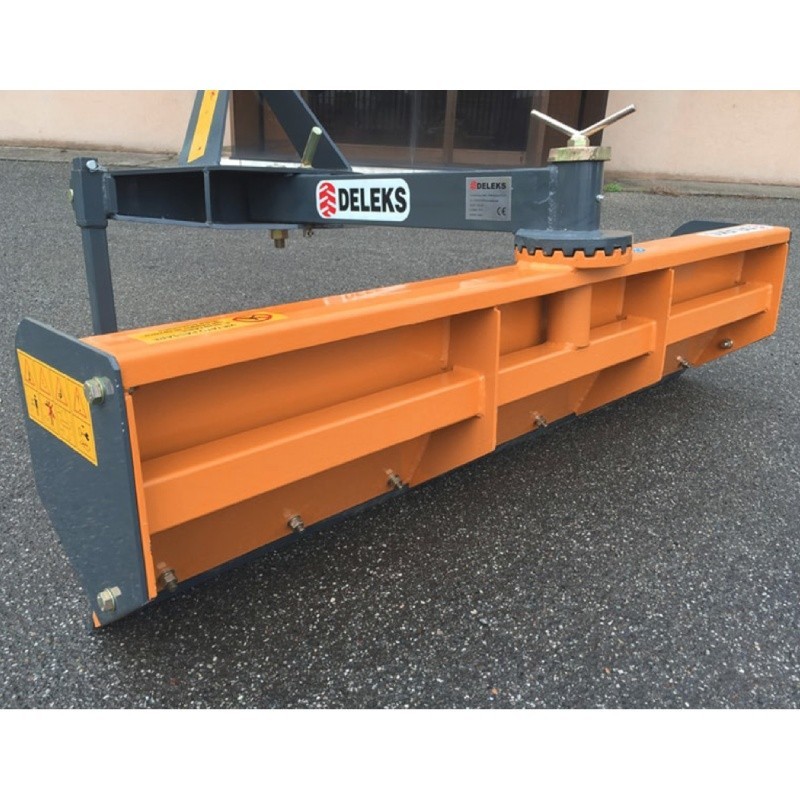

The leveling blade PTO Deleks DDL-160 has the ability to rotate 360º and can be used both at the front and rear of your tractor.
This model comes with a robust lightweight structure, making it ideal for compact tractors. Speaking of tractors, this blade is suitable for tractors with 20 to 45 hp such as Ferrari, Ford, John Deere, Kubota, among others.
The arm of this blade has the ability to easily move different elements that are in the way, whether it be sand, gravel, dirt, or even snow.
Total width | 1600.0 mm |
Weight | 155.0 kg |
Total height | 1120.0 mm |
Tractor power | 20 - 45 hp |

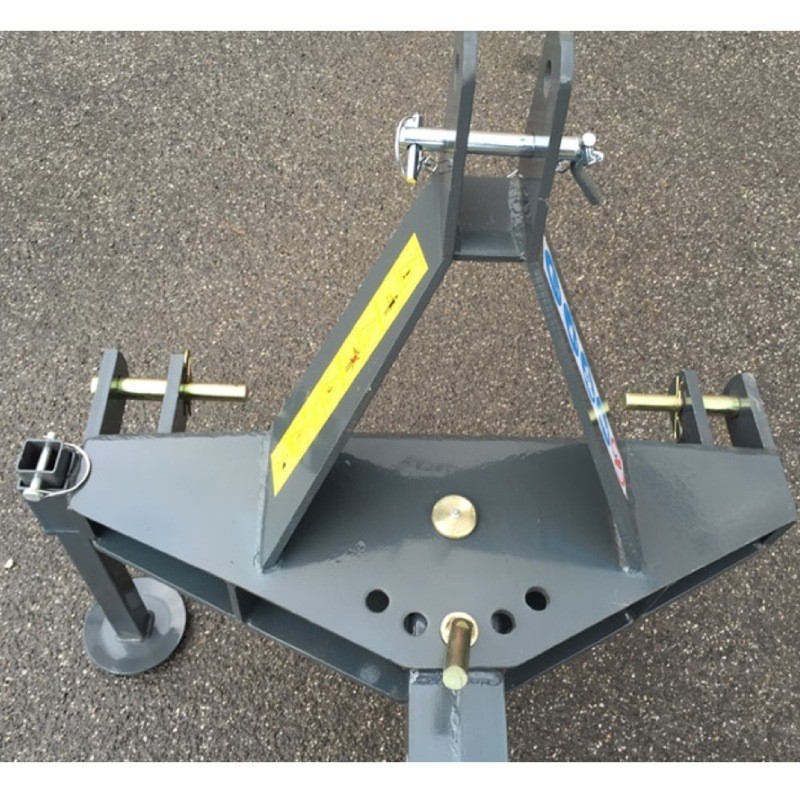

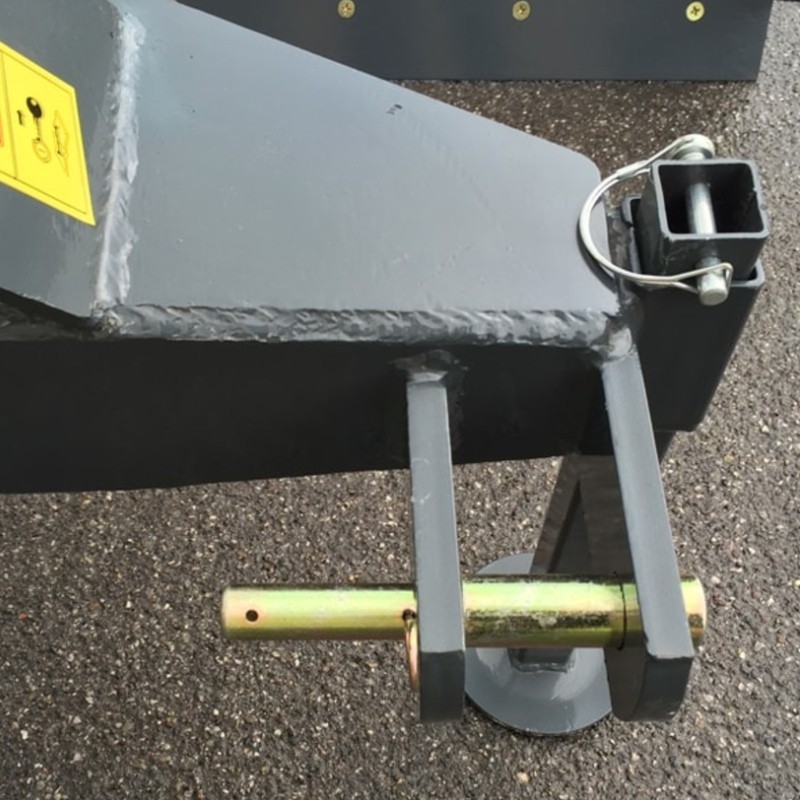

3-point hitch | Cat. 1 (ø 19.0-22.0 mm) |
Sheet thickness. 3-point hitch | 10.0 mm |
Distance between lower points | 660.0 - 770.0 mm |
Total length | 1190.0 mm |
Distance between 2 points and the ground | 420.0 mm |
Arm thickness | 100.0 * 100.0 mm |
Blade height | 450.0 mm |
Blade | Steel |

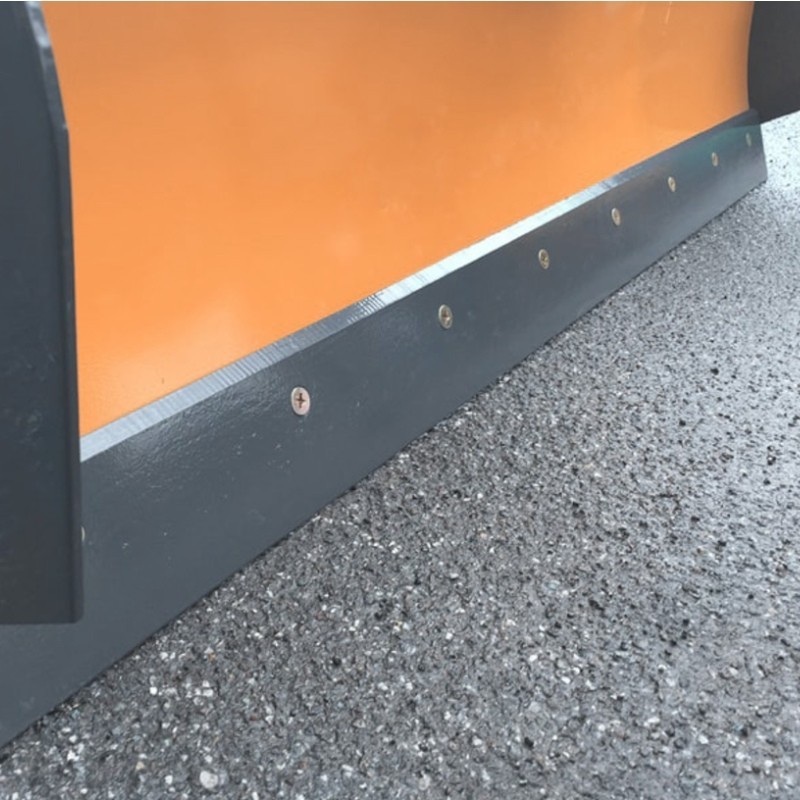

Blade: height | 150.0 mm |
Blade: thickness | 15.0 mm |
Sharpening: number | 1 |

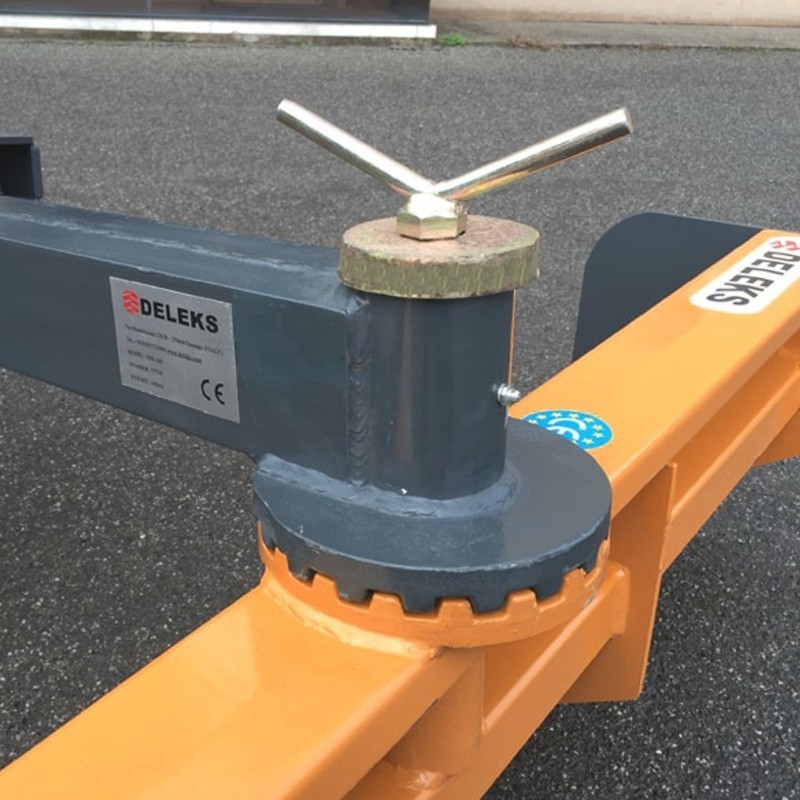

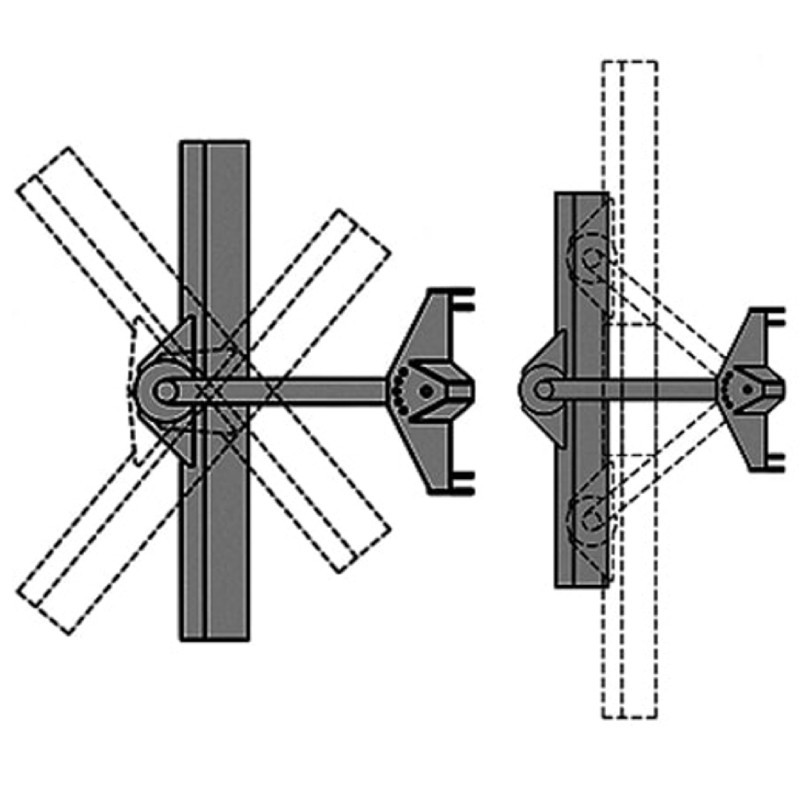

Blade rotation | 360° |
Blade: width | 1590.0 mm |
Sheet thickness (yellow) | 4.0 mm |
Blade: space between bolts | 200.0 mm |
Sides | Removable |
ø rotation axis | 60.0 mm |
Arm orientation | +/- 45° |
Sides: thickness | 6.0 mm |
Packaging dimension | 1600.0 * 800.0 * 500.0 mm |
Data sheet
Specific References
