Reversible plow DRP-25 for small tractor DELEKS
- Weight 80 kg
- Tractor power 14 - 35 HP
- Number of coulters 1
- Working width 295 mm
€594.37 VAT incl.
Deleks products take about 15 to 30 days. |

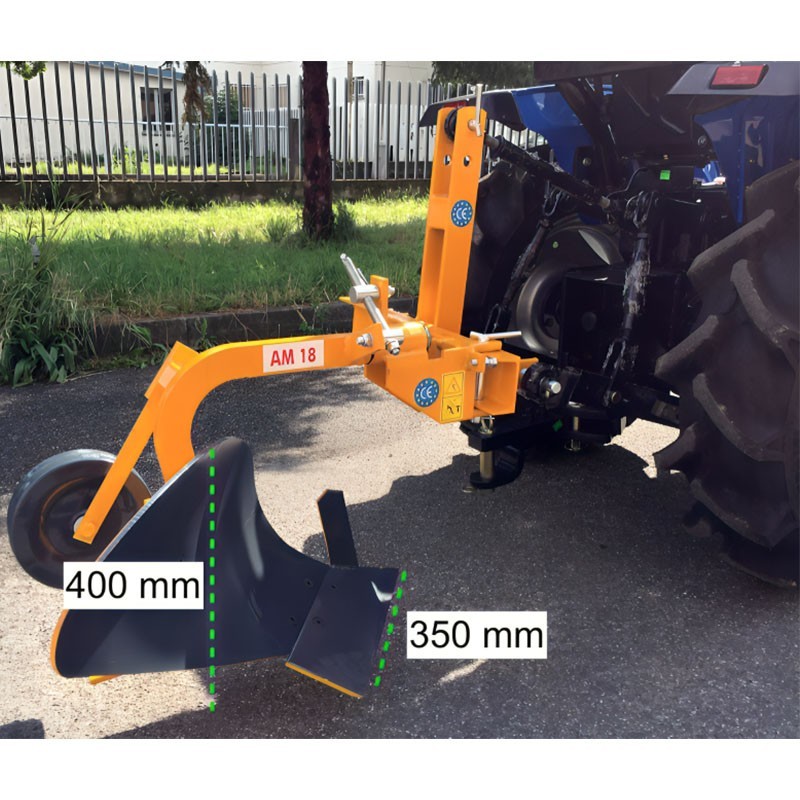

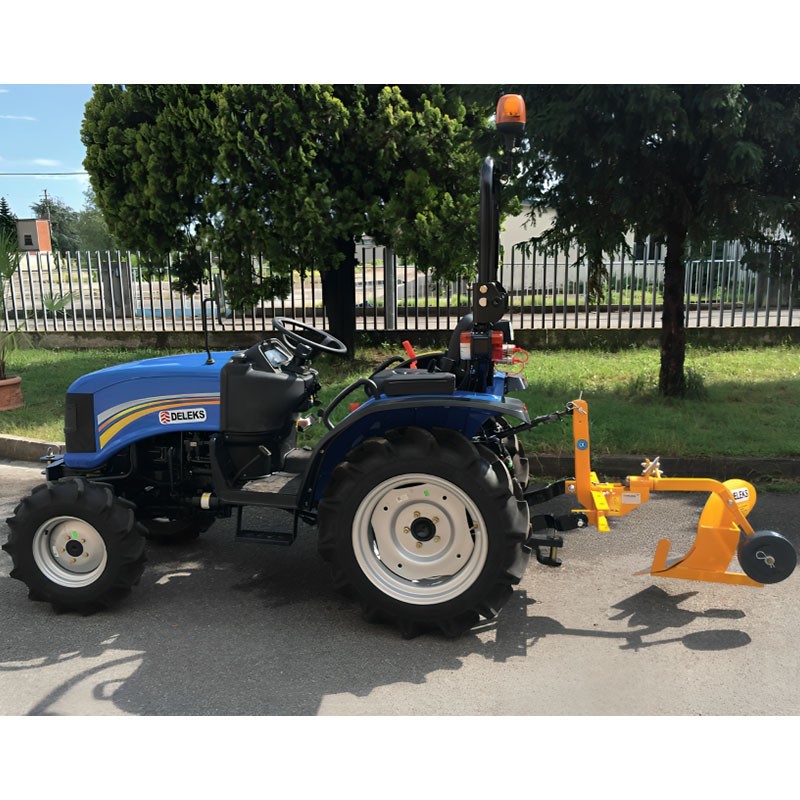

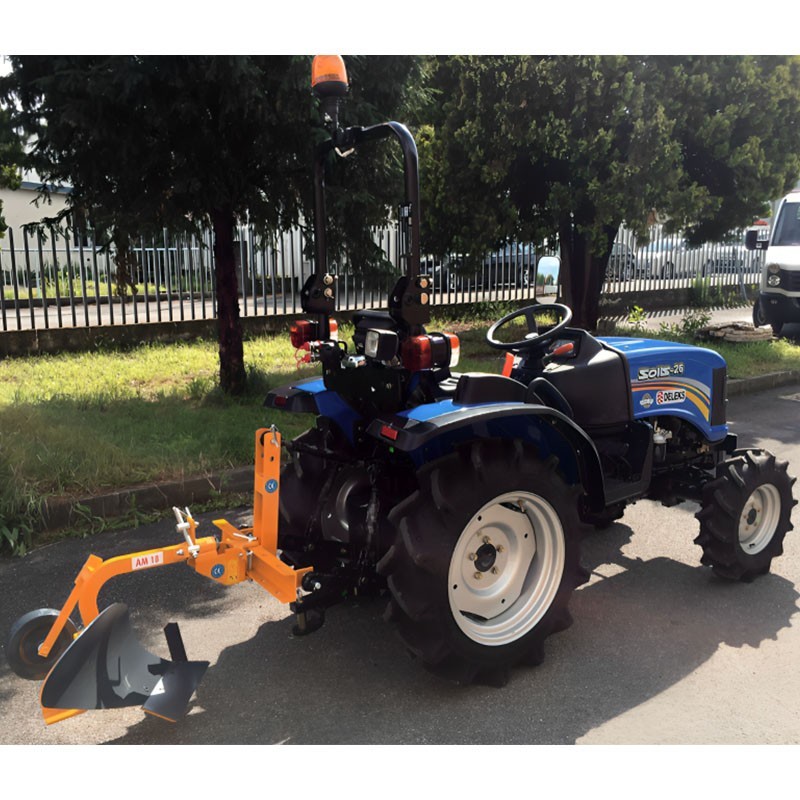

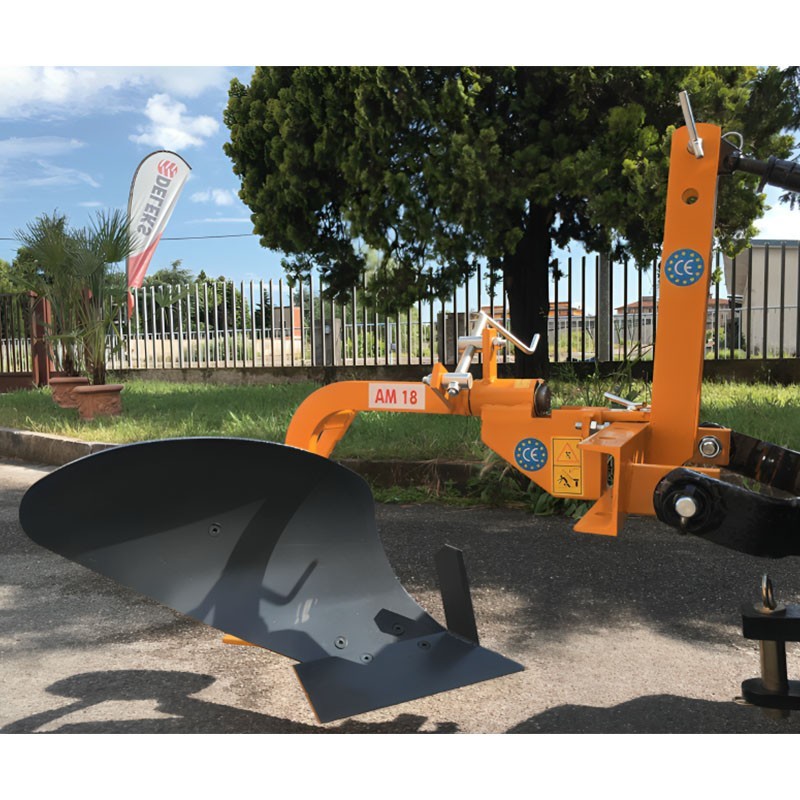

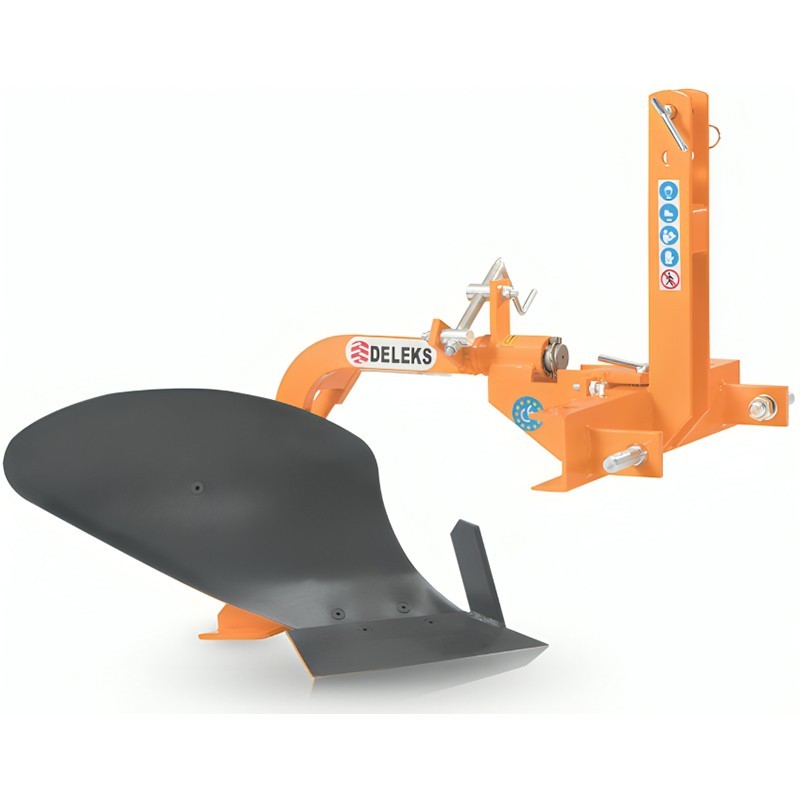

This single furrow plow for small tractor Deleks DP-18 is designed to generate furrows in the soil and tillage, this model is adapted for most tractors up to 1250 mm.
This plow model has a short chassis with additional parts to strengthen the stress points. The DP18 chassis is wider (25 mm) than the DP16.

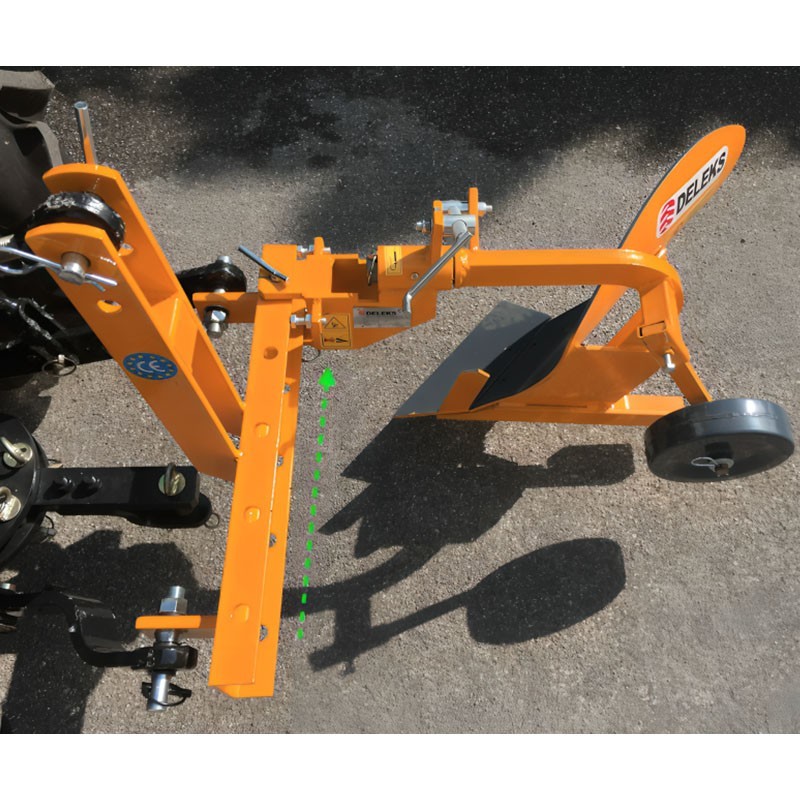

The position and the inclination of the plow are easily adjustable, its small size allows its use on low power tractors, this plow can be moved laterally with the 3-point hitch, this hitch can be used for other tools, and the blade of this can be easily changed and the wheel allows to regulate the working depth.
Overall width | 640.0 mm |
Weight | 50.0 kg |
Total height | 800.0 mm |
Tractor power | 12 - 30 HP |
3-point hitch | Cat. 1 (ø 19.0-22.0mm) |

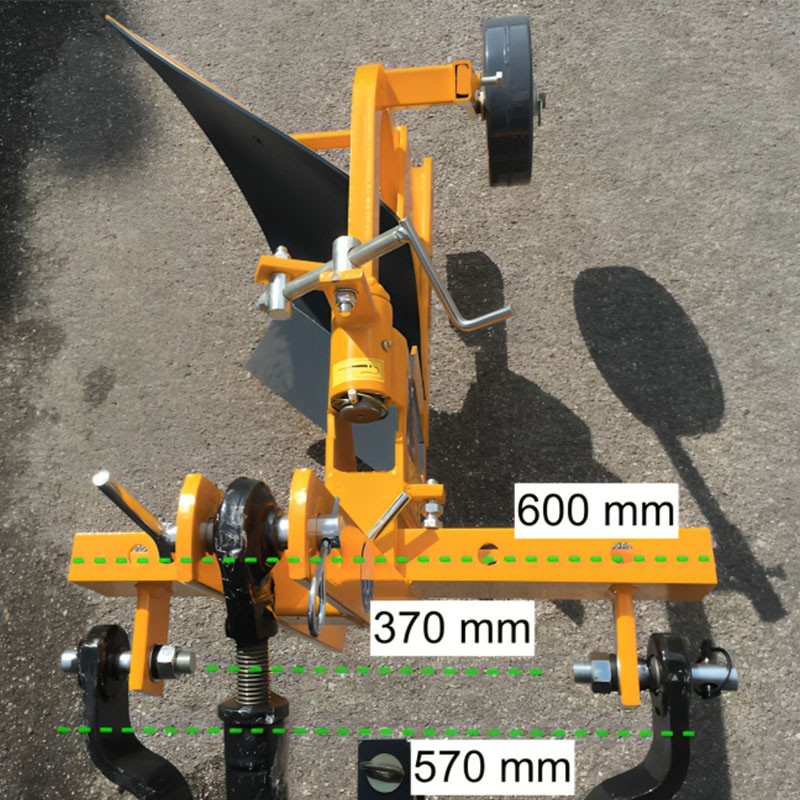

Distance between lower points | 360.0 - 580.0 mm |
Total length | 950.0 mm |
Number of coulters | 1 |
Grating diagonal | 800.0 mm |
Working width | 295.0 mm |
Offset | 460.0 mm |
Arm thickness | 25.0*50.0 mm |
Blade length | 345.0 mm |
Blade thickness | 10.0 mm |
Hitch tube dimension | 100.0*80.0 mm |
Wheel dimension | ø 22.0*6.0 mm |
Working depth | 160.0 - 220.0 mm |
Packing dimension | 600.0*800.0*500.0 mm |
IMPORTANT NOTICE |
The customer is obliged to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
