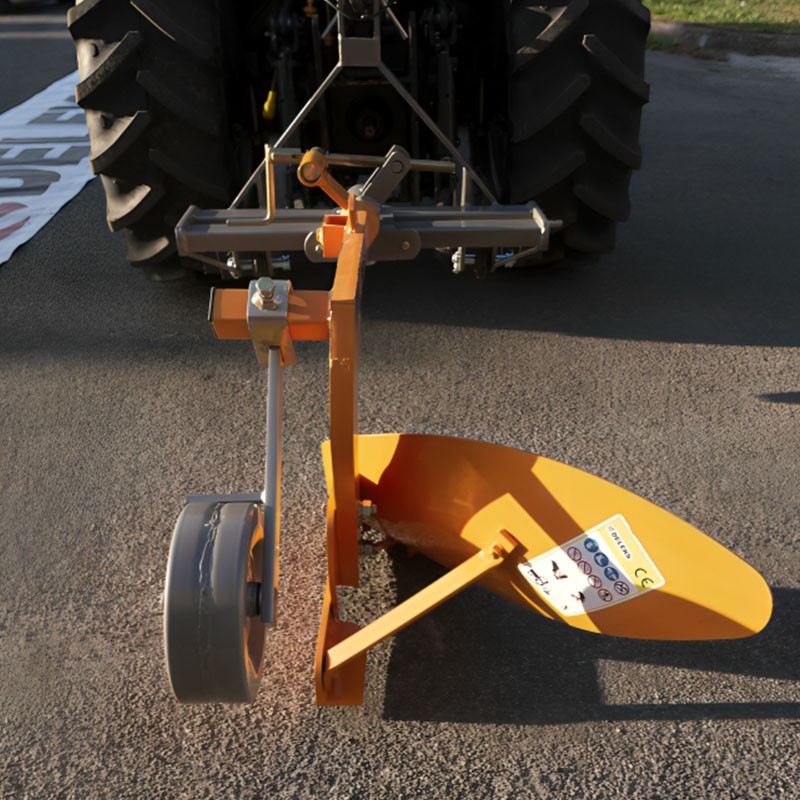

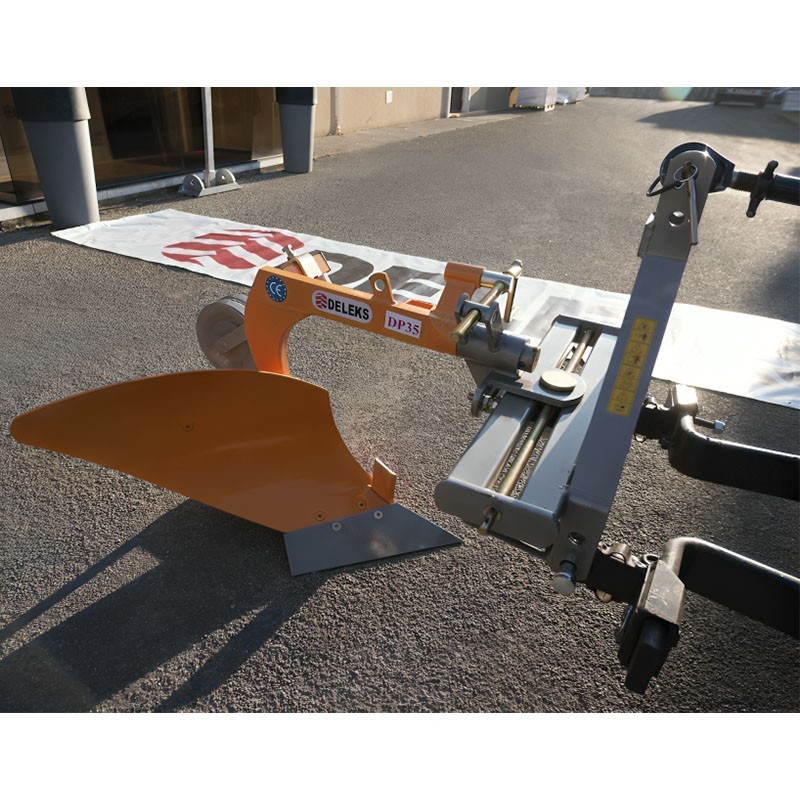

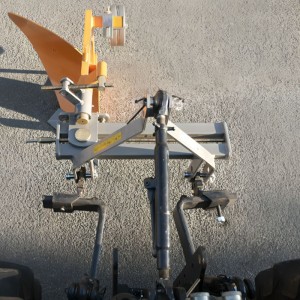

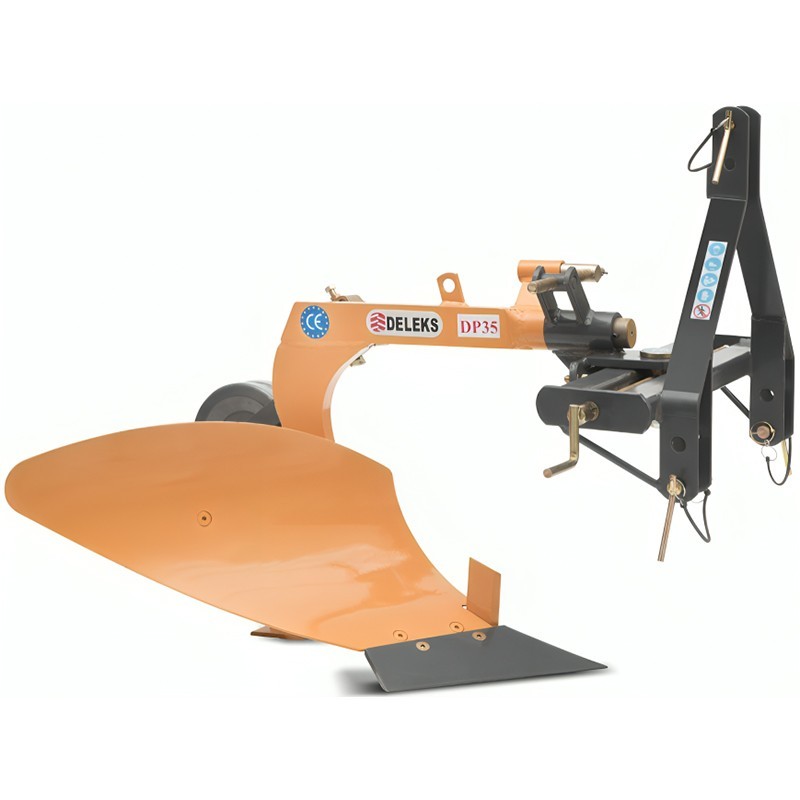

This Tractor Plow Deleks DP-35 with angle regulation is designed to generate furrows in the soil and till it, this model is adapted for most tractors with a maximum width of 1400 mm and a weight of 1800 kg.

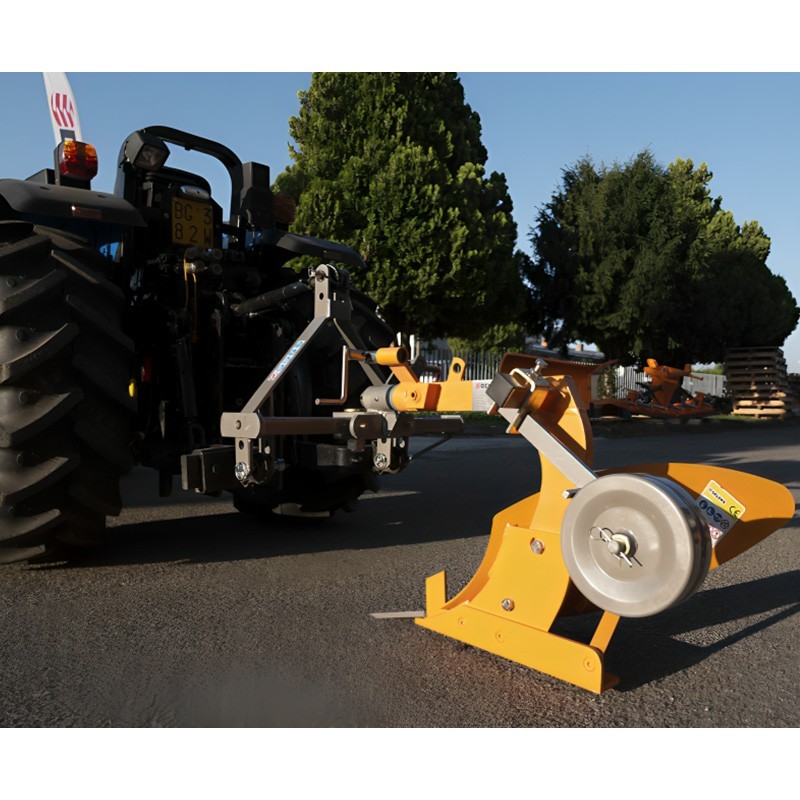

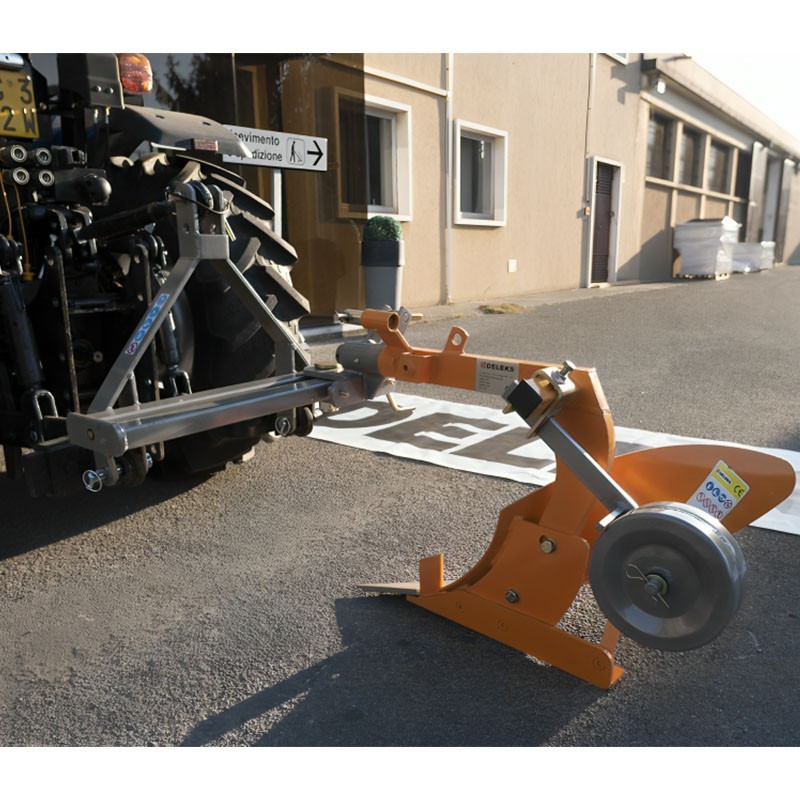

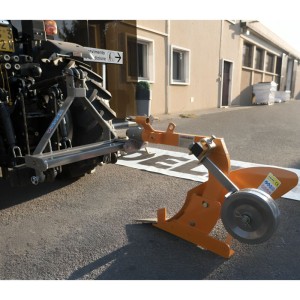

This plow is mounted on the tractor with its universal 3-point hitch, this model is not suitable for tractors from tracked, it has a chassis of 85 kg that allows a use for tractors from 25 to 40 HP.

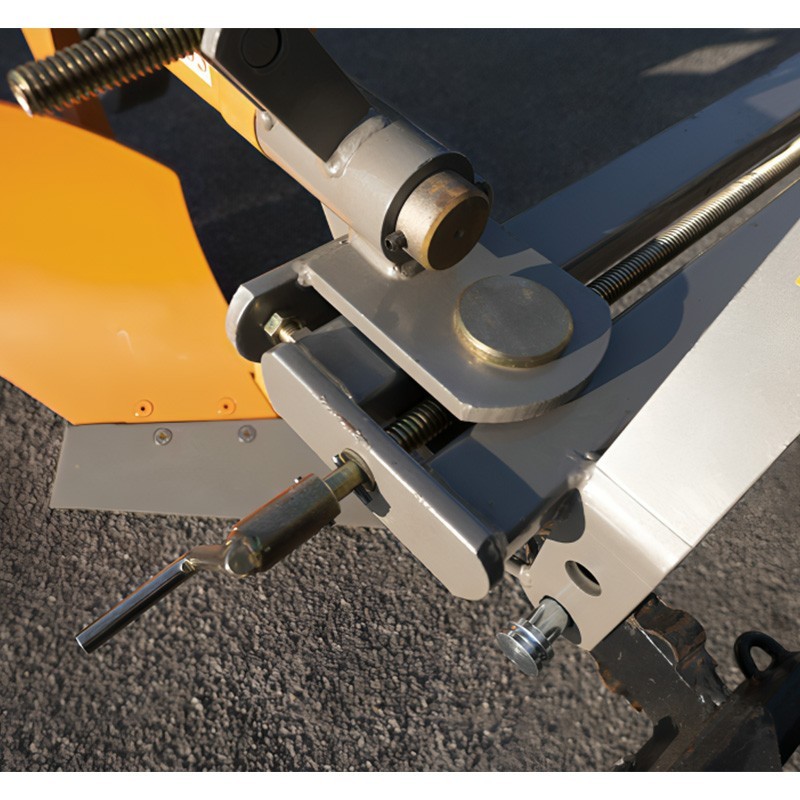

It has a stainless steel blade that ensures great reliability, the Tractor Plow Deleks DP-35 with angle regulation has additional parts to strengthenthe tension points, the blade of this machine can be easily changed and its wheel allows to regulate the working depth.

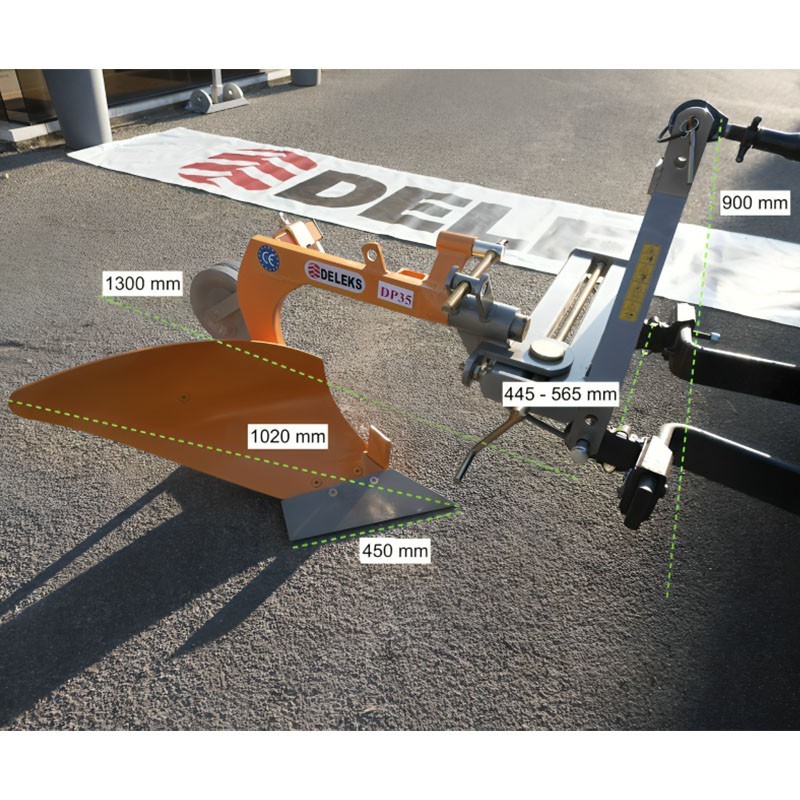

Total width | 800 mm |
Weight | 85 kg |
Overall height | 900 mm |
Tractor power | 25 - 40 HP |
3-point hitch | Cat. 1 |
Distance between lower points | 445.0 - 565.0 mm |
Overall length | 1300 mm |
Number of coulters | 1 |
Grating diagonal | 1020 mm |
Working width | 360 mm |

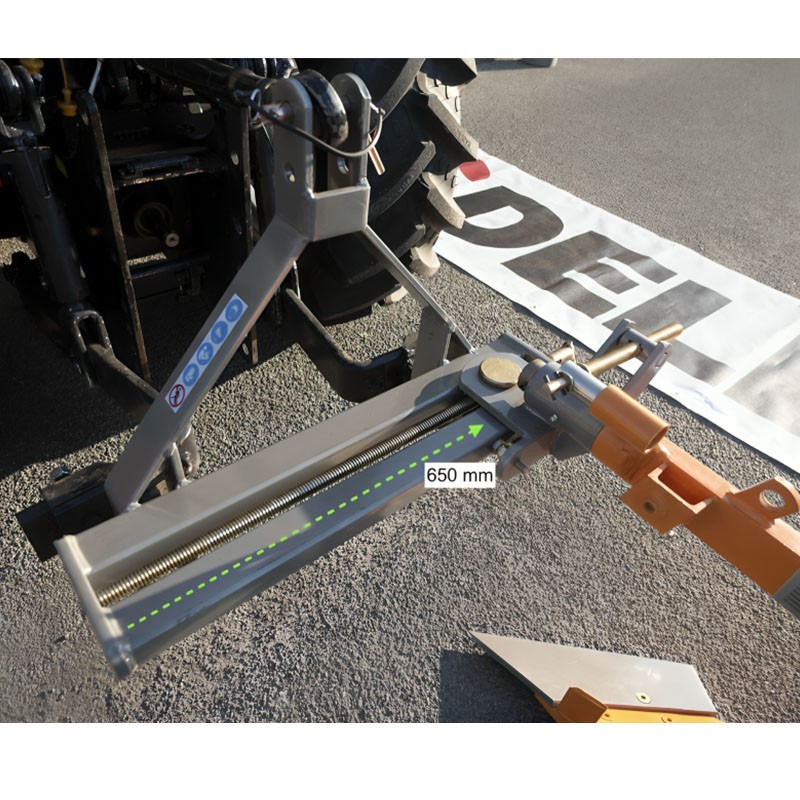

Displacement | 650 mm |
Arm thickness | 30*70 mm |
Blade length | 450 mm |
Blade thickness | 15 mm |
Hitch tube dimension | 170*40 mm |
Wheel dimension | ø23*8.0 mm |
Working depth | 180 - 280 mm |
Packing dimensions | 60 x 111 x 60 cm |
