Rotary plow for mini tractor Dimago 180 degrees P
- Tractor power: 16 - 20 HP
- Reversible: 180
- Inches: 7"
- Weight: 85 kg
€833.89 VAT incl.
Deleks products take about 15 to 20 days. |

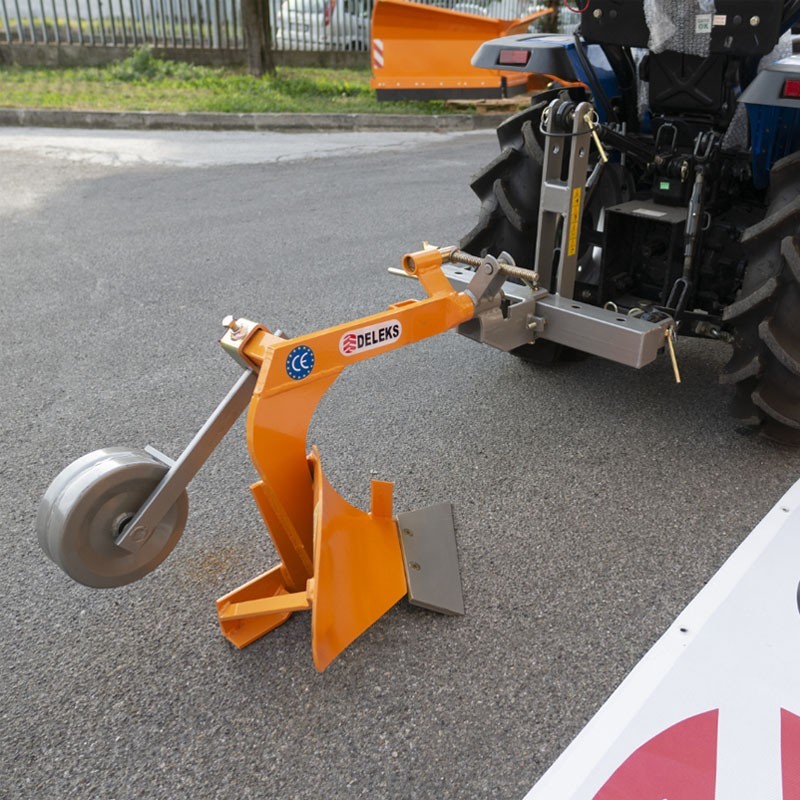

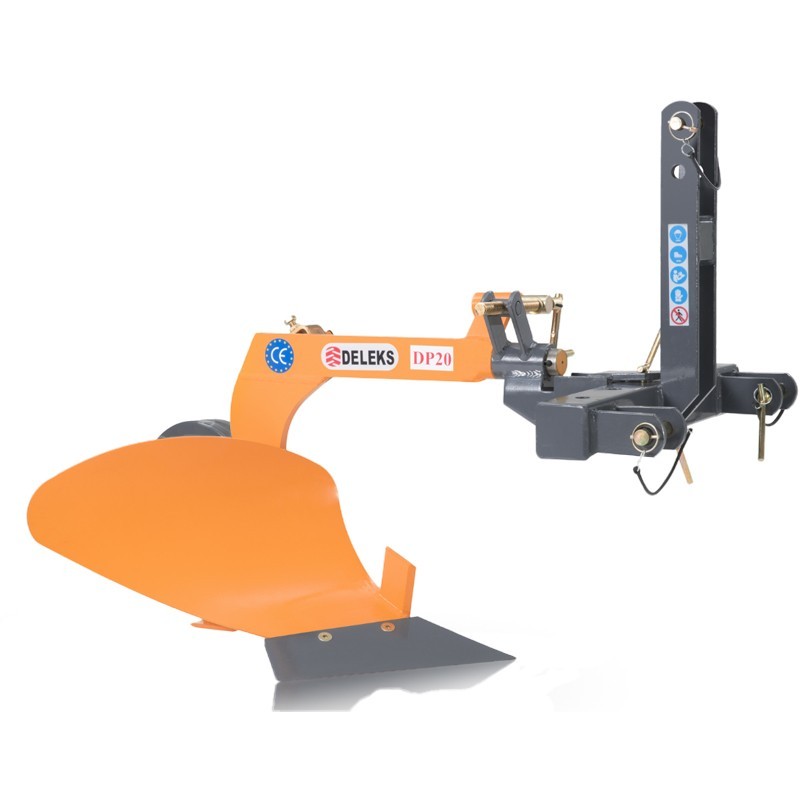

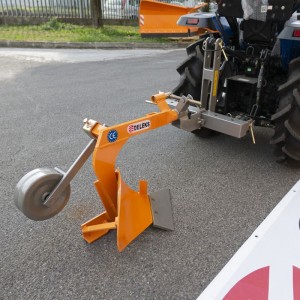

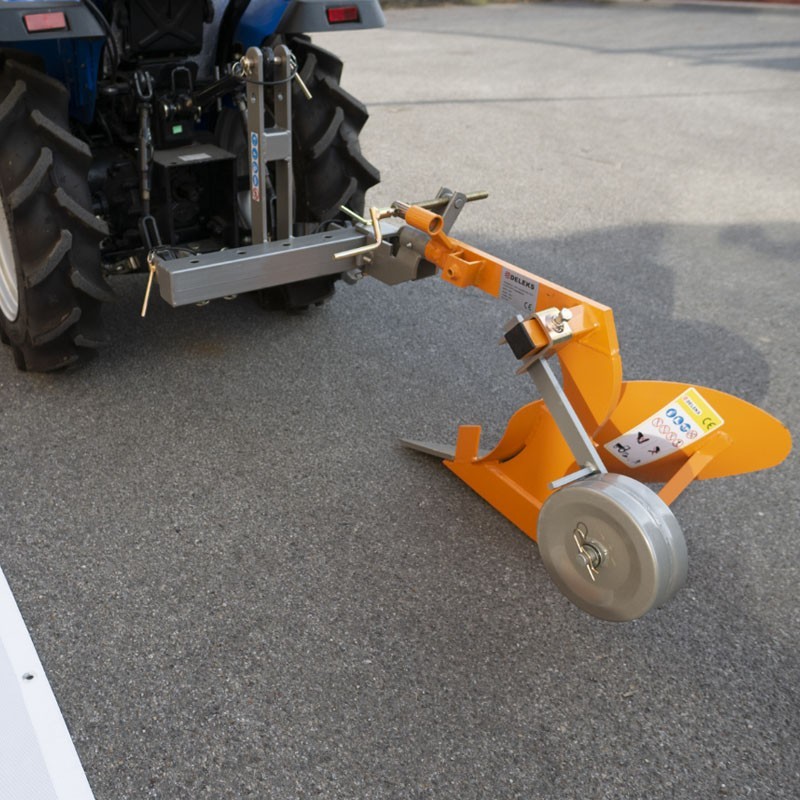

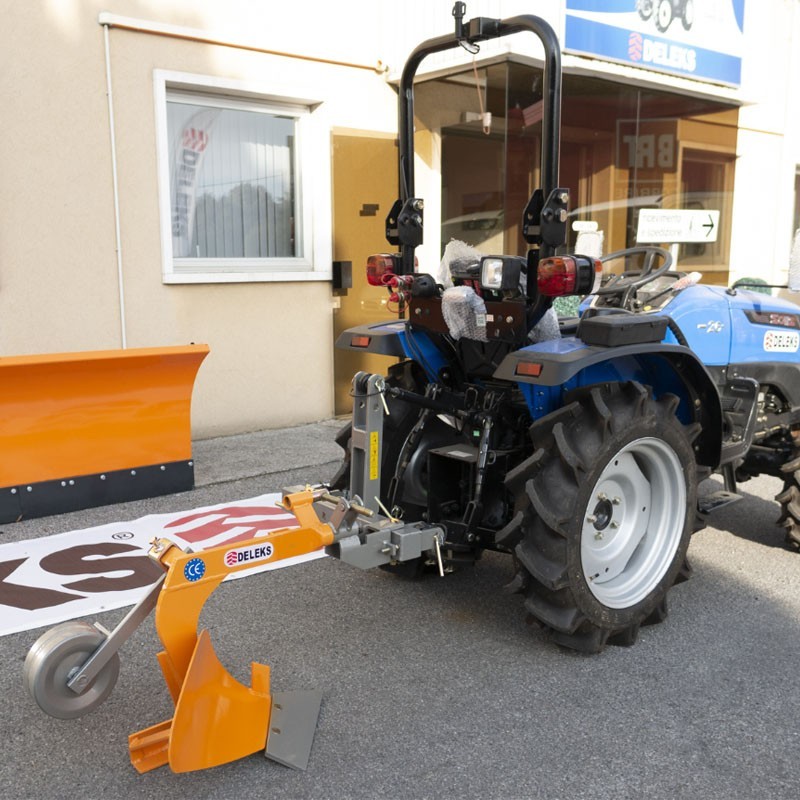

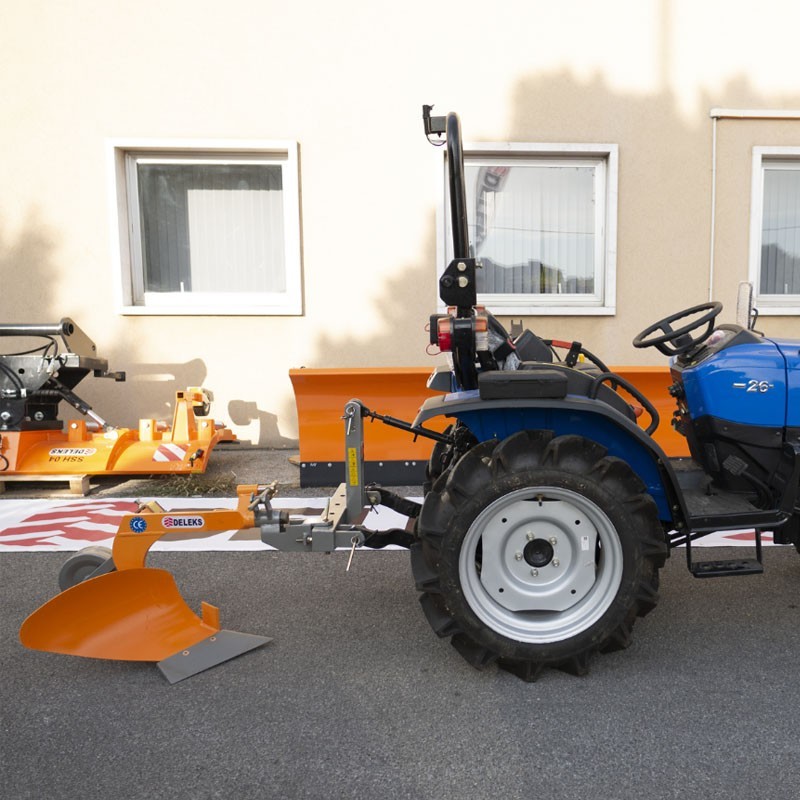

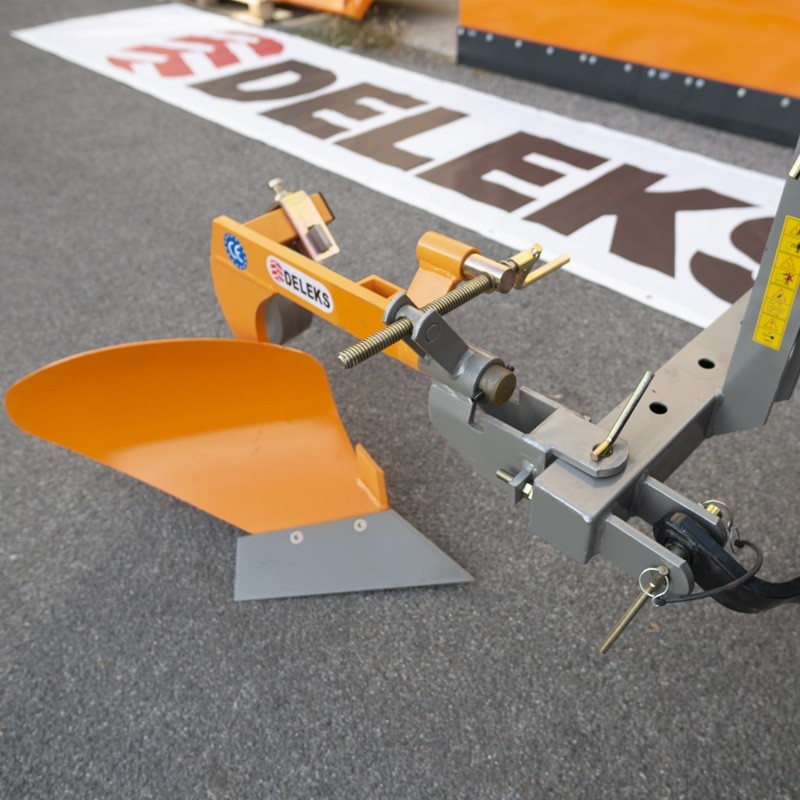

The DELEKS single furrow plough DP-20 for tractor is designed to generate furrows in the soil and ploughing, this model is adapted for most tractors (maximum 1300 mm), this plough is mounted on the tractor with its universal 3-point hitch. It is not suitable for tractors from tracked.
This plow is heavier than the DP18 and DP16 models, for 25 - 35 HP tractors, this model has short chassis with additional parts to strengthen the tension points, the position and inclination of the plow are easily adjusted, its small size allows its use on low power tractors.

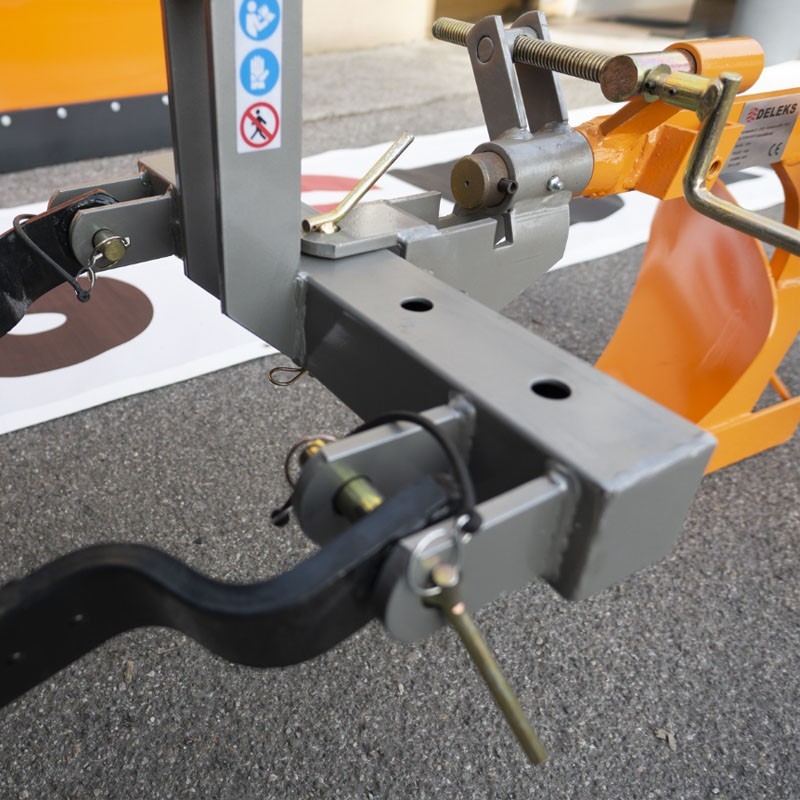

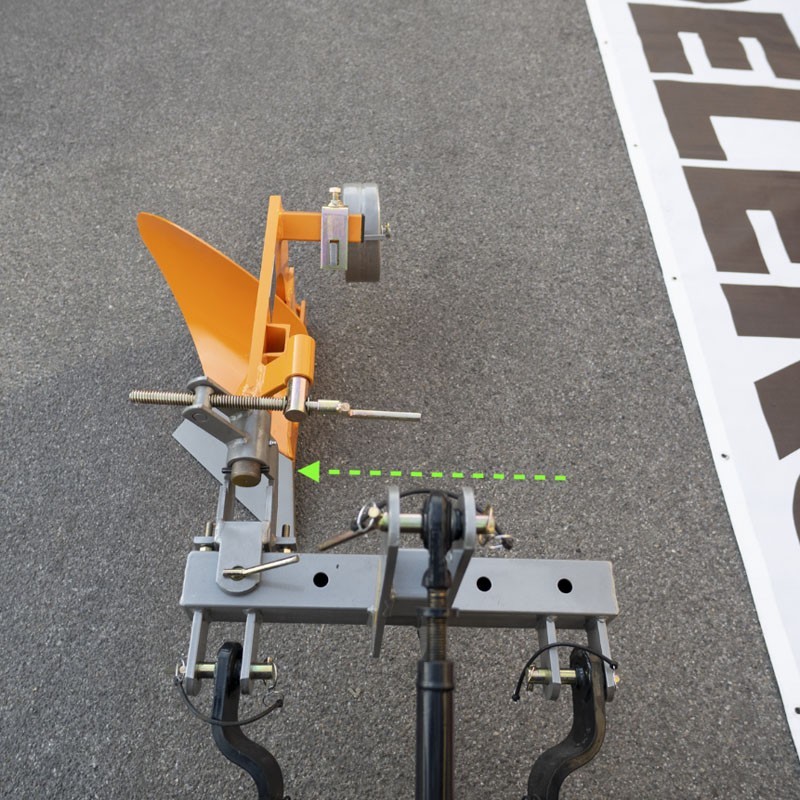

The plow can be moved laterally on the 3-point hitch. The hitch can be used for other tools. The trowel can be easily changed and the wheel allows the working depth to be adjusted.
Overall width | 610.0 mm |
Weight | 61.0 kg |
Total height | 910.0 mm |
Tractor power | 20 - 35 hp |
3-point hitch | Cat. 1 (ø 19.0-22.0mm) |

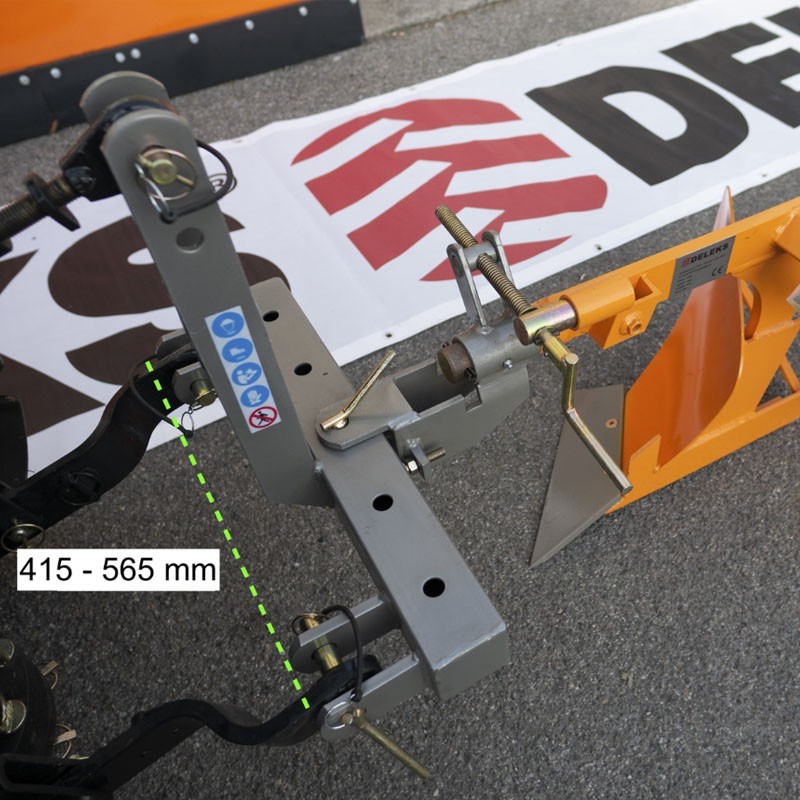

Distance between lower points | 415.0 - 565.0 mm |
Total length | 1070.0 mm |
Number of coulters | 1 |
Diagonal Soc | |
Grating diagonal | 835.0 mm |
Working width | 310.0 mm |

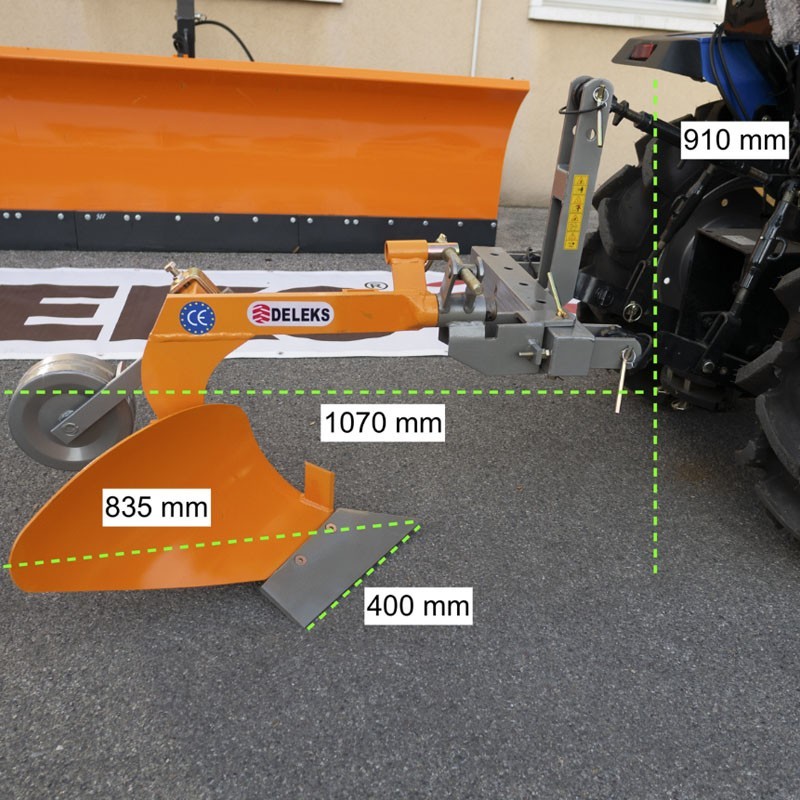

Other dimensions | See pictures |
Offset | 460.0 mm |
Arm thickness | 20.0*70.0 mm |
Blade length | 400.0 mm |
Blade thickness | |
Blade thickness | 15.0 mm |
Hitch tube dimension | 80.0*80.0 mm |
Wheel dimension | ø 25.0 * 10.0 mm |
Working depth | 160.0 - 250.0 mm |
Packing dimension | 600.0*800.0*500.0 mm |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
