Single-furrow plow for mini tractor Deleks DP-16 12-30HP
€393.84
Qty

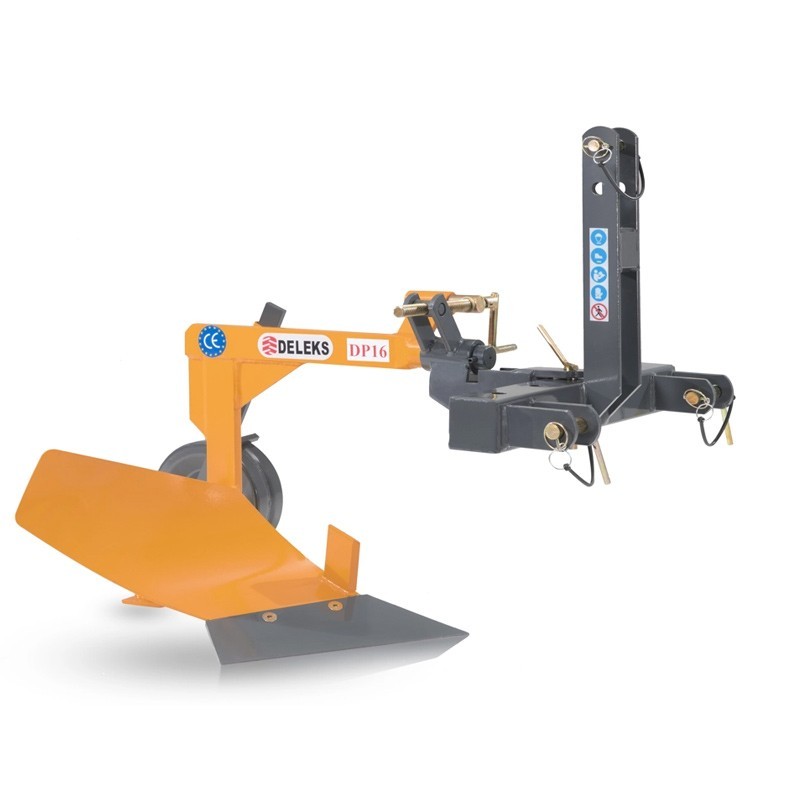

Single-furrow plow for mini tractor Deleks DP-16

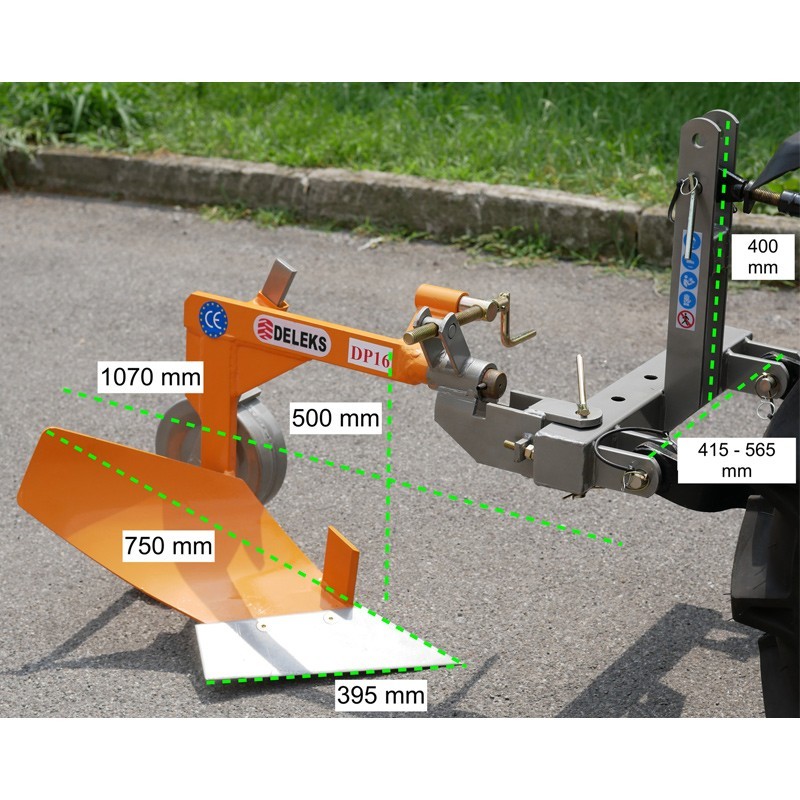

The DP-16 plow from Deleks has a width of 61cm, height of 90cm and length of 107cm. In addition to a gate with a diagonal distance of 75cm with a working width of 29.5cm.

This Attachment for mini tractors requires a power of between 12 and 30HP with a three-prong hitch 19-22mm. It also offers us a displacement of 46cm with a blade length of 39.5cm.

The The thickness of the arm you provide us is 20 by 60mm., making this attachment much more resistant to heavy-duty work. The plow has a blade thickness of 12mm.

The dimensions of the DP-16 plow wheel are Deleks they are from 25.0mm in diameter by 10mm wide. This plow it has a distance between the lower hooks of 41.5cm until 56.5cm.

Characteristics

Total width 610 mm
Weight 50 kg
Total height 900 mm
Tractor power 12 - 30 HP
Hitch 3 points Cat. 1 (ø 19-22mm)
Distance between lower points 415 - 565 mm
Total length 1070.0 mm
Number of bars 1
Diagonal of the fence 750 mm
Working width 295 mm
Displacement 460 mm
Arm thickness 20 x 60 mm
Blade length 395 mm
Blade thickness 12 mm
Hitch tube dimension 80 x 80 mm
Wheel size ø 25.0 x 10 mm
Depth of work 160 - 220 mm
Packaging dimensions 600 x 800 x 500 mm

Advantages

  • This model has a short chassis with additional parts to strengthen the stress points.
  • The position and inclination of the plow are easily adjusted.
  • Its small size allows it to be used in low-power tractors.
  • Its narrow plowshare allows for plowing close to the trees.

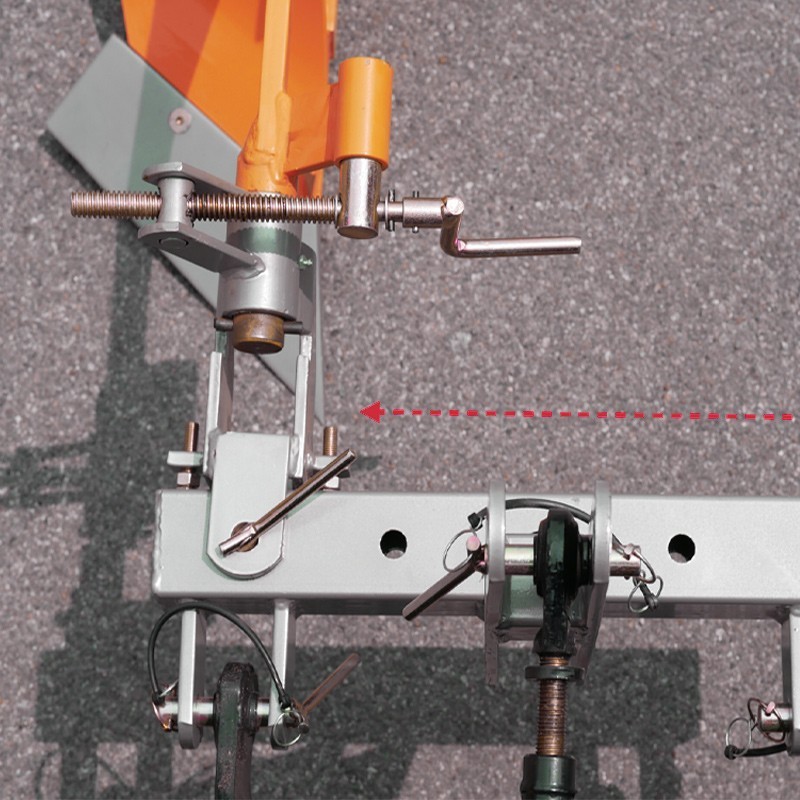

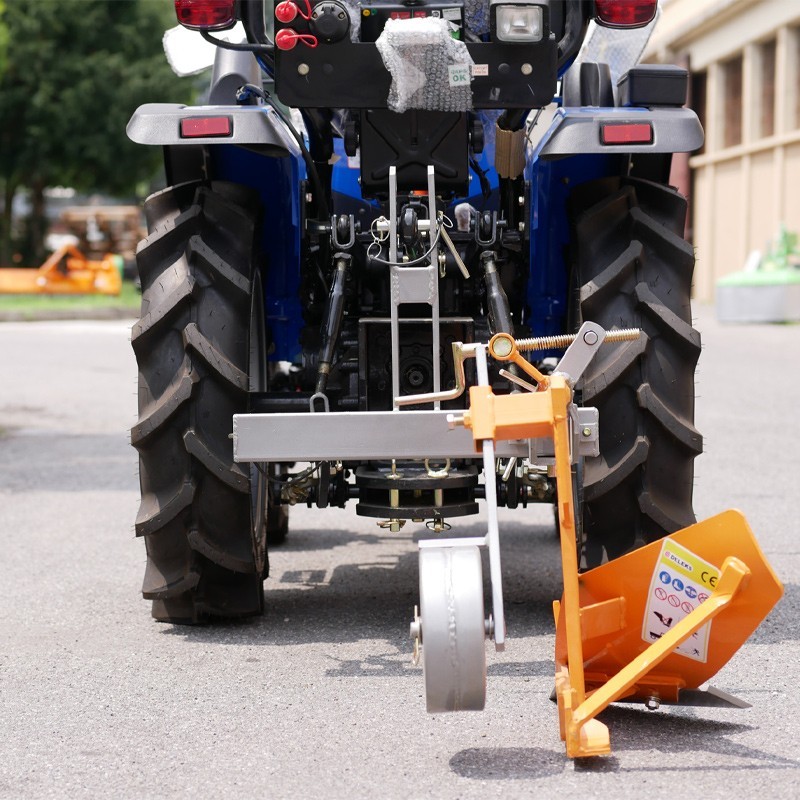

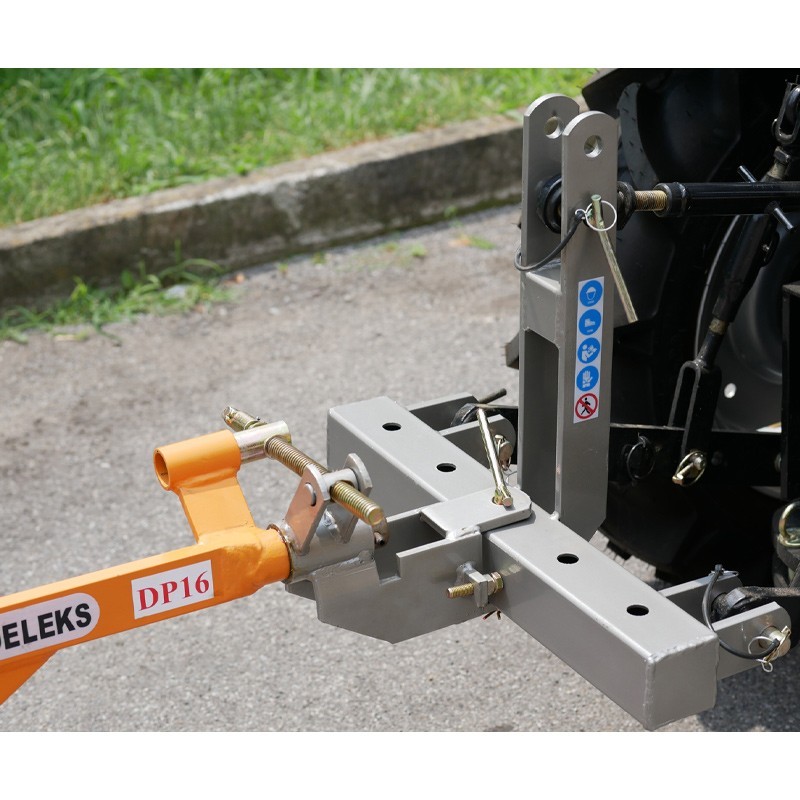

  • The plow can move laterally on the 3-point hitch. The hitch can be used for other tools.
  • The blade can be easily changed.

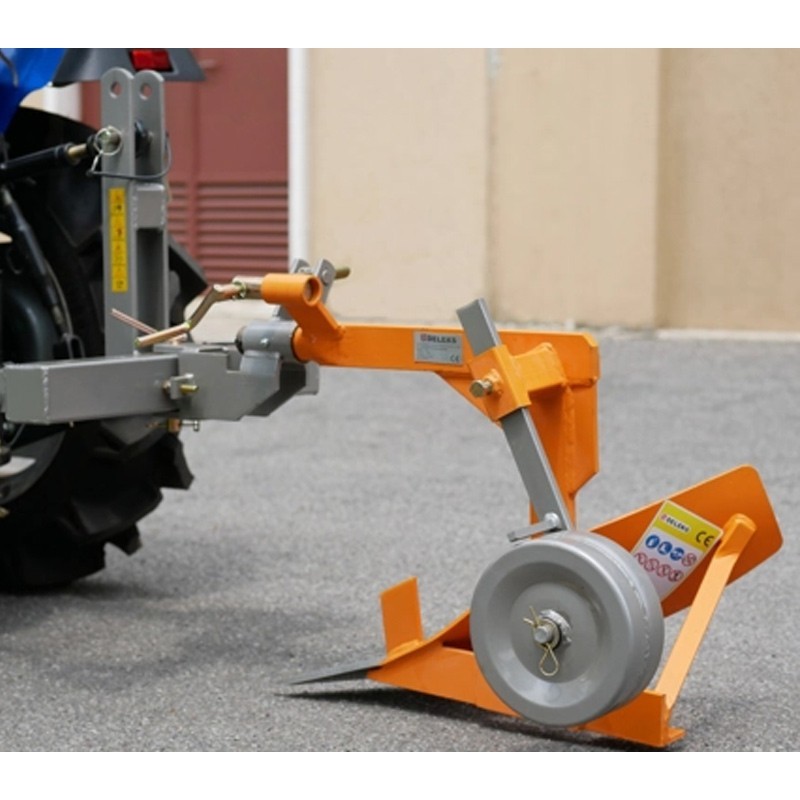

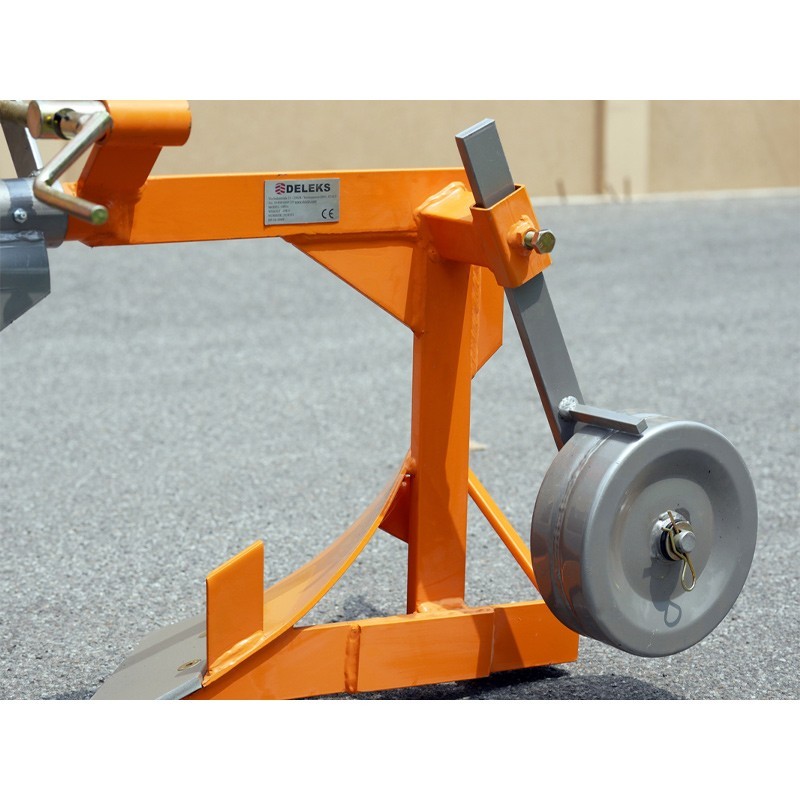

  • The wheel allows for the adjustment of the working depth.
