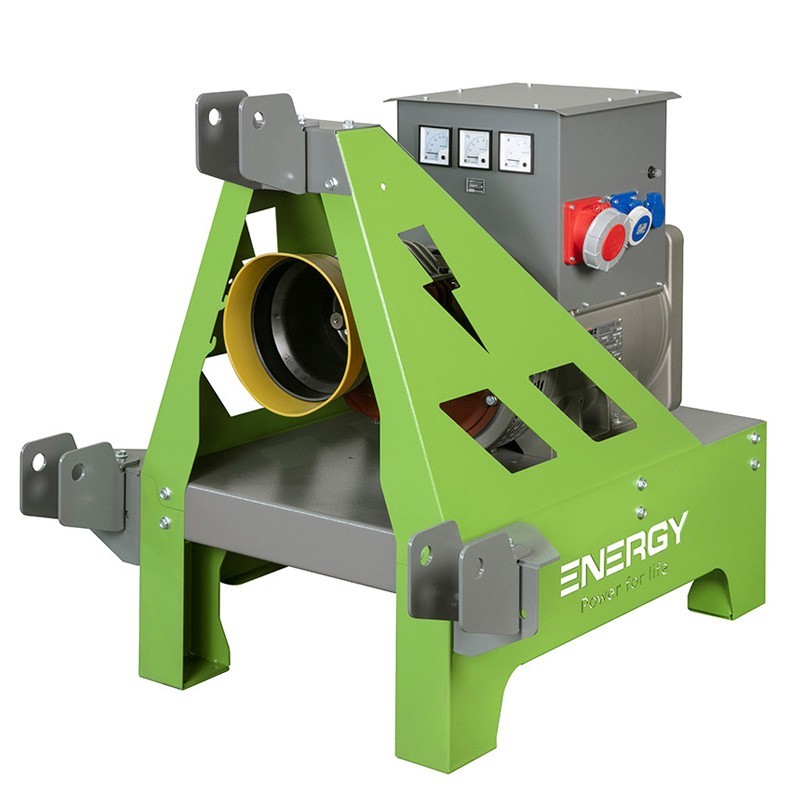

The electric generator Energy EY-42TCS is a powerful power source with a nominal capacity of 42 kVA/33.6 kW and a maximum power of 46.2 kVA/37 kW, ideal for agricultural and industrial applications.
This equipment, designed to be driven by tractors with a minimum power of 80 Hp, has a gearbox with a 1:3.5 ratio, ensuring efficient performance.
With its 4-pole, 3-phase alternator, equipped with an AVR regulator, the generator offers a stable voltage of 400/230V at a frequency of 50 Hz. Its voltage variation is maintained at ± 5%, while it can withstand a 10% overload, ensuring a reliable and safe supply.
In addition, with an IP21 protection rating, adequate protection against dust and moisture is guaranteed. With a weight of 340 kg and compact dimensions, this generator provides a robust and versatile solution for various applications.
| Rated power | 42 kVA / 33.6 kW |
| Maximum Power | 46.2 kVA / 37 kW |
| Amps | 63 A |
| Revolutions | 1500 rpm |
| Frequency | 50 Hz |
| Voltage | 400/230 V |
| Min. tractor power | 80 Hp |
| Gearbox | |
| Gearbox ratio | 1 : 3.5 |
| Oil capacity | 0.5 liters |
| Tractor revolutions | 430 rpm |
| Panel | Voltmeter, hour meter, frequency meter and ammeter. |
| Alternator | |
| Regulator | AVR |
| Number of poles | 4 |
| Number of phases | 3 |
| Type | With brushes |
| Degree of protection | IP 21 |
| Voltage variation | ± 5% |
| Permissible overload | 10% |
| Weight | 340 kg |
| Dimensions A | 1152 mm |
| Dimensions B | 960 mm |
| Dimensions C | 1025 mm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
