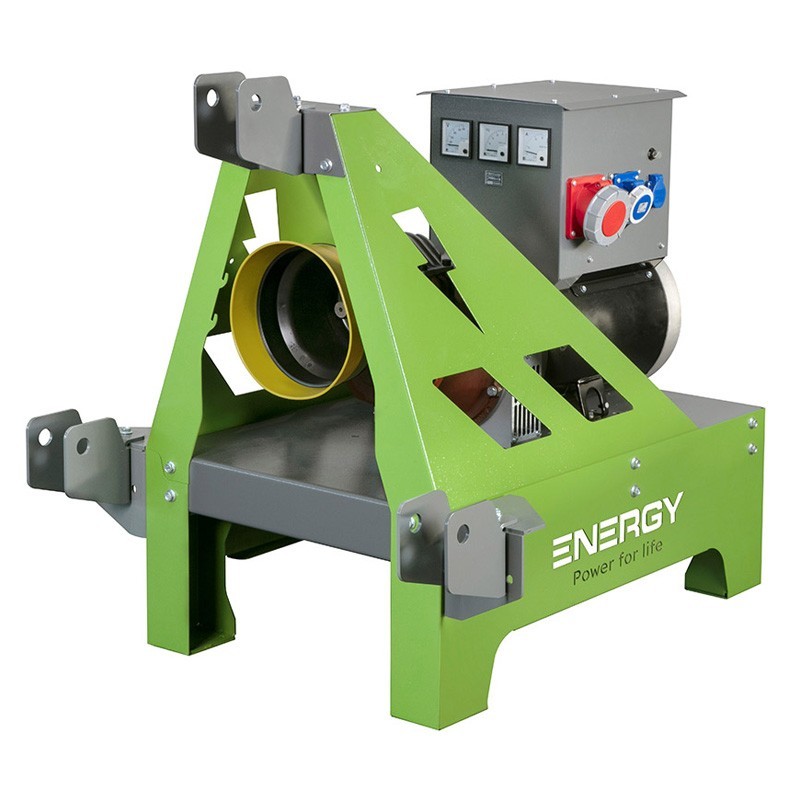

The electric generator Energy EY-40TC offering two different models, this generator provides versatility to the user by allowing the choice between AVR or compound regulator.
With a capacity of 63 amps, it operates at 3000 rpm and a frequency of 50 Hz, offering 400/230 V voltage. It is capable of harnessing the tractor's minimum power of 75 Hp to generate electrical power efficiently and reliably.
Robustness and adaptability are key points of this generator, which adapts to various needs thanks to its two different models and its capacity to withstand intense work.
In addition, its design guarantees stable and constant performance, providing a reliable power source for industrial or agricultural applications where considerable power is required.
| Rated Power | 40 kVA / 32 kW |
| Maximum Power | 44 kVA / 35.2 kW |
| Amps | 63 A |
| Revolutions | 3000 rpm |
| Frequency | 50 Hz |
| Voltage | 400/230 V |
| Min. tractor power | 75 Hp |
| Gearbox | |
| Gearbox ratio | 1 : 6.9 |
| Oil capacity | 0.5 liters |
| Tractor revolutions | 435 rpm |
| Panel | Voltmeter, hour meter, frequency meter and ammeter. |
| Alternator | |
| Regulator | AVR / Compound |
| Number of poles | 2 |
| Number of phases | 3 |
| Type | With brushes |
| Degree of protection | IP 23 |
| Voltage variation | ± 5% |
| Permissible overload | 10% |
| Weight | 240 kg |
| Dimensions A | 1152 mm |
| Dimensions B | 960 mm |
| Dimensions C | 1025 mm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
