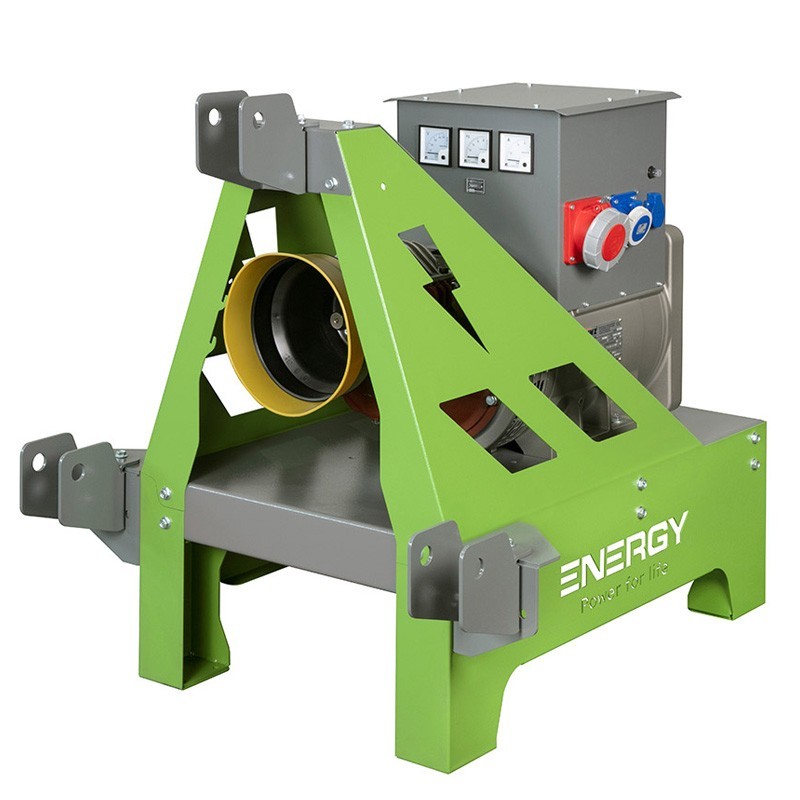

The electric tractor generator Energy EY-10TCS is provided with additional protection thanks to its protective cover and premium oil to grease the gears, and is available in two different variants to suit various needs.
With models offering AVR or compound regulators, this generator guarantees minimum voltage variation, allowing a 10% overload.
Equipped with standard panels including voltmeter, hour meter and in the case of AVR, frequency meter and ammeter, it provides accurate and efficient control of the power generated.
The combination of recognized brands such as COMER and Bondioli & Pavesi ensures reliable performance, ideal for demanding applications in agricultural environments.
| Rated Power | 10 kVA / 8 kW |
| Maximum Power | 11 kVA / 8.8 kW |
| Amps | 16 A |
| Revolutions | 1500 rpm |
| Frequency | 50 Hz |
| Voltage | 400/230 V |
| Min. tractor power | 20 Hp |
| Gearbox | |
| Gearbox ratio | 1 : 3.5 |
| Oil capacity | 0.5 liters |
| Tractor revolutions | 430 rpm |
| Alternator | |
| Regulator | AVR / Condenser |
| Number of poles | 4 |
| Number of phases | 3 |
| Type | With brushes |
| Degree of protection | IP 21 |
| Voltage variation | ± 5% |
| Permissible overload | 10% |
| Standard compound panel | Voltmeter and hour meter. |
| Standard AVR panel | Voltmeter, hour meter, frequency meter and ammeter. |
| Weight | 130 kg |
| Dimensions W | 1152 mm |
| Dimensions B | 960 mm |
| Dimensions C | 1025 mm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
