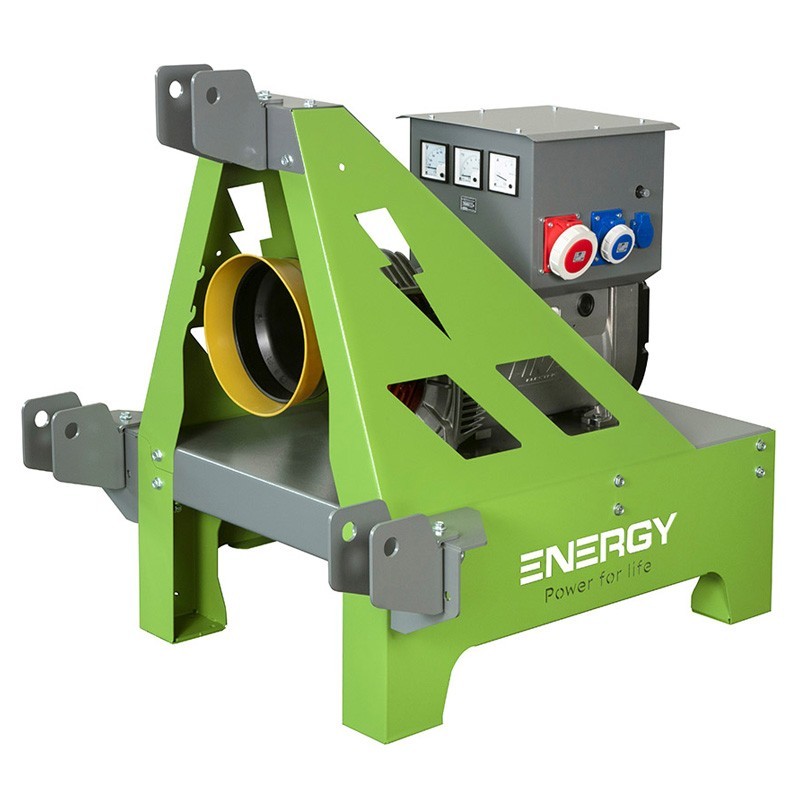

The PTO electric generator Energy EY-22TC comes in two versions, differentiated by their regulator: one equipped with AVR regulator and the other with compound regulator.
The model with AVR incorporates a complete panel with three essential analog instruments: voltmeter, frequency meter and ammeter, offering precise and direct monitoring of the generated current. It also includes an IP44 filter kit for the alternator, ensuring optimal operation in various conditions.
With a rated power of 22 kVA / 17.6 kW and a maximum power of 24.2 kVA / 19.3 kW, the PTO generator Energy EY-22TC guarantees consistent and reliable performance. Its 3000 rpm ensures efficient operation, supporting stable power generation.
With 32 A amps, this generator demonstrates its ability to handle considerable loads with ease, offering a robust solution for a variety of power needs.
| Rated Power | 22 kVA / 17.6 kW |
| Maximum Power | 24.2 kVA / 19.3 kW |
| Amps | 32 A |
| Revolutions | 3000 rpm |
| Frequency | 50 Hz |
| Voltage | 400/230 V |
| Min. tractor power | 45 Hp |
| Gearbox | |
| Gearbox ratio | 1 : 6.9 |
| Oil capacity | 0.5 liters |
| Tractor revolutions | 435 rpm |
| Alternator | |
| Regulator | AVR / Condenser |
| Number of poles | 2 |
| Number of phases | 3 |
| Type | With brushes |
| Degree of protection | IP 21 |
| Voltage variation | ± 5% |
| Permissible overload | 10% |
| Standard compound panel | Voltmeter and hour meter. |
| Standard AVR panel | Voltmeter, hour meter, frequency meter and ammeter. |
| Weight | 160 kg |
| Dimensions W | 1152 mm |
| Dimensions B | 960 mm |
| Dimensions C | 1025 mm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
