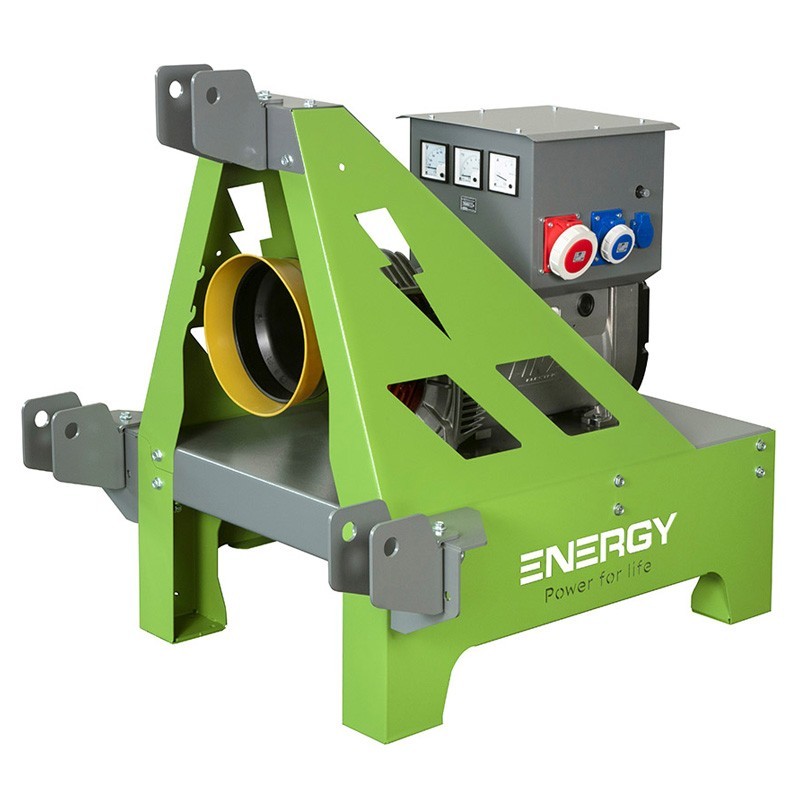

The PTO electric generator Energy EY-16TC comes in two different models, each designed to suit different needs. Rated at 16 kVA / 12.8 kW and a maximum output of 17.6 kVA / 14 kW, it offers robust capability for a variety of applications.
The AVR model comes equipped with a voltmeter, hour meter, frequency meter and ammeter, providing detailed and accurate monitoring of its performance. On the other hand, the model with compound regulator has a standard board that includes a voltmeter and an hourmeter, ensuring reliable performance.
Weighing 140 kg, this generator stands out for its adaptability, being a versatile and efficient option for those seeking a stable and reliable power supply in diverse environments.
| Nominal Power | 16 kVA / 12.8 kW |
| Maximum Power | 17.6 kVA / 14 kW |
| Amps | 20 A |
| Revolutions | 3000 rpm |
| Frequency | 50 Hz |
| Voltage | 400/230 V |
| Min. tractor power | 30 Hp |
| Gearbox | |
| Gearbox ratio | 1 : 6.9 |
| Oil capacity | 0.5 liters |
| Tractor revolutions | 435 rpm |
| Alternator | |
| Regulator | AVR / Condenser |
| Number of poles | 2 |
| Number of phases | 3 |
| Type | With brushes |
| Degree of protection | IP 21 |
| Voltage variation | ± 5% |
| Permissible overload | 10% |
| Standard compound panel | Voltmeter and hour meter. |
| Standard AVR panel | Voltmeter, hour meter, frequency meter and ammeter. |
| Weight | 140 kg |
| Dimensions W | 1152 mm |
| Dimensions B | 960 mm |
| Dimensions C | 1025 mm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
