Box of 3 Energy TCS instruments (only compound)
- 3 instrument panel for generators Energy
€86.27 VAT incl.

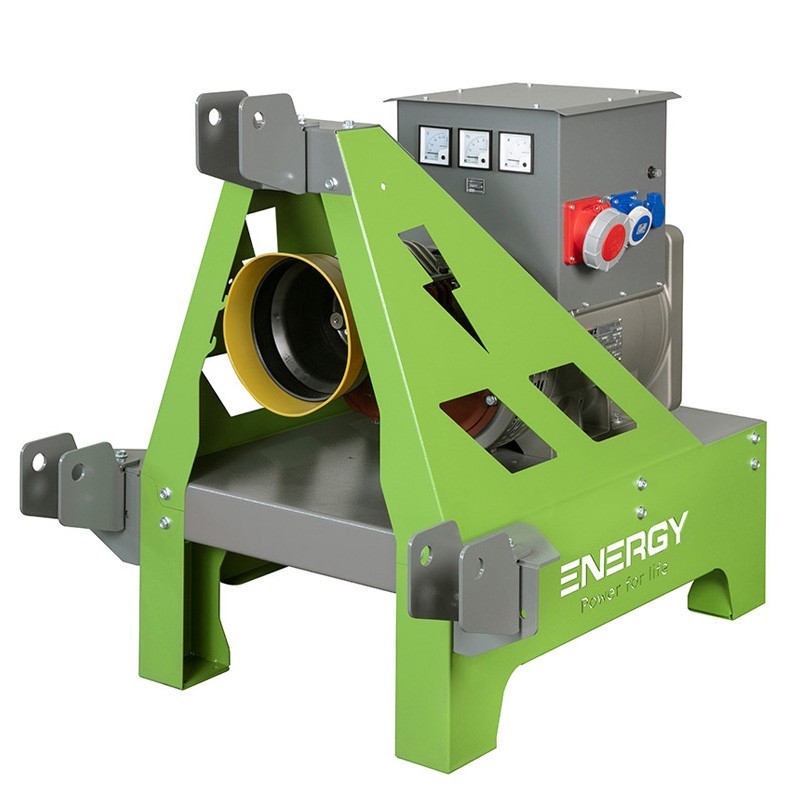

The PTO electric generator Energy EY-15TCS is a powerful power source with a rated power of 15 kVA / 12 kW and a maximum power of 16.5 kVA / 13.2 kW, making it a robust choice for various applications.
With a voltage of 400/230V and a frequency of 50Hz, this generator offers stable and reliable performance. Its 3000 rpm operation ensures a constant power output, backed by a tractor requirement of at least 30 Hp for its minimum power.
Its 20 amp capacity and its design aimed at maximizing energy efficiency make it ideal for use in environments where a constant and reliable power source is required. This generator stands out for its adaptability to various situations thanks to its powerful performance.
Rated Power | 15 kVA / 12 kW |
Maximum Power | 16.5 kVA / 13.2 kW |
Amps | 20 A |
Revolutions | 1500 rpm |
Frequency | 50 Hz |
Voltage | 400/230 V |
Min. tractor power | 30 Hp |
Gearbox | |
Gearbox ratio | 1 : 3.5 |
Oil capacity | 0.5 liters |
Tractor revolutions | 430 rpm |
Alternator | |
Regulator | AVR / Condenser |
Number of poles | 4 |
Number of phases | 3 |
Type | With brushes |
Degree of protection | IP 21 |
Voltage variation | ± 5% |
Permissible overload | 10% |
Standard compound panel | Voltmeter and hour meter. |
Standard AVR panel | Voltmeter, hour meter, frequency meter and ammeter. |
Weight | 165 kg |
Dimensions W | 1152 mm |
Dimensions B | 960 mm |
Dimensions C | 1025 mm |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
