Box of 3 Energy TC instruments (only compound)
- Ideal for monitoring generator status and performance
€71.90 VAT incl.

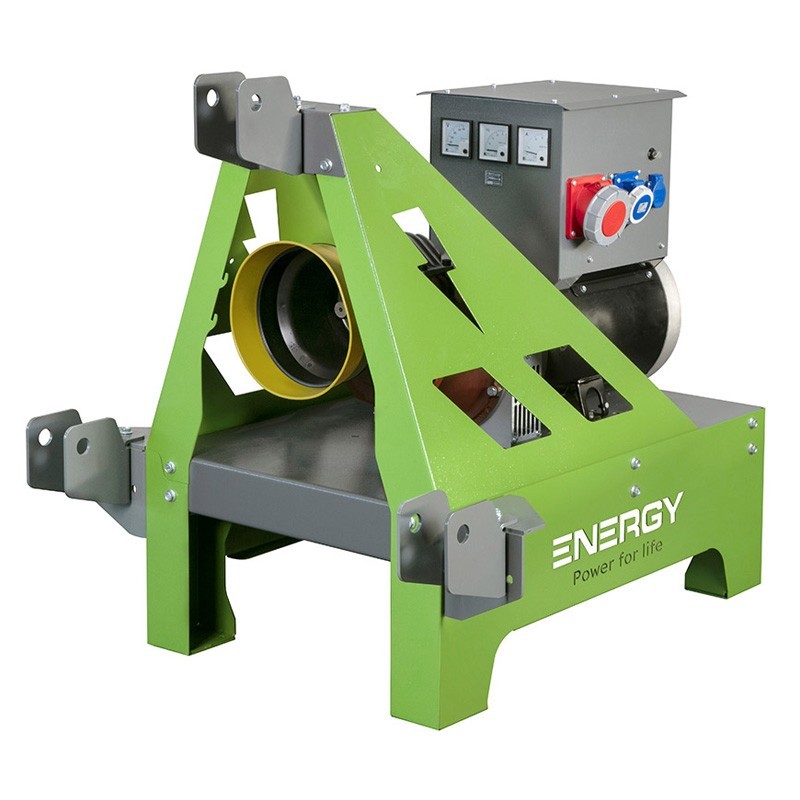

The PTO Electric Generator Energy EY-27TC comes in two different models, each designed to provide optimum performance in a variety of configurations.
One model features an integrated AVR regulator, ensuring exceptional stability in the voltage supplied. In addition, it comes equipped with a panel that houses three essential analog instruments: voltmeter, frequency meter and ammeter, along with an hourmeter for accurate tracking of operating time.
On the other hand, the second model of the PTO generator Energy EY-27TC includes a compound regulator, with a standard frame housing voltmeter and hourmeter. For those looking for more monitoring, there is the option to purchase an extra frame with three additional instruments designed specifically for the compound regulator model.
Both variants are built with a high degree of protection IP21, ensuring durability in various environments and working conditions.
Nominal Power | 27 kVA / 21.6 kW |
Maximum Power | 29.7 kVA / 23.7 kW |
Amps | 40 A |
Revolutions | 3000 rpm |
Frequency | 50 Hz |
Voltage | 400/230 V |
Min. tractor power | 45 Hp |
Gearbox | |
Gearbox ratio | 1 : 6.9 |
Oil capacity | 0.5 liters |
Tractor revolutions | 435 rpm |
Alternator | |
Regulator | AVR / Condenser |
Number of poles | 2 |
Number of phases | 3 |
Type | With brushes |
Degree of protection | IP 21 |
Voltage variation | ± 5% |
Permissible overload | 10% |
Standard compound panel | Voltmeter and hour meter. |
Standard AVR panel | Voltmeter, hour meter, frequency meter and ammeter. |
Weight | 170 kg |
Dimensions W | 1152 mm |
Dimensions B | 960 mm |
Dimensions C | 1025 mm |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
