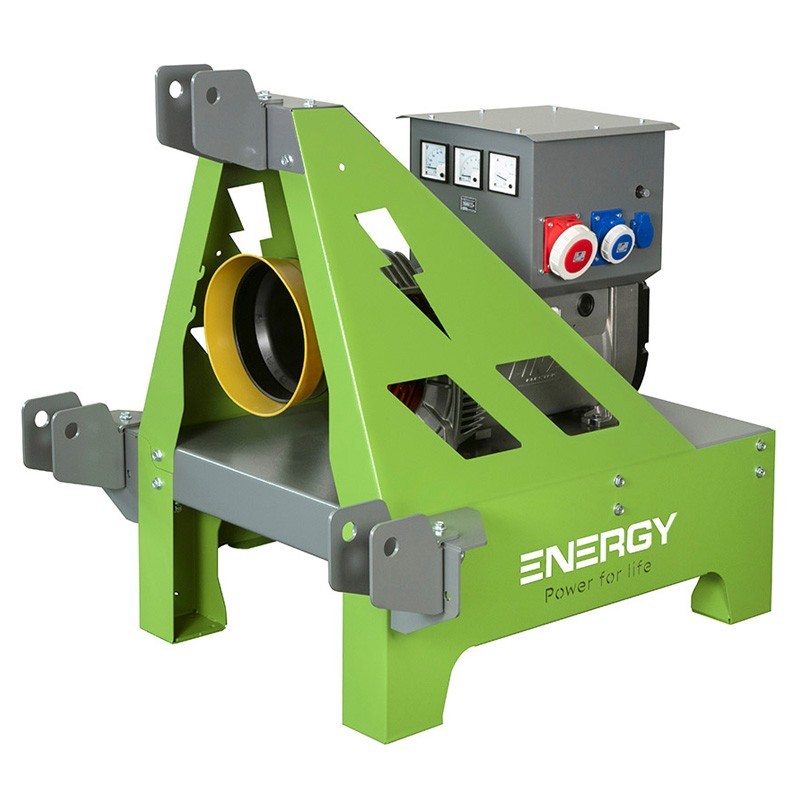

The PTO electric generator Energy EY-10TC is a powerful power source with a rated power of 10 kVA / 8 kW and a maximum capacity of 11 kVA / 8.8 kW, making it ideal for a variety of applications.
Its efficient design stands out with its variety, with AVR or Compound regulator ensuring a stable voltage with a minimum variation of 5%, providing reliable current at 400/230V and 50Hz frequency.
This generator, powered by a tractor with a minimum power of 20 HP and a 1:6.9 ratio gearbox, operates at 3000 RPM, maintaining an IP 21 protection that protects it from adverse conditions.
With a well-balanced number of poles and phases (2 and 3 respectively), and an overload capacity of 10%, it guarantees constant performance even in demanding situations. Its brushed alternator and its ability to adapt to voltage variations make it a versatile and robust choice for power supply in various circumstances.
| Rated Power | 10 kVA / 8 kW |
| Maximum Power | 11 kVA / 8.8 kW |
| Amps | 14,4 A |
| Revolutions | 3000 rpm |
| Frequency | 50 Hz |
| Voltage | 400/230 V |
| Min. tractor power | 20 Hp |
| Gearbox | |
| Gearbox ratio | 1 : 6.9 |
| Oil capacity | 0.5 liters |
| Tractor revolutions | 435 rpm |
| Alternator | |
| Regulator | AVR / Condenser |
| Number of poles | 2 |
| Number of phases | 3 |
| Type | With brushes |
| Degree of protection | IP 21 |
| Voltage variation | ± 5% |
| Permissible overload | 10% |
| Standard compound panel | Voltmeter and hour meter. |
| Standard AVR panel | Voltmeter, hour meter, frequency meter and ammeter. |
| Weight | 130 kg |
| Dimensions W | 1152 mm |
| Dimensions B | 960 mm |
| Dimensions C | 1025 mm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
