Generator for tractor Energy EY-85TCS 93.5 kVA 1500 rpm
- Stabilization : AVR
- Power (kVA) : 93,5 kVA
- Current : Single-phase and three-phase
- Working Amps : 125 A
- Weight : 520 kg
- Power supply : PTO tractor
- Min. tractor power : 150 HP

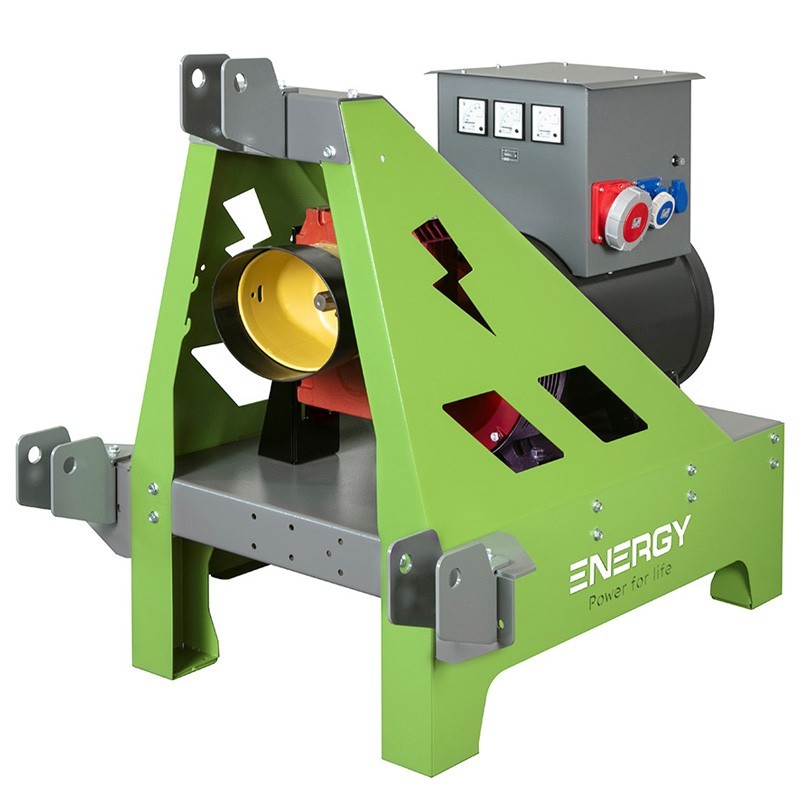

Tractor generator Energy EY-85TCS 93.5 kVA 1500 rpm
The tractor generator Energy EY-85TCS is equipped with a 4-pole, 3-phase AVR alternator regulator, offering reliable and stable performance. Its brushed design and IP21 protection rating ensure safe operation even in challenging conditions.
With a voltage variation of only ±1% and a permissible overload of 10%, this generator provides constant current and can be adapted to various power demands.
Moreover, its ability to incorporate additional accessories, such as protection bars, a complete wheel kit with fixed and rotating wheels, as well as grounding options and towing kits, allows it to be customized and enhance its mobility and safety according to the user's specific needs.
Weighing 520 kg, this generator is a robust and reliable solution for demanding industrial and commercial applications.
Features
Rated Power | 85 kVA / 68 kW |
Maximum Power | 93.5 kVA / 74.8 kW |
Amps | 125 A |
Revolutions | 1500 rpm |
Frequency | 50 Hz |
Voltage | 400/230 V |
Min. tractor power | 150 Hp |
Gearbox | |
Gearbox ratio | 1 : 3.5 |
Oil capacity | 2 liters |
Tractor revolutions | 395 rpm |
Chart | Voltmeter, hour meter, frequency meter and ammeter. |
Alternator | |
Regulator | AVR |
Number of poles | 4 |
Number of phases | 3 |
Type | With brushes |
Degree of protection | IP 21 |
Voltage variation | ± 1% |
Permissible overload | 10% |
Weight | 520 kg |
Dimensions A | 1355 mm |
Dimensions B | 1095 mm |
Dimensions C | 1140 mm |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
Data sheet
- Power Supply
- PTO tractor
- Tractor power
- 150 HP
- Stabilization
- AVR
- Power (kVA)
- 93.5 kVA
- Current
- Single-phase and three-phase
- Working Amps
- 125 A
- Country of manufacture
- Italy
- Weight
- 520 kg
Specific References
- MPN
- EY-85TCS
