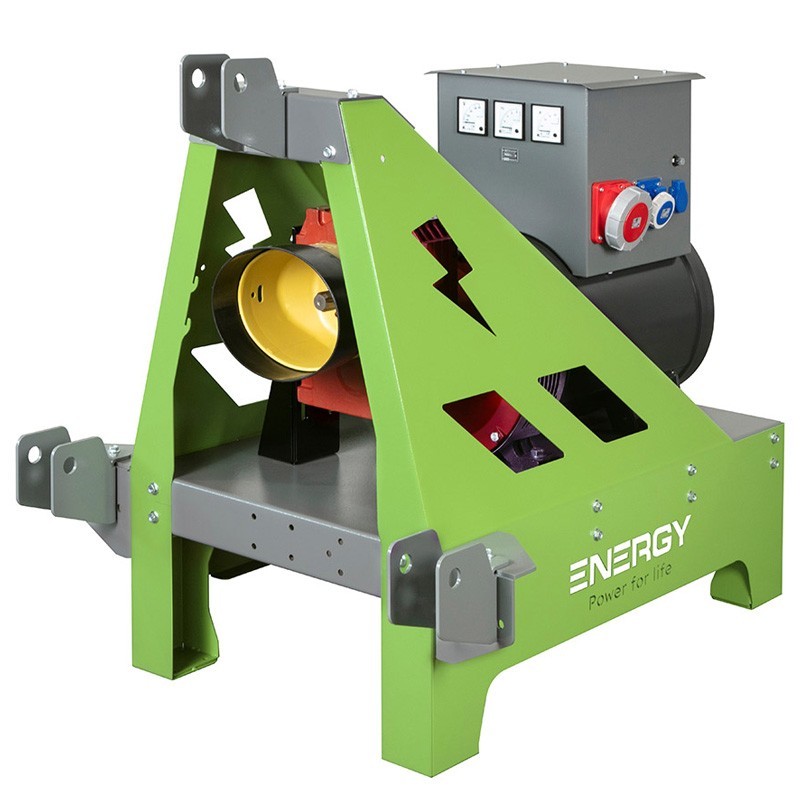

The Electric PTO Generator Energy EY-60TCS is a robust 410 kg unit, with dimensions of 1320 mm x 990 mm x 1100 mm, designed to provide a reliable power supply.
Equipped with a four-pole, three-phase AVR regulator alternator, this generator operates with a brush type and features an IP 21 protection rating, ensuring stable performance even in challenging conditions.
Its ± 1% voltage variation capability and 10% allowable overload make it ideal for maintaining a constant electrical flow, backed by 80 A amps and 1500 rpm speed.
With a frequency of 50 Hz and a voltage of 400/230 V, this generator has a minimum tractor power of 120 Hp, providing a reliable and efficient source of power for various industrial or agricultural applications.
| Rated Power | 60 kVA / 48 kW |
| Maximum Power | 66 kVA / 52.8 kW |
| Amps | 80 A |
| Revolutions | 1500 rpm |
| Frequency | 50 Hz |
| Voltage | 400/230 V |
| Min. tractor power | 120 Hp |
| Gearbox | |
| Gearbox ratio | 1 : 3.8 |
| Oil capacity | 1 liter |
| Tractor revolutions | 395 rpm |
| Chart | Voltmeter, hour meter, frequency meter and ammeter. |
| Alternator | |
| Regulator | AVR |
| Number of poles | 4 |
| Number of phases | 3 |
| Type | With brushes |
| Degree of protection | IP 21 |
| Voltage variation | ± 1% |
| Permissible overload | 10% |
| Weight | 410 kg |
| Dimensions A | 1320 mm |
| Dimensions B | 990 mm |
| Dimensions C | 1100 mm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
Data sheet
Specific References
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips.
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.
