10 bolts plus L nuts with a diameter of 12 mm DELEKS
- 10 bolts plus 12 mm diameter L nuts DELEKS
€49.50 VAT incl.
CARDAN SHAFT INCLUDED
Deleks products take about 15 to 25 days. |

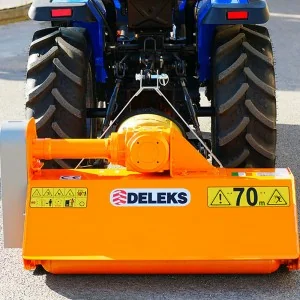

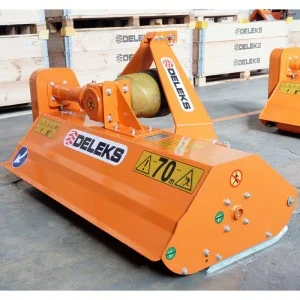

The LINCE DELEKS rear shredder for tractor is designed for micro-tractors, tractors with power from 16 to 40 HP, for gardens and agricultural fields. Forged steel hammers for cutting grass and brambles. The cutting height can be adjusted thanks to its rear roller and adjustable skids.

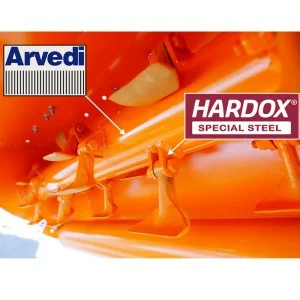

Its structure is entirely made of Swedish SSAB steel, its rotor is made of ARVEDI tube, electronically balanced, S355 steel, thickness 8 mm with hammers mounted on 6 rows instead of 4. Hammer supports in HARDOX, SKF branded rotor bearings.
It has a Lombarda Ingranaggi transmission box with free wheel and 3 years warranty, the frame is equipped with an internal curb that diverts the air flow towards the rotor for a mulching effect. The internal positioning of the roller gives more efficiency and reduces the execution time: the cut grass passes over the roller without being crushed and is removed faster.

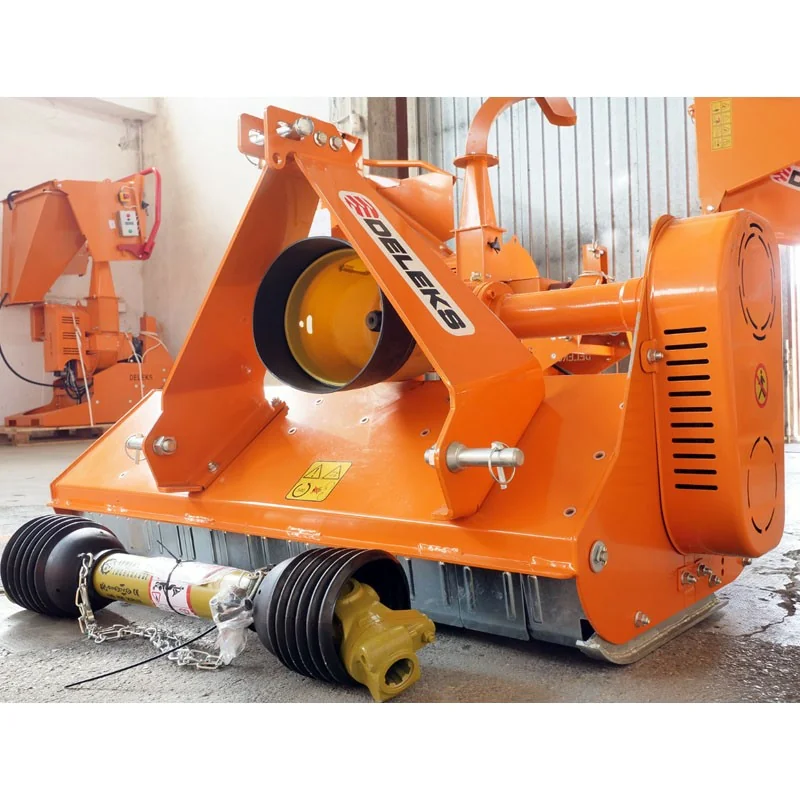

It has 330g forged steel hammers for cutting up to 2.5 cm in diameter, 3 heavy-duty belts with external tension adjustment, rear roller and adjustable side skids (CARDAN INCLUDED)
Specification | Lynx-80 | Lynx-100 |
Working width | 800 mm | 1000 mm |
Total width | 915 mm | 1115 mm |
Cutting height min/max | 10 - 45 mm | |
Weight | 135 kg | 140 kg |
Total height | 750 mm | |
Tractor power | 16 - 40 hp | |
3-point hitch | Cat. 1 (ø 19-22 mm) | |
Hood height | 370 mm | |
Distance between lower points | 470 - 710 mm | |
Number of hammers | 14 | 16 |
Max. cutting diameter | 20 - 30 mm | |
Total length | 730 mm | |
Ground clearance to gearbox | 472 mm | |
Plate thickness | 3 mm | |
Sheet thickness at sides | 5 mm | |
Thickness of skids | 6 mm | |
Transmission type | V-belts | |
Transmission: Gearbox | Lombarda Ingranaggi Srl (Italy) (Warranty 3 years) | |
Transmission: PTO | 540 r/min | |
Transmission: rotation direction | Schedule | |
Transmission: freewheel | √ | |
Drive: rotor speed | 3150 rpm | |
Transmission: gearbox oil | Yes / SAE 120 - ISO 72925 | |
Drive: upper pulley diameter | 206 mm | |
Transmission: lower pulley diameter | 106 mm | |
Drive: number of belts | 2 | 3 |
Drive: belt dimensions | AX39 | |
Rotor: diameter | 102 mm | |
Rotor: bearing type and dimension | SKF UCF-207 | |
Rotor: balancing | Electronic | |
Rotor: blade thickness | 8 mm | |
Hammers: weight | 330 g | |
Hammers: Bore Ø | 12 mm | |
Hammers: base width | 80 mm | |
Hammers: head width | 14 mm | |
Hammers: diagonal | 75 mm | |
Roll: diameter | 102 mm | |
Roll: sheet thickness | 5 mm | |
Roll: bearing type and dimension | FL205 | |
Cardan | CE 4x800 mm | |
Hood length | 665 mm | |
Horizontal displacement | - | |
Packing dimensions | 1150x850x700 mm |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
