Electric Pallet Truck Ayerbe ELEQTRA 540 X 1150 1500 Kilos
- Propulsion: Electric
- Load capacity: 1500 kg
- Blade length: 1150 mm
- Total length: 1530 mm
€2,281.92 VAT incl.

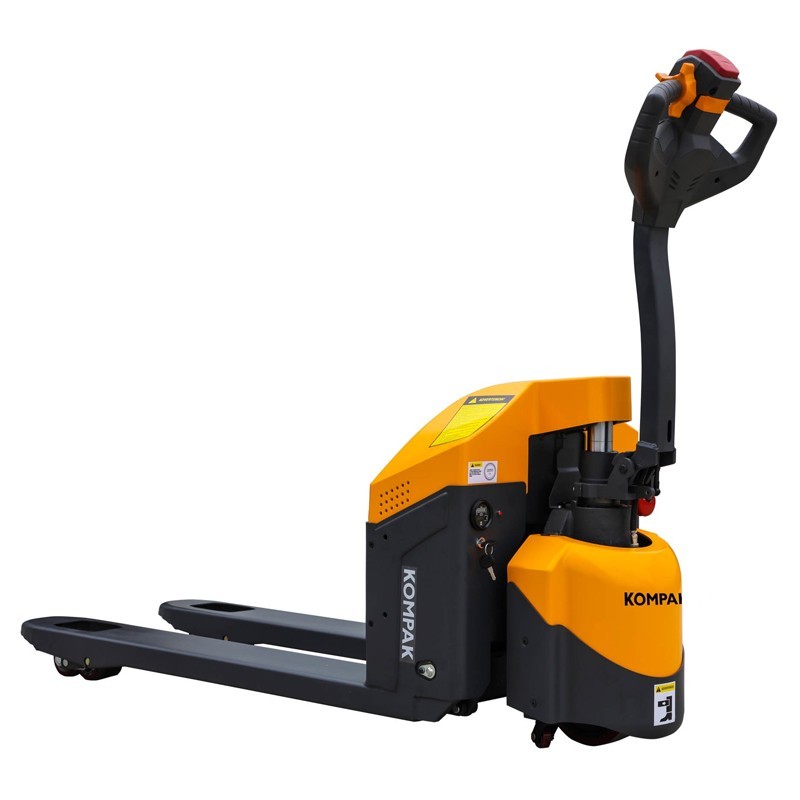

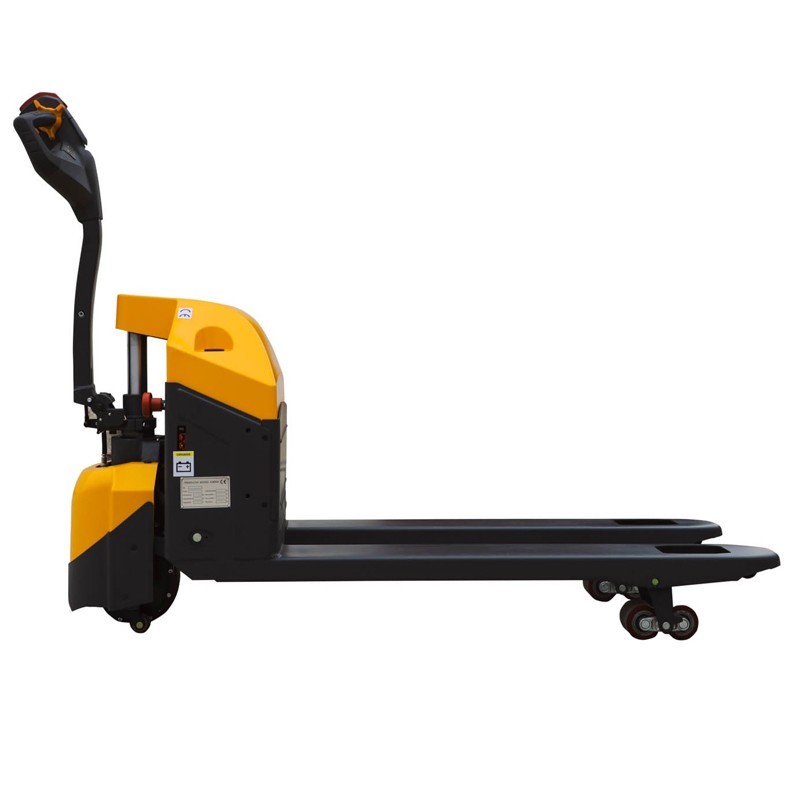

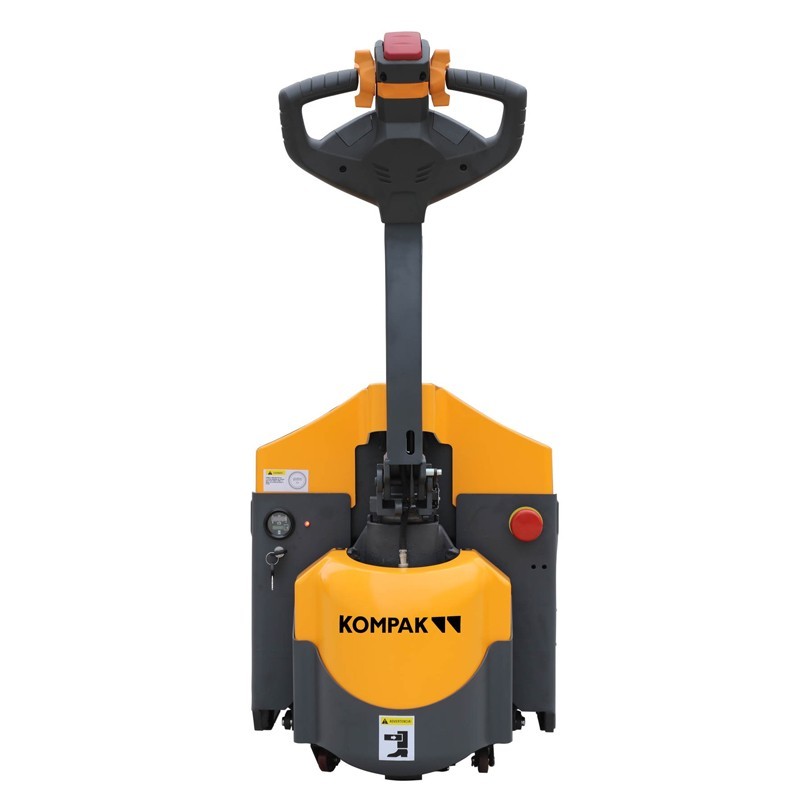

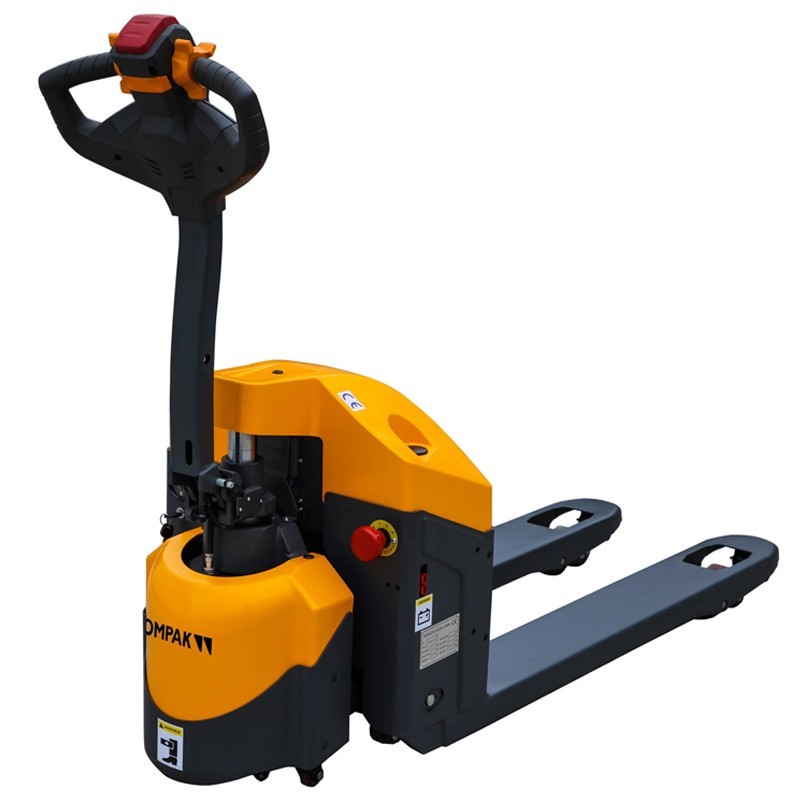

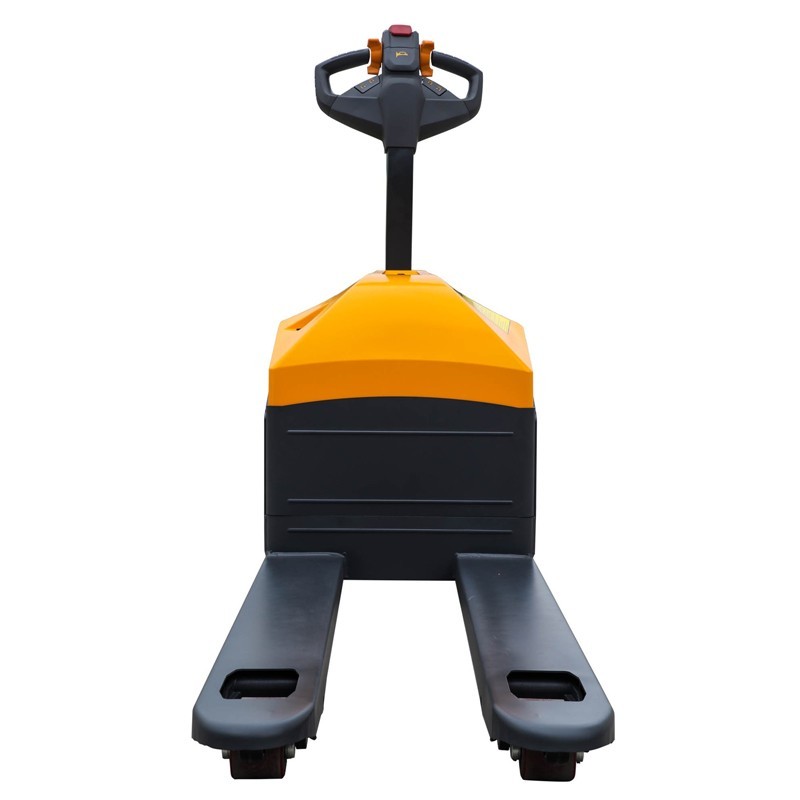

The Kompak KP-EPT15WE electric pallet truck offers a load capacity of 1500 kg and a maximum lift height of 190 mm. Its easy-to-remove tiller simplifies maintenance work, while the height limit switch ensures safe operation by preventing excessive lifting.
With Φ195x70 mm front tires and single and dual rear tire options, this model is designed to provide stability and safety during operation, with a floating steering wheel system that minimizes lateral sway during travel.
In addition, its ability to operate both manually and electrically, along with an external loader, offers versatility and ease of use in different work environments.
Attention to detail is highlighted with features such as a 600 mm load center distance and an adjustable fork height, ensuring accurate and efficient load handling, all backed by a damping system that significantly reduces vibrations, allowing for a smooth and seamless ride
Operation | manual and electric |
Load capacity | 1500 kg |
Load center distance | 600 mm |
Fork height, lowered | 85/75 mm |
Front tire size | Φ195x70 mm |
Tire size, rear (single) | Φ80x93 / Φ74x93 mm |
Tire size, rear (double) | Φ80x70 / Φ74x70 mm |
Number of wheels, front rear (x = driving wheels) | 1x2(4) |
Max. lifting height | 190 / 180 mm |
Tiller height in driving position min/max | 700 / 1250 mm |
Overall length | 1654 / 1724 mm |
Length to fork face | 504 mm |
Total width | 685 / 562 mm |
Length to fork face | 53 / 160 / 1150(1220) mm |
Fork dimensions | 520 / 550 / 685 mm |
Aisle width for pallets 1000x1200 (1200 across) | 2260 / 2328 mm |
Aisle width for pallets 800x1200 (1200 lengthwise) | 2128 / 2365 mm |
Turning radius | 1454 / 1424 mm |
Travel speed, with / without load | 4.3 / 4.8 km/h |
Battery voltage/rated capacity k20 | 24/65 V/Ah |
Battery dimensions l/w/h | 228 / 138 / 214 mm |
Battery weight | 36 kg |
Operating weight (with battery) | 205 Kg |
