Pallet truck Ayerbe AY-2100 PCA V polyurethane wheels 2500 Kg
- Maximum capacity : 2500 kg
- Weight : 70 kg
- Fork : 1000 x 685 mm
€462.72 VAT incl.

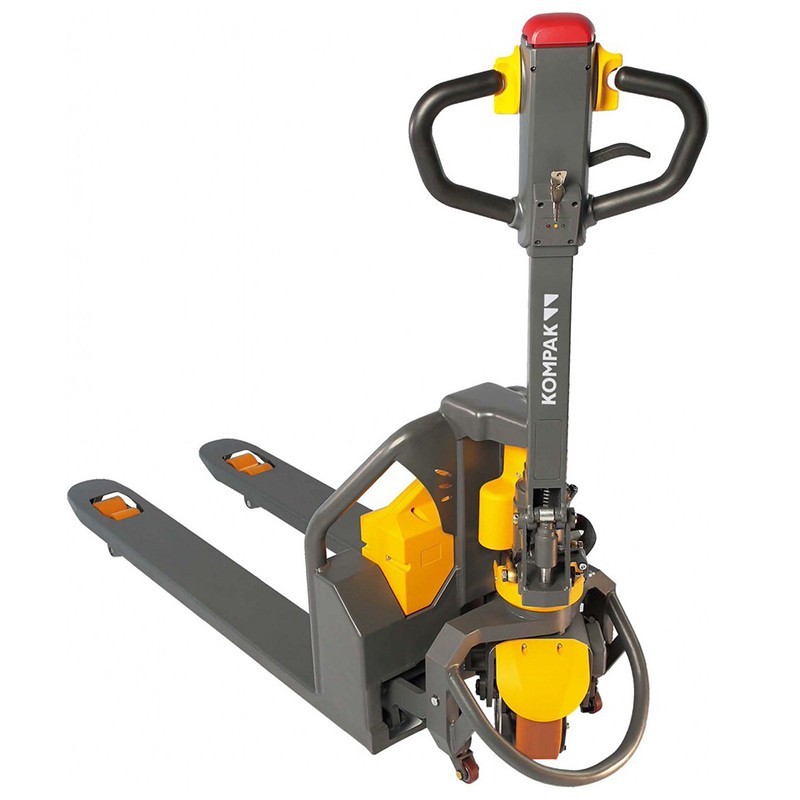

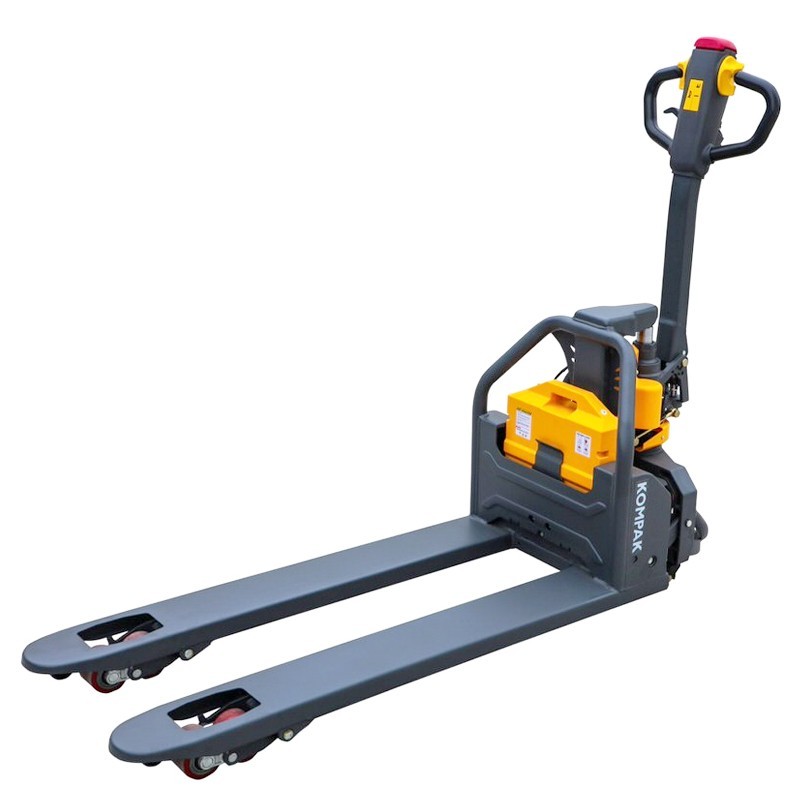

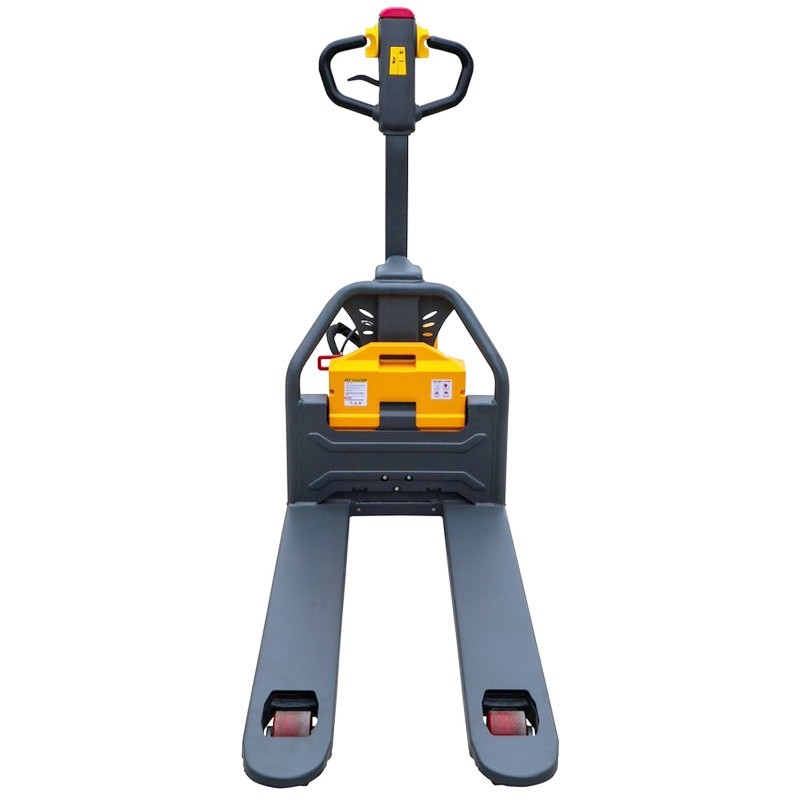

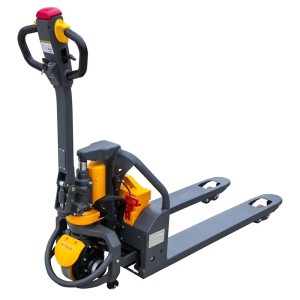

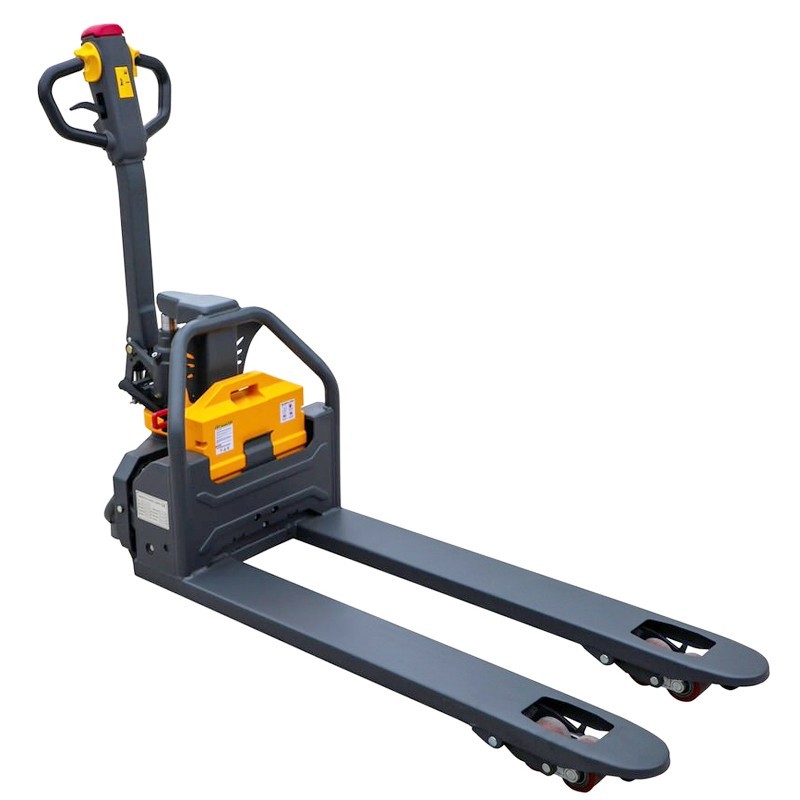

The electric pallet truck 48V Kompak EPT15W-LIX stands out for its high capacity 48V/20Ah lithium battery, providing an efficient working time of 4 to 6 hours. Equipped with a 0.6 KW brushless hub motor and disc brake, it ensures powerful and safe performance.

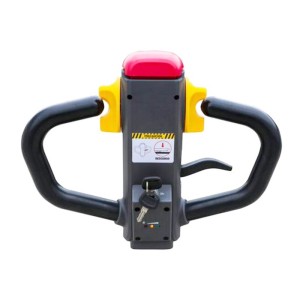

Its multi-function control tiller offers butterfly-style thumb controls, emergency reverse button, horn and key switch for convenient operation. Ergonomics are a priority, with a floating steering wheel and ergonomic spring-loaded steering tiller that reduces operator fatigue.

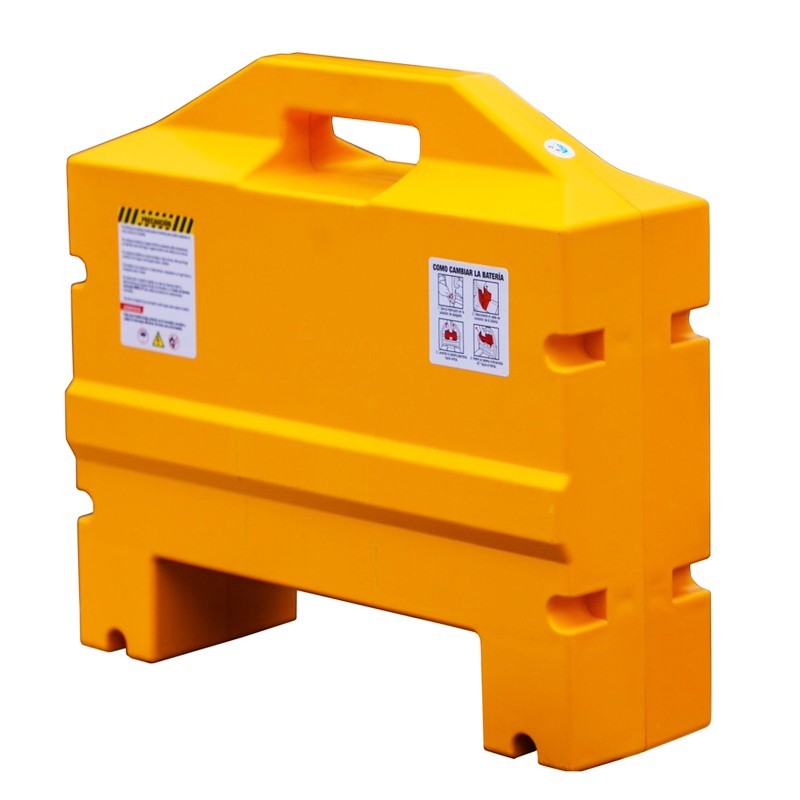

In addition, the plug-in battery design makes it easy to change the battery without the need for additional tools. With an integrated rocker arm cast in one piece, it intensifies strength and structure, while the EM regenerative brake offers efficient braking.
CHARGING TIME Fast and short charge,only 3 hours of charging is enough to achieve a full charge. |
WORKING TIME Battery voltage 48V/20Ah. A fully charged battery can operate continuously for 6 hours. |
WORKING SHIFTS With only two lithium batteries. One charging, one working, 24 hours without a break. |
Load capacity | 1500 kg |
Load center distance | 600 mm |
Fork height, lowered | 80 mm |
Front tire size | Φ 210 mm |
Tire size, rear (single) | Φ 80 mm |
Number of front rear wheels (x = driving wheels) | 1x2(4) |
Max. lifting height | 110 mm |
Tiller height in driving position min./max | 635 / 1200 mm |
Overall length | 1623 / 1693 mm |
Length to fork face | 473 mm |
Total width | 550 / 685 mm |
Length to fork face | 45/160/1150 (1220) mm |
Fork dimensions | 550 / 685 mm |
Aisle width for pallets 1000x1200 (1200 across) | 2226 / 2294 mm |
Aisle width for pallets 800x1200 (1200 longitudinally) | 2095 / 2132 mm |
Turning radius | 1424 / 1494 mm |
Travel speed, with / without load | 4.8 / 5.0 km/h |
Max. climbing capacity, with / without load | 5/20 % |
Battery voltage/rated capacity k20 | 48/20 V/Ah |
Battery dimensions l/w/h | 340x130x307 mm |
Battery weight | 8.5 Kg |
Operating weight (with battery) | 135 Kg |
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips.
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.
