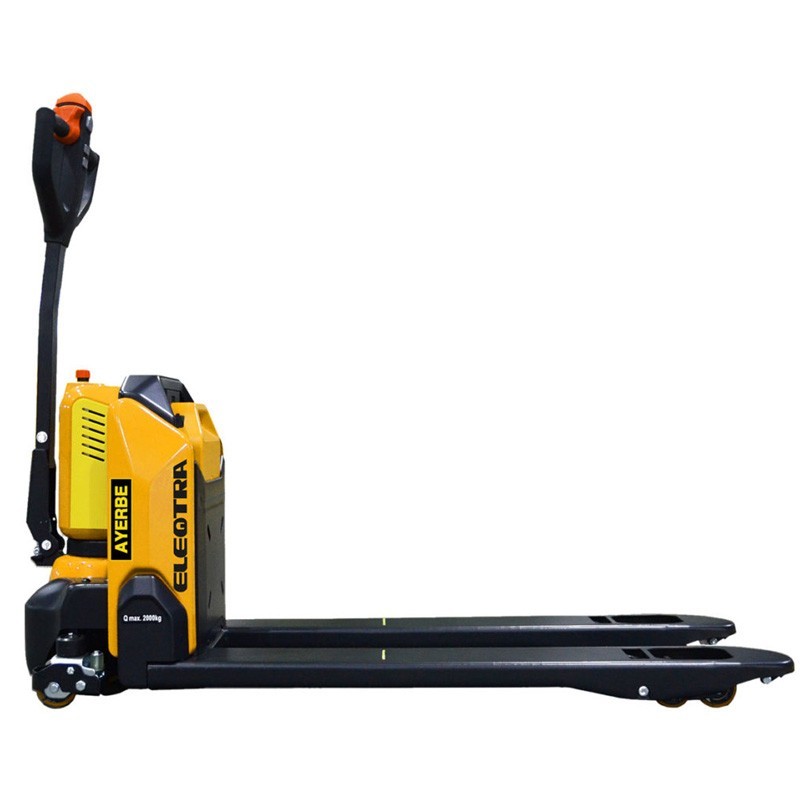

The pallet truck Ayerbe ELEQTRA has a maximum load capacity of 2000 kg and a 0.75 kW traction motor. The weight of this machine is 153 kilograms and it is equipped with polyurethane wheels.
The battery that powers the traction motor is 48 volts with a capacity of 20 ampere hours. The time it takes to charge this Li-Ion battery is 3 hours and the weight of the battery is 7.5 kg.
The turning radius of this pallet truck is 14 cm and finally, the maximum height that this electric pallet truck Ayerbe can lift the material is 11.5 centimeters above the ground.
| Drive | electric |
| Load capacity | 2000 kg |
| Blade length | 1150 mm |
| Total length | 1536 mm |
| Total width | 540 mm |
| Lifting height | 115 mm |
| Min. height | 80 mm |
| Height with tiller (min./max.) | 700 / 1160 mm |
| Turning radius | 1337 mm |
| Weight | 153 kg |
| Travel speed with / without load | 4,6 km/h - 4,8 km/h |
| Lifting speed with / without load | 0,017 m/s - 0,022 m/s |
| Lowering speed with / without load | 0,05 m./s - 0,03 m./s |
| Max. permissible slope with / without load | 7% - 16% |
| Brake | electromechanical |
| Wheels | polyurethane (PU) |
| Drive wheels | Ø 210 x 70 mm |
| Front rollers | Ø 80 x 70 mm |
| Side wheels | Ø 80 x 30 mm |
| Traction motor | 0,75 Kw |
| Battery | Lithium 48 V - 20 Ah |
| Charging time | 3 hours |
| Battery weight | 7,5 kg |
