Electric stacker Ayerbe ELEQTRA 1200 Kg
- Turning radius: 1350 mm
- Electromechanical brake
- Electric motor 0,65 kW
- 60 Ah battery
€5,116.80 VAT incl.
The Electric Pallet Truck Ayerbe ELEQTRA 540 X 1150 is designed to transport loads up to 1500 kg with ease and precision. With an overall length of 1530 mm and a width of 540 mm, it offers excellent maneuverability, allowing its use in tight spaces thanks to its turning radius of 1330 mm.
Its lifting capacity, with a maximum height of 115 mm and a minimum height of 80 mm, ensures optimal versatility in different working environments, from warehouses to distribution areas.
Equipped with electric propulsion, this pallet truck features solid performance with travel speeds of up to 4.8 km/h unladen and 4.6 km/h laden, ensuring agile operation.
Its 0.65 kW traction motor provides the necessary power to tackle slopes of up to 4% loaded and 16% unloaded, while the electromechanical braking system ensures safe operation. Equipped with a 24 V and 20 Ah lithium battery, this pallet truck offers reliable and long-lasting performance, effectively supporting your logistics operations.
Drive | Electric |
Load capacity | 1500 kg |
Blade length | 1150 mm |
Total length | 1530 mm |
Total width | 540 mm |
Lifting height | 115 mm |
Min. height | 80 mm |
Height with tiller min. | 700 mm |
Height with rudder max. | 1160 mm |
Turning radius | 1330 mm |
Travel speed with load | 4,6 km/h |
Travel speed without load | 4,8 km/h |
Lifting speed with load | 0,02 m./s |
Lifting speed without load | 0.025 m/s |
Lowering speed with load | 0,05 m./s |
Lowering speed without load | 0,04 m./s |
Max. admissible slope with load | 4% |
Max. admissible slope without load | 16% |
Brake | Electromechanical |
Wheels | Polyurethane (PU) |
Drive wheels | Ø 210 x 70 mm |
Front rollers | Ø 80 x 70 mm |
Side wheels | Ø 80 x 30 mm |
Traction motor | 0,65 Kw |

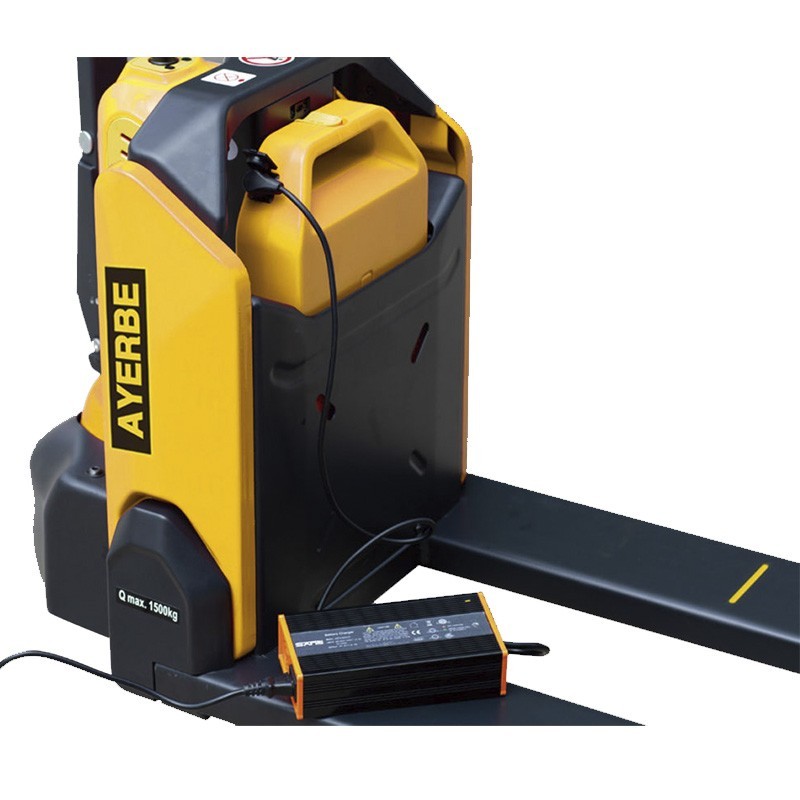

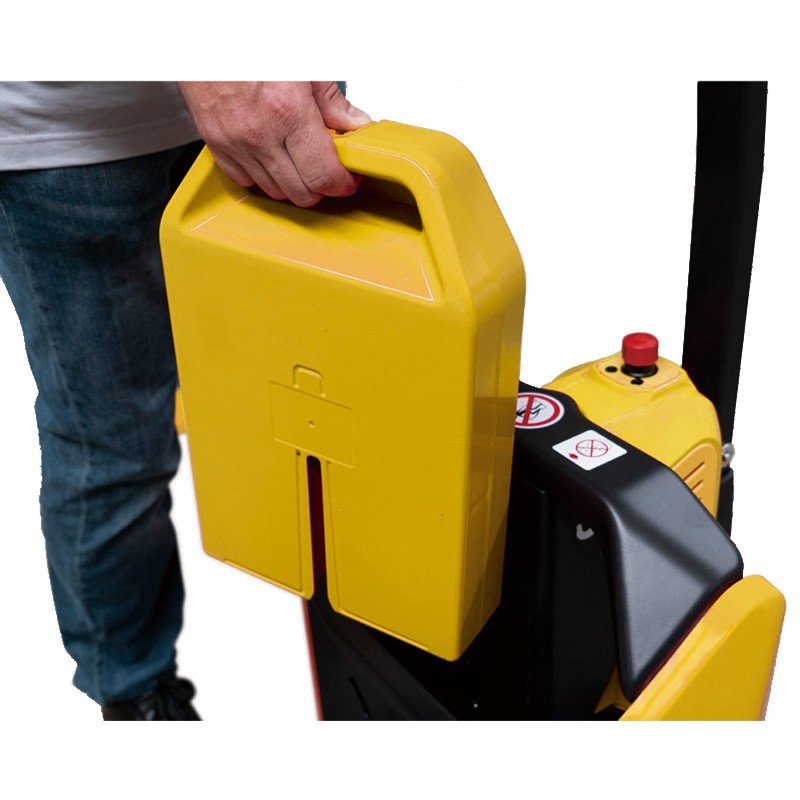

Battery | Lithium 24 V. / 20 Ah |
Battery weight | 4,6 kg |
