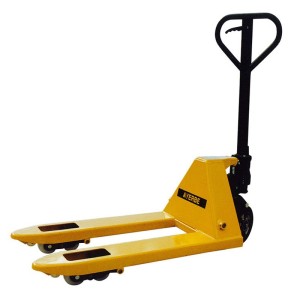

Pallet truck Ayerbe AY-2500 THV 2500 Kg
- Maximum capacity : 2500 kg
- Weight : 72 kg
- Rotation : 200 º
€355.21 VAT incl.

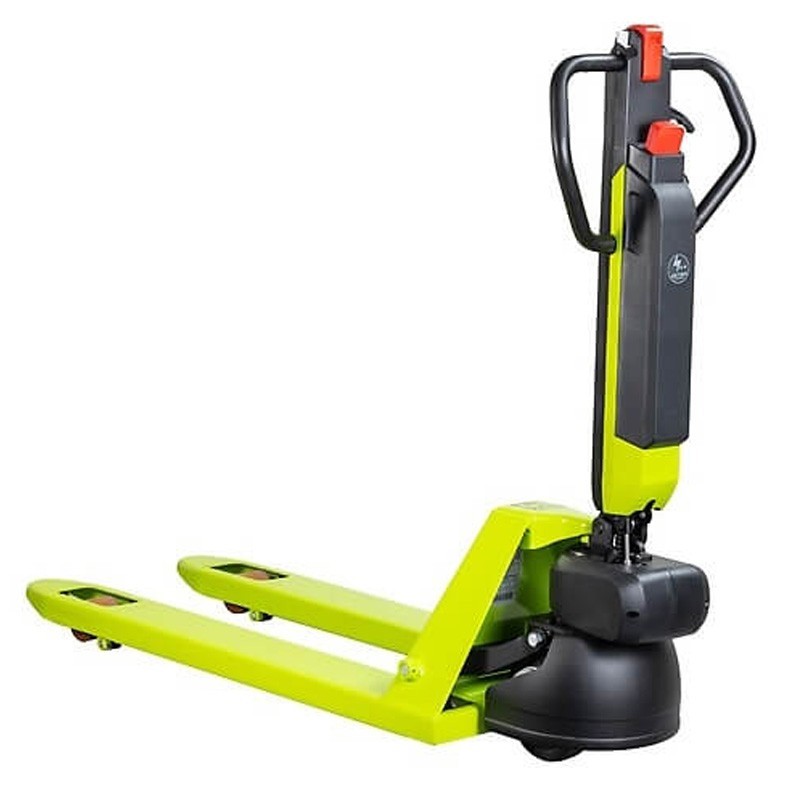

The pallet truck Pramac Agile EVO PLUS is an excellent choice for a compact, lightweight and easy to use pallet truck with an electric motor that allows speeds up to 5.3 km / h. The motor of this pallet truck is powered by a rechargeable 36-volt lithium-ion battery which offers exceptional autonomy up to 3 hours.
The motor of this pallet truck is powered by a rechargeable 36-volt lithium-ion battery which offers an exceptional autonomy of up to 3 hours of continuous use.
Its four-wheel drive wheels are equipped with an anti-tracking system so that no marks are left when using the pallet truck. With an on-board computer, the Agile EVO electric pallet truck has 3 quick adjustment buttons and LED display to read the machine's records.
Finally, its weight is 97 kilos and its forks measure 55x150x1150 mm.
MODEL | Agile EVO PLUS |
Battery | Lithium Ion 17 Ah |
Lift | Electric |
Driving | Companion |
Load capacity | 1200 Kg |
Center of gravity | 600 mm |
Load distance | 932 mm |
Distance between axles | 1192 mm |
Weight with battery | 97 kg |
Loaded axle load, rear | 893 kg |
Loaded axle load, front | 404 kg |
Axle load unladen, front | 70 kg |
Axle load unladen, rear | 27 kg |
Front wheels | Rubber |
Rear wheels | Poly |
Front track | 162 mm |
Rear track | 375 mm |
Elevation | 115 mm |
Overall length | 1630 mm |
Total width | 525 mm |
Fork dimensions | 55 x 150 x 1150 mm |
Fork width | 525 mm |
Working aisle for pallet 800x1200 Length | 2094 mm |
Turning radius | 1413 mm |
Traction speed with load | 4,2 Km/h |
Traction speed without load | 5.3 km/h |
Traction motor power | 2x0.25 kW |
Lift motor power | 0.4 kW |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
