24V electric pallet truck Kompak EPT18W
The 24V electric pallet truck Kompak EPT18W redefines efficiency in demanding work environments with its compact design and powerful motor. Its small turning radius makes it ideal for narrow aisles, supermarkets and cargo containers, offering the same size as a hand pallet truck.

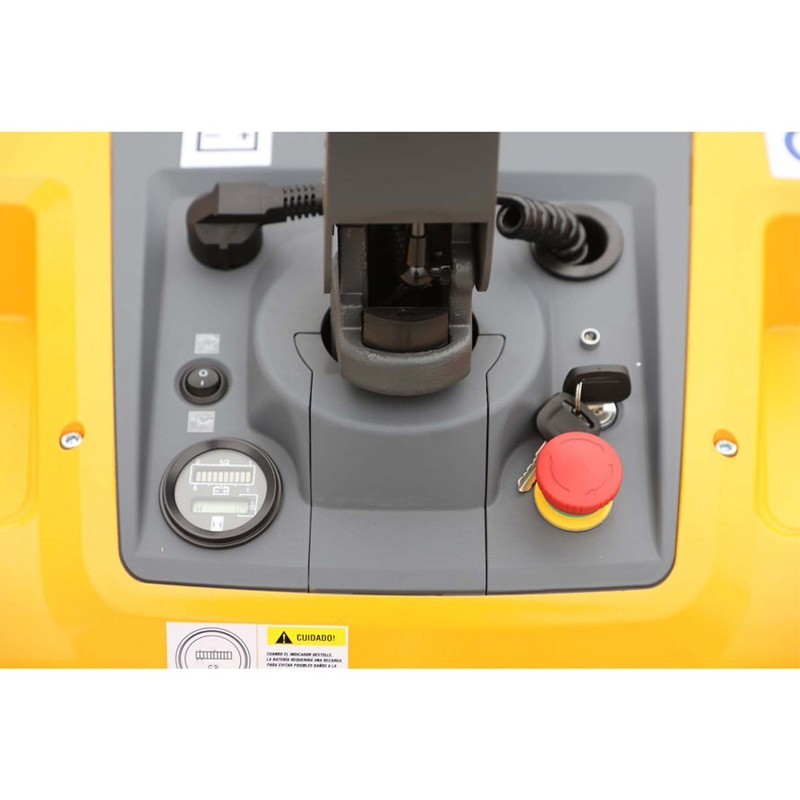

Equipped with a multifunction display, hour meter with battery indicator, speed button, emergency button and ignition key, it provides intuitive and safe control. The pallet truck stands out for its agility, with a reduced turning radius of 1320-1389 mm and a width of 520/550/685 mm.
Its electrically efficient DC Brushless motor, coupled with a fully sealed, high-capacity battery, ensures maintenance-free performance. In addition, the low drive speed option when the handle is in the upright position optimizes turning space, while its high travel speed of up to 5.8 km/h boosts productive efficiency.
With a height-adjustable floating steering wheel and easy-to-remove horizontal drive wheel, the Kompak EPT18W offers versatility and superior performance in any logistics environment.
|
Turning radius
The MINI electric pallet truck stands out for its small turning radius, especially noticeable at low speeds. This makes it perfect for maneuvering in tight spaces, making it ideal even for use inside containers.
|
Turning radius of MINI electric pallet truck
|
Turning radius of hand pallet trucks
|
Features
- RUYI new Tiller Head type with maximum speed limit button.
- Emergency stop.
- BDI and hour meter.
- Wheels for balancing stability.
- Sealed battery.
- Brushless horizontal motor.
- Built-in charger.
Technical data
| Load capacity |
1800 kg |
| Load center distance |
600 mm |
| Fork height, lowered |
80 / 75 mm |
| Front tire size |
Φ 195x70 mm |
| Tire size, rear (single) |
Φ 80x93 / Φ 74x93 mm |
| Tire size, rear (double) |
Φ 80x70 / Φ 74x70 mm |
| Number of front rear wheels (x = driving wheels) |
1x2(4) |
| Max. lifting height |
190/180 mm |
| Tiller height in driving position min./max |
950/1310 mm |
| Overall length |
1525/1595 mm |
| Length to fork face |
375 mm |
| Total width |
685 mm |
| Fork dimensions |
53/160/1150 (1220) mm |
| Total width of forks |
520/550/685 mm |
| Aisle width for pallets 1000x1200 (1200 across) |
2102/2184 mm |
| Aisle width for pallets 800x1200 (1200 lengthwise) |
2005/2035 mm |
| Turning radius |
1347/1415 mm |
| Travel speed, with/without load |
4.5/5 km/h |
| Battery voltage/rated capacity k20 |
24V/105Ah |
| Battery dimensions l/w/h |
260/169/215 mm |
| Battery weight |
49 Kg |
| Operating weight (with battery) |
250 Kg |
