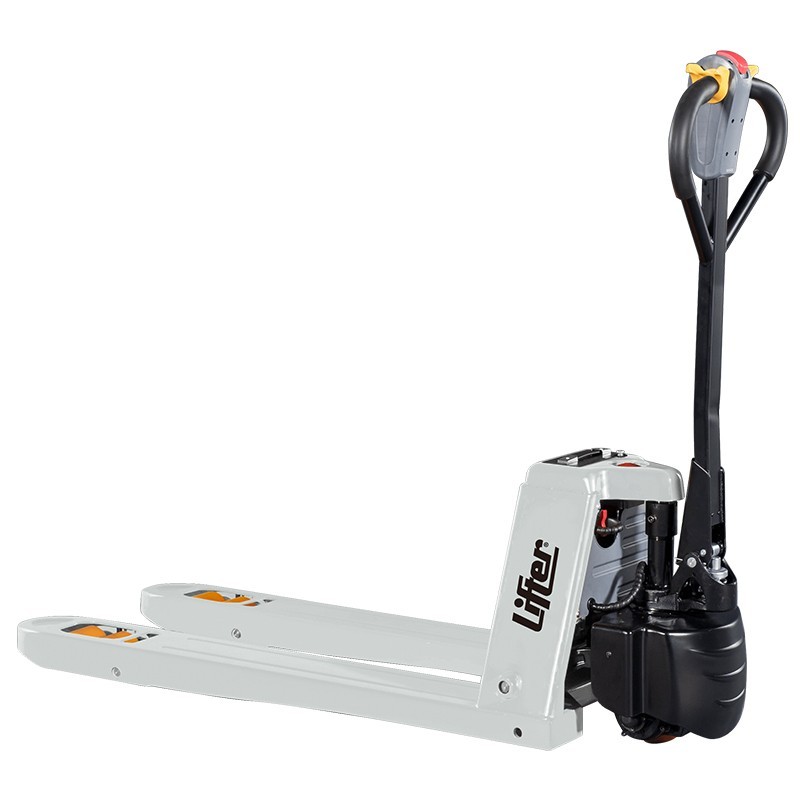

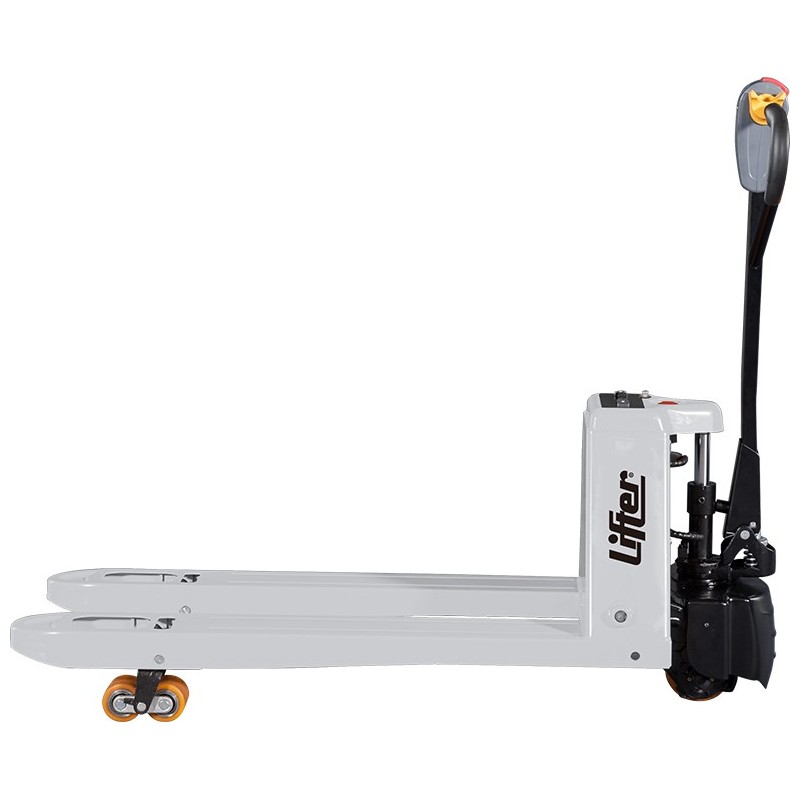

Electric pallet truck Pramac Lifter

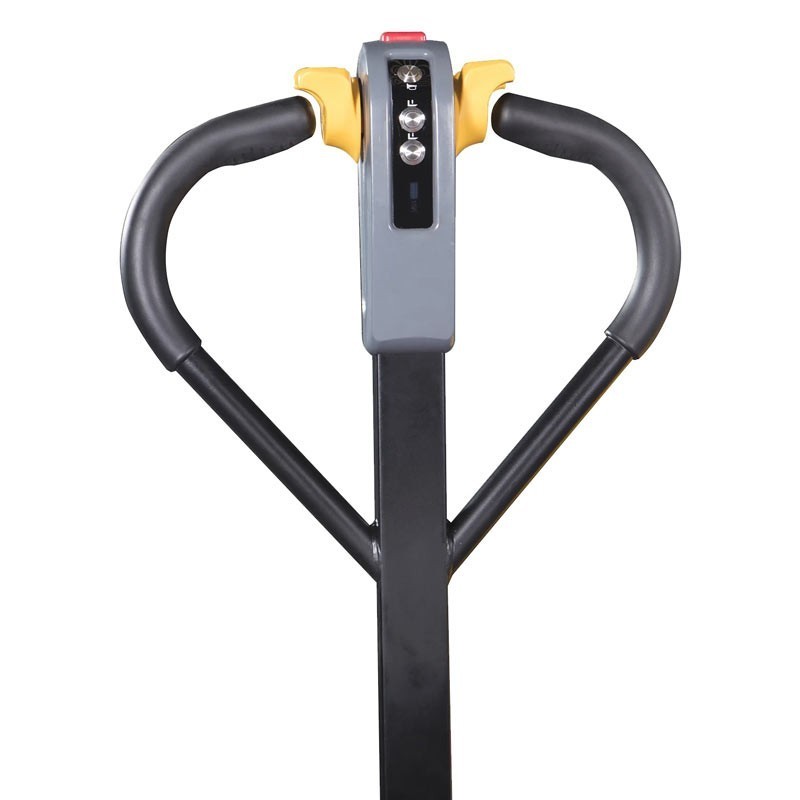

The electric pallet truck Pramac EY 15L is the ideal solution for transporting goods in confined spaces. Its compact design and ergonomic tiller allow for comfortable and intuitive driving, with all controls within easy reach. In addition, its adjustable speed adapts to different levels of operator experience, optimizing safety and efficiency in every maneuver.
Thanks to its small turning radius and the fact that the overall width of the machine matches that of the forks, the Pramac EY 15L ensures excellent maneuverability. This makes it perfect for working in vans, lifting platforms and warehouses with narrow aisles. In addition, it incorporates a turtle mode that allows the pallet truck to move slowly in confined spaces while keeping the tiller in an upright position.

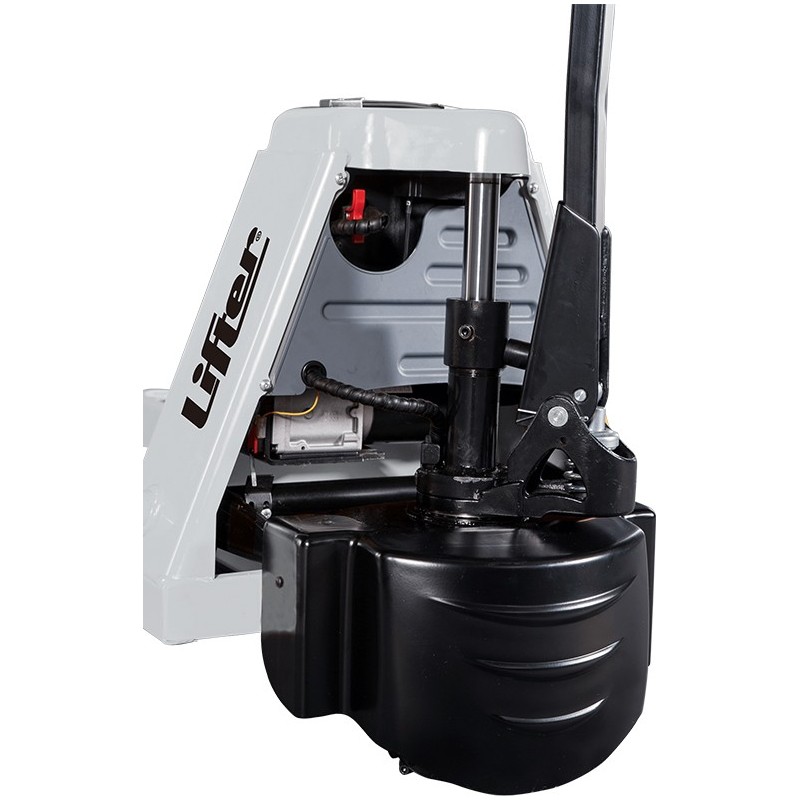

Built with a robust structure, this pallet truck withstands demanding loads with maximum stability and torsion resistance. Its removable maintenance-free lithium battery allows quick changeovers for continuous operation, avoiding downtime. In addition, its anti-skid design facilitates parking on slopes, preventing accidental slipping.
In terms of safety, the Pramac EY 15L is equipped with an electric brake, emergency button and protective cover for the drive wheel, minimizing risks during use. Its easy maintenance system, with error code display, reduces downtime and operating costs, making it an efficient investment for any warehouse or logistics center.
Features
| Lifting |
Electric |
| Traction group |
Electric |
| Driving |
Companion |
| Load capacity |
1500 kg |
| Center of gravity |
600 mm |
| Load distance |
952 mm |
| Distance between axles |
1197 mm |
| Weights |
| Weight with battery |
116.5 kg |
| Axle load with load (rear / front) |
1136.5 kg / 480 kg |
| Axle load without load (rear / front) |
30 kg / 84 kg |
| Chassis/Wheels |
| Front wheels |
POLY.C |
| Rear wheels |
POLY |
| Dimensions front wheels |
140 mm diameter x 55 mm width |
| Rear wheel dimensions |
80 mm diameter x 70 mm wide |
| Number of wheels (front / rear) |
1X / 4 |
| Rear track |
390 mm |
| Dimensions |
| Elevation |
115 mm |
| Tiller height (max / min) |
1220 mm / 740 mm |
| Height of lowered forks |
82 mm |
| Overall length |
1552 mm |
| Length from rudder to forks |
402 mm |
| Overall width |
550 mm |
| Fork dimensions |
58 mm thick / 160 mm wide / 1150 mm long |
| Fork width |
550 mm |
| Lower clearance height with load |
22 mm |
| Working aisle for pallet 800x1200 |
2024 mm |
| Turning radius |
1353 mm |
| Performance |
| Traction speed (with / without load) |
4.0 km/h / 4.5 km/h |
| Lifting speed (with / without load) |
0.018 m/s / 0.023 m/s |
| Lowering speed (with / without load) |
0.056 m/s / 0.046 m/s |
| Max. slope (with / without load) |
6 % / 20 % |
| Service brake |
Electric |
| Electric motors |
| Traction motor power |
0.75 kW |
| Lift motor power |
0.8 kW |
| Battery voltage |
48 V |
| Battery capacity |
10 Ah |
| Battery weight |
4.7 kg |
| Noise level at driver's ear |
|
