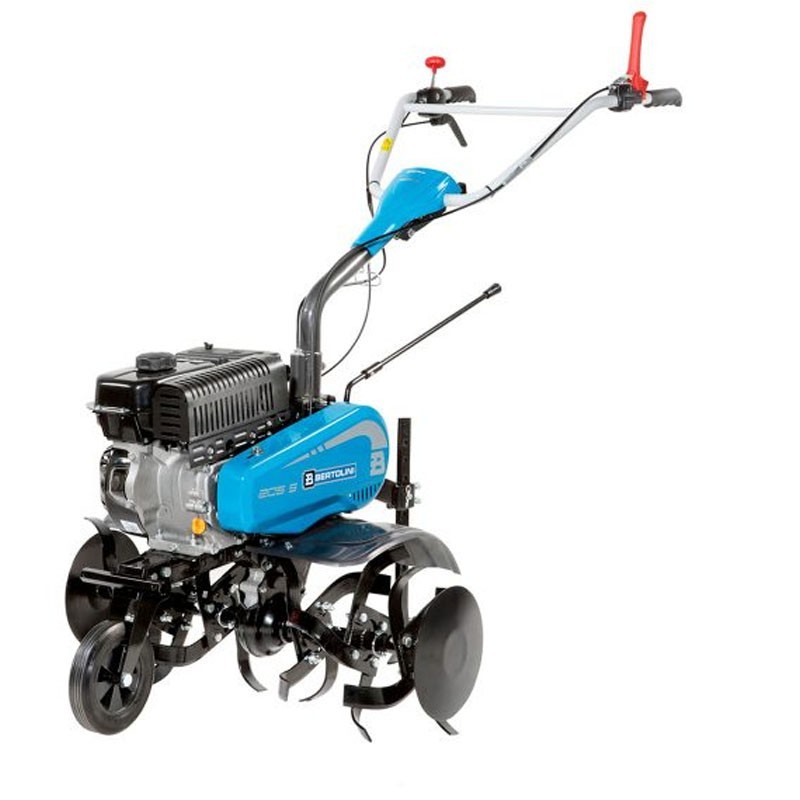

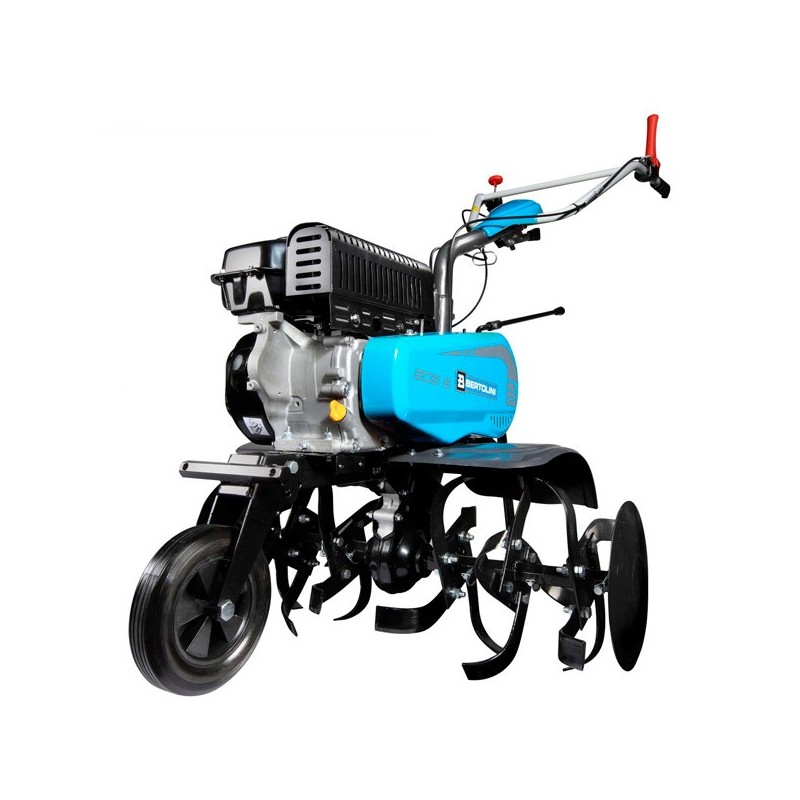

The Motor Hoe Bertolini 205S Emak K 800 HC gasoline engine provides a power of 4.2 KW and a displacement of 182cc. It also includes an adjustable handlebar in all positions and 2 gears, one forward and one reverse.
The 205S model offers a transmission with oil bath gears and a first time start. This rotary tiller also has a double belt clutch with metal pulleys and steel blades with a thickness of 4.2 mm
The 205S rotary tiller from Bertolini includes an 85 cm tiller with protective side discs, a reinforced spur, a 180 degree rotating handlebar and a transport wheel.
| Engine | EMAK K 800 HC |
| Power | 4.2 KW |
| Displacement | 182cc |

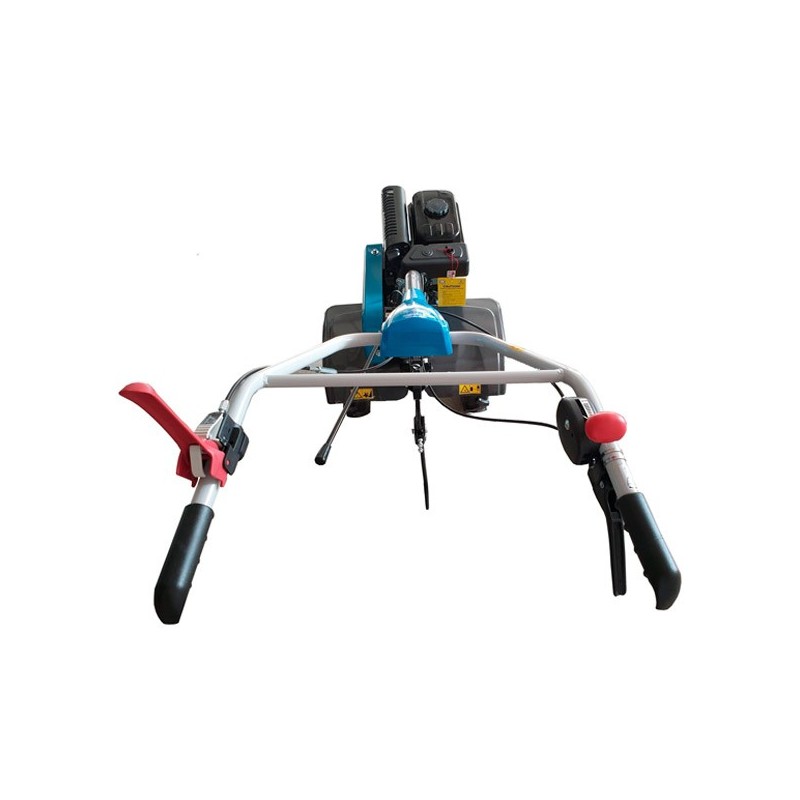

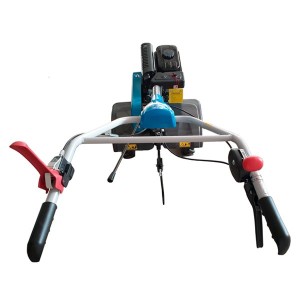

| Handlebar | Adjustable in all positions |
| Clutch | With double belt and metal pulleys |
| Blades | 4,2mm thick steel |
| Gears | 2 forward gears + 1 reverse |
| Transmission | With gears in oil bath |

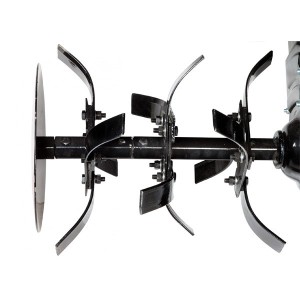

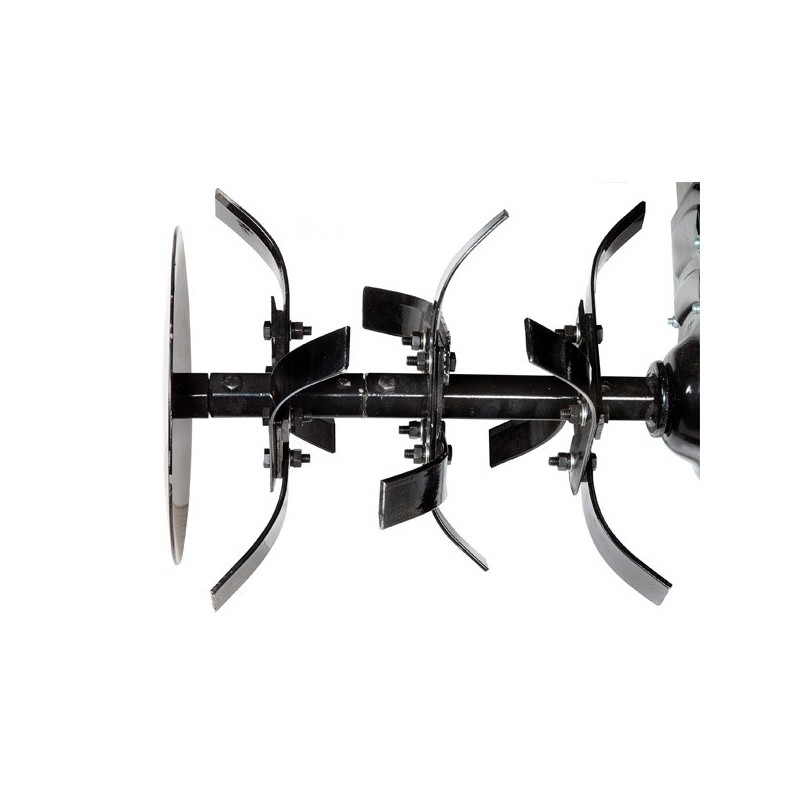

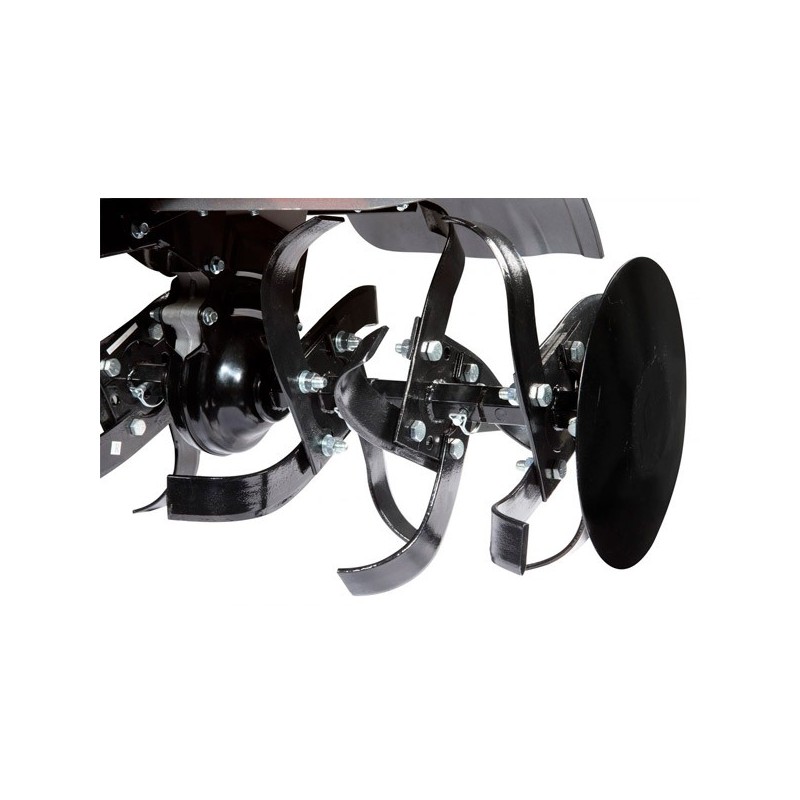

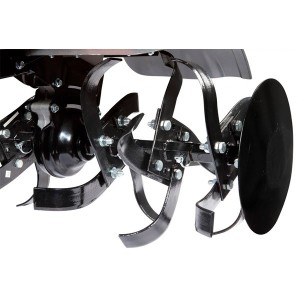

| Cutter | 85 cm with lateral protection discs |
| Weight | 63 Kg |
| The valves allow a regular entry of the fuel into the chamber and a quick and complete exit. |  |
| Cylinder in cast iron, drive shaft in chrome-plated steel, rod valves in tempered steel resistant to high temperatures. |  |
| Aluminum alloy piston with 2 segments and 1 oil sump, double ball bearing support on the elbow shaft. | |
| The heat-treated connecting rod has an alternating movement. This allows perfect lubrication of the connecting rod and bearing supports. |  |
| The OHV design has an excellent thermal balance. This helps to reduce cylinder deformation and oil consumption. |  |
| The circular foam filter in the oil bath provides optimum filtering action. It retains even the tiniest dust particles. |  |
| The filter cover with knob offers a quick inspection of the filter without the use of tools. |  |
| The large muffler allows a strong reduction of noise and unburned hydrocarbons. |  |
| Metal housing designed to protect the starting device against accidental impacts. |  |
Difference between the oil bath clutch of other brands and the dry multi-disc clutch of other brands Bertolini
Oil-immersed clutch brake (Other brands) Disadvantages
Multi-disc dry clutch Bertolini
|
| IMPORTANT It is mandatory for the customer to check oil and grease levels before start-up ! |
| If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is satisfied unless an examination is pending. |
