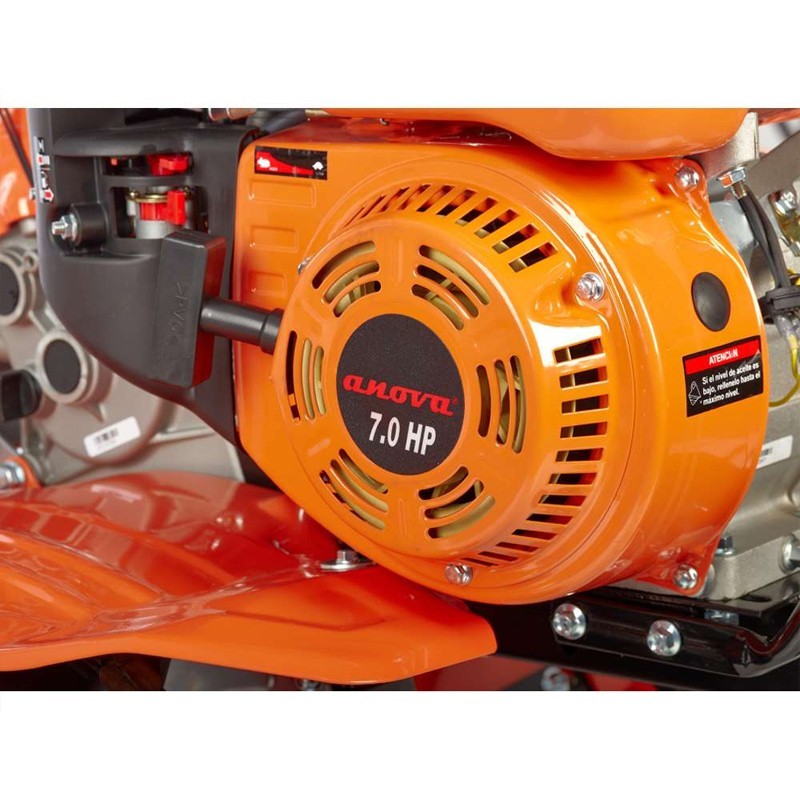

The Garden tiller Anova MC507 is powered by a powerful gasoline engine Anova 4 Stroke, MA212. This engine provides a power of 7 HP/ 5.3 kW and a totaldisplacement of 212cc.
This garden tiller gasoline model from Anova also features 3 gears, of which2 are forward and 1 is reverse. In addition, the machine comes with the milling equipment mounted.
The modelGarden tiller MC507 from Anova offers a working width of 820 mm. It also offers a working depth of 150 - 300 mm.
As standard the garden tiller gasoline Anova MC507 includes a pneumatic depth gauge, depth guide, side plates and pneumatic wheels. In addition, it has a total weight of only 70kg.
The transmission of this garden tiller is by belt tensioning and the maximum revolutions that the machine can reach are 3600 rpm. As for the air suction system, the MC507 comes with an oil bath air filter.
Finally, the power transmission to the blades is by means of a chain and the engine oil capacity is 0.6 liters of SAE 30 type.
Includes
Pneumatic wheels
Side plates
Feeders
Depth guide
Features
MODEL
MC507
Handlebar
Adjustable in height
Air filter
Oil bath
Milling equipment mounted
Yes
Clutch
By belt tension
Blade transmission
By chain
Motor
MA212
Engine type
4-stroke gasoline
RPM
2500 rpm
Displacement
212 cc
Power
7 HP / 5.3 kW
Gears
2+1 (rear)
Working depth
150 - 300 mm
Working width
82 cm
Weight
70 kg
Engine oil type
SAE 30
Engine oil capacity
0.6 liters
Gearbox oil type
Valvulin 80W/90
Gearbox oil quantity
1.6 liters
EAN-13
8435507506021
Dimensions
1380 x 650 x 970 mm
IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement , unless there is a pending examination.
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Warranty and Factory Repair
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
Online Mechanics - Fast and Efficient
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips. Intermaquinas recommends greasing after each operation to ensure perfect performance and extend the life of the machines.
In-Shop Repair
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
