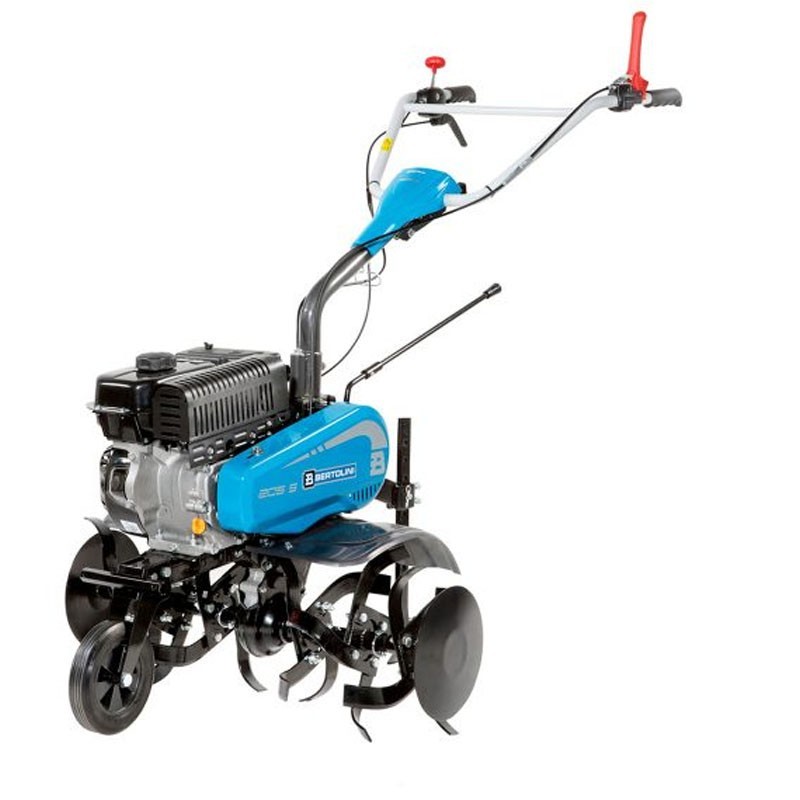

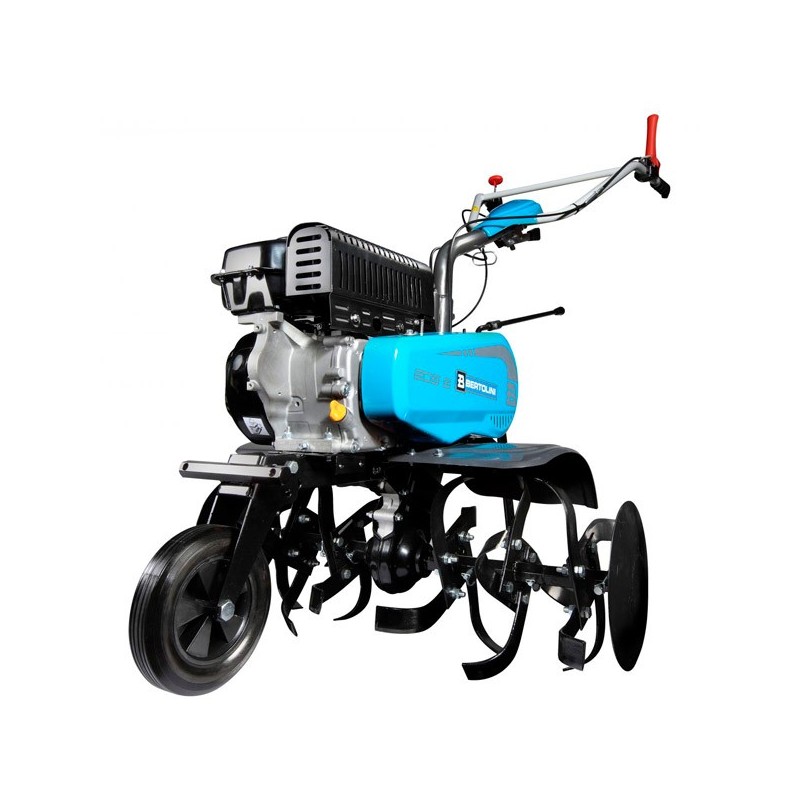

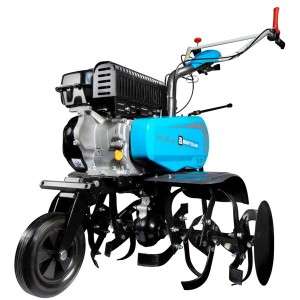

The Garden tiller Bertolini 205S Emak K 800 HC gasoline engine provides a power of 4.2 KW and an displacement of 182cc. It also includes an adjustable handlebar in all positions and 2 gears, one at the front and one at the rear.
The 205S model offers a transmission with oil bath gears and a first time start. This garden tiller also has a double belt clutch with metal pulleys and steel blades with a thickness of 4.2 mm
The garden tiller 205S from Bertolini includes, the 85 cm tiller with protective side discs, a reinforced spur, a 180 degree rotating handlebar and a transport wheel.
| Engine | EMAK K 800 HC |
| Power | 4.2 KW |
| Displacement | 182cc |

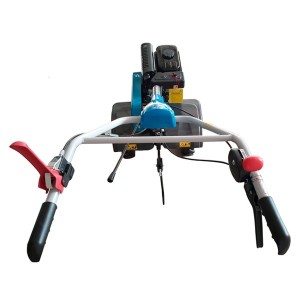

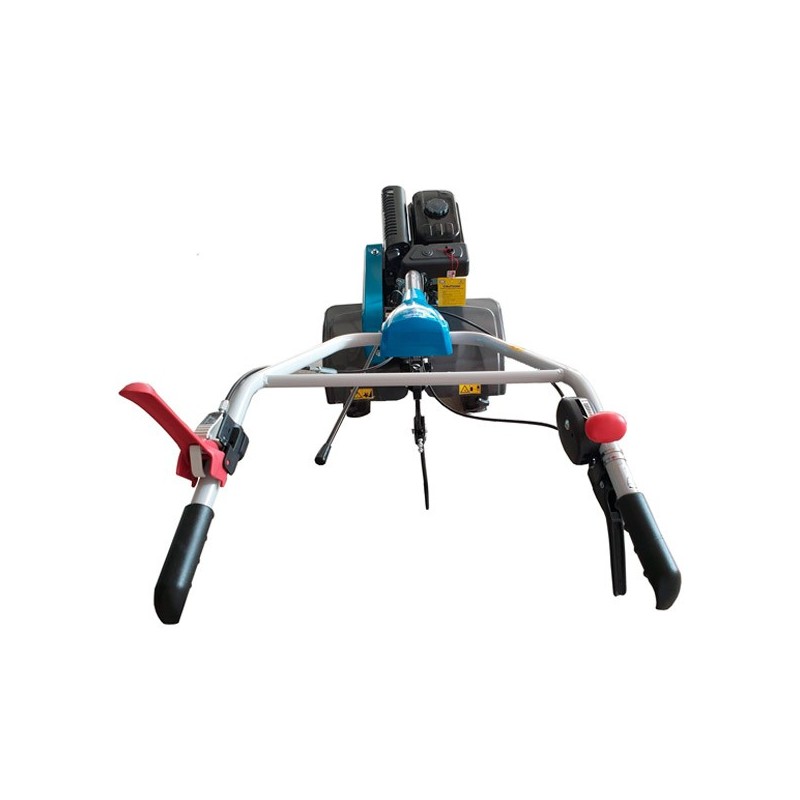

| Handlebar | Adjustable in all positions |
| Clutch | With double belt and metal pulleys |
| Blades | 4,2mm thick steel |
| Gears | 2 gears front + 1 rear |
| Transmission | With gears in oil bath |

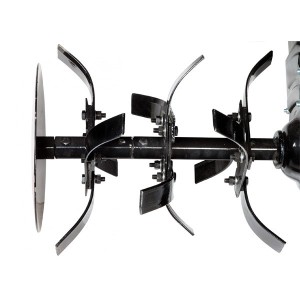

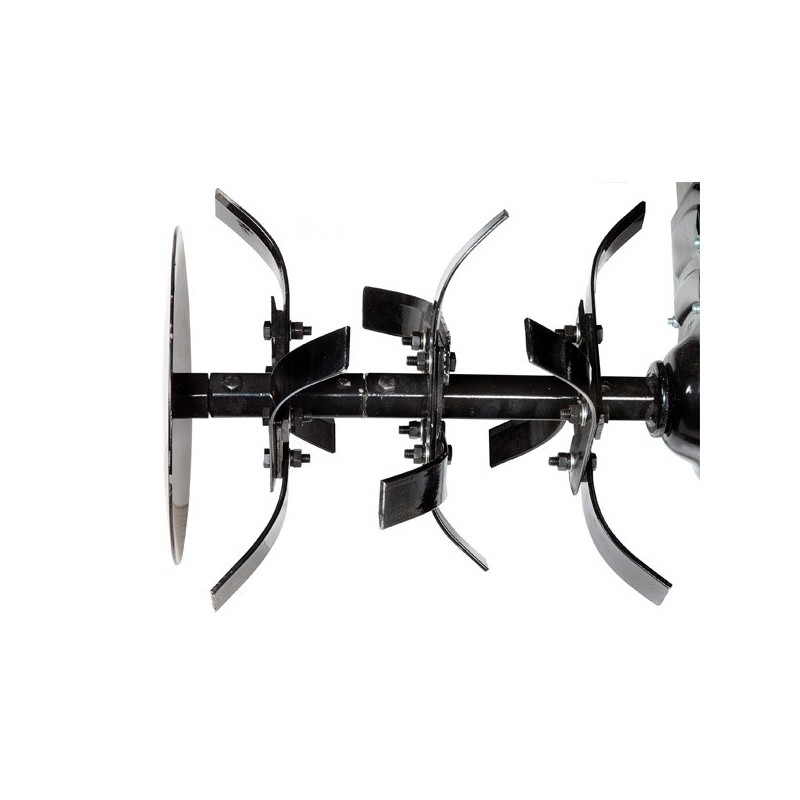

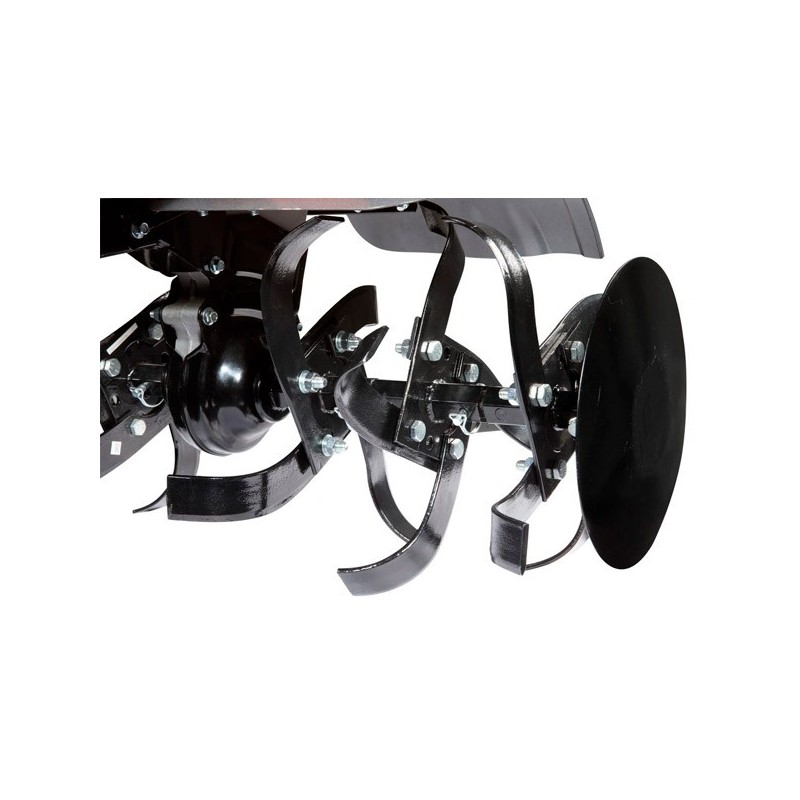

| Tiller | 85 cm with lateral protection discs |
| Weight | 63 Kg |
| The valves allow a regular entry of the fuel into the chamber and a fast and complete exit. |  |
| Cylinder in cast iron, drive shaft in chrome-plated steel, rod valves in tempered steel resistant to high temperatures. |  |
| Aluminum alloy piston with 2 segments and 1 oil sump, double ball bearing support on the elbow shaft. | |
| The heat-treated connecting rod has an alternating movement. This allows perfect lubrication of the connecting rod and bearing supports. |  |
| The OHV design has an excellent thermal balance. This helps to reduce cylinder deformation and oil consumption. |  |
| The circular foam filter in the oil bath provides optimum filtering action. It retains even the tiniest dust particles. |  |
| The filter cover with knob offers quick inspection of the filter without the use of tools. |  |
| The large muffler allows a strong reduction of noise and unburned hydrocarbons. |  |
| Metal housing designed to protect the starting device against accidental impacts. |  |
Difference between the oil bath clutch of other brands and the dry multi-disc clutch of other brands Bertolini
Oil-immersed clutch brake (Other brands) Disadvantages
Multi-disc dry clutch Bertolini
|
| IMPORTANT It is mandatory for the customer to check oil and grease levels before start-up ! |
| If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is satisfied unless an examination is pending. |
Data sheet
Specific References
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips. Intermaquinas recommends greasing after each operation to ensure perfect performance and extend the life of the machines.
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.
