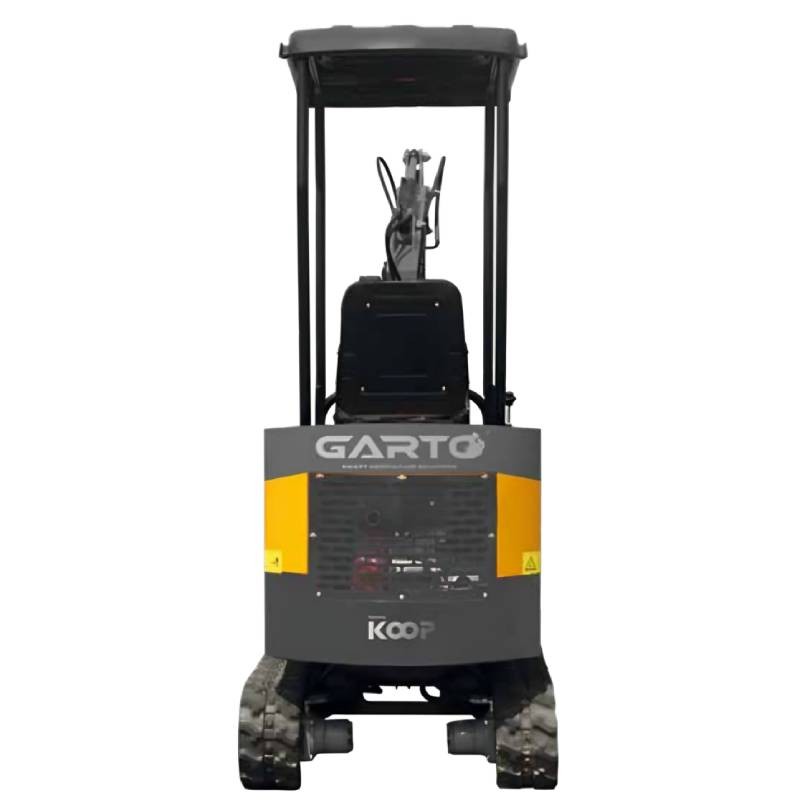

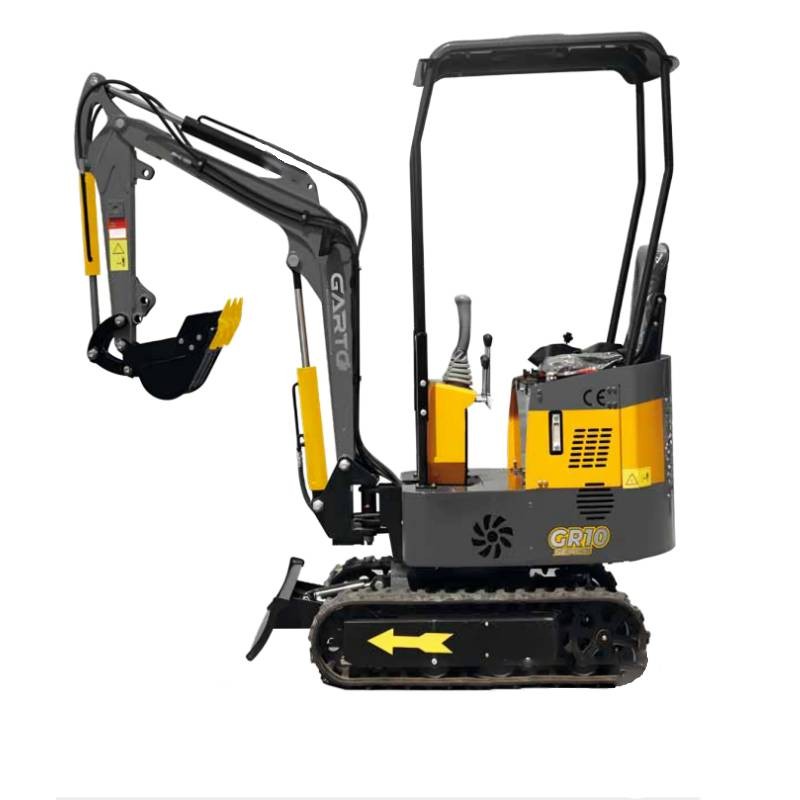

The GARTO GAR-10 is a mini excavator specifically designed to operate in hard-to-reach areas or very confined spaces. With a weight of 880 kg and a total width of 93 cm, this machine allows excavation work to be carried out with superior agility.
It is equipped with a single-cylinder KOOP diesel engine that complies with EURO5 emission standards, ensuring efficiency and simplified maintenance thanks to its forced air cooling system, which eliminates the need for additional coolant circuits.
This model incorporates safety and professional comfort features, such as its reinforced roof, two-position LED spotlight and a complete instrument panel with voltmeter and hour meter. Its design allows full access to the mechanics by simply lifting the engine cover, facilitating daily checks.
In addition, its Swing Boom system and integrated dozer blade with 345 mm lifting capacity expand the possibilities for working in trenches and leveling uneven terrain.
With a maximum digging depth of 1750 mm and a platform turning radius of 784 mm, the GAR-10 is the perfect tool for installers, landscapers and construction professionals looking for power and maneuverability in a compact format.
| Model | GAR-10 | |
| Bucket capacity | 0.025 m³ / 120 kg | |
| Bucket width | 380 mm | |
| Main motor | KOOP 192F | |
| Optional engine | Briggs & Stratton | |
| Cylinder | Single cylinder air-cooled | |
| Rated power | 7 kW / 3000 rpm | |
| Displacement | 6.8 ml/r | |
| Travel speed | 1.5 km/h | |

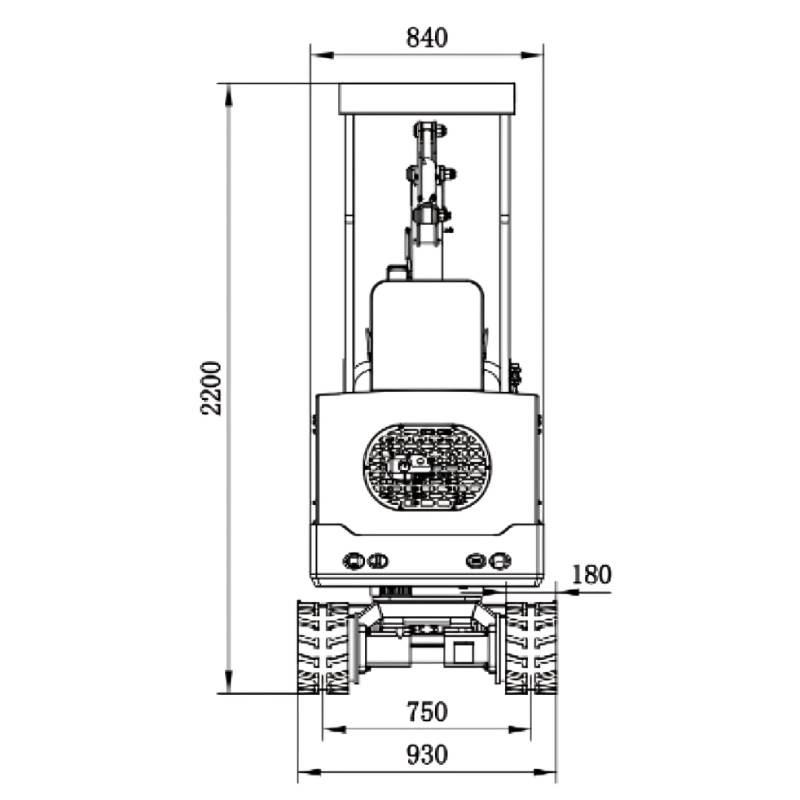

| Overall dimensions (L x W x H) | 2900 x 930 x 2180 mm | |
| Wheelbase | 910 mm | |
| Total track length | 1230 mm | |
| Platform clearance height | 380 mm | |
| Chassis ground clearance | 132 mm | |
| Undercarriage height | 320 mm | |
| Platform rear turning radius | 784 mm | |
| Chassis width | 896 mm | |
| Track width | 180 mm | |

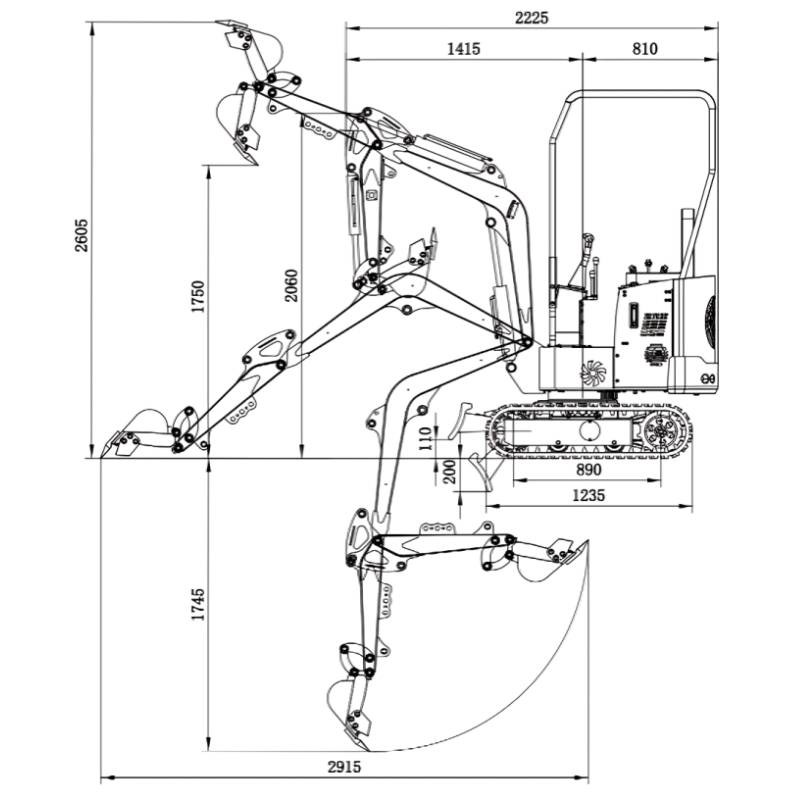

| Maximum digging depth | 1750 mm | |
| Maximum vertical digging depth | 1550 mm | |
| Maximum digging height | 2610 mm | |
| Maximum dump height | 1850 mm | |
| Maximum digging radius on the ground | 3050 mm | |
| Minimum turning radius | 1330 mm | |
| Maximum dozer blade lift height | 345 mm | |
| Maximum Dozer Digging Depth | 255 mm | |
| Weight | 1000 kg | |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
