GARTO GAR-35 Mini Excavator with A/C Cabin 3500 kg


  • Operating Weight: 3500 kg (3.5 Tons)
  • Engine: KUBOTA D1105 (3 cylinders) | 20 HP | Stage V
  • Comfort: Soundproofed cab with A/C, heating and radio
  • Performance: Extendable chassis (1720 - 2020 mm) | 2 forward speeds | LED Lights
En stock
icon Power Supply
Power Supply
Diesel
icon Engine
Engine
Kubota
icon Engine model
Engine model
D1105
icon Power
Power
20 HP
icon Engine type
Engine type
4 times
icon Max. slope
Max. slope
35%
icon Standard ladle
Standard ladle
40 L
icon Operating weight
Operating weight
3500 Kg
icon Excavator
Excavator
With cabin
icon Certificate
Certificate
Euro V
icon Cylinders
Cylinders
3
icon ✔️
✔️
Air conditioning
icon ✔️
✔️
Water-cooled
icon ✔️
✔️
Multifunction
icon Weight
Weight
3420 Kg
€31,258.86 excl. VAT
- 13%
€27,195.21 excl. VAT
€32,906.20 VAT incl.
Finance your purchase with Pago Aplazame
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


GARTO GAR-35 Mini Excavator with A/C Cabin 3500 kg
€32,906.20
Qty

GARTO GAR-35 Mini Excavator GARTO GAR-35 KUBOTA D1105 Engine

The GARTO GAR-35 is the ultimate solution for professionals looking for maximum performance and comfort in a 3.5 ton mini excavator.

This model stands out for its high-visibility soundproofed cab, equipped as standard with a complete air conditioning (A/C) and heating system, allowing work in extreme weather conditions without compromising productivity. In addition, it includes a built-in radio and a high-intensity LED lighting system for night work or low visibility.

Equipped with the reliable 20 HP KUBOTA D1105 engine (Stage V / Tier 5 standard), the GAR-35 offers a digging force of 19.5 kN and a system pressure of 21.5 MPa. Its versatility is enhanced by an extendable chassis (1720 x 2020 mm) that ensures superior stability in difficult terrain and a large boom lift capacity of up to 3716 mm.

With two forward speeds (up to 5.5 km/h) and an auxiliary hydraulic output already installed for the use of professional attachments, the GAR-35 combines the power of a heavy-duty machine with the agility required for civil works, structural excavation and large-scale landscaping projects.

Technical Specifications

Model GAR-35
Engine KUBOTA D1105 (3 cylinders)
Power / Speed 14.1 kW (20 HP) / 2000 rpm
Emission standard Tier 5 / Stage V (Stage V)
Operating weight 3500 kg

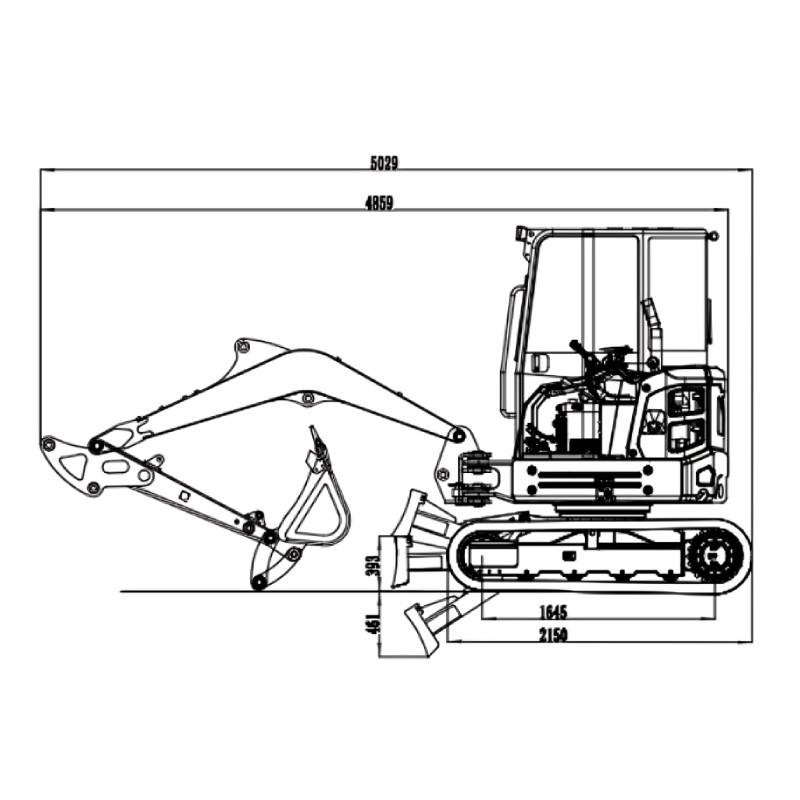

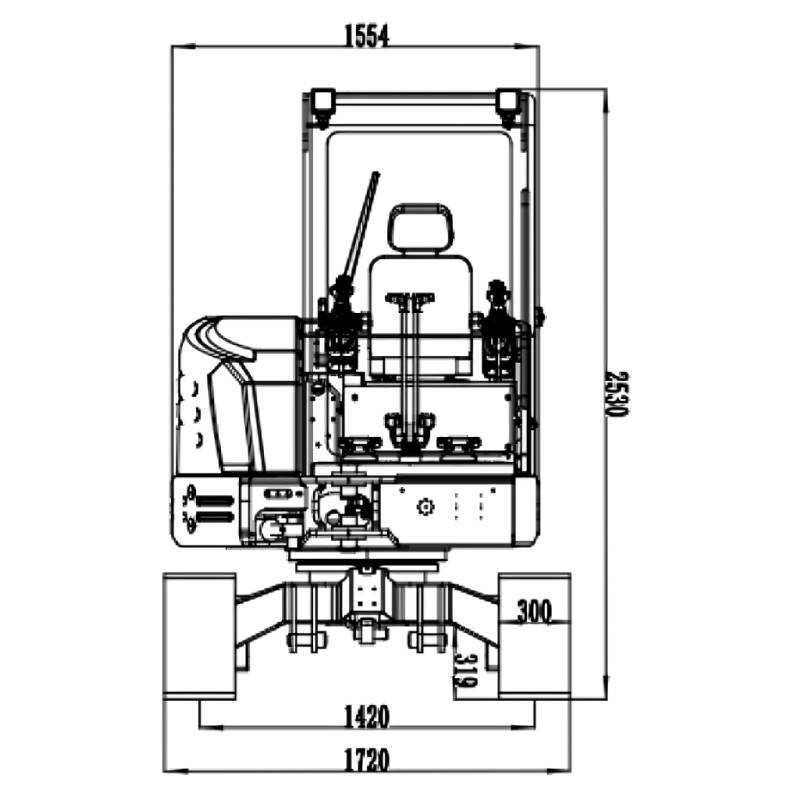

Overall dimensions (L x W x H) 5029 x 1720 x 1554 mm
Chassis (Retraction / Extension) 1720 mm / 2020 mm
Minimum ground clearance 319 mm
Tail swing radius 885 mm
Comfort Soundproofed cab, radio, LED lights
Climate control Air conditioning (A/C) and heating
Standard bucket capacity 0,12 m³
Travel speed 3 km/h - 5.5 km/h (2 speeds)
Max. digging force (bucket) 19.5 kN
Max. digging force (arm) 11 kN
Hydraulic system pressure 21.5 MPa
Rotation speed 9.5 rpm
Max. lift capacity 35°

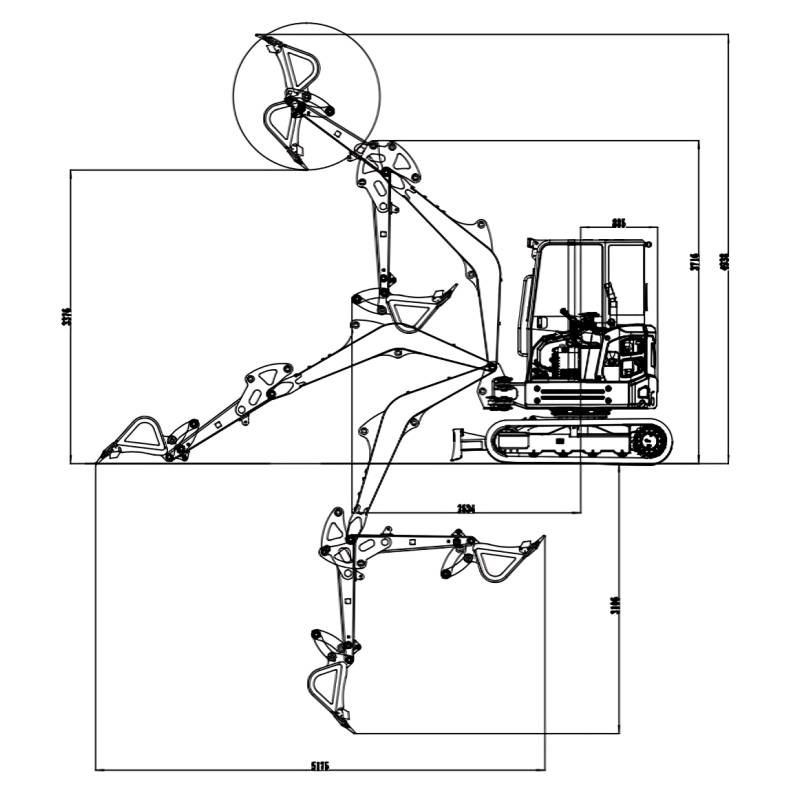

Max. digging height 3980 mm
Max. dumping height 2610 mm
Max. boom lift height 3716 mm
Boom swing angle (left/right) 75° / 55°
Auxiliary hydraulic output Installed as standard
