Inverter welder Wizarcs CONTACT 255 220 A


  • Current : Double Voltage
  • Type of Welder : MMA / TIG
  • Weight : 6 Kg
  • Digital panel : Yes
  • No load voltage : 70 V
  • Service 40ºC : 50 %
  • Regulation range : 10 - 220 A
  • Usable electrodes : 4 - 5 mm
  • TIG type : TIG lift
En stock
icon Current
Current
Single-phase
icon Typology Welder
Typology Welder
MMA / TIG
icon Panel
Panel
digital
icon No-load voltage
No-load voltage
70 V
icon Service 40ºC
Service 40ºC
50 %
icon Regulating range
Regulating range
10 - 220 A
icon Usable electrodes
Usable electrodes
4 - 5 mm
icon TIG type
TIG type
TIG lift
icon ✔️
✔️
Aluminum welding
icon Weight
Weight
6 Kg
€165.01 excl. VAT
- 4%
€158.41 excl. VAT
€191.68 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Inverter welder Wizarcs CONTACT 255 220 A
€191.68
Qty

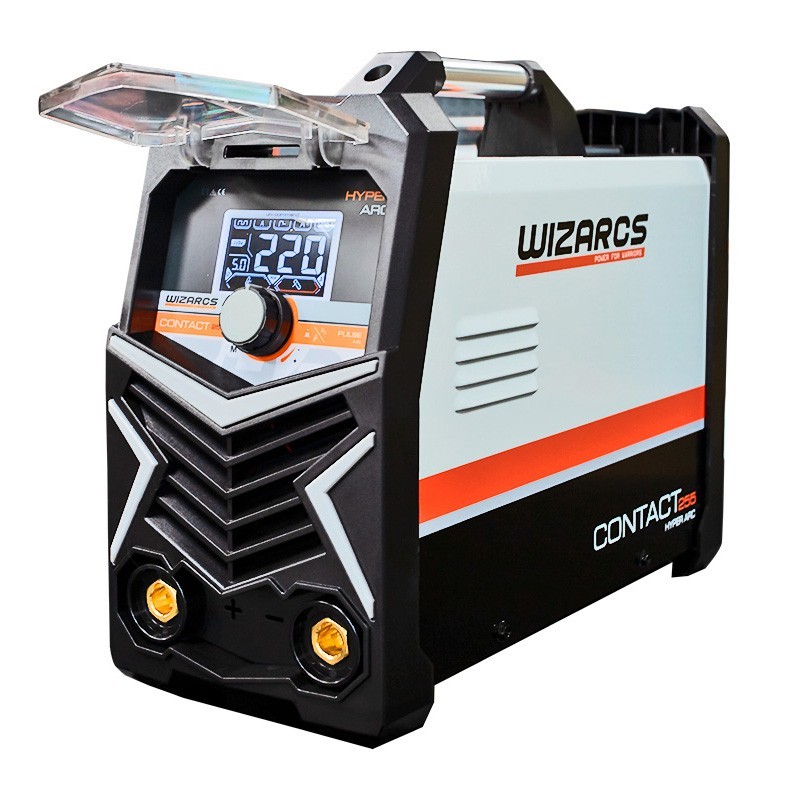

Inverter Welder Wizarcs CONTACT 255 220 A

The Inverter Welder Wizarcs CONTACT 255with 230V-50/60 Hz connection options and a wide amperage range, which goes from 10A to 220A, this device adapts to various welding needs with a continuous working capacity of 50% at 40ºC.

Its versatility is highlighted by MMA and TIG welding modes, with a specific type of TIG Lift ARC that allows working with various materials such as stainless steels, aluminum and hard coatings.

The ability to weld different types of electrodes such as E-6010, E-6011, E-6013, E-7018 and castings extends its functionality, making it an essential tool for varied projects.

In addition, its design with 35-50 (12mm) quick connectors ensures an efficient and safe connection, while its IP21S rating ensures adequate protection against external elements in demanding work environments.

Features

Soldador inverter Wizarcs

Electrodes up to Ø 5mm and protrusion for 4mm.

Soldador inverter Wizarcs caracteristicas

Safety system V.R.D. (Voltage Reduction Device), reduces the risk of electric shock.

Puede conectarse a Generadores.

Can be connected to generators with a minimum nominal power of 8.5Kw.

Perilla en Goma

Rubber knob for better grip with gloves.

HYPER-ARC

HYPER-ARC, with HOT START, ARC FORCE and ANTI-STICK.

Pantalla LCD de alto contraste.

High contrast LCD display.

Conectores rápidos tipo DINSE 10/25.

Quick connectors 13 mm.

Technical data

Connection 230V-50/60 Hz +/- 10%
Amperage range 10-220A
Duty cycle At 40ºC 50%
No-load voltage (OCV - U0) 70V
Modes MMA / TIG
TIG Type TIG LIFT ARC
Connectors 1/2" (13mm) quick connectors
iP IP21S
Display Type LCD / Uni-Command
Knob Large size - Soft touch
Generators Connectable to generators (8.5 KW - 220V)
Extensions (Output) Up to 10m - AWG8
Extensions (Input) Up to 10m - AWG2
Control Hyper Arc
Weight 6 Kg
Dimensions 380 x 305 x 160 mm
259387

Data sheet

Current
Single-phase
Typology Welder
MMA / TIG
Panel
digital
No-load voltage
70 V
Service 40ºC
50 %
Regulating range
10 - 220 A
Usable electrodes
4 - 5 mm
TIG type
TIG lift
✔️
Aluminum welding
Weight
6 Kg

Specific References

EAN-13
7503034302025
