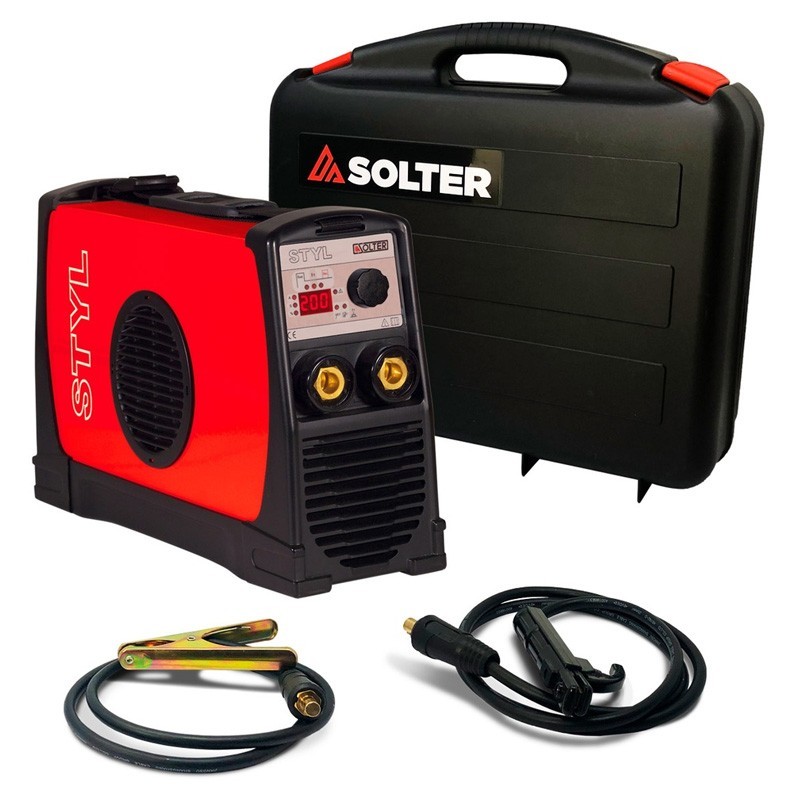

Inverter welding machine Solter STYL 205 PRO direct current
Inverter welding machine Solter STYL 205 PRO direct current

Inverter welding machine Solter STYL 205 PRO direct current

Rating:
(0)
  • Regulating range : 10-200 A (20.4 - 28 V)
  • Intensity at : 60% (100%) at 40ºC200 A (140 A)
  • Maximum current : 200 A
En stock
icon Current
Current
Single-phase
icon Typology Welder
Typology Welder
MMA / TIG
icon Panel
Panel
digital
icon No-load voltage
No-load voltage
80 V
icon Service 40ºC
Service 40ºC
60 %
icon Regulating range
Regulating range
10 - 200 A
icon Usable electrodes
Usable electrodes
1.6 - 4 mm
icon TIG type
TIG type
TIG lift
icon Weight
Weight
7.5 Kg
€472.17 excl. VAT
- 4%
€453.28 excl. VAT
€548.47 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Inverter welding machine Solter STYL 205 PRO direct current
€548.47
Qty

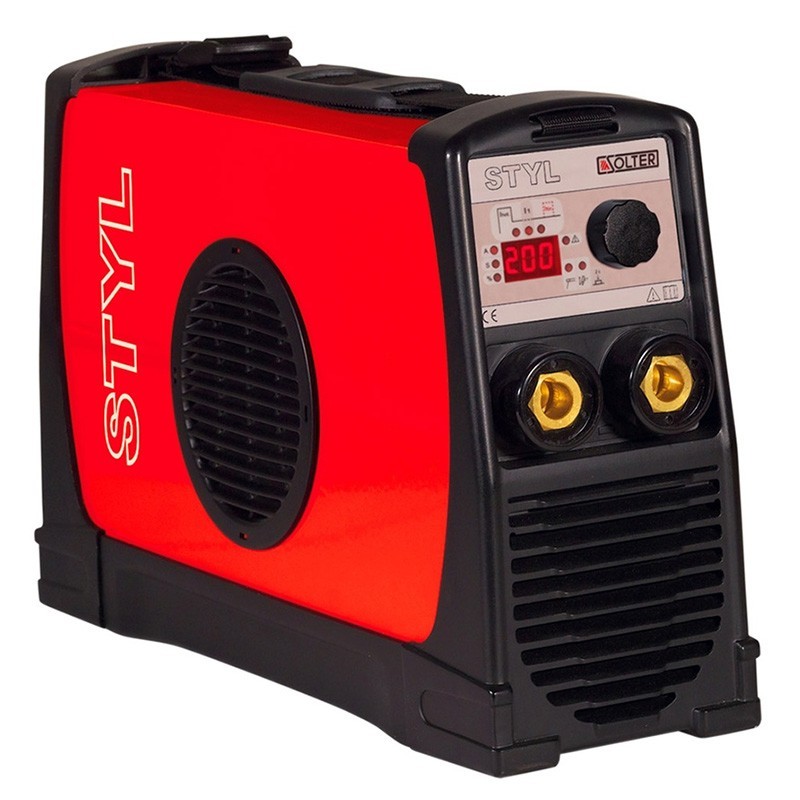

Inverter welding machine Solter STYL 205 PRO

The inverter welder Solter STYL 205 PRO is an ideal tool for industrial maintenance and repair, standing out for its versatility and ease of use.

Thanks to the Inverter technology, this machine provides DC direct current, which facilitates the welding of various types of coated electrodes and the execution of TIG work on carbon and stainless steels.

With a maximum power output of 200 amps and a low weight of only 7.5 kg, the STYL 205 PRO combines performance and portability.

In addition, its high energy efficiency ensures minimum consumption, making it suitable for use with generators operating over a wide range of voltages.

Equipped with advanced features such as Anti-Stick, Arc-Force, Hot-Start and TIG Lift-Arc, this welder offers an optimized and safe welding experience.

Features

Regulating range 10-200 AT (20.4 - 28 V)
Current at 60% (100%) at 40°C (104°F) 200 A (140 A)
Maximum current 200 A
Efficiency 40ºC 60 %
Usable electrodes MMA 1,6 - 4,0 mm
Usable electrodes TIG 1.0 - 3.2 mm
Connection 230 V - 1 Ph
Fuse 16 A
Leff 29 A
Maximum absorbed power 9.5 KVA
No load voltage 80 V
Imax 29 A
Operating range 180 V - 280 V
Imax 38 A
Protection rating IP23C
Control panel SOLTER DIGITAL
Ventilation DOUBLE
Weight 7,5 Kg
Dimensions 390 x 120 x 245 mm
Technologies
  • TIG Lift
  • Hot Start
  • Digital
  • Arc Force
Standards EN-60974-1. EN-60974-10
260884

Data sheet

Current
Single-phase
Typology Welder
MMA / TIG
Panel
digital
No-load voltage
80 V
Service 40ºC
60 %
Regulating range
10 - 200 A
Usable electrodes
1.6 - 4 mm
TIG type
TIG lift
Weight
7.5 Kg

Specific References

MPN
4110
New
