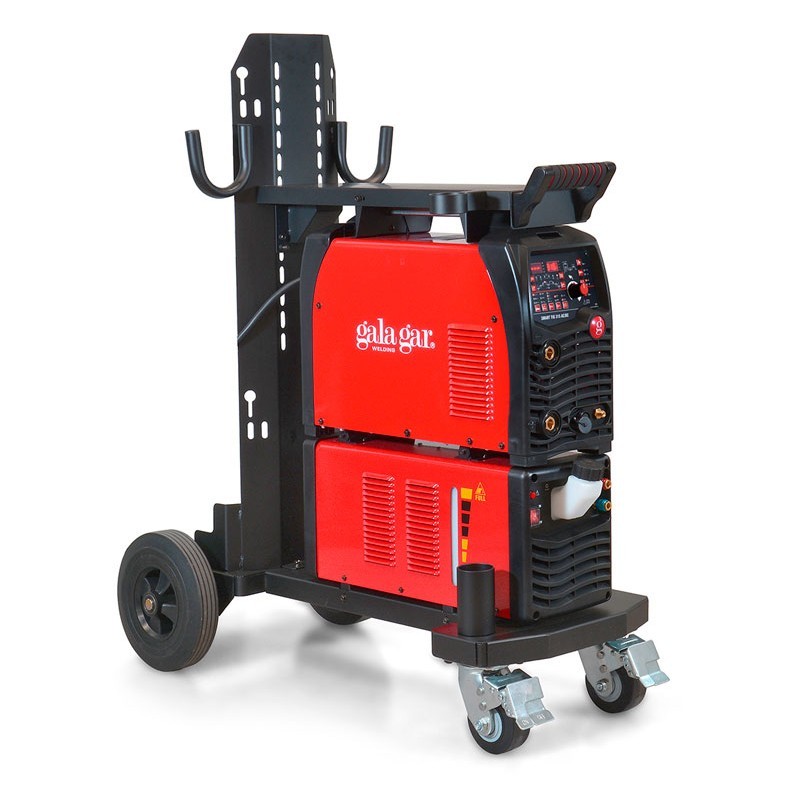

Inverter welder Gala gar Smart 315 TIG Pulse AC/DC 315 A

Rating:
(0)
  • Current : Three phase
  • Welder Type : Tig / MMa
  • Weight : 25,5 Kg
  • Service 40ºC : 30 %
  • Regulation range : 10 - 315 A
En stock
icon Current
Current
Single-phase
icon Typology Welder
Typology Welder
MMA / TIG
icon Panel
Panel
digital
icon No-load voltage
No-load voltage
73 V
icon Service 40ºC
Service 40ºC
30 %
icon Regulating range
Regulating range
10 - 315 A
icon Usable electrodes
Usable electrodes
1.6 - 6 mm
icon TIG type
TIG type
High frequency TIG
icon ✔️
✔️
Water-cooled
icon ✔️
✔️
Aluminum welding
icon Weight
Weight
25.5 Kg
€3,512.31 excl. VAT
- 4%
€3,371.82 excl. VAT
€4,079.90 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Inverter welder Gala gar Smart 315 TIG Pulse AC/DC 315 A
€4,079.90
Qty

Inverter welder Gala gar Smart 315 TIG Pulse AC/DC

The Gala Gar Smart 315 TIG Pulse AC/DC inverter welder with its HF DC TIG and lift arc priming system, as well as welding in various processes such as AC TIG for aluminum and MMA stick welding, provides exceptional flexibility for multiple welding applications.

It stands out for its full controllability of cycle, ramp and cycle times, which allows for extraordinary precision in the work. In addition, its storage of up to 50 data sets in memory for custom programs makes it an ideal tool for specific projects.

With features such as digital control, AC multi-wave options, AC variable frequency and VRD function, it offers complete and advanced control to suit the most demanding welding needs.

In addition, its low level of electromagnetic pollution and intelligent fan and cooler control ensure an optimal working environment while guaranteeing excellent results in every weld.

Accessories

  • Power source.
  • Cooling system.
  • Transport trolley.
  • Foot control (5m).
  • Ground socket (35mm², 3m, 35/50).
  • Refrigerated torch connector set.

Technical data

Supply voltage (50/60 Hz) 1 Ph 230V ± 10 %
Maximum effective current 12 A
Maximum absorbed current 19 A
Maximum effective power 8.3 Kva
Maximum Absorbed Power 13.2Kva
TIG regulation range 10 - 315 A
MMA regulation range 10-270 A
No load voltage 73 (12.4V -VRD)
Duty cycle factor 40ºC TIG 315 A / 30%
220 A / 60%
170 A / 100%
Duty factor 40ºC MMA 270 A / 30%
180 A / 60%
170 A / 100%
Weight 25,5 Kg
Dimensions 566 x 224 x 405 mm

Interesting links

259437

Data sheet

Current
Single-phase
Typology Welder
MMA / TIG
Panel
digital
No-load voltage
73 V
Service 40ºC
30 %
Regulating range
10 - 315 A
Usable electrodes
1.6 - 6 mm
TIG type
High frequency TIG
✔️
Aluminum welding
Water-cooled
Weight
25.5 Kg

Specific References

MPN
22300315ACDCKIT
New
