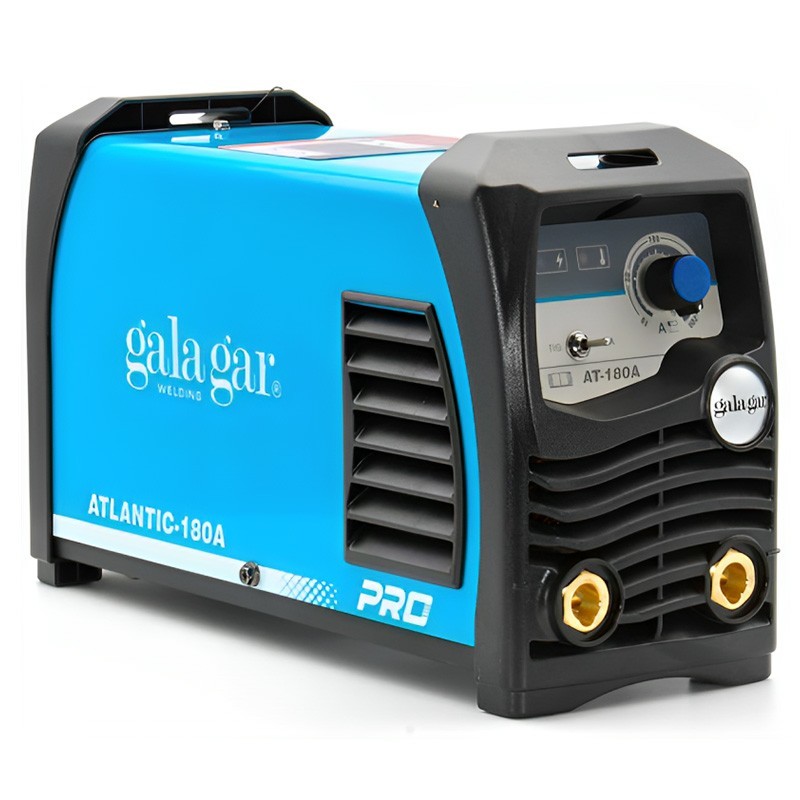

Inverter welder Gala gar Atlantic 180 MMA 65 V


  • Current : Single phase
  • Type of Welder : MMA / TIG
  • Weight : 4.7 Kg
  • No load voltage : 63 V
  • Service 40ºC : 35 %
  • Regulation range : 10 - 180 A
  • TIG type : TIG lift
En stock
icon Current
Current
Single-phase
icon Typology Welder
Typology Welder
MMA / TIG
icon No-load voltage
No-load voltage
63 V
icon Service 40ºC
Service 40ºC
35 %
icon Regulating range
Regulating range
10 - 180 A
icon Usable electrodes
Usable electrodes
1 - 4 mm
icon TIG type
TIG type
TIG lift
icon Weight
Weight
4.7 Kg
€286.14 excl. VAT
- 4%
€274.69 excl. VAT
€332.38 VAT incl.
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Inverter welder Gala gar Atlantic 180 MMA 65 V
€332.38
Qty

Inverter welder Gala gar Atlantic 180 MMA 65 V

The Gala gar Atlantic 180 MMA inverter welder with high-performance MMA welding capability features a lightweight design and compact dimensions that make it highly portable without compromising power.

With the ability to handle electrodes up to 4 mm in diameter, this welder offers versatility in a variety of applications, from metalworking to maintenance and repair tasks.

In addition, advanced features such as Hot Start, Arc Force and Antisticking ensure precise, quality welding. The ability to TIG DC weld with Lift-Arc priming extends its usefulness for more specialized jobs.

Its 35/50 mm welding connectors guarantee a solid and stable connection, providing a reliable and efficient welding experience. With support for a wide range of electrodes, from rutile to stainless and specialty, this welder adapts to a variety of industrial and professional needs.

Accessories

  • Grounding cable.
  • Electrode holder clamp.

Technical data sheet

Supply voltage (U1-I 50/60 Hz) 1Ph 230V ± 10%
Effective power (S1max eff) 8 KVA
Vacuum voltage (U2o) 65 V
Continuous regulation range MMA (I2min - I2max) 10 - 180 A
Maximum coated electrode diameter 4.0 mm
Duty cycle factor (I2 max ; tc=5' ; Tamb=40ºC) 180 A / 35%
Degree of mechanical protection IP IP 21
Thermal protection degree F (155 ºC)
Weight 4,7 Kg
Dimensions 206 x 130 x 313 mm

Interesting links

259426

Data sheet

Current
Single-phase
Typology Welder
MMA / TIG
No-load voltage
63 V
Service 40ºC
35 %
Regulating range
10 - 180 A
Usable electrodes
1 - 4 mm
TIG type
TIG lift
Weight
4.7 Kg

Specific References

MPN
22290180AC
