Inverter Welder Gala gar Smart 160 PFC 160 A

Rating:
(0)
  • Current : Single phase
  • Type of Welder : MMA / TIG
  • Weight : 6,4 Kg
  • No load voltage : 68 V
  • Service 40ºC : 35 %
  • Regulation range : 10 - 160 A
  • TIG type : TIG lift
En stock
icon Current
Current
Single-phase
icon Typology Welder
Typology Welder
MMA / TIG
icon Panel
Panel
digital
icon No-load voltage
No-load voltage
68 V
icon Service 40ºC
Service 40ºC
35 %
icon Regulating range
Regulating range
10 - 160 A
icon Usable electrodes
Usable electrodes
1 - 4 mm
icon TIG type
TIG type
TIG lift
icon Weight
Weight
6.4 Kg
€511.98 excl. VAT
- 4%
€491.50 excl. VAT
€594.71 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Inverter Welder Gala gar Smart 160 PFC 160 A
€594.71
Qty

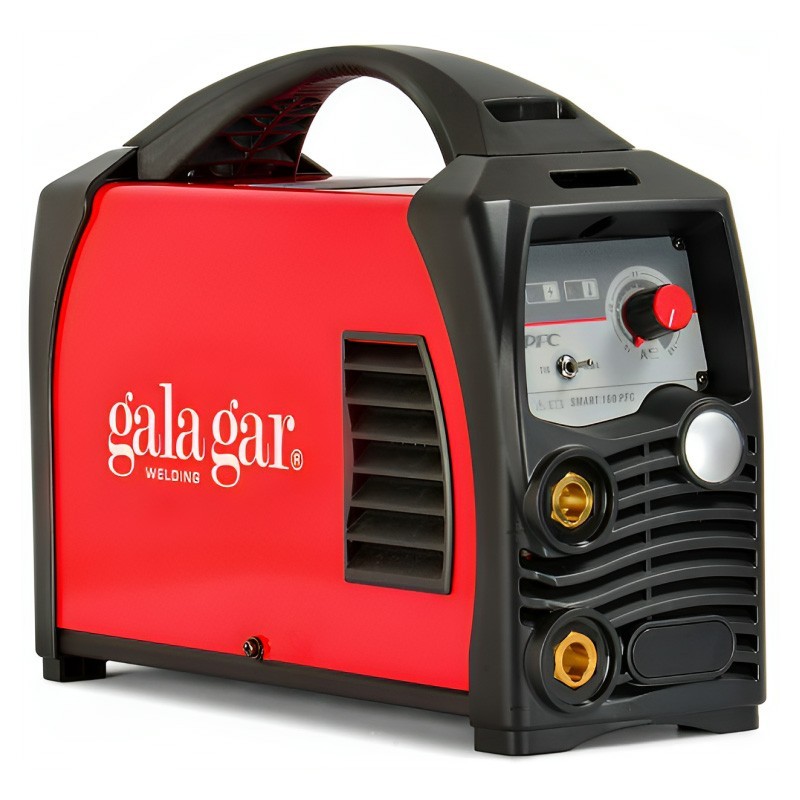

Inverter welder Gala gar Smart 160 PFC 160 A

The Gala Gar Smart 160 PFC inverter welder is a versatile and efficient equipment designed for multiple applications in metal carpentry, boilermaking, maintenance, repairs and agriculture.

Thanks to its PFC (Power Factor Correction) technology, it offers up to 30% lower power consumption, which makes it friendly with domestic networks and allows its use with extension cords up to 50 meters without experiencing voltage drops.

With impressive energy efficiency, this welder operates over a wide supply voltage range of 184 V to 276 V, ensuring stable performance in a variety of environments.

Its ability to weld electrodes up to 3.25-4.0 mm in diameter, along with advanced features such as Hot Start, Arc Force and Antisticking, make it a powerful and precise tool for MMA and TIG DC Lift welding.

In addition, its versatility extends to welding various types of electrodes, from rutile and basic to stainless and special, ensuring optimum adaptability to different types of work and materials.

Accessories

  • Grounding cable.
  • Electrode holder clamp.

Technical data sheet

Supply voltage (50/60 Hz) 1Ph 230 V ± 10%
Maximum primary current 22 A
Effective primary current 14 A
Vacuum voltage MMA 68 V
Vacuum voltage TIG 9 V
Regulation range 10 A ÷ 160 A
MMA duty cycle factor 40ºC 160 A / 35 %
TIG duty cycle factor 40ºC 160 A / 35 %
Maximum power absorbed 8 Kva
No load voltage 68 V
TIG arc welding Lift Arc
Degree of mechanical protection IP IP 21S
Thermal insulation grade. F
Weight 6,4 Kg
Dimensions 135 x 277 x 365 mm

Interesting links

259430

Data sheet

Current
Single-phase
Typology Welder
MMA / TIG
Panel
digital
No-load voltage
68 V
Service 40ºC
35 %
Regulating range
10 - 160 A
Usable electrodes
1 - 4 mm
TIG type
TIG lift
Weight
6.4 Kg

Specific References

MPN
22300160PFC
