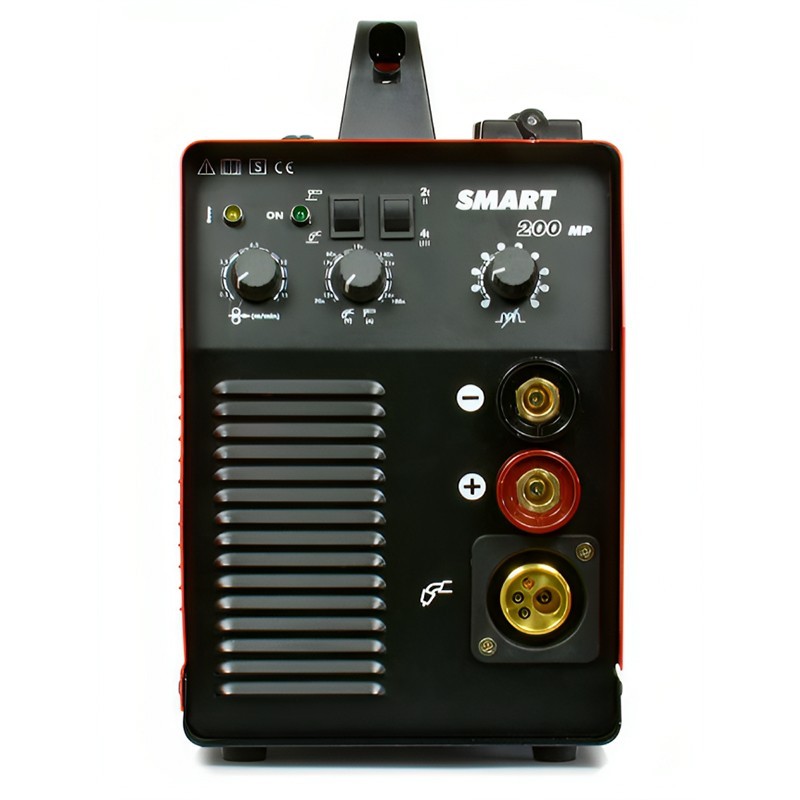

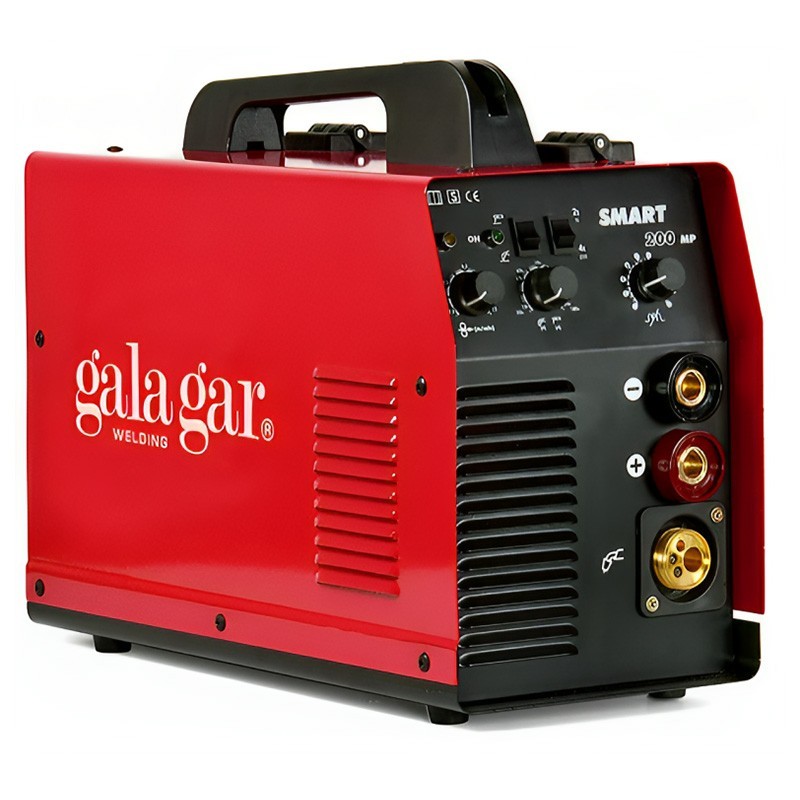

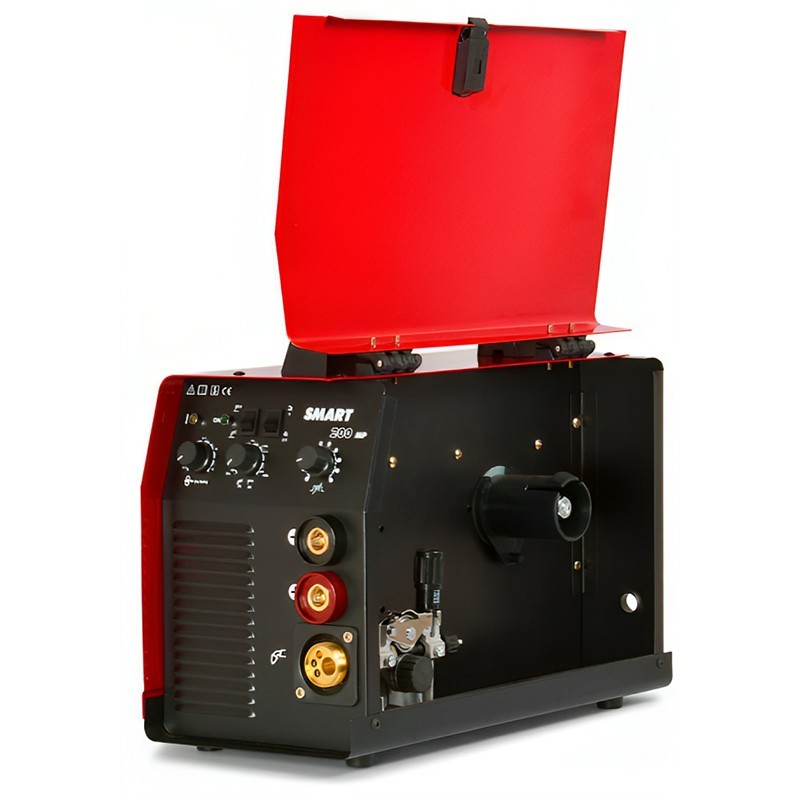

Inverter Welder Gala gar Smart 200 MP Multiprocess
Inverter Welder Gala gar Smart 200 MP Multiprocess
Inverter Welder Gala gar Smart 200 MP Multiprocess
Inverter Welder Gala gar Smart 200 MP Multiprocess

Inverter Welder Gala gar Smart 200 MP Multiprocess

Rating:
(0)
  • Current : Single phase
  • Soldering iron type : Multiprocess
  • Weight : 9,8 Kg
  • Service 40ºC : 35 %
  • Regulation range : 25 - 200 A
En stock
icon Current
Current
Single-phase
icon Typology Welder
Typology Welder
Multiprocess
icon Service 40ºC
Service 40ºC
35 %
icon Regulating range
Regulating range
25 - 200 A
icon Usable electrodes
Usable electrodes
Max. 3.25 mm
icon ✔️
✔️
Aluminum welding
icon Weight
Weight
9.8 Kg
€853.84 excl. VAT
- 4%
€819.69 excl. VAT
€991.82 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Inverter Welder Gala gar Smart 200 MP Multiprocess
€991.82
Qty

Inverter Welder Gala gar Smart 200 MP

he Gala Gar Smart 200 MP Inverter Welder is a versatile tool that covers a wide range of processes and materials, offering flexibility and efficiency in various applications.

With the ability to perform processes such as MIG/MAG, gasless tubular, MMA and TIG DC Lift, it gives users the freedom to work with different techniques according to the needs of the project.

Its compatibility with materials such as steel, carbon, stainless and aluminum makes it ideal for environments where welding is required on a variety of substrates.

In addition, its ability to work with different types of electrodes, such as rutile, basic and stainless, further extends its versatility, providing precise and tailored options for various welding conditions and specific welding requirements.

Accessories

  • Grounding cable.
  • Electrode holder clamp.

Technical data sheet

Input voltage U1(1Ph.- 60hz) 230 V± 10 %
Maximum effective current 25 A
Maximum power consumption 9.2 KVA
Welding voltage regulation 15 ÷ 24 V
MIG/MAG regulation range 25 ÷ 200 A
Maximum MIG/MAG process intensity 200 A / 35 %
Applicable wire Ø 0.8 -1.0 mm
Wire speed 1.5 ÷ 16 m/min
Bobbins of yarn 5 kg
Bobbins of wire with adapter 15 Kg
MMA/TIG regulation range 20 ÷ 180 A (35%)
Mechanical protection index IP 21
Ventilation Forced
Weight 9.8 Kg
Dimensions 280 x 570 x 460 mm

Interesting links

259432

Data sheet

Current
Single-phase
Typology Welder
Multiprocess
Service 40ºC
35 %
Regulating range
25 - 200 A
Usable electrodes
Max. 3.25 mm
✔️
Aluminum welding
Weight
9.8 Kg

Specific References

MPN
22300200MP
New
