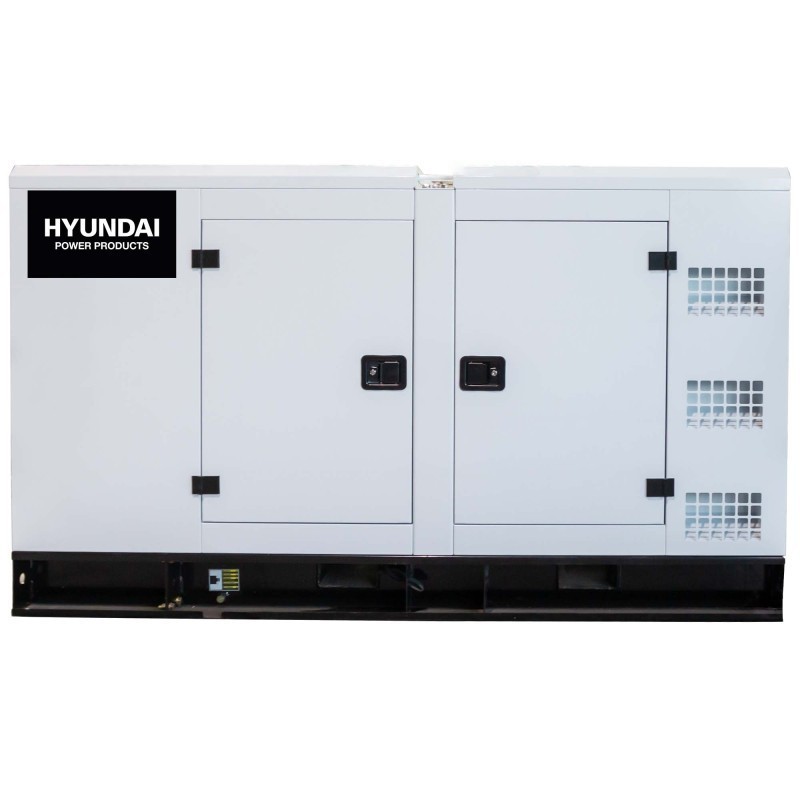

The DHY66KSE 66KVA Soundproof Generator Set Hyundai is a robust and efficient solution for reliably providing power in a variety of applications. With a power rating of 60 KVA / 48 kW and an emergency power of up to 66 KVA, this generator offers outstanding performance even under demanding conditions. Its 4-cylinder, 4,200 cc engine Hyundai HYDX23-78D is ideal for ensuring stable and durable operation.
This generator features an advanced monitoring system that provides detailed readings on engine operation, such as cooling temperature, oil pressure and fuel level. In addition, its AVR regulator ensures stable voltage, while multiple alarm sensors alert to potential faults, such as low oil pressure or elevated temperature, enhancing safety and preventive maintenance.
The soundproof design of this model, with a sound level of 66 dBA at 75% load, makes it suitable for environments where noise must be minimized. Its galvanized and painted steel structure protects against corrosion, while its wide doors facilitate access to the interior for maintenance and refueling from the outside. With an autonomy of 12 hours at 100% load, it is ideal for continuous operations.
| MODEL | DHY66KSE |
| Frequency (Hz) | 50 Hz |
| Rotation Speed (r/min) | 1.500 r/min |
| Power Factor | 0,8 |
| Rated Power (KVA/KW) | 60 KVA / 48 kW |
| Emergency Power (KVA) | 66 KVA |
| Rated Current (A) | 86 A |
| Noise Level (7m, 75% load) (dBA) | 66 dBA |
| Autonomy at 100% | 12 h |
| Consumption at 100% load (L/hours) | 14.8 L/h |
| Radiator coolant capacity (L) | 15 L |
| Standard tank capacity (L) | 180 L |
| HYUNDAI engine model | HYDX23-78D |
| Rated power at 1,500 rpm (kW) | 55 kW |
| Number of cylinders | 4 |
| Aspiration | Turbo |
| Oil sump capacity (L) | 11 L |
| Displacement (cc) | 4.200 cc |
| Model | 224E |
| Degree of protection | IP23/H |
| Weight (Kg) | 1.250 kg |
| Dimensions (cm) | 250 x 95 x 150 cm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
| This generating set allows to request, with a surcharge, a tank extension of 500L, 1000L or 1500L through our customer service. |
