Three-phase genset Pramac GBW10P 9.02 kVA
Three-phase genset Pramac GBW10P 9.02 kVA

Three-phase genset Pramac GBW10P 9.02 kVA


  • Engine Make: Perkins
  • Revolutions per minute: 1500RPM
  • Power rating (KVA/kW): 9.02 kVA / 7.22 kW
  • Displacementrated power (KVA/kW): 1131 cc
  • Number of cylinders: 3 in line
En stock
icon Power Supply
Power Supply
Diesel
icon Stabilization
Stabilization
AVR
icon Current
Current
Three-phase
icon Engine
Engine
Perkins
icon Displacement
Displacement
1131 cc
icon Power rating
Power rating
9.02 kVA
icon Maximum power
Maximum power
9.99 kVA
icon Type of winding
Type of winding
Copper
icon Generator Type
Generator Type
Open
icon Generator Type
Generator Type
Soundproofed
icon Panel
Panel
digital
icon Cylinders
Cylinders
3
icon ✔️
✔️
Water-cooled
€5,487.36 excl. VAT
€6,639.71 VAT incl.
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Select
Qty

Request a quote
close

Request a quote


Three-phase genset Pramac GBW10P 9.02 kVA
€6,639.71
Select
Qty

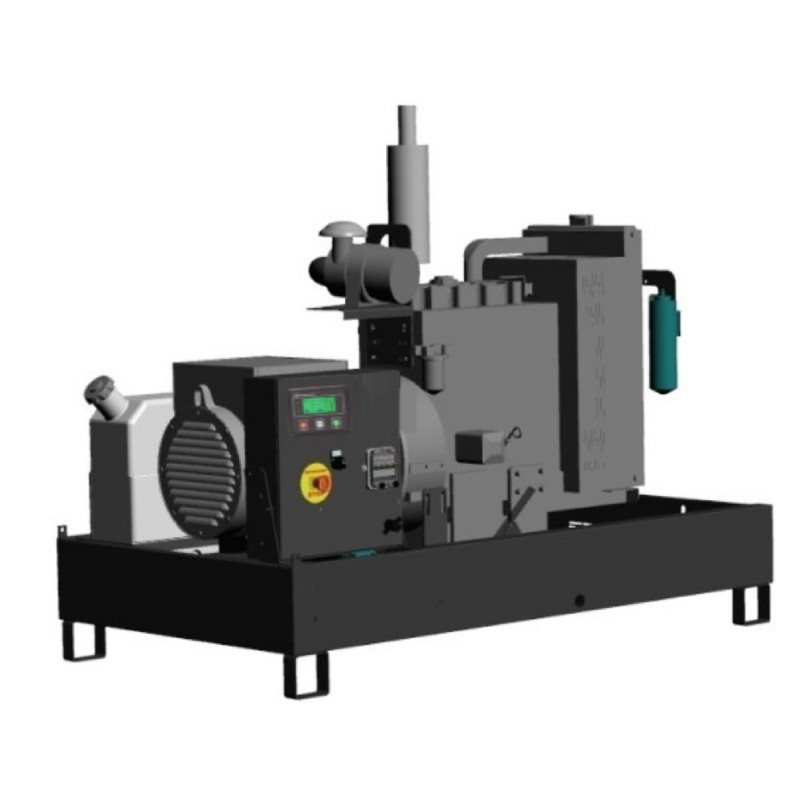

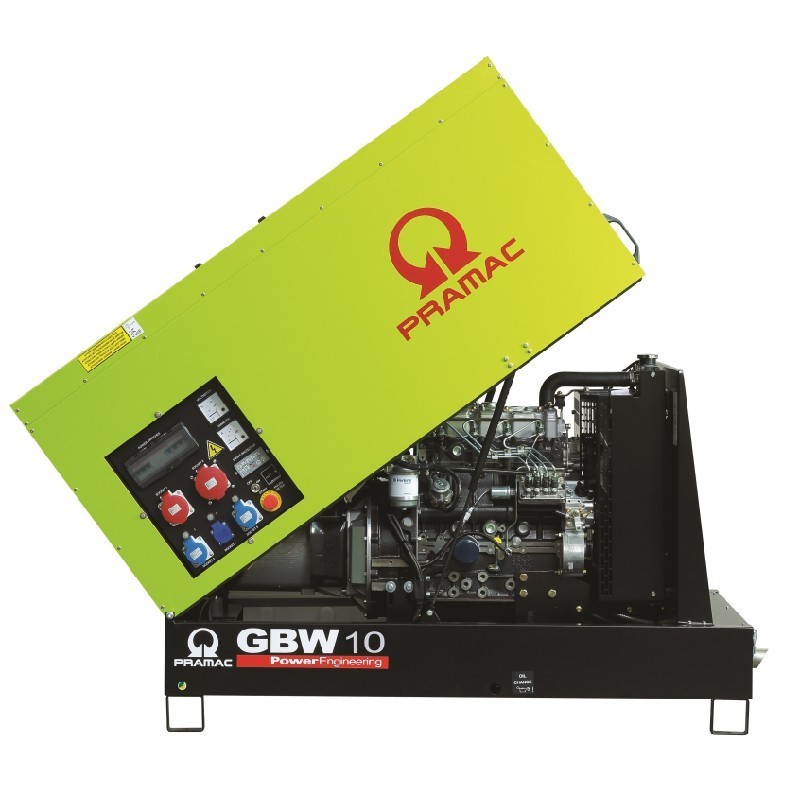

Generating set Pramac GBW10P

This GBW10P generator set is a compact and efficient solution for three-phase applications that require reliability and low consumption. It operates at 400 V and 50 Hz, delivering a nominal power of 9.02 kVA, ideal for emergencies or prolonged work in industrial or commercial environments.

It is equipped with a Perkins water-cooled, 3-cylinder, naturally aspirated engine, ensuring constant performance. Its electric starting system facilitates fast operation, while its reduced consumption extends autonomy up to almost 26 hours at 75% load.

Thanks to its brushless Mecc Alte alternator, it offers stable voltage with IP 23 protection, ensuring safety and durability. In addition, the soundproof design reduces the sound level to 66 dBA at 7 meters, making the GBW10P a reliable and silent option.

MODEL GBW10P
Frequency 50 Hz
Voltage 400 V
Power factor 0.8 ϕ
Phases 3
Emergency Power (kVA/kW) 9.99 kVA / 7.99 kW
Rated Power (kVA/kW) 9.02 kVA / 7.22 kW
Motor
Engine Make Perkins
Model 403D-11G
Cooling System Water
Number of cylinders 3 in line
Displacement 1131 cm
Intake Natural
Speed regulator Mechanical
Prime gross power 8.6 kW
Maximum power 9.5 kW
Oil capacity 4.9 L
Coolant capacity 5.2 L
Fuel Diesel
Consumption at 75% load 1.99 L/h
Consumption at 100% load 2.58 L/h
Autonomy at 75% load 25.63 h
Autonomy at 100% 19.77 h
Starting system Electric
Starting capacity 1.1 kW
System voltage 12 V
Alternator Specifications
Alternator Mecc Alte
Model ECP3-1L4C
Voltage 400 V
Frequency 50 Hz
Power factor 0.8 ϕ
Poles 4
Type Brushless
Voltage tolerance ±1%
Efficiency at 75% load 86.4%
Class H
Protection IP 23
Sound Level
Guaranteed sound level (LWA) 95 dBA
Sound pressure @ 7 m 66 dBA
Weight and Dimensions
Dimensions Open (cm) 160 x 87 x 87.5
Dry Weight Open 403 Kg
Soundproof Dimensions (cm) 164.5 x 87 x 107.2
Dry weight Insonoro 460 Kg
Tank capacity 51 L
Tank material Plastic
IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending.
The batteries included in some machines are a free gift, so they are exempt from warranty.
