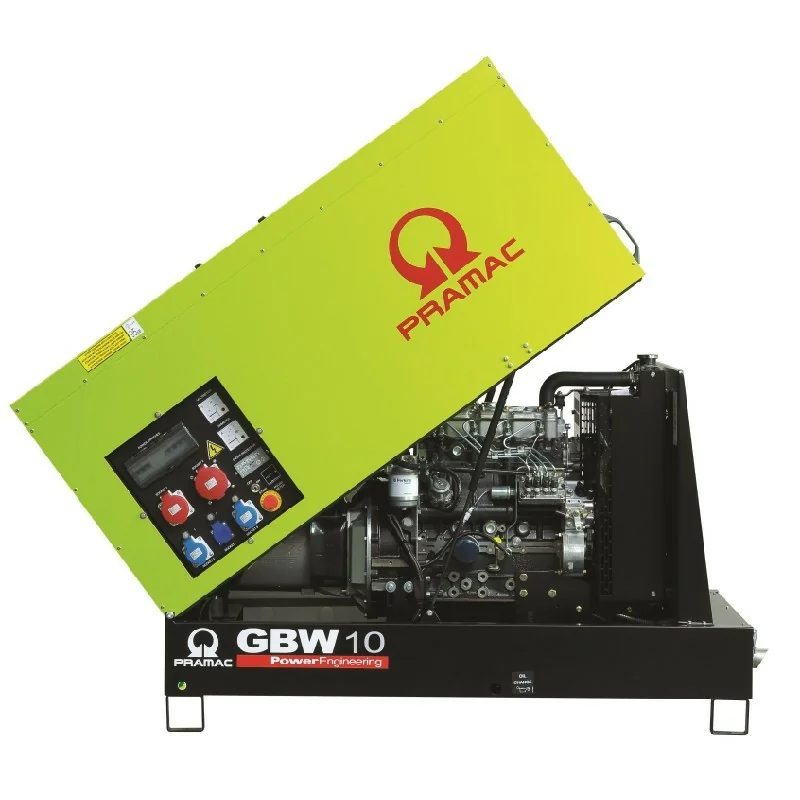

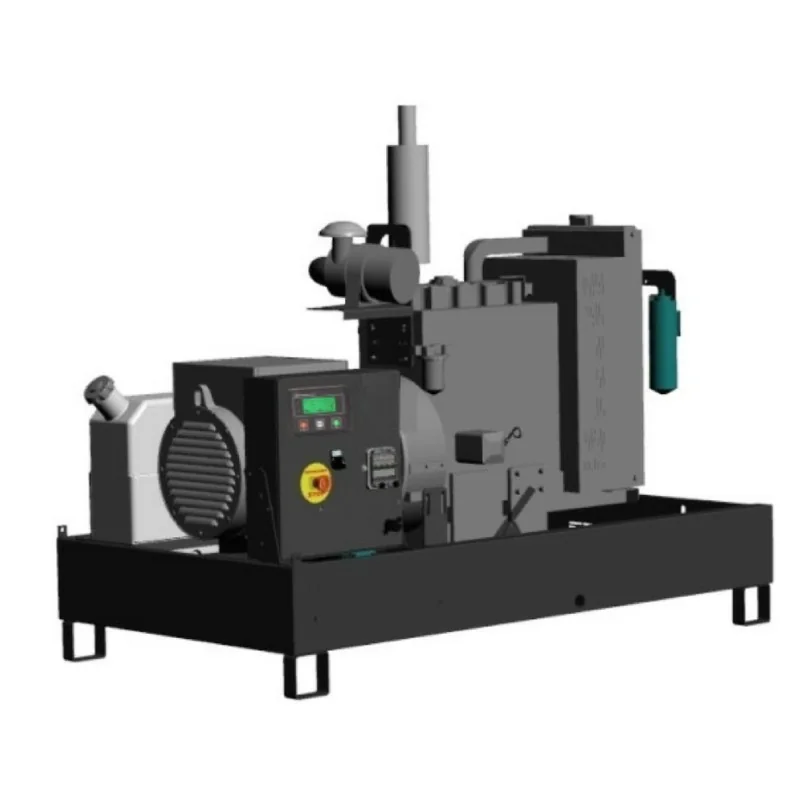

This GBW10P generator set is a compact and efficient solution for three-phase applications that require reliability and low consumption. It operates at 400 V and 50 Hz, delivering a nominal power of 9.02 kVA, ideal for emergencies or prolonged work in industrial or commercial environments.
It is equipped with a Perkins water-cooled, 3-cylinder, naturally aspirated engine, ensuring constant performance. Its electric starting system facilitates fast operation, while its reduced consumption extends autonomy up to almost 26 hours at 75% load.
Thanks to its brushless Mecc Alte alternator, it offers stable voltage with IP 23 protection, ensuring safety and durability. In addition, the soundproof design reduces the sound level to 66 dBA at 7 meters, making the GBW10P a reliable and silent option.
MODEL | GBW10P |
Frequency | 50 Hz |
Voltage | 400 V |
Power factor | 0.8 ϕ |
Phases | 3 |
Emergency Power (kVA/kW) | 9.99 kVA / 7.99 kW |
Rated Power (kVA/kW) | 9.02 kVA / 7.22 kW |
Motor | |
Engine Make | Perkins |
Model | 403D-11G |
Cooling System | Water |
Number of cylinders | 3 in line |
Displacement | 1131 cm |
Intake | Natural |
Speed regulator | Mechanical |
Prime gross power | 8.6 kW |
Maximum power | 9.5 kW |
Oil capacity | 4.9 L |
Coolant capacity | 5.2 L |
Fuel | Diesel |
Consumption at 75% load | 1.99 L/h |
Consumption at 100% load | 2.58 L/h |
Autonomy at 75% load | 25.63 h |
Autonomy at 100% | 19.77 h |
Starting system | Electric |
Starting capacity | 1.1 kW |
System voltage | 12 V |
Alternator Specifications | |
Alternator | Mecc Alte |
Model | ECP3-1L4C |
Voltage | 400 V |
Frequency | 50 Hz |
Power factor | 0.8 ϕ |
Poles | 4 |
Type | Brushless |
Voltage tolerance | ±1% |
Efficiency at 75% load | 86.4% |
Class | H |
Protection | IP 23 |
Sound Level | |
Guaranteed sound level (LWA) | 95 dBA |
Sound pressure @ 7 m | 66 dBA |
Weight and Dimensions | |
Dimensions Open (cm) | 160 x 87 x 87.5 |
Dry Weight Open | 403 Kg |
Soundproof Dimensions (cm) | 164.5 x 87 x 107.2 |
Dry weight Insonoro | 460 Kg |
Tank capacity | 51 L |
Tank material | Plastic |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
The batteries included in some machines are a free gift, so they are exempt from warranty. |
